ASRock

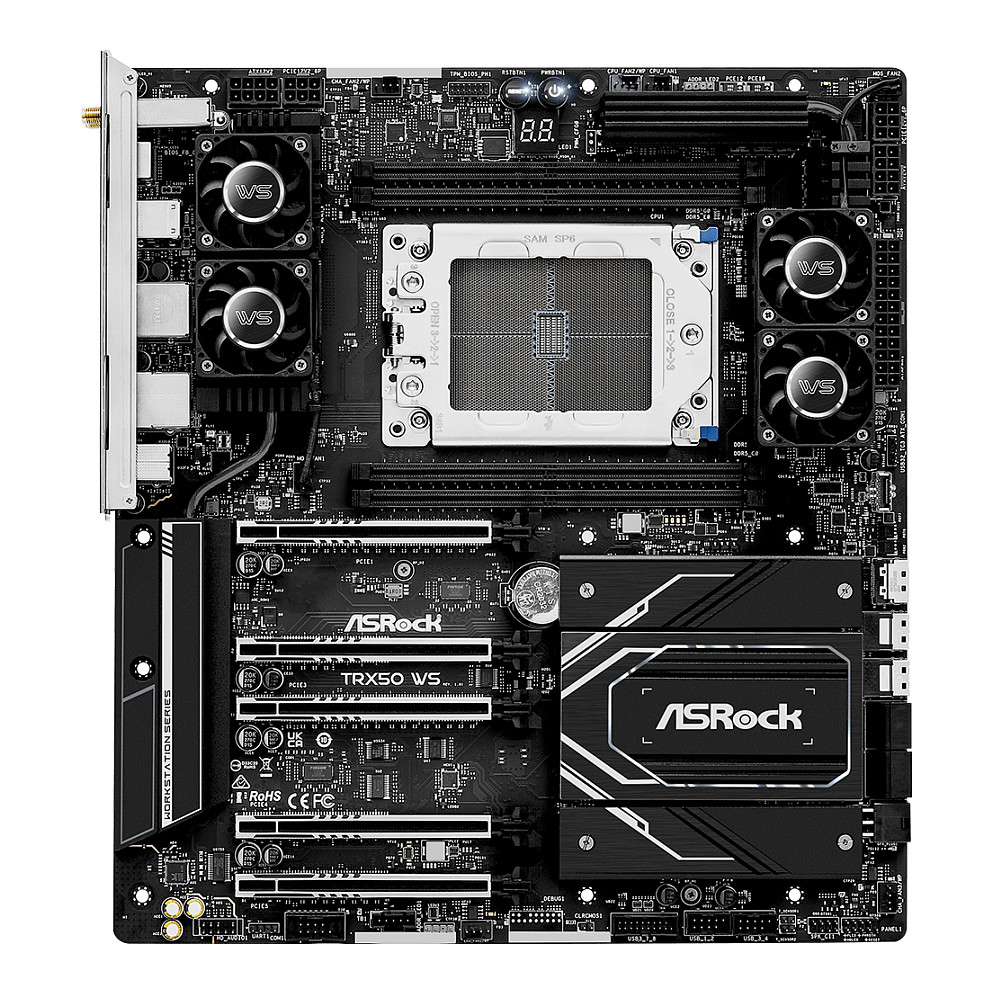

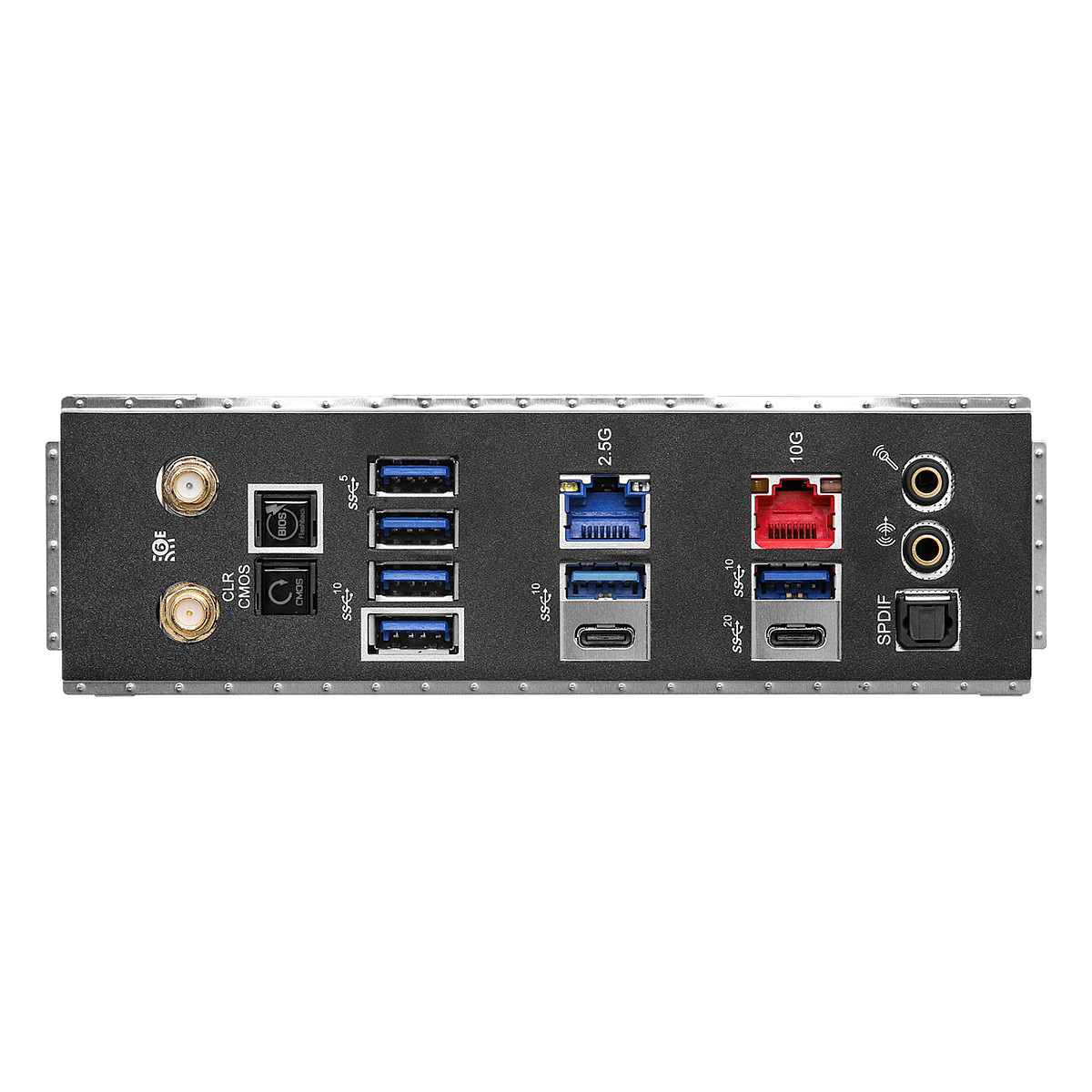

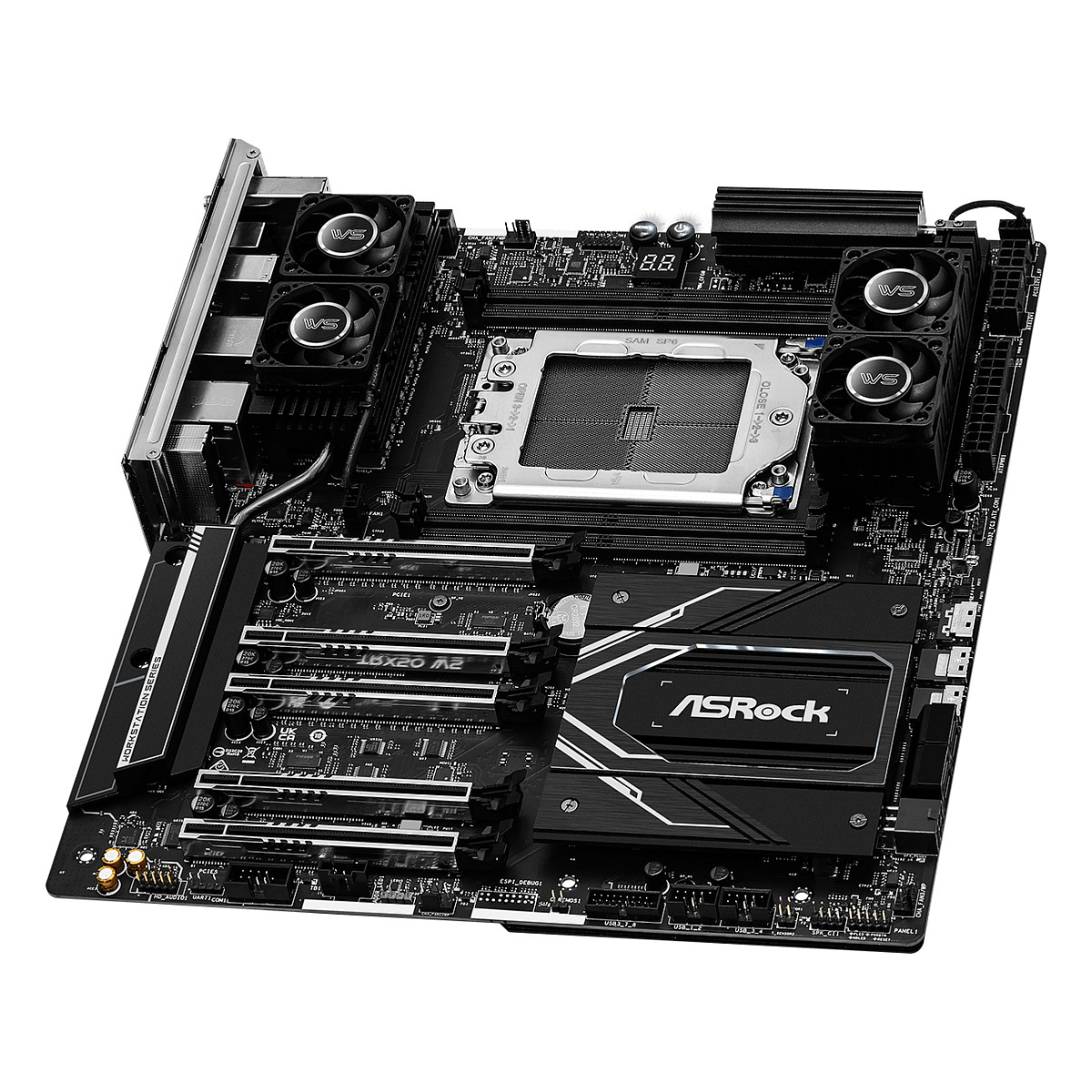

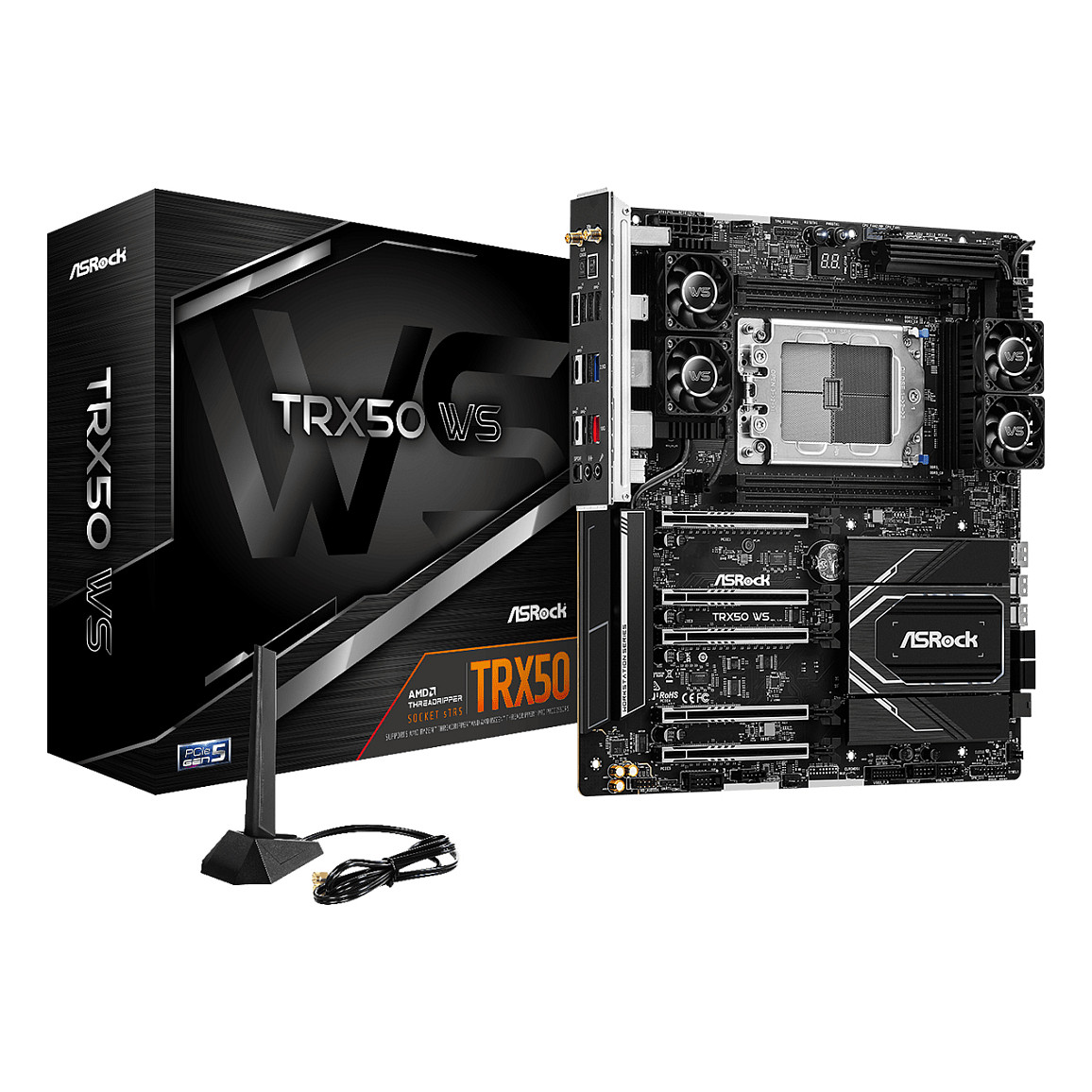

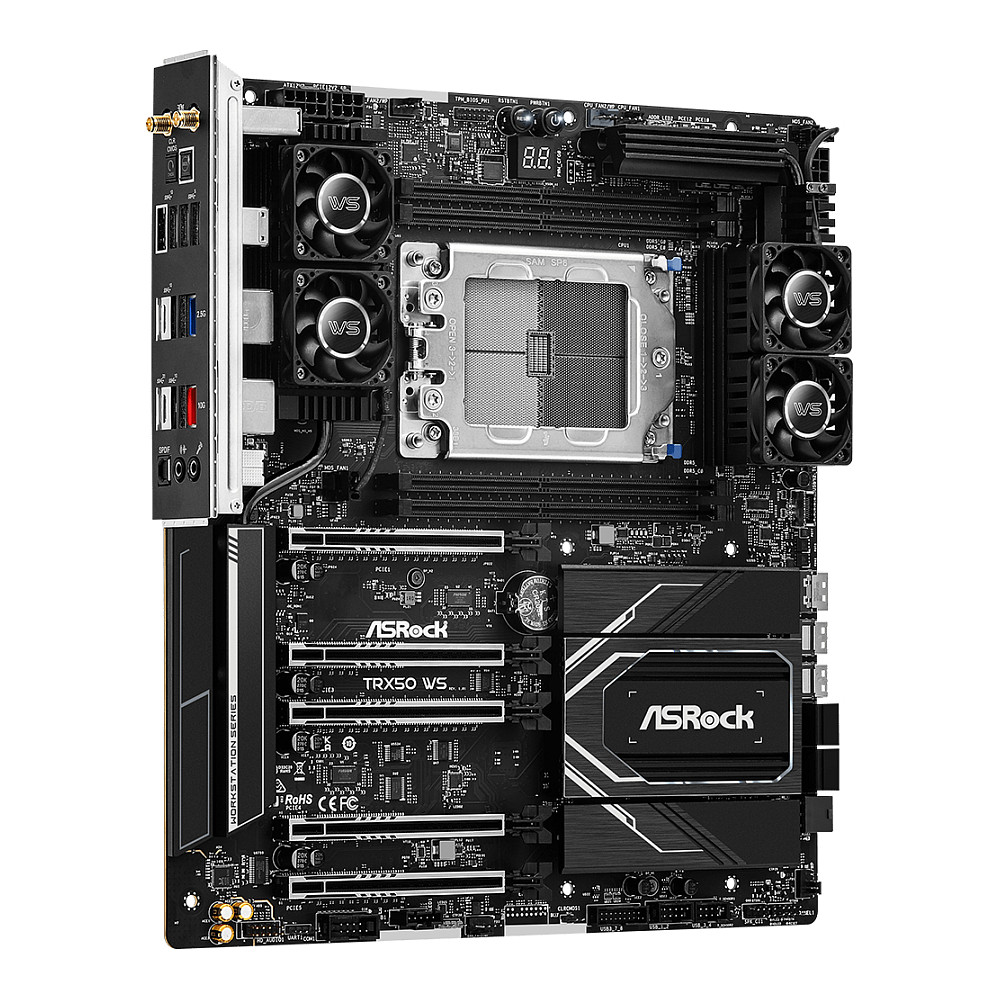

Asrock Motherboard TRX50 WS E-ATX Socket sTR5 Retail
Pre-Order
Usually ready in 3-5 business days
+ €30 Supplier Shipping
€617.99
VAT (19%) included
Description
AMD Socket sTR5 AMD Ryzen Threadripper 1000 Series PC Extended ATX AMD TRX50 Realtek ALC1220 7.1 channels DDR5-SDRAM 4 DIMM Maximum internal memory: 1 TB M.2, PCI Express 4.0, PCI Express 5.0, SATA III RAID support Number of storage drives supported: 6 BIOS type: UEFI AMI 256 Mbit Clear CMOS button 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth 5.2
Technical Specifications
SKU
K90-MXBN40-A0UAYZ
Processor Manufacturer
AMD
Processor Socket
Socket sTR5
Compatible Processor Series
AMD Ryzen Threadripper 1000 Series
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Channels
Quad-channel
Ecc Сompatibility
ECC
Supported Memory Clock Speed (Max)
7600 MHz
Maximum Internal Memory
1 TB
Supported Storage Drive Interfaces
M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Number Of Storage Drives Supported
6
Raid Levels
0, 1, 10
Usb 2.0 Connectors
2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors
1
Number Of Sata Iii Connectors
4
Number Of Chassis Fan Connectors
3
Thunderbolt Headers
1
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
2
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
4
Usb 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity
1
Usb 3.2 Gen 2X2 Type-C Ports Quantity
1
Ethernet Lan (Rj-45) Ports
2
Headphone Outputs
1
Wifi-Ap Antenna Jack
2
Ethernet Interface Type
2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Lan Controller
Dragon RTL8125BG, Marvell AQtion AQC113C
Top Wi-Fi Standard
Wi-Fi 6E (802.11ax)
Wi-Fi Standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Bluetooth Version
5.2
Motherboard Chipset
AMD TRX50
Audio Chip
Realtek ALC1220
Audio Output Channels
7.1 channels
Product Colour
Black
Component For
PC
Motherboard Form Factor
Extended ATX
Motherboard Chipset Family
AMD
Power Source Type
ATX
Windows Operating Systems Supported
Windows 11
Certification
FCC, CE
Pci Express X16 (Gen 4.X) Slots
2
Pci Express X16 (Gen 5.X) Slots
3
Number Of M.2 (M) Slots
2
Bios Type
UEFI AMI
Bios Memory Size
256 Mbit
Width
305 mm
Depth
277 mm
Cables Included
SATA
Bundled Software
Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash
