ASRock

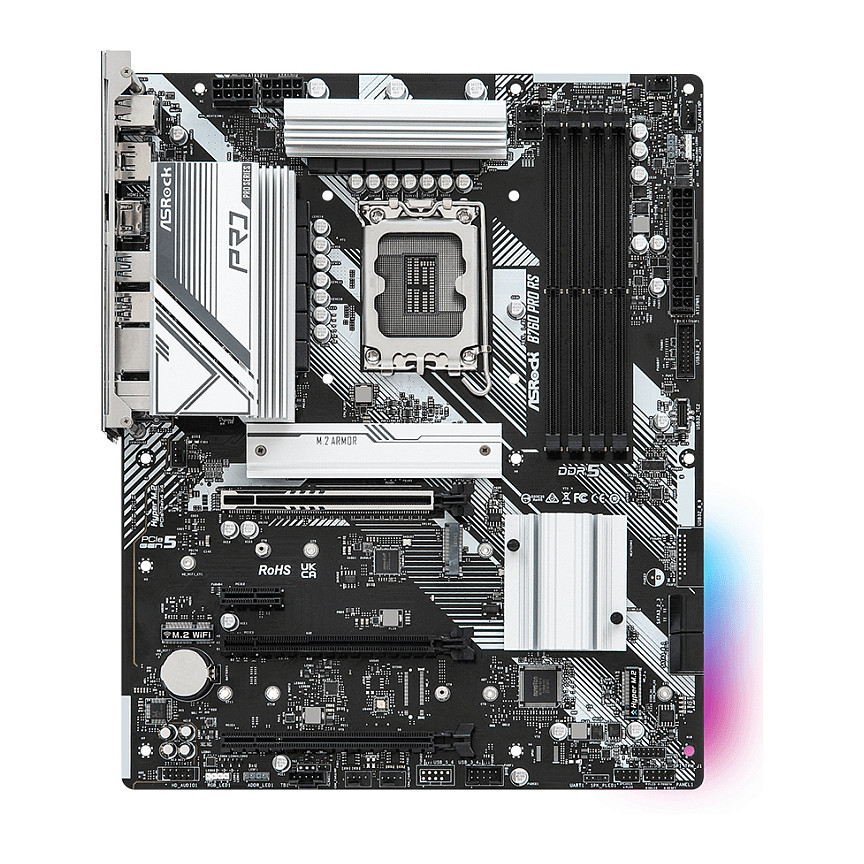

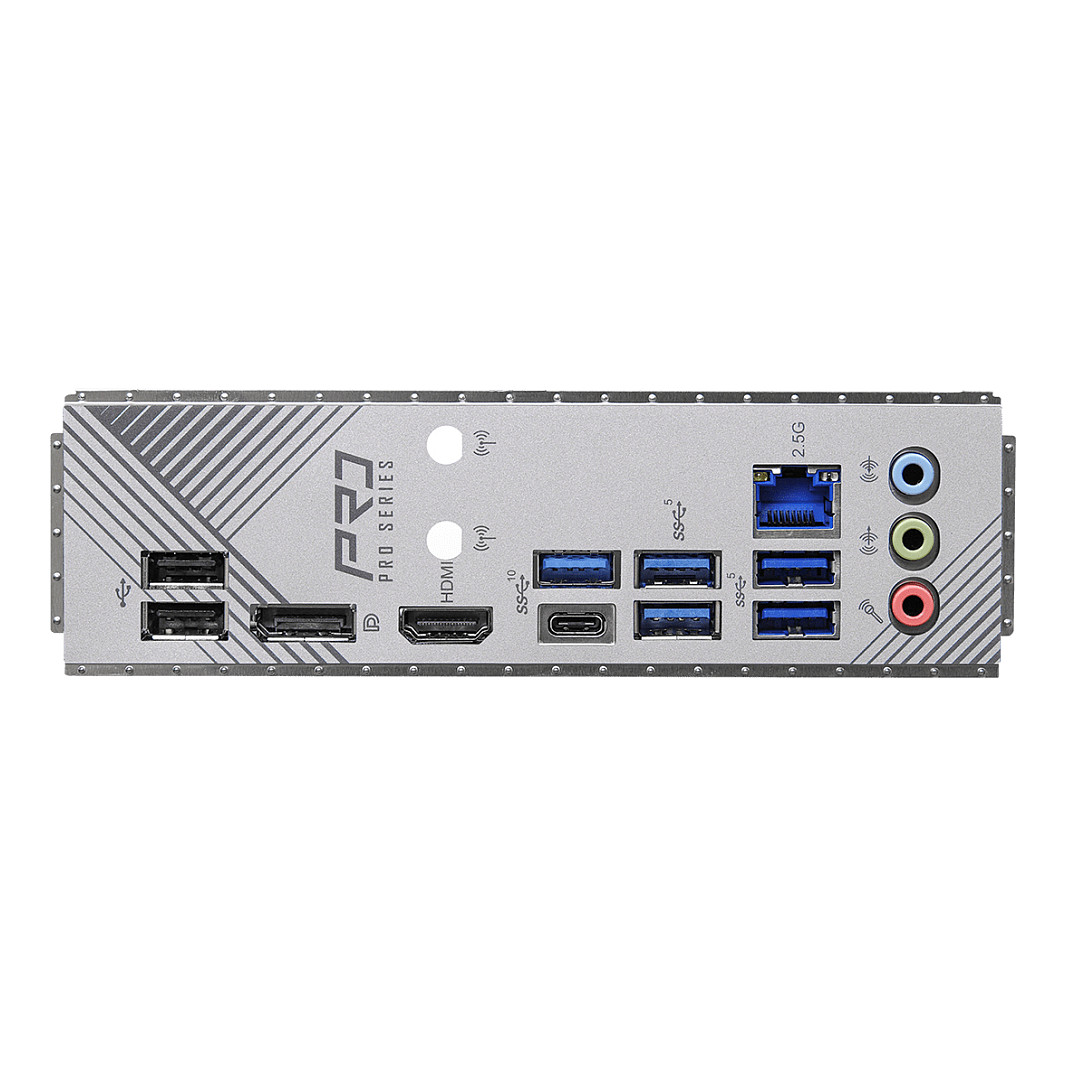

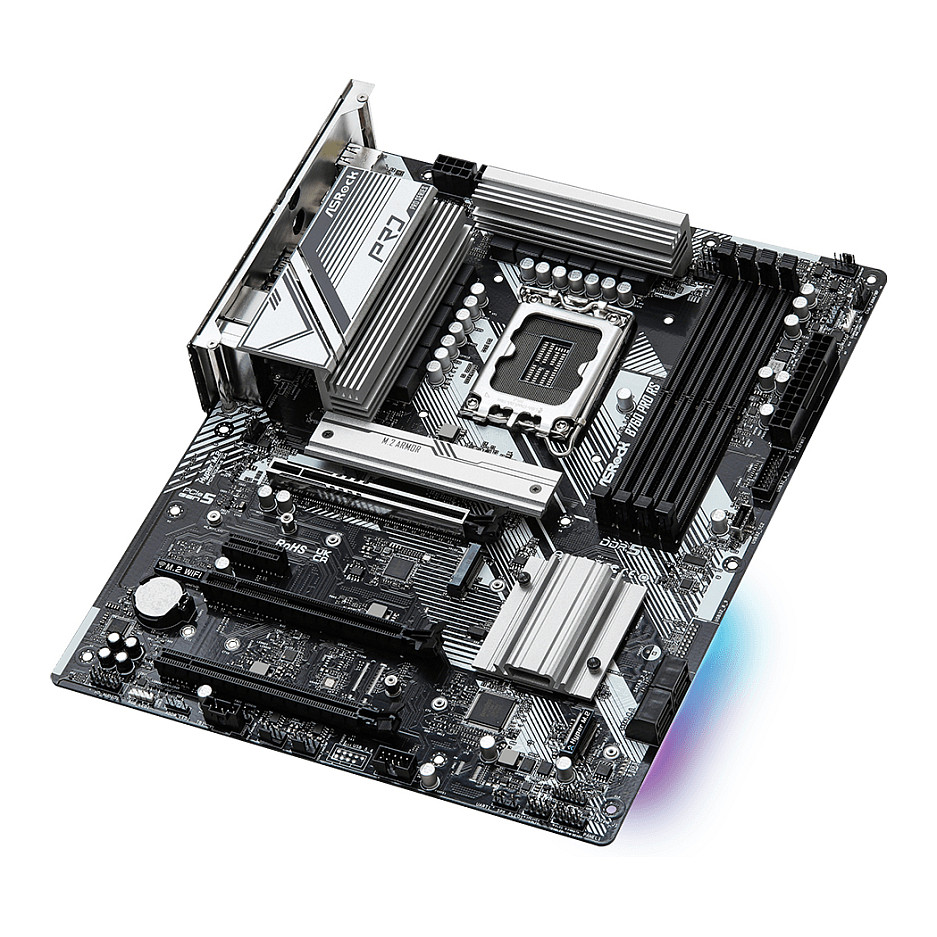

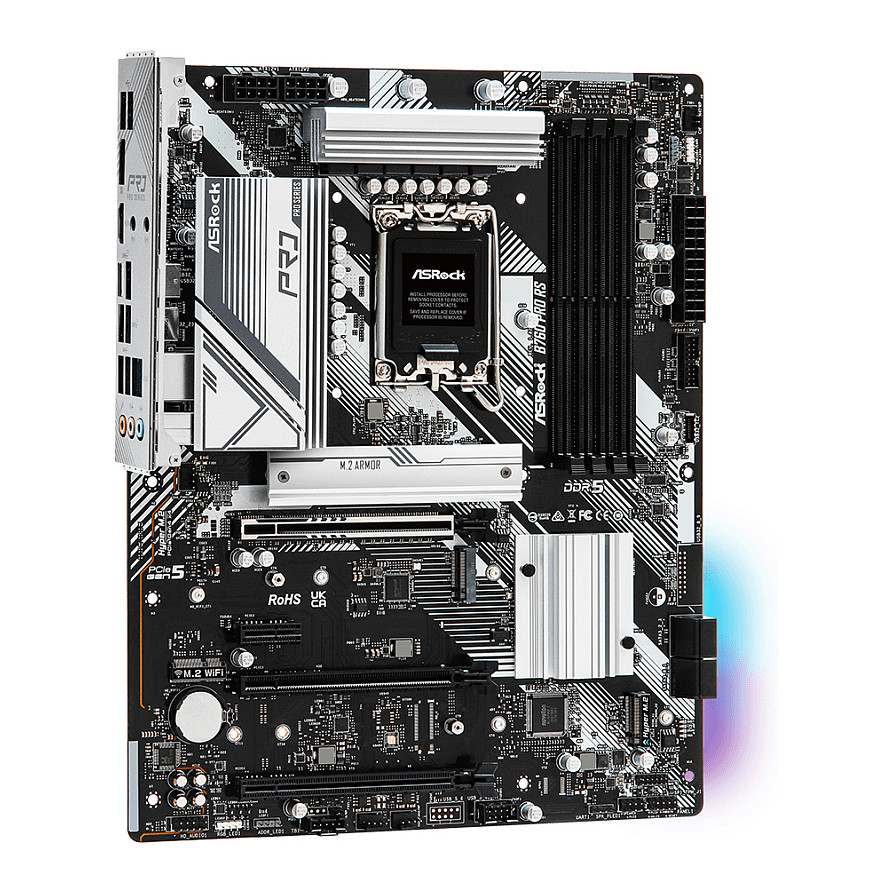

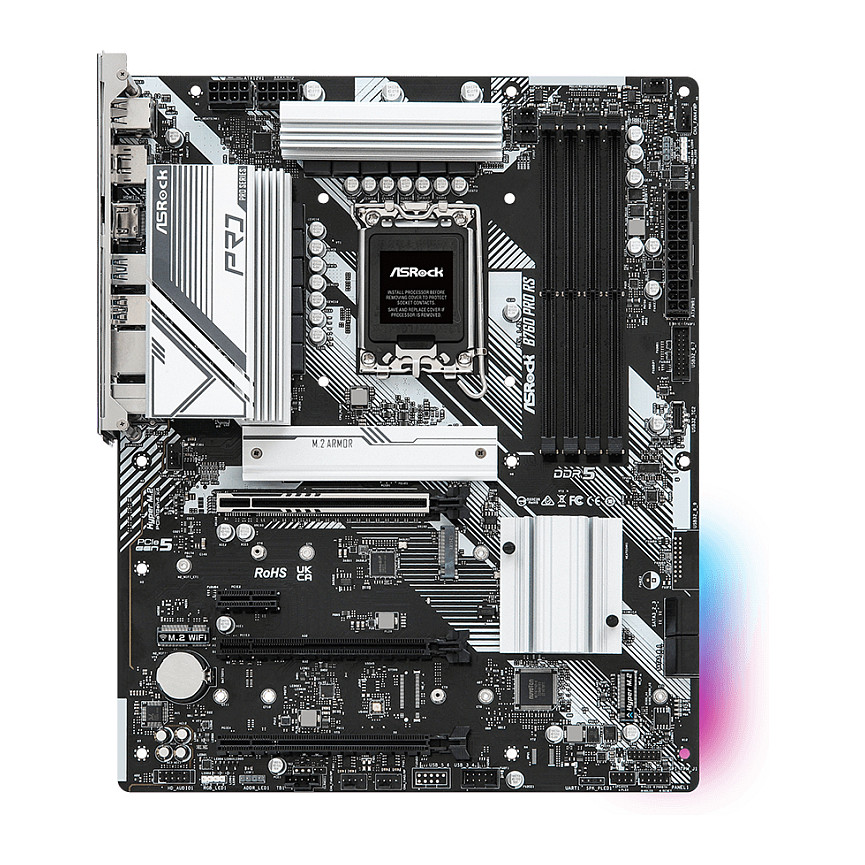

1700 ASRock B760 PRO RS
Pre-Order
Usually ready in 3-5 business days
+ €30 Supplier Shipping
€132.99
VAT (19%) included
Description
Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700) 10+1+1 Power Phase, Dr.MOS for VCore+GT Supports DDR5 7200MHz (OC) 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16 1 PCIe 3.0 x1, 1 M.2 Key E for WiFi Graphics Output Options: HDMI, DisplayPort, eDP Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4) 1 M.2 (PCIe Gen4x2) 2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front) 1 USB 3.2 Gen2 Type-A (Rear) 6 USB 3.2 Gen1 (4 Rear, 2 Front) 4 USB 2.0 (2 Rear, 2 Front) Dragon 2.5G LAN Supports ASRock Auto Driver Installer
Technical Specifications
SKU
K90-MXBKS0-A0UAYZ
Processor Manufacturer
Intel
Processor Socket
LGA 1700
Compatible Processor Series
Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Supported Processor Sockets
LGA 1700
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
Non-ECC
Supported Memory Clock Speeds
3600, 4000, 4400, 4800, 5600, 6000, 7200 MHz
Supported Memory Clock Speed (Max)
7200 MHz
Maximum Internal Memory
128 GB
Supported Storage Drive Types
SSD
Supported Storage Drive Interfaces
M.2, PCI Express 4.0, SATA III
Number Of Hdds Supported
1
Number Of Storage Drives Supported
7
Raid Levels
0, 1, 5, 10
Graphics Card Family
Intel
Number Of Displays Supported
1
On-Board Graphics Card Model
Intel Iris Xe Graphics
Usb 2.0 Connectors
4
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
6
Usb 3.2 Gen 2 (3.1 Gen 2) Connectors
3
Number Of Sata Iii Connectors
4
Thunderbolt Headers
1
Usb 2.0 Ports Quantity
4
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
6
Usb 3.2 Gen 2 (3.1 Gen 2) Type-A Ports Quantity
1
Usb 3.2 Gen 2 (3.1 Gen 2) Type-C Ports Quantity
2
Ethernet Lan (Rj-45) Ports
1
Hdmi Ports Quantity
1
Displayports Quantity
1
Displayport Version
1.4
Wifi-Ap Antenna Jack
2
Ethernet Interface Type
2.5 Gigabit Ethernet
Lan Controller
Realtek RTL8125-BG
Top Wi-Fi Standard
Not available
Motherboard Chipset
Intel B760
Audio Chip
Realtek ALC897
Audio Output Channels
7.1 channels
Component For
PC
Motherboard Form Factor
ATX
Motherboard Chipset Family
Intel
Power Source Type
ATX
Windows Operating Systems Supported
Windows 10 x64, Windows 11 x64
Pci Express X16 (Gen 4.X) Slots
1
Pci Express X16 (Gen 5.X) Slots
1
Number Of M.2 (M) Slots
3
Bios Type
UEFI AMI
Bios Memory Size
128 Mbit
Width
305 mm
Depth
244 mm
Sustainability Certificates
ErP
Compliance Certificates
CE, Federal Communications Commission (FCC)
Processor Socket
LGA1700
