Be Quiet!
TFX 300 BeQuiet! TFX Power 3 300W | 80+ Gold
Pre-Order
Usually ready in 3-5 business days
+ €30 Supplier Shipping
€77.99
VAT (19%) included
Description
80 PLUS® Gold efficiency (up to 91.7%) for lower power consumption Strong dual 12V-rails for high stability and PCIe graphics card support 300W of continuous power High-quality temperature-controlled 80mm fan for low-noise operation of max. 21.7dB(A) Sleeved or flat black cables up to 60cm long Meets the latest safety and efficiency requirements Modern safety protections reliably defend against numerous failures Standby draw less than 0.17 watts Product conception, design and quality control in Germany
Technical Specifications
SKU
KBN323
Total Power
300 W
Peak Power
350 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50 - 60 Hz
Input Current
4/2 A
Maximum Input Current (@110V)
4 A
Maximum Input Current (@220V)
2 A
Power Factor
0.98
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
103 W
Combined Power (+12V)
288 W
Combined Power (+5V)
103 W
Max Output Current (+3.3V)
18 A
Max Output Current (+12V1)
13 A
Max Output Current (+12V2)
13 A
Max Output Current (+5V)
18 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Hold Time
29 ms
Efficiency
90.6%
Power Protection Features
Over current, Over power, Over voltage, Short circuit, Under voltage
Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
35 cm
Number Of Sata Power Connectors
3
Sata Power Cable Length
300, 450, 600 mm
Peripheral (Molex) Power Connectors (4-Pin)
2
Peripheral (Molex) Power Cable Length
300, 450 mm
Pci Express Power Connectors (6+2 Pin)
1
Pci Express Power Cable Length
40 cm
Cpu P4 Connector (4-Pin)
1
Cpu Power Cable Length
35 cm
Floppy Drive Power Connector
1
Floppy Disk Drive Cable Length
60 cm
Cabling Type
Non-Modular
80 Plus Certification
80 PLUS Gold
Purpose
PC
Power Supply Unit (Psu) Form Factor
TFX
Atx Version
2.52
Eps Version
2.92

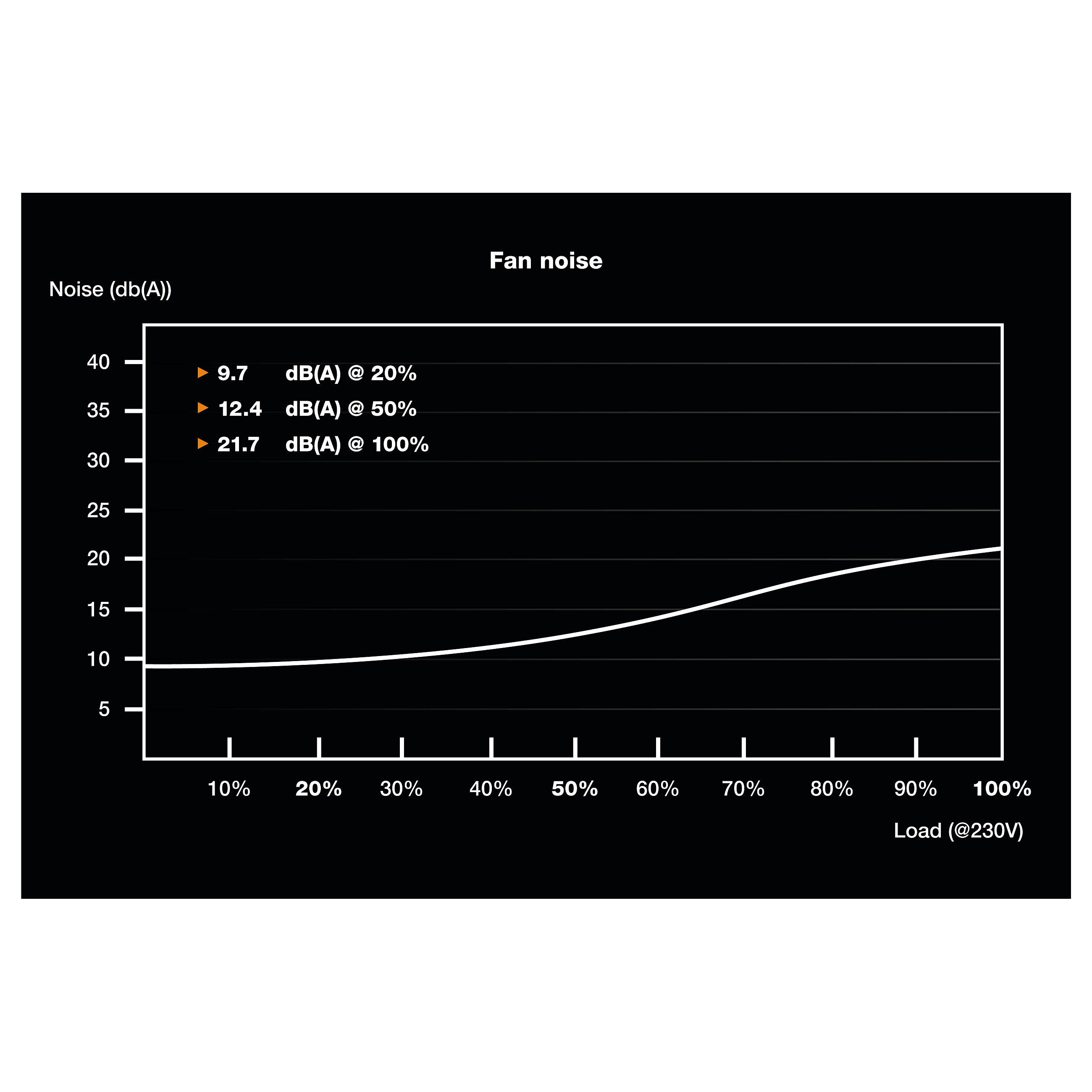

Noise Level
21.7 dB
Mean Time Between Failures (Mtbf)
100000 h
Product Colour
Black
Cooling Type
Active
Fan Diameter
8 cm
Number Of Fans
1 fan(s)
Compliance Certificates
RoHS, WEEE
Safety
CE, CB, TÜV, CU
Width
85 mm
Depth
175 mm
Height
65 mm
Weight
1.1 kg
Package Width
159 mm
Package Depth
80 mm
Package Height
215 mm
Package Weight
1.43 kg
Package Type
Box
Sustainability Certificates
ENERGY STAR, ErP
Shipping (Inner) Case Length
47.4 cm
Shipping (Inner) Case Width
27.5 cm
Shipping (Inner) Case Height
19.5 cm
Products Per Shipping (Inner) Case
6 pc(s)
Shipping (Inner) Case Gross Weight
9.39 kg
Harmonized System (Hs) Code
84733020
