Chieftec

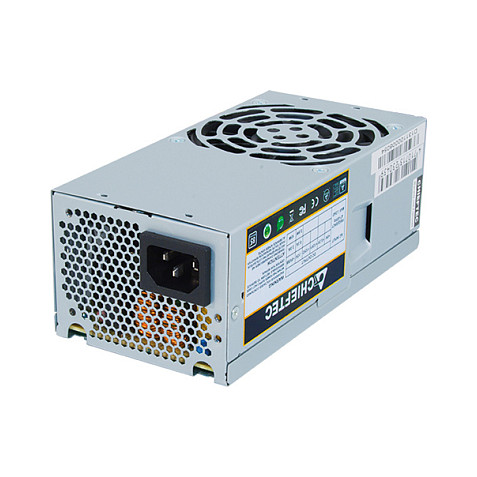

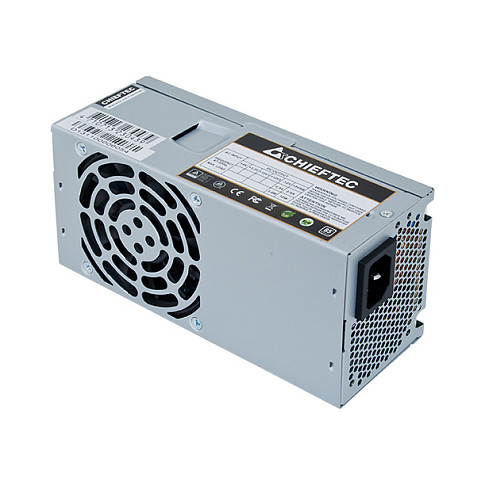

250W Chieftec Smart Series GPF-300P
Pre-Order
Usually ready in 3-5 business days
+ €30 Supplier Shipping
€64.99
VAT (19%) included
Description
300 W 115 - 230 V 47 - 63 Hz Motherboard power connector: 20+4 pin ATX PC/Server TFX 80 PLUS Bronze Active 8 cm Grey
Technical Specifications
SKU
KGPF-300P
Total Power
300 W
Ac Input Voltage
115 - 230 V
Ac Input Frequency
47 - 63 Hz
Input Current
6.3 A
Power Factor
0.9
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
95 W
Combined Power (+5V)
95 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
10 W
Max Output Current (+3.3V)
16 A
Max Output Current (+12V1)
14 A
Max Output Current (+12V2)
15 A
Max Output Current (+5V)
15 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
2 A
Power Protection Features
Over voltage, Overheating, Overload, Short circuit, Under voltage
Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
30 cm
Number Of Sata Power Connectors
4
Sata Power Cable Length
150, 350 mm
Peripheral (Molex) Power Connectors (4-Pin)
2
Peripheral (Molex) Power Cable Length
150, 350 mm
Cpu Power Cable Length
35 cm
Floppy Drive Power Connector
1
Floppy Disk Drive Cable Length
15 cm
Cabling Type
Non-Modular
80 Plus Certification
80 PLUS Bronze
Purpose
PC/Server
Power Supply Unit (Psu) Form Factor
TFX
Atx Version
2.3
Product Colour
Grey
Cooling Type
Active
Fan Diameter
8 cm
Number Of Fans
1 fan(s)
Compliance Certificates
RoHS
Width
85 mm
Depth
175 mm
Height
65 mm
Weight
1.07 kg
Package Weight
1.13 kg
Harmonized System (Hs) Code
84733020
