Gigabyte

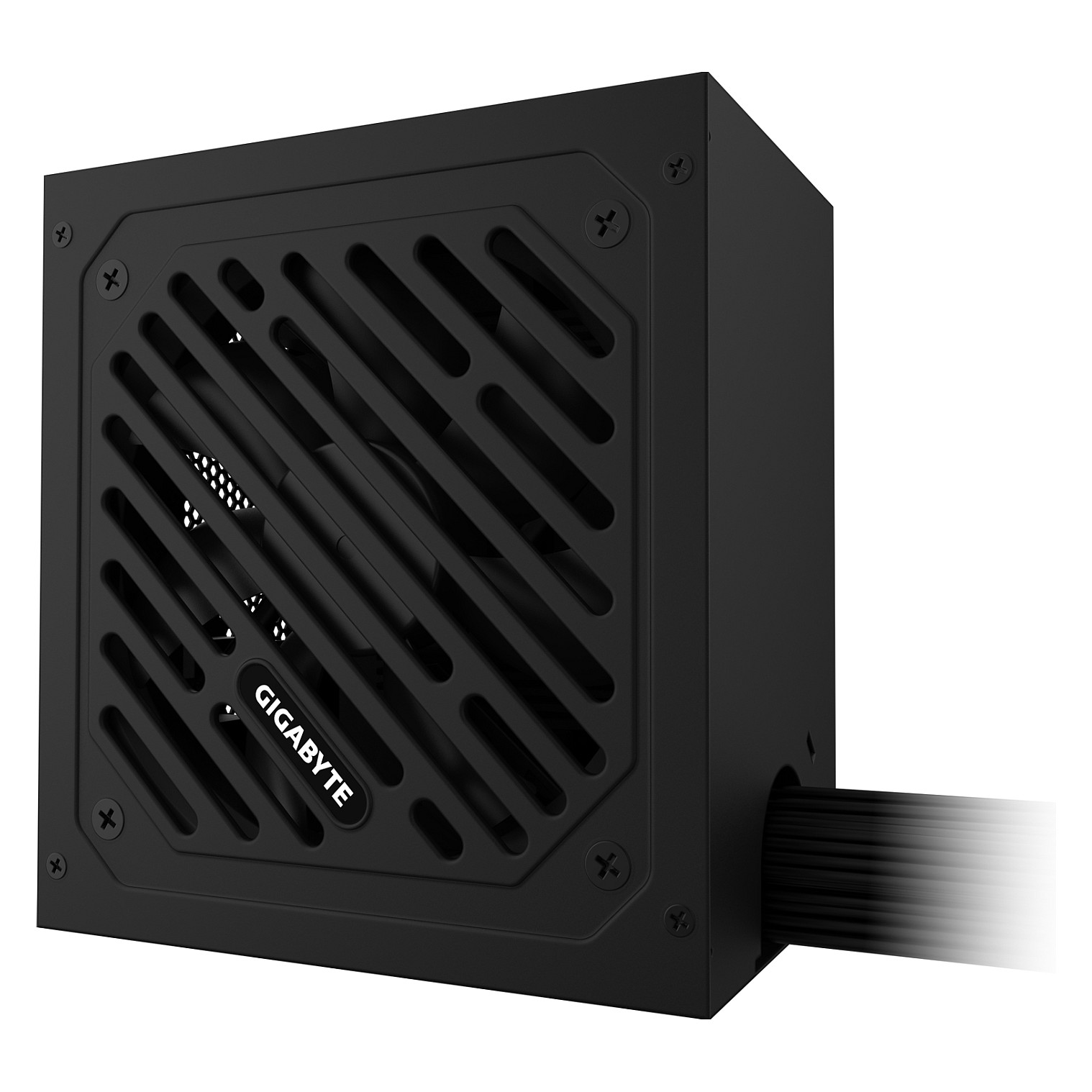

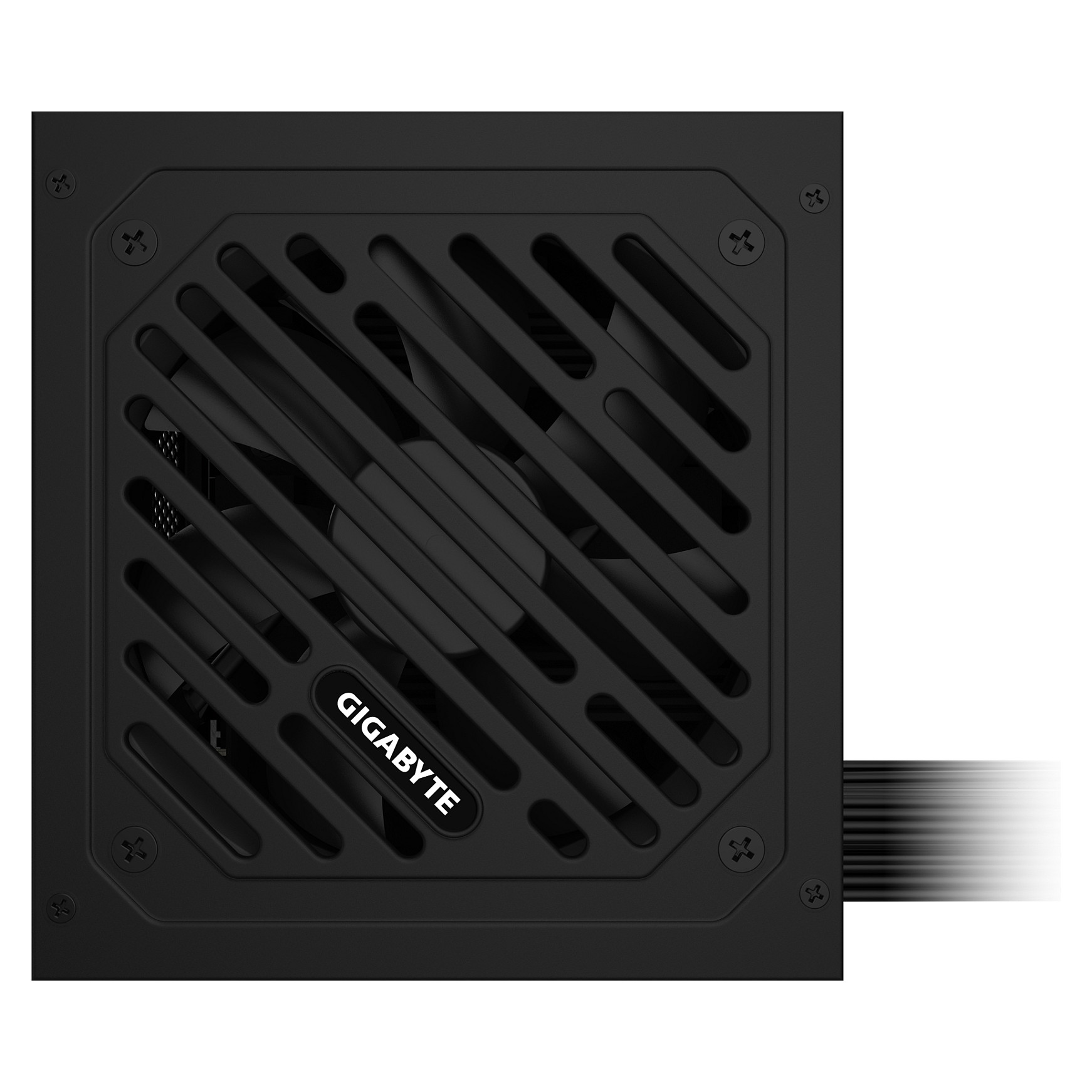

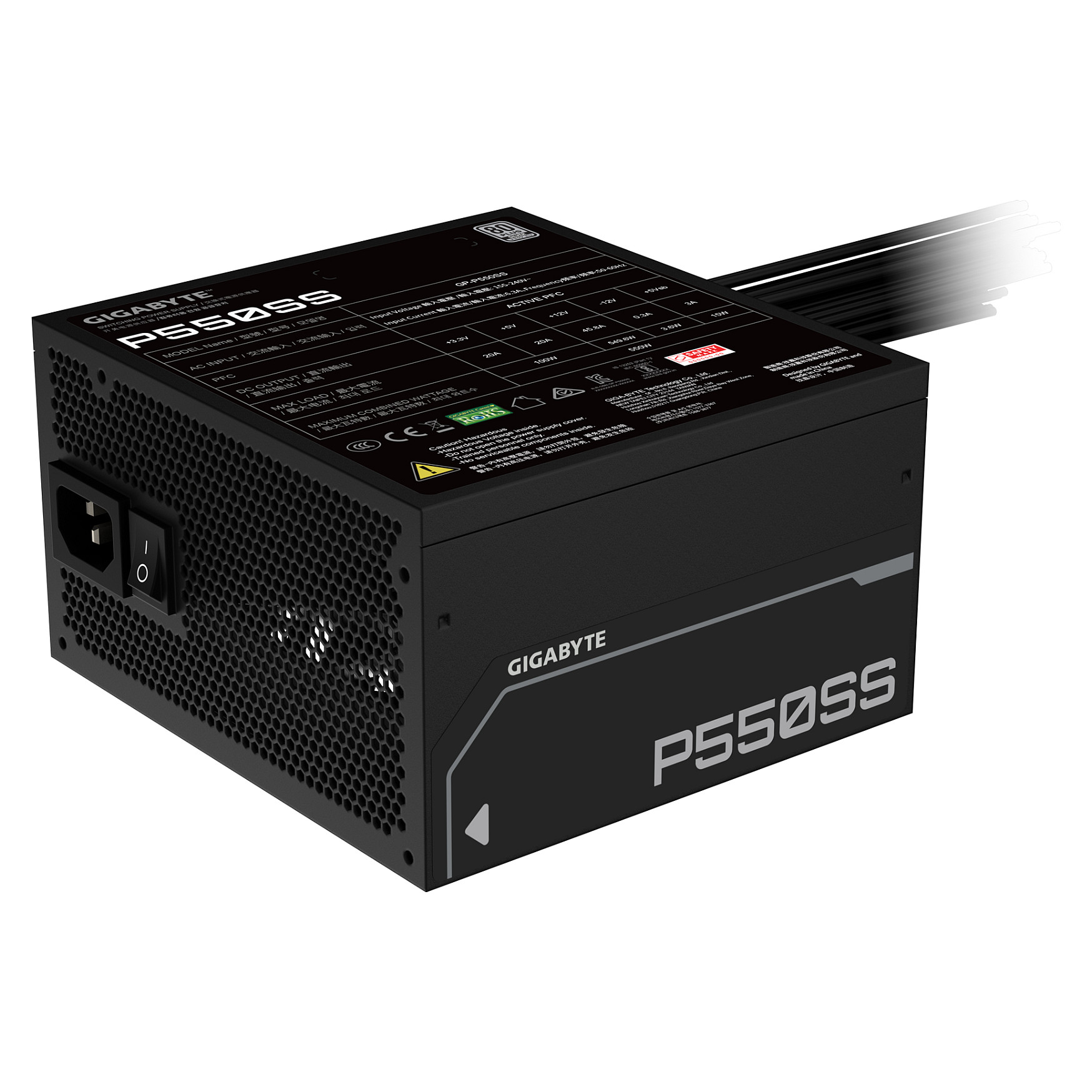

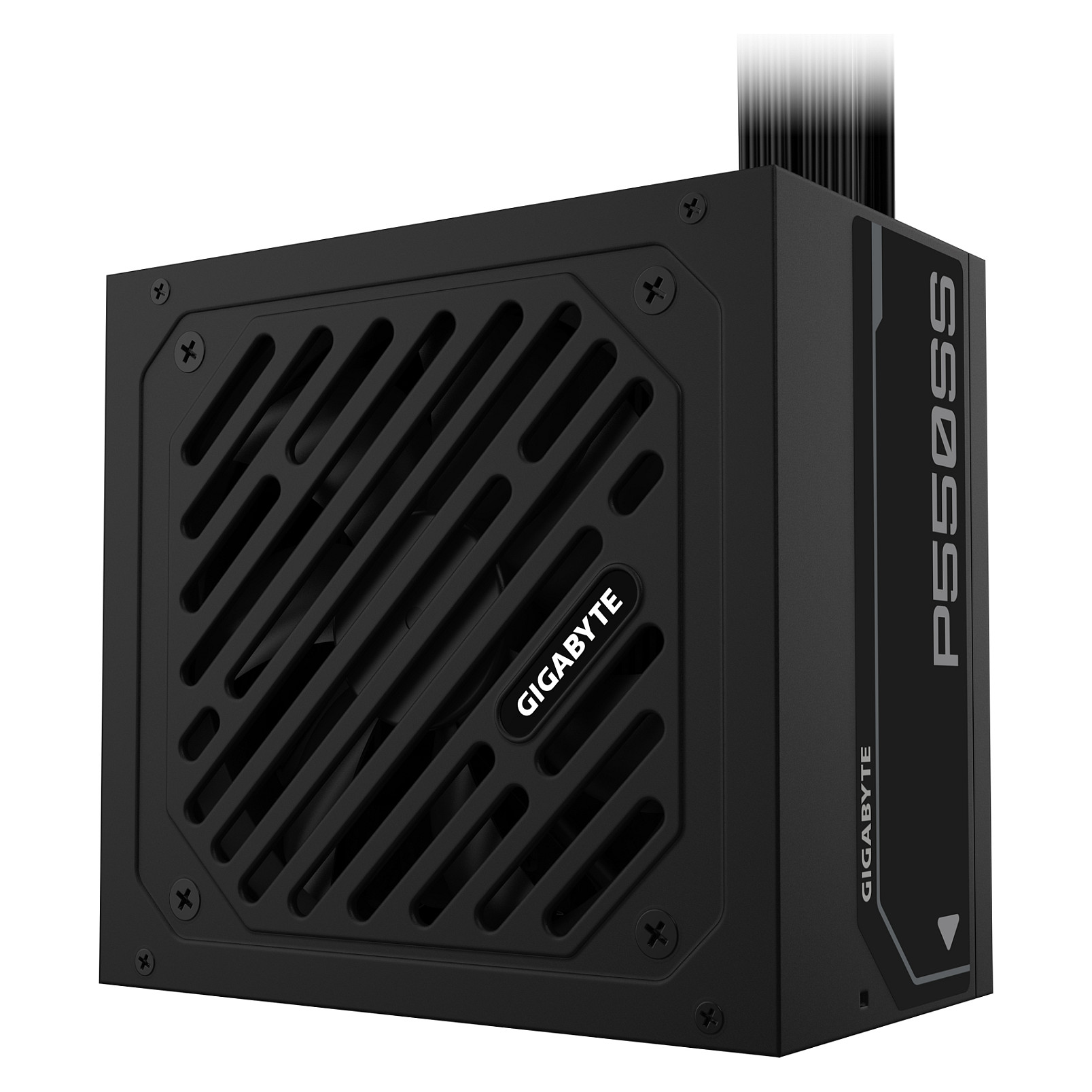

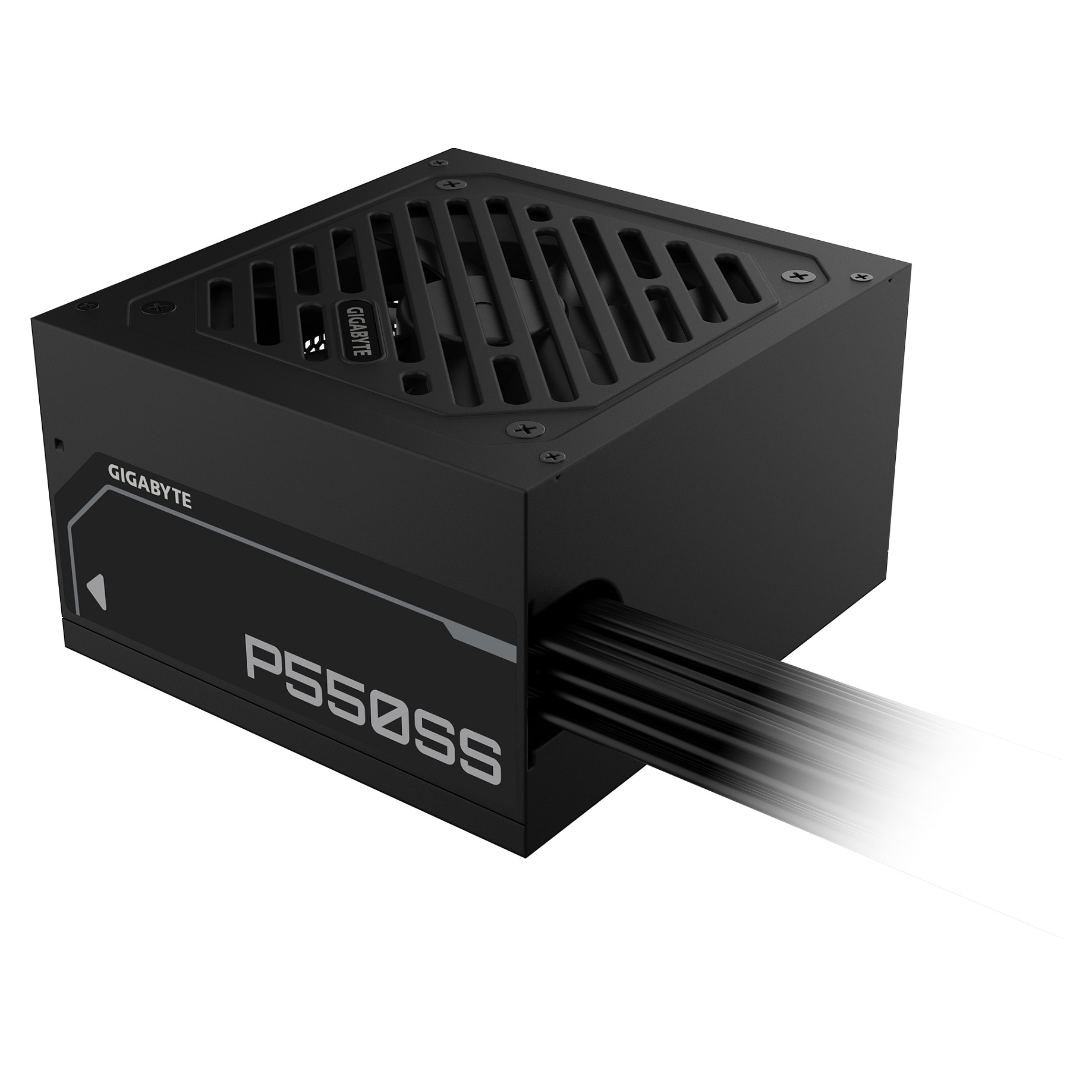

550W Gigabyte P550SS
Pre-Order
Usually ready in 3-5 business days
+ €30 Supplier Shipping
€45.99
VAT (19%) included
Description
80 PLUS Silver certified (230V EU) Support Intel ATX 3.0 standard 120mm Fluid Dynamic Bearing (FDB) Fan Flat cable design Powerful single +12V rail OVP/OPP/SCP/UVP/OCP/OTP protection
Technical Specifications
SKU
KGP-P550SS
Total Power
550 W
Ac Input Voltage
155-240 V
Ac Input Frequency
50/60 Hz
Input Current
6.3 A
Power Factor
0.9
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
100 W
Combined Power (+12V)
549.6 W
Combined Power (+5V)
200 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
45.8 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Hold Time
16 ms
Efficiency
90%
Power Protection Features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
60 cm
Number Of Sata Power Connectors
5
Sata Power Cable Length
500 mm
Peripheral (Molex) Power Connectors (4-Pin)
3
Peripheral (Molex) Power Cable Length
500 mm
Pci Express Power Connectors (6+2 Pin)
2
Pci Express Power Cable Length
50 cm
Cpu Power Cable Length
60 cm
Floppy Drive Power Connector
1
Cabling Type
Non-Modular
80 Plus Certification
80 PLUS Bronze
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
3.0
Bearing Technology
HDB
Mean Time Between Failures (Mtbf)
100000 h
Product Colour
Black
Cooling Type
Active
Fan Diameter
12 cm
Number Of Fans
1 fan(s)
Fan Location
Top
Width
150 mm
Depth
140 mm
Height
86 mm
Harmonized System (Hs) Code
84733020
