ASRock

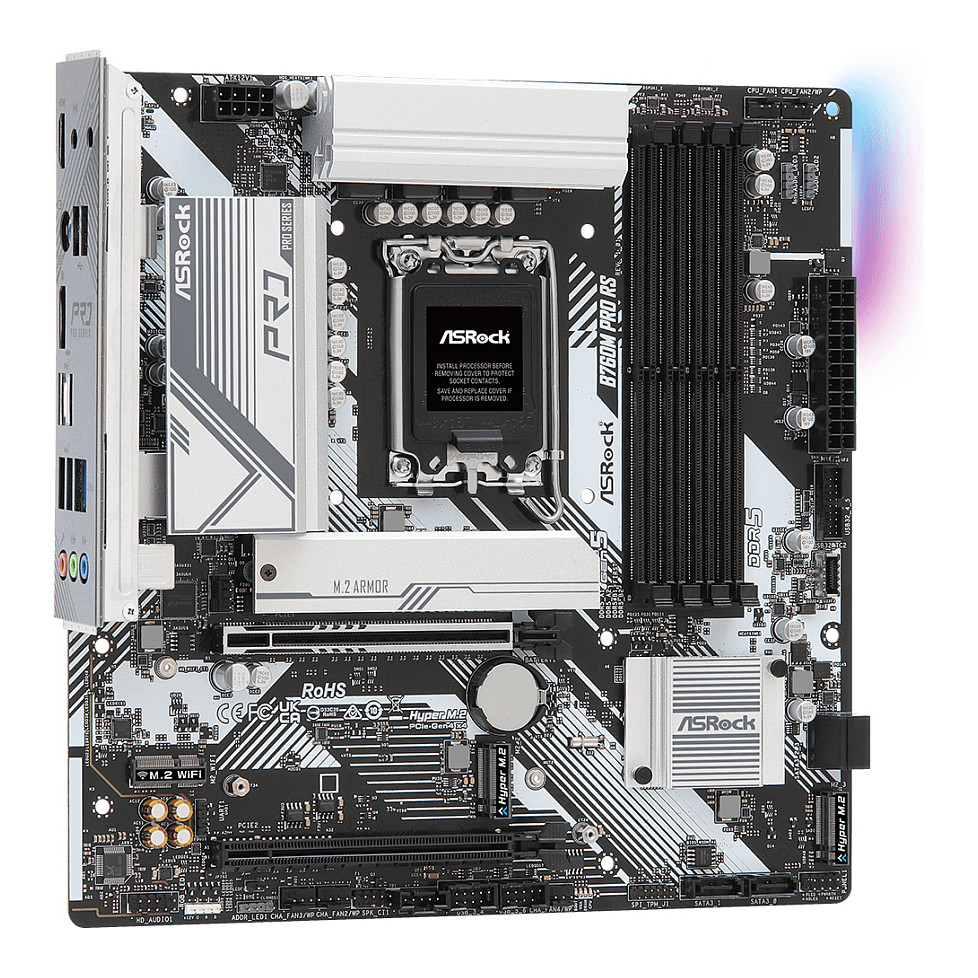

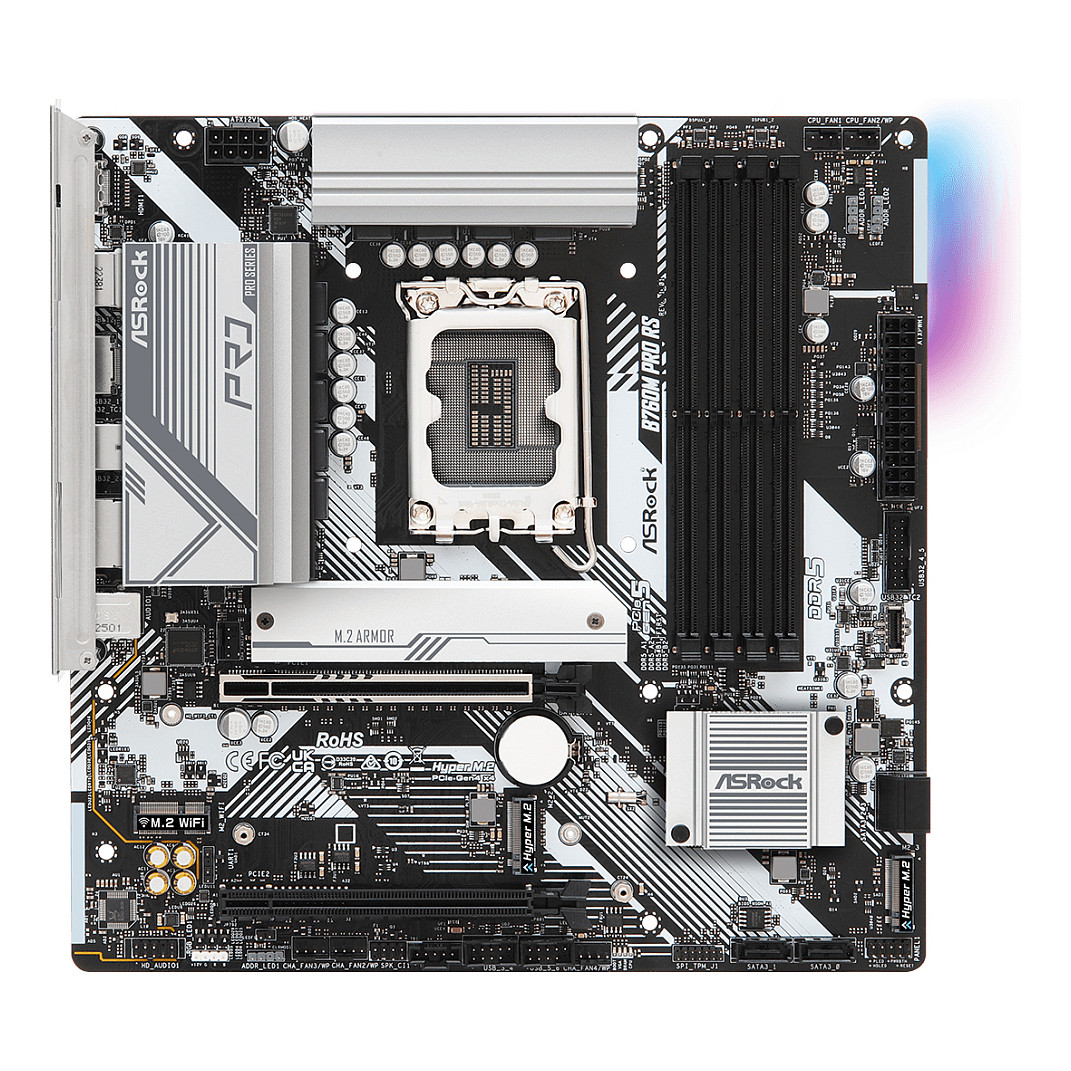

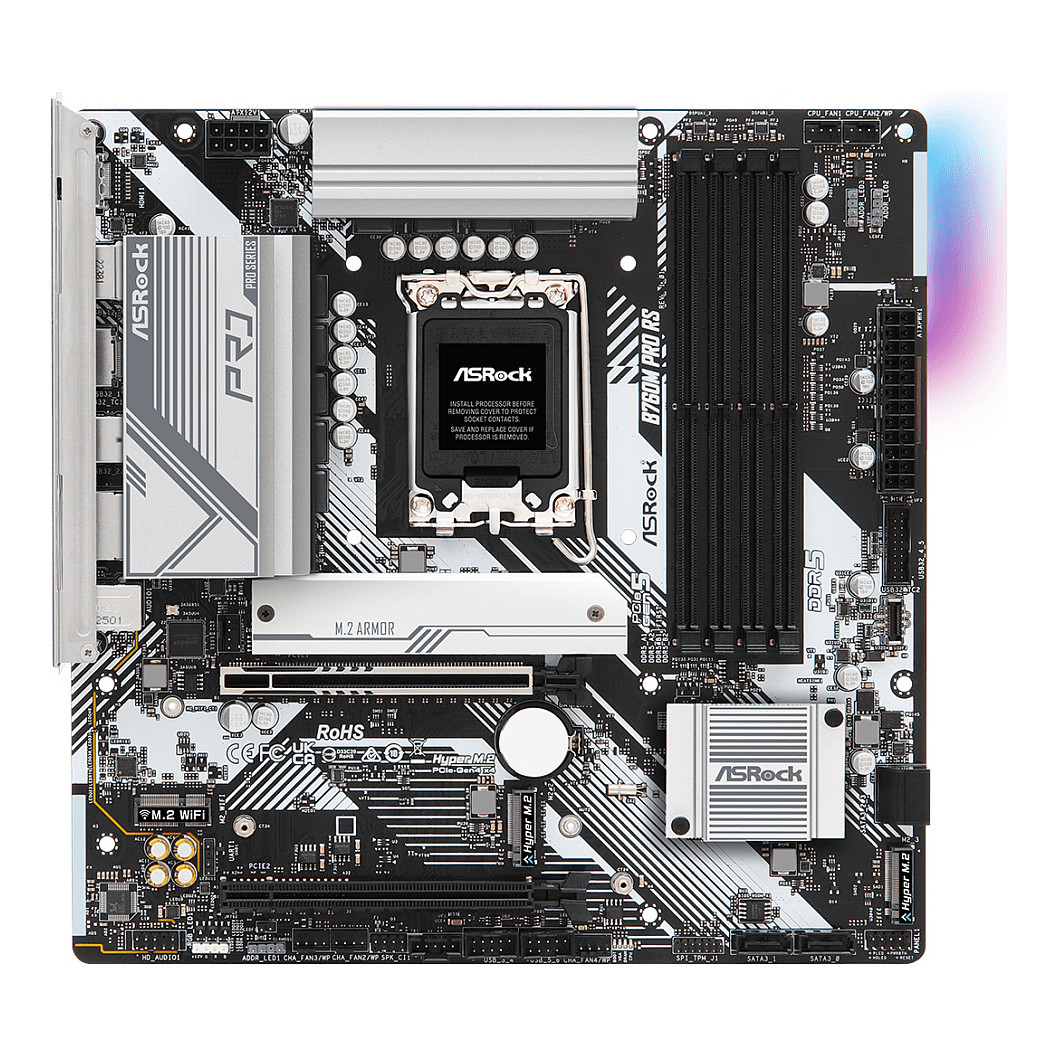

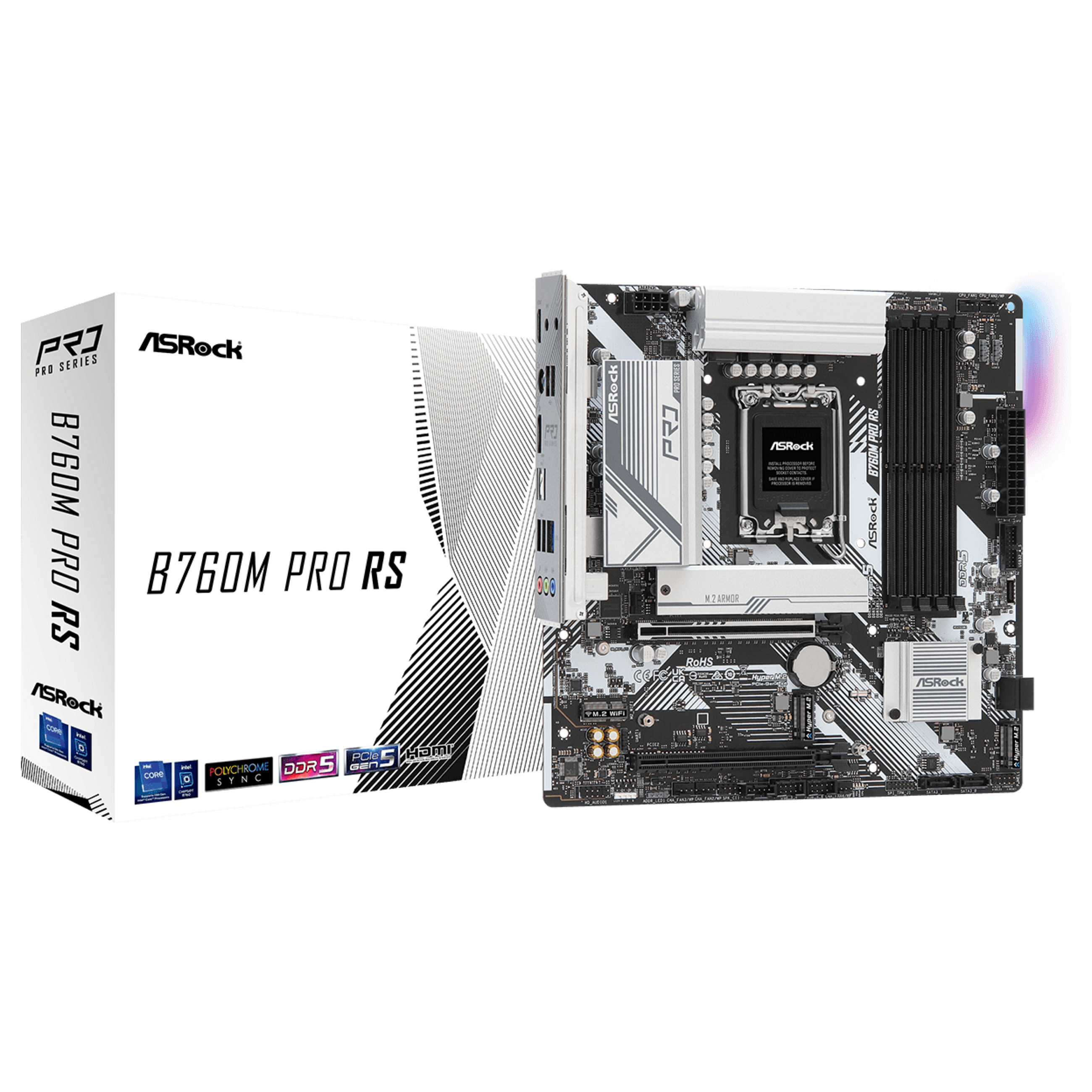

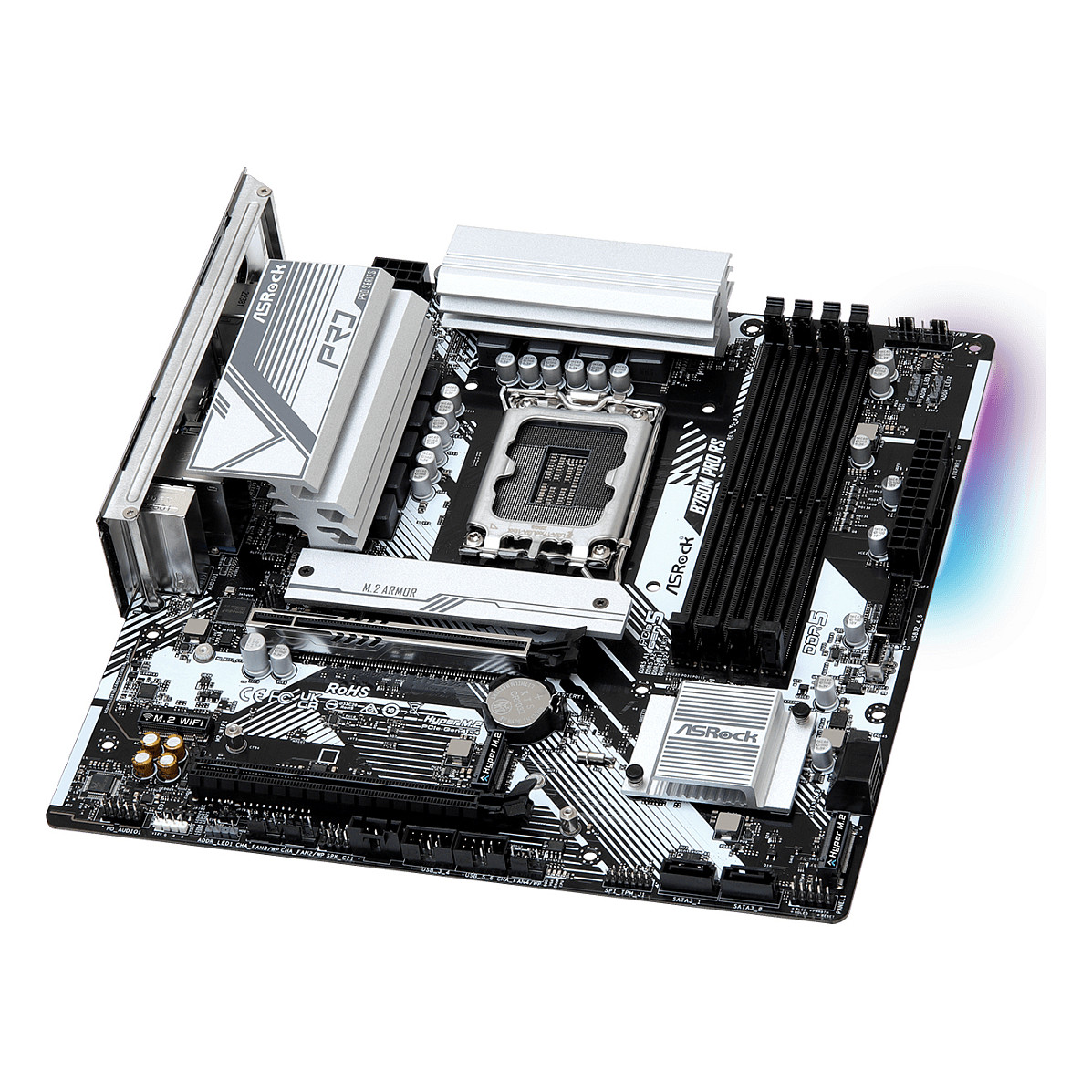

ASRock B760M Pro RS 1700 mATX HDMI/DP DDR5 retail
Pre-Order
Usually ready in 3-5 business days
+ €30 Supplier Shipping
€137.99
VAT (19%) included
Description
Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700) 7+1+1 Power Phase, Dr.MOS for VCore+GT Supports DDR5 7200MHz (OC) 1 PCIe 5.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key E for WiFi Graphics Output Options: HDMI, DisplayPort Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio 4 SATA3, 3 Hyper M.2 (PCIe Gen4x4) 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front), 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front) Dragon 2.5G LAN Supports ASRock Auto Driver Installer
Technical Specifications
SKU
K90-MXBLH0-A0UAYZ
Processor Manufacturer
Intel
Processor Socket
LGA 1700
Compatible Processor Series
Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Maximum Number Of Smp Processors
1
Supported Memory Types
DDR5-SDRAM
Number Of Memory Slots
4
Memory Slots Type
DIMM
Memory Channels
Dual-channel
Ecc Сompatibility
Non-ECC
Maximum Internal Memory
192 GB
Supported Storage Drive Types
HDD & SSD
Supported Storage Drive Interfaces
M.2, SATA III
Number Of Storage Drives Supported
7
Usb 2.0 Connectors
2
Usb 3.2 Gen 1 (3.1 Gen 1) Connectors
1
Number Of Sata Iii Connectors
4
Thunderbolt Headers
1
Usb 2.0 Ports Quantity
2
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
3
Usb 3.2 Gen 1 (3.1 Gen 1) Type-C Ports Quantity
1
Ethernet Lan (Rj-45) Ports
1
Ps/2 Ports Quantity
1
Hdmi Ports Quantity
1
Displayports Quantity
1
Displayport Version
1.4
Ethernet Interface Type
2.5 Gigabit Ethernet
Lan Controller
Realtek RTL8125-BG
Top Wi-Fi Standard
Not available
Motherboard Chipset
Intel B760
Audio Chip
Realtek ALC897
Audio Output Channels
7.1 channels
Component For
PC
Motherboard Form Factor
micro ATX
Motherboard Chipset Family
Intel
Windows Operating Systems Supported
Windows 10 x64, Windows 11 x64
Pci Express X16 (Gen 3.X) Slots
1
Pci Express X16 (Gen 5.X) Slots
1
Number Of M.2 (M) Slots
3
Bios Type
EFI AMI
Bios Memory Size
128 Mbit
Width
244 mm
Depth
244 mm
Processor Socket
LGA1700
Supported Memory Types
DDR5
