USB 2 PORT PCIE USB 3 CARD W/ UASP
Pre-Order
€34.99
VAT (19%) included
Description

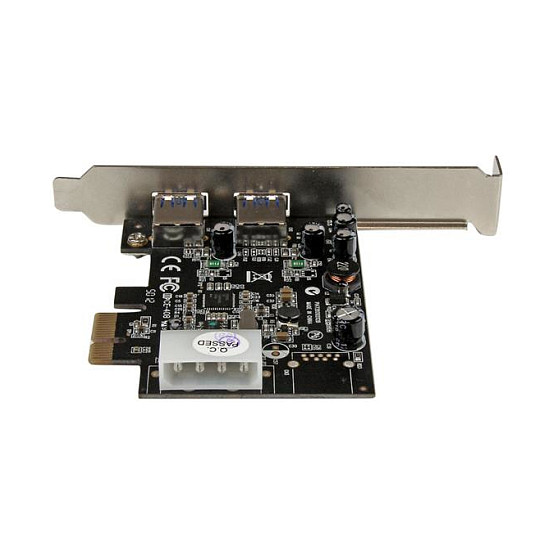

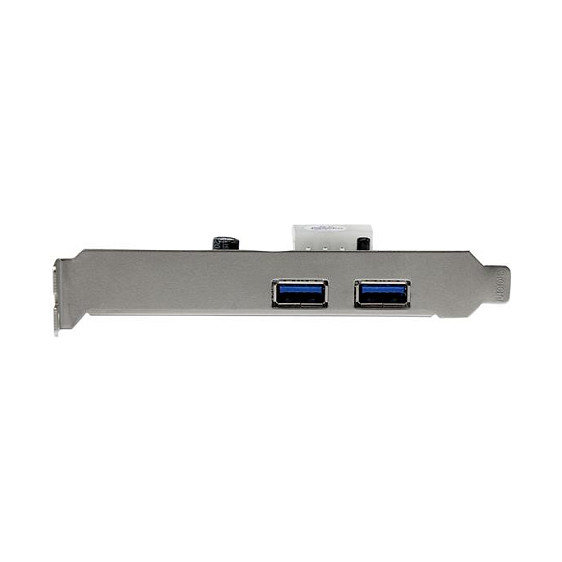

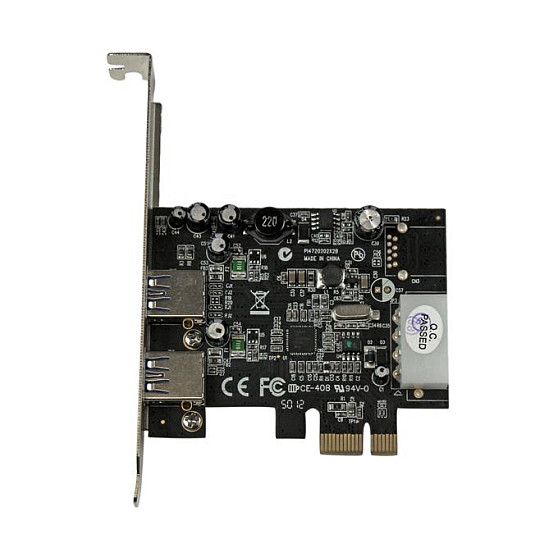

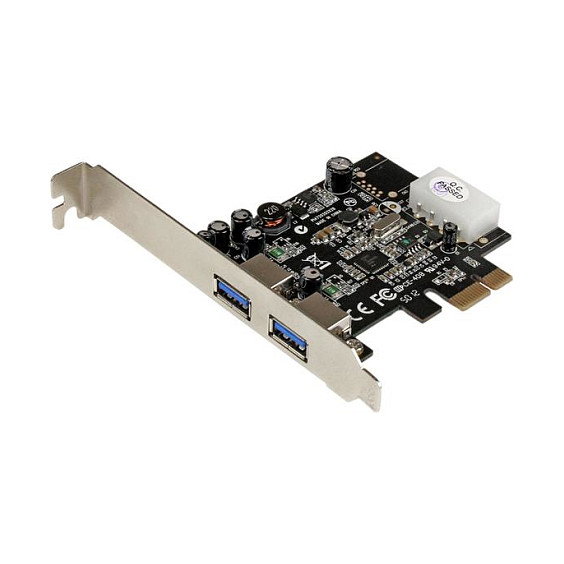

Provides two external USB 3.2 Gen 1 ports with UASP support Supports data rates up to 5 Gbps Compliant with PCI Express 2.0 specifications Optional LP4 power connector provides up to 900mA per USB port Supports USB Battery Charging Specification 1.2 Fully compliant with USB 3.2 Gen 1 rev 1.0 and Intel xHCI rev 1.0 specifications Backward compatible with USB 2.0 and USB 1.0/1.1 devices Includes a Low-Profile/half-height installation bracket
Technical Specifications
SKU
KPEXUSB3S25
Host Interface
PCIe
Output Interface
USB 3.2 Gen 1 (3.1 Gen 1)
Expansion Card Form Factor
Full-height / Low-profile
Expansion Card Standard
PCIe 2.0
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
2
Maximum Cable Length
3 m
Certification
CE, FCC
Chipset
Renesas / NEC - µPD720202
Data Transfer Rate (Max)
5 Gbit/s
Operating Temperature (T-T)
0 - 50 °C
Storage Temperature (T-T)
-20 - 60 °C
Operating Relative Humidity (H-H)
5 - 85%
Windows Operating Systems Supported
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64
Server Operating Systems Supported
Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Compliance Certificates
RoHS
Width
18 mm
Depth
82 mm
Height
120 mm
Weight
51 g

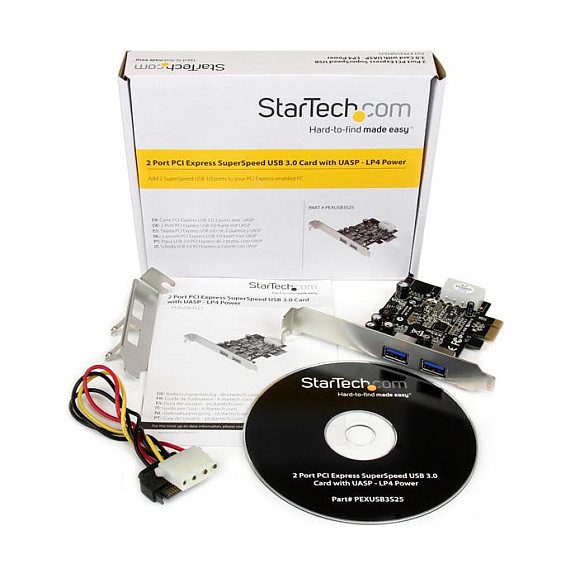

Cables Included
SATA
Package Width
217 mm
Package Depth
148 mm
Package Height
37 mm
Package Weight
154 g
Harmonized System (Hs) Code
84733020
Products Per Master (Outer) Case
40 pc(s)
Master (Outer) Case Width
452 mm
Master (Outer) Case Length
383 mm
Master (Outer) Case Height
325 mm
