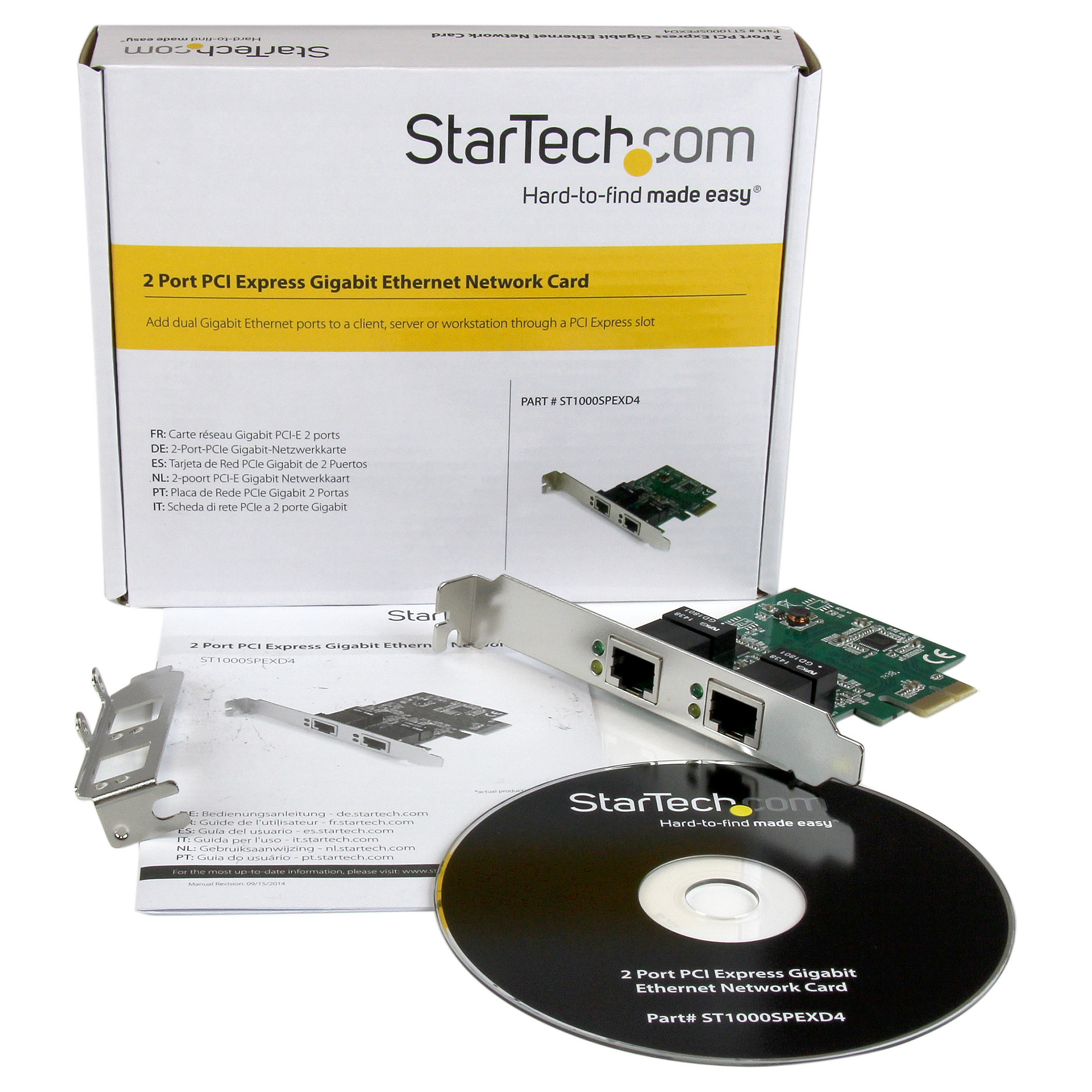

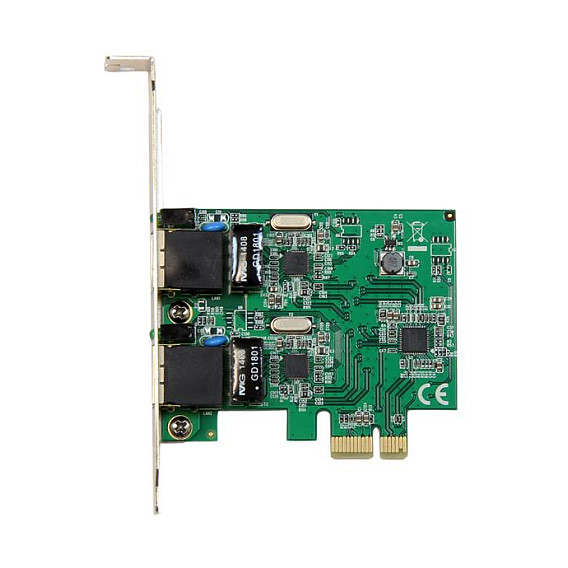

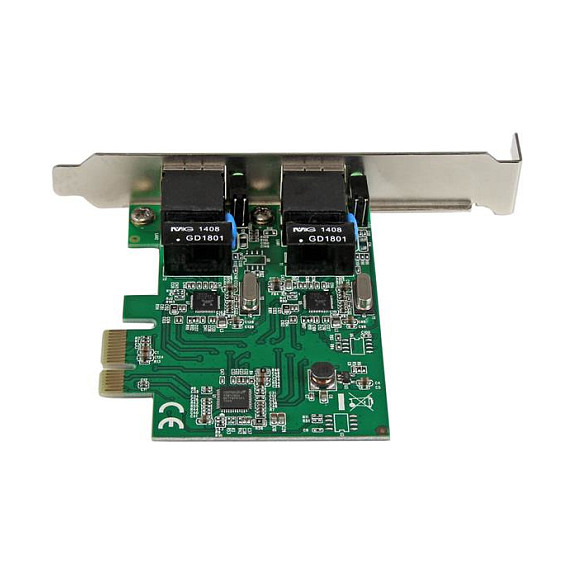

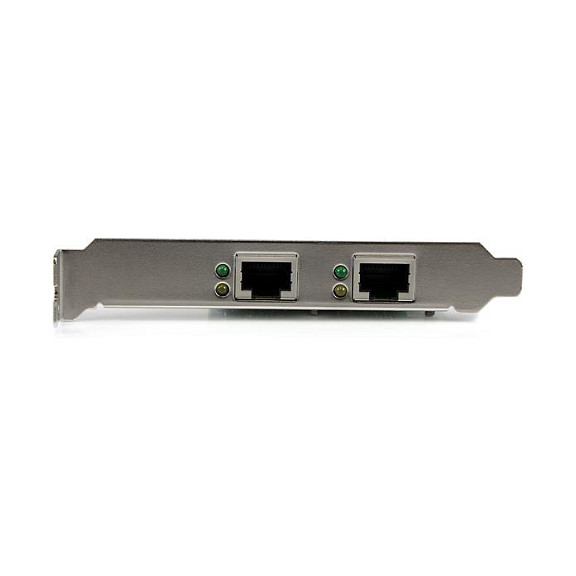

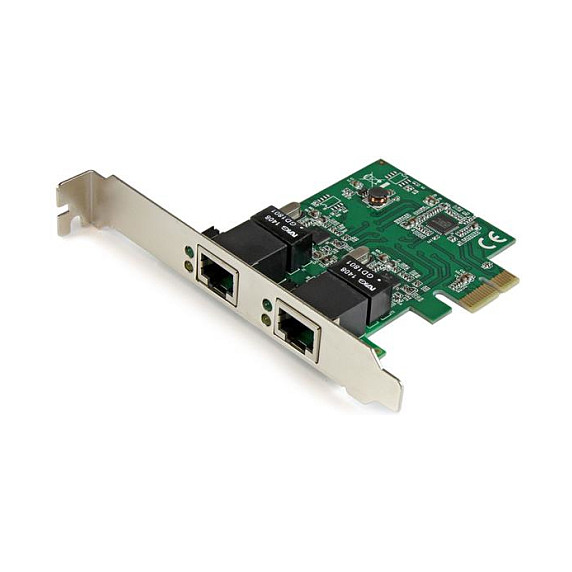

StarTech Netzwerkkarte Dual-Port RJ-45 Gbit FH/LP PCIe 2.0 ST1000SPEXD4
Pre-Order
€123.99
VAT (19%) included
Description
Two 10/100/1000Mbps compatible RJ-45 Ethernet ports Up to 9K Jumbo Frame support Compatible with PCI Express Base Specification 2.0 (backward compatible with 1.0a/1.1) Supports Microsoft NDIS5 Checksum Offload (IP, TCP, UDP) and Large send Offload Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, and supports IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding and IEEE 802.3x Full Duplex Flow Control Wake-on-LAN / Remote Wake-up support Configured with standard profile bracket, low profile/half-height bracket included Supports Pair Swap / Polarity / Skew Correction
Technical Specifications
SKU
KST1000SPEXD4
Connectivity Technology
Wired
Host Interface
PCI Express
Interface
Ethernet
Ethernet Lan (Rj-45) Ports
2
Pci Version
2.0
Maximum Data Transfer Rate
2000 Mbit/s
Networking Standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Ethernet Interface Type
Gigabit Ethernet
Cabling Technology
10/100/1000BaseT(X)
Jumbo Frames
9000
Chipset
Realtek - RTL8111E, Asmedia - ASM1182E
Led Indicators
Activity, Link
Certification
CE, FCC
Windows Operating Systems Supported
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac Operating Systems Supported
Mac OS X 10.10 Yosemite, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server Operating Systems Supported
Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Operating Temperature (T-T)
0 - 70 °C
Storage Temperature (T-T)
0 - 100 °C
Operating Relative Humidity (H-H)
10 - 90%
Width
18 mm
Depth
92.6 mm
Height
120 mm
Weight
51 g
Package Width
170 mm
Package Depth
143 mm
Package Height
30 mm
Package Weight
142 g
Compliance Certificates
RoHS
Harmonized System (Hs) Code
85176990
