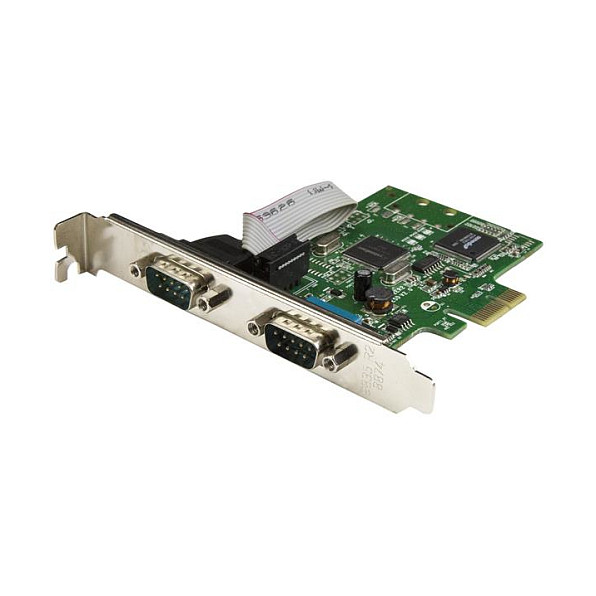

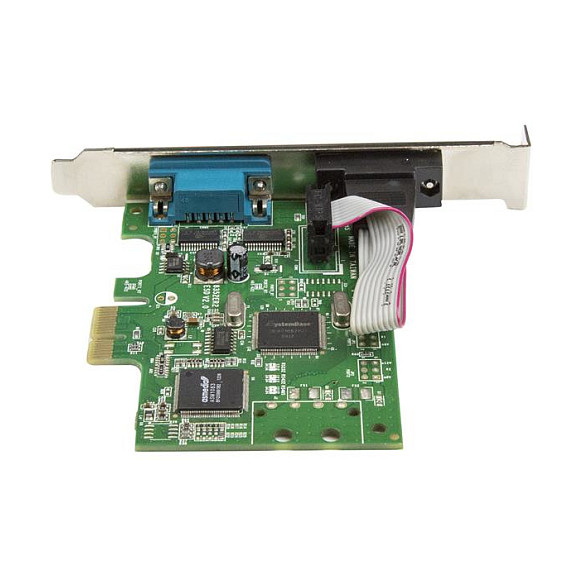

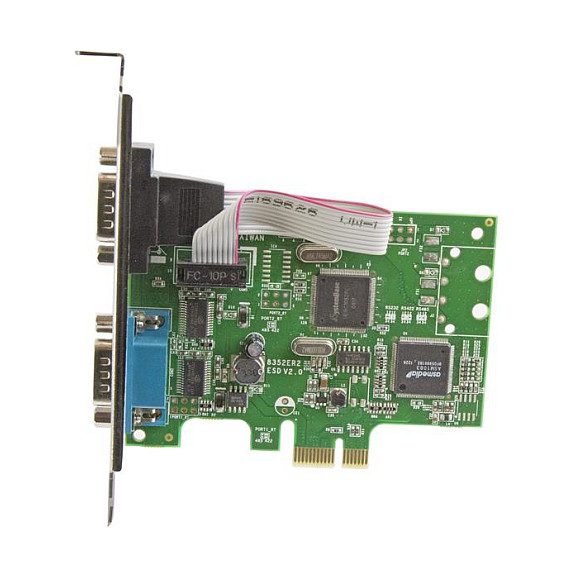

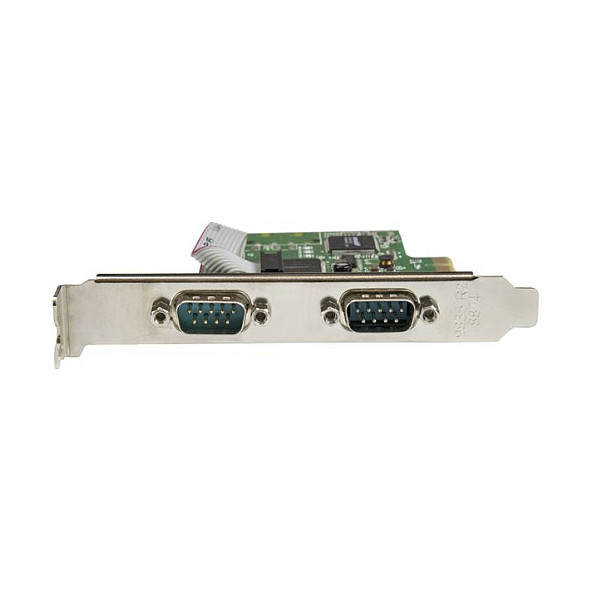

2 Port PCI Express Seriell Karte mit 16C1050 UART - RS232 - PCIe Seriell mit Dual Channel 16C1050 UART
Pre-Order
€80.99
VAT (19%) included
Description

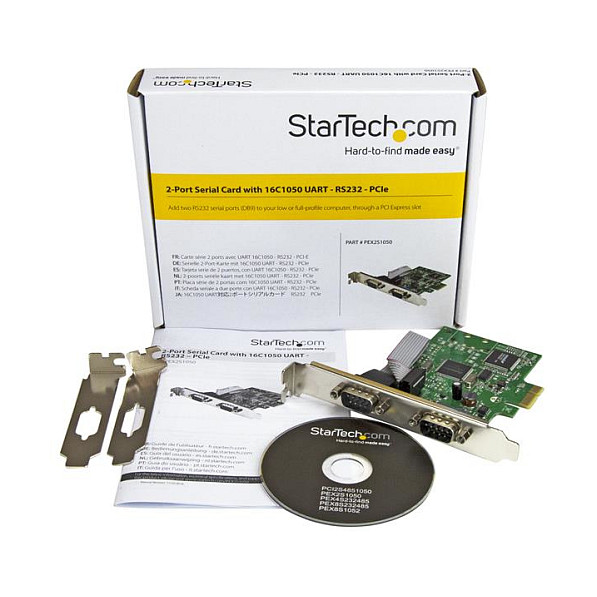

Dual-channel 16C1050 UART for full compatibility with 16C1050 devices Maximum data transfer rate of 460Kbps Compliant with PCI Express 1.0a specification, compatible with 1x, 2x, 4x, 8x, and 16x PCIe bus 256-Byte deep FIFO per transmitter and receiver In-band software flow control using programmable Xon/Xoff in both directions Out-of-band hardware flow control using RTS / CTS Support for 5,6,7 or 8 data bits Standard profile bracket installed, optional dual low-profile brackets included
Technical Specifications
SKU
KPEX2S1050
Host Interface
PCIe
Output Interface
Serial
Expansion Card Form Factor
Full-height / Low-profile
Serial Ports Quantity
2
Serial Interface Type
RS-232
Certification
CE, FCC, Microsoft WHQL
Chipset
SystemBase - SB16C1052PCI
Baud Rate
460.8 Kbit/s
Fifo (First In, First Out)
256 B
Data Bits
5, 6, 7, 8
Operating Temperature (T-T)
-10 - 80 °C
Storage Temperature (T-T)
-20 - 100 °C
Operating Relative Humidity (H-H)
5 - 85%
Windows Operating Systems Supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 95, Windows 98SE, Windows ME, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Server Operating Systems Supported
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Compliance Certificates
RoHS
Width
120 mm
Depth
103 mm
Height
20 mm
Weight
61 g
Package Width
142 mm
Package Depth
170 mm
Package Height
30 mm
Package Weight
149 g
Harmonized System (Hs) Code
84733020
Products Per Master (Outer) Case
75 pc(s)
Master (Outer) Case Width
356 mm
Master (Outer) Case Length
682 mm
Master (Outer) Case Height
320 mm
