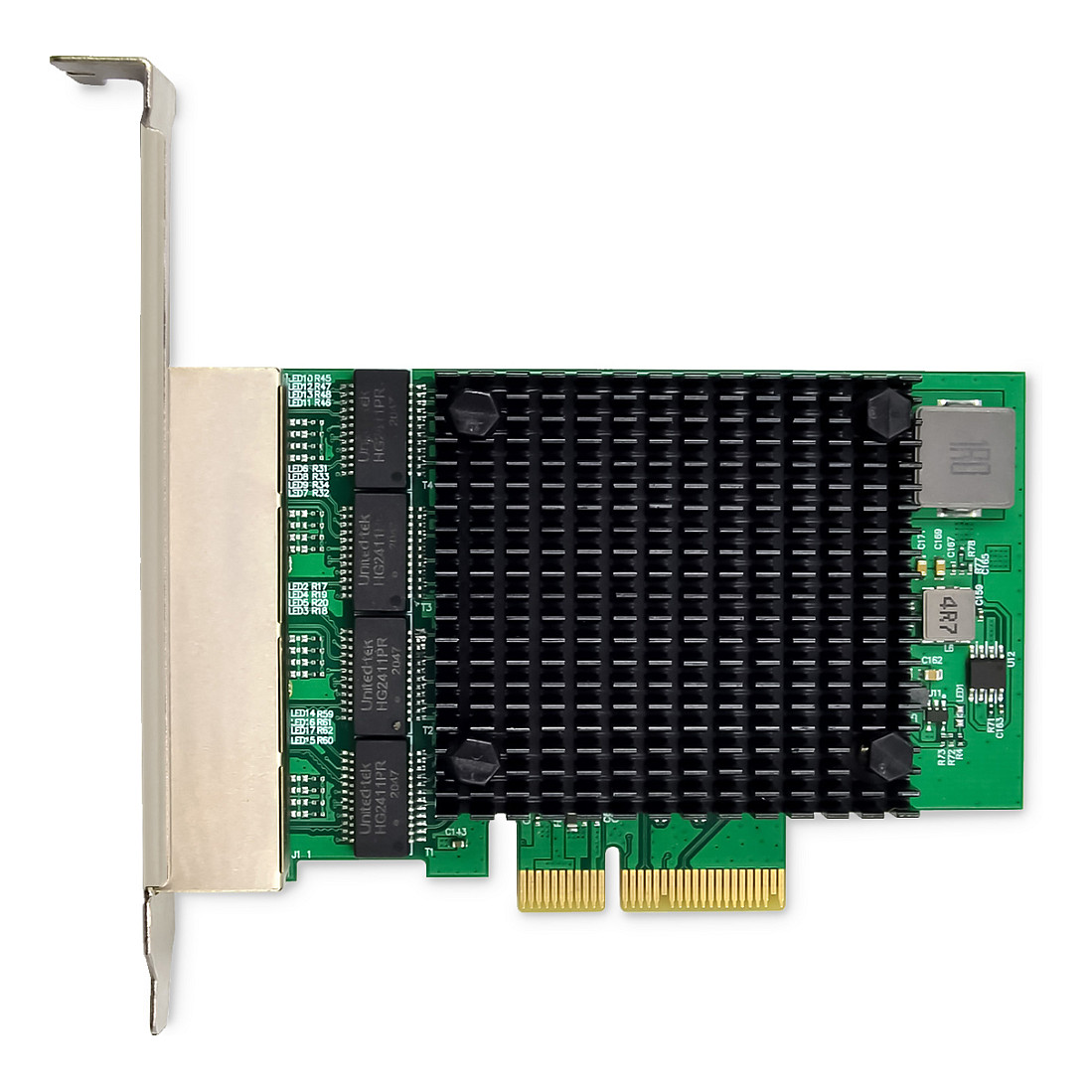

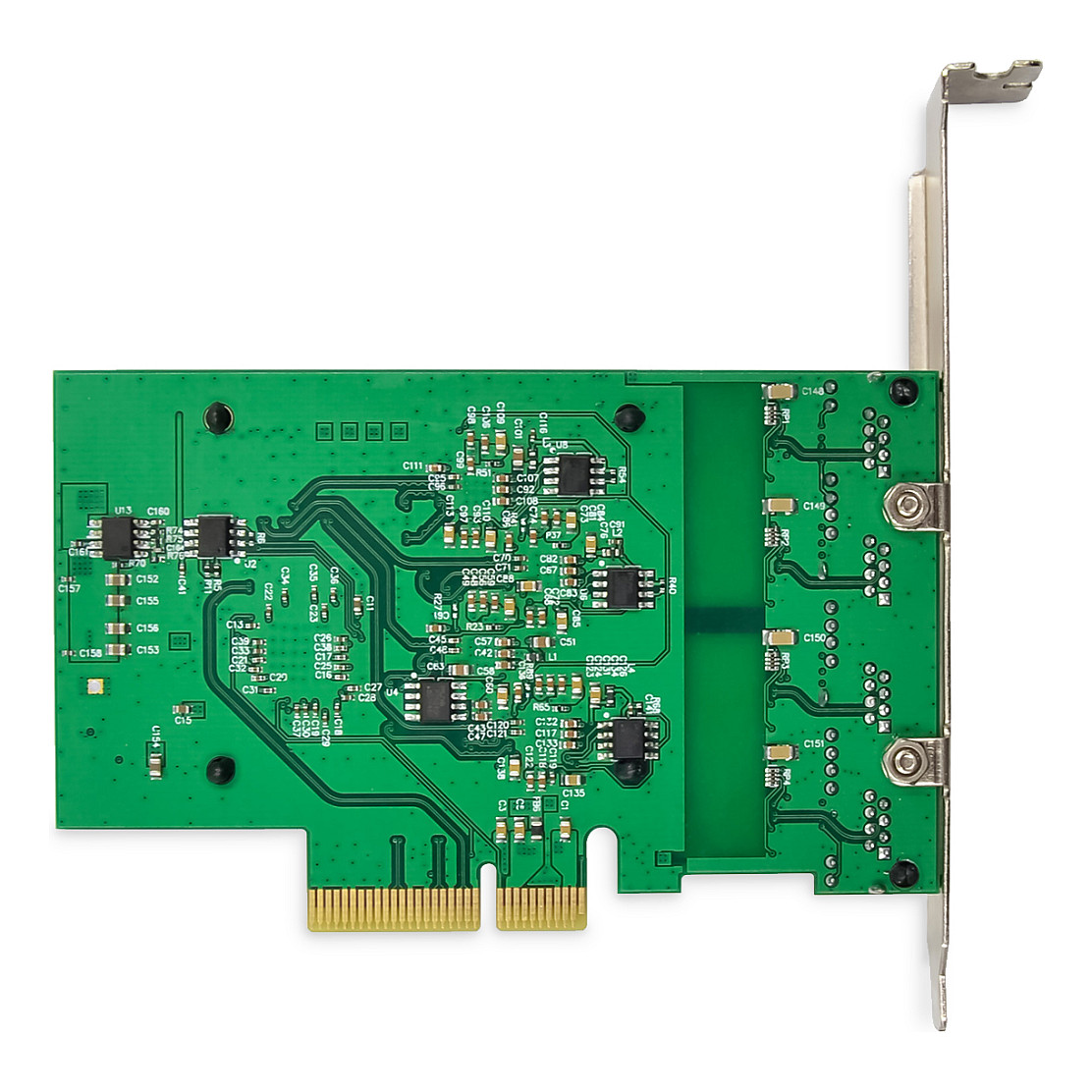

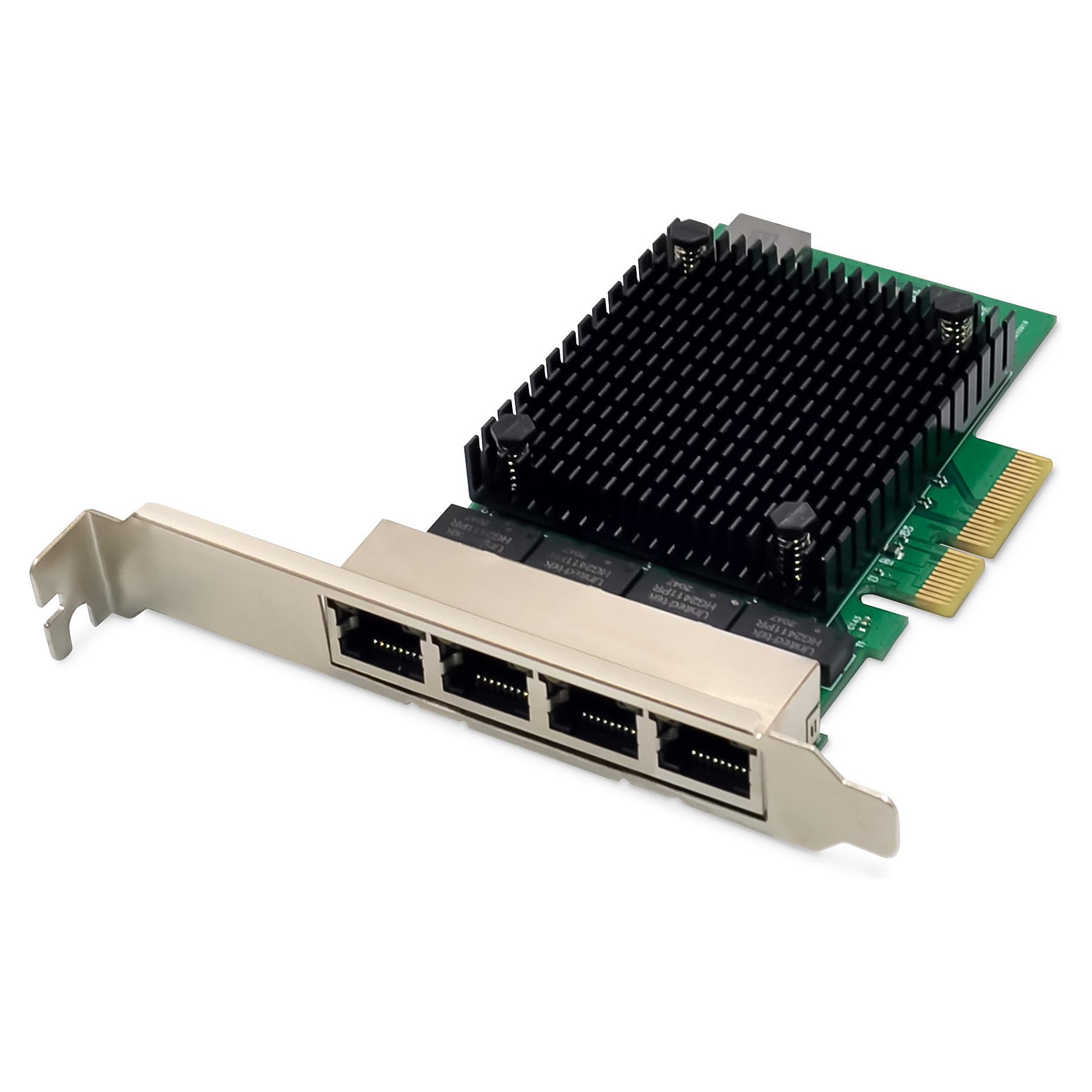

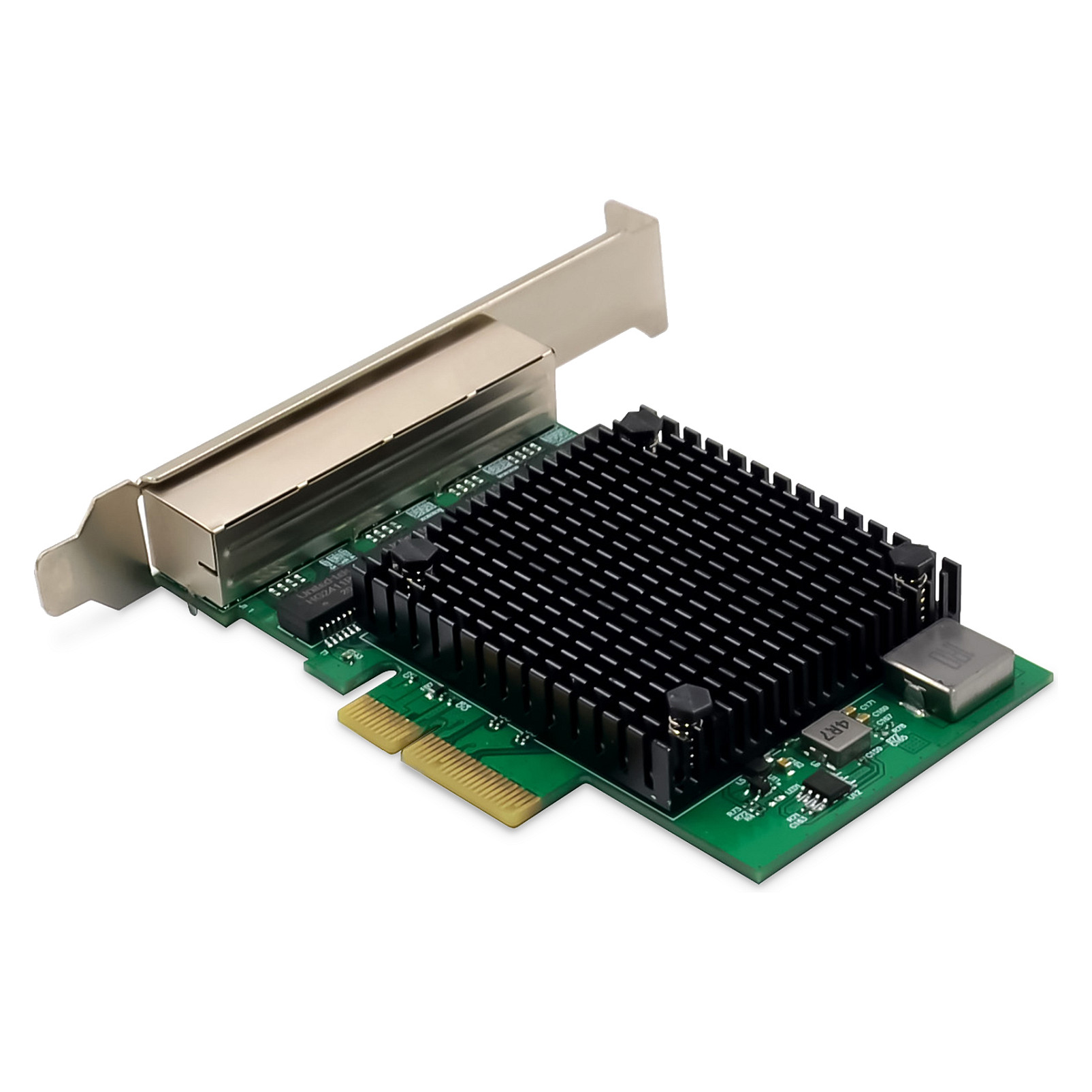

DIGITUS Netzwerkkarte 4Port RJ45 RTL8125B 2,5GBits ServerNIC
Pre-Order
€91.99
VAT (19%) included
Description
Support PCI Express Specification Revision 2.1 2-Lane PCI Express bus connecting with up to 10Gbps bus width PCI Express interface: x4 Integrated 10M BASE-Te and 100/1000M/2.5G base-T 802.3 compatible transceiver Supports 2.5G and 1G Lite mode Auto-Negotiation with Extended Next Page capability(XNP) Supports pair swap/polarity/skew correction Crossover Detection& Auto-Correction Supports 1-Lane 2.5/5Gbps PCI Express Bus Supports hardware ECC(Error correction code)function Supports hardware CRC(Cyclic Redundancy Check)function Supports PCI MSI (Message Signaled Interrupt)and MSI-X Transmit/Receive on-chip buffer support Supports ECMA-393 ProxZzzy Standard for sleeping hosts Wake-On-LAN and ‘RealWow!’ Technology (remote wake-up)supports Compatible with IEEE802.3,IEEE802.3u,IEEE802.3ab Supports IEEE1588v1,IEEE1588v2,IEEE80.2AS time synchronization Supports IEEE802.1Qav credit-based shaper algorithm Supports IEEE802.1P Layer 2 Priority encoding Supports IEEE802.1Q VLan tagging Supports IEEE802.1ad Double VLAN Supports IEEE802.3az (Energy Efficient Ethernet) Supports IEEE802.3bz(2.5GBase-T) Supports full duplex flow control(IEEE802.3x) Supports jumbo frame to 16K bytes Supports Virtual Machine Queue(VMQ) Supports quad core Receive –Side Scaling(RSS) Supports Protocol Offload (ARP&NS) Drivers for Vista /Win7 / Win8 / Win10 /Win11/ Sever2008 / Sever 2012 / Linux / DOS Chipset: RTL8125B+ASM1806
Technical Specifications
SKU
KDN-10136
Connectivity Technology
Wired
Host Interface
PCI Express
Interface
Ethernet
Ethernet Lan (Rj-45) Ports
4
Pci Version
2.1
Maximum Data Transfer Rate
10000 Mbit/s
Networking Standards
IEEE 1588v2, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1ad, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u
Ethernet Interface Type
2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet Lan Data Rates
100, 1000, 2500 Mbit/s
Jumbo Frames
16000
Component For
PC/Server
Product Colour
Black, Green
Chipset
Realtek RTL8125B
Country Of Origin
China
Output Voltage
5 - 12 V
Windows Operating Systems Supported
Windows 10, Windows 11, Windows 7, Windows 8, Windows Vista
Other Operating Systems Supported
DOS
Server Operating Systems Supported
Windows Server 2008, Windows Server 2012
Width
70 mm
Depth
20 mm
Height
108 mm
Weight
100 g
Package Width
155 mm
Package Depth
30 mm
Package Height
220 mm
Package Weight
243.5 g
Uk Trade Tariff Code
84718000
Package Volume
1023 cm³
