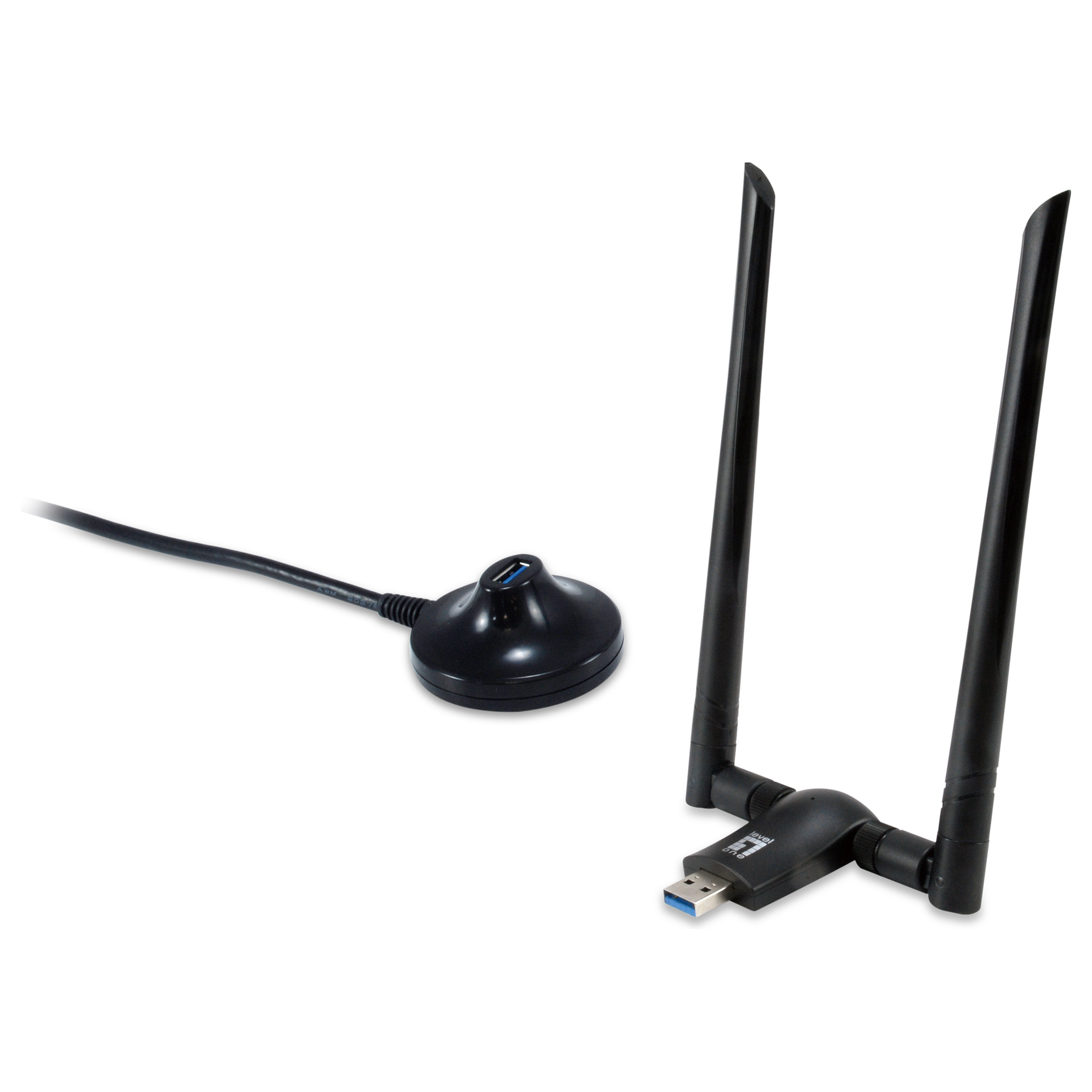

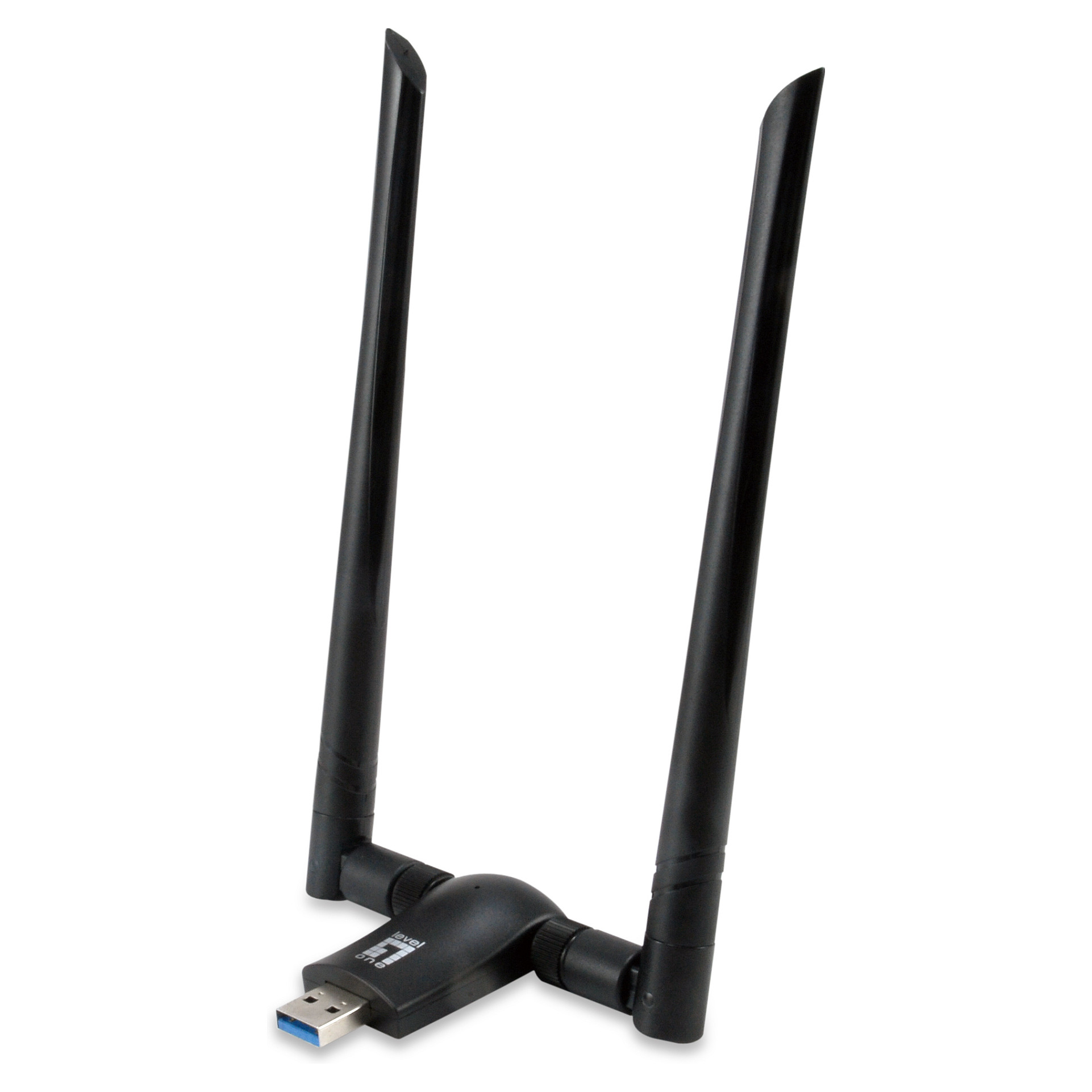

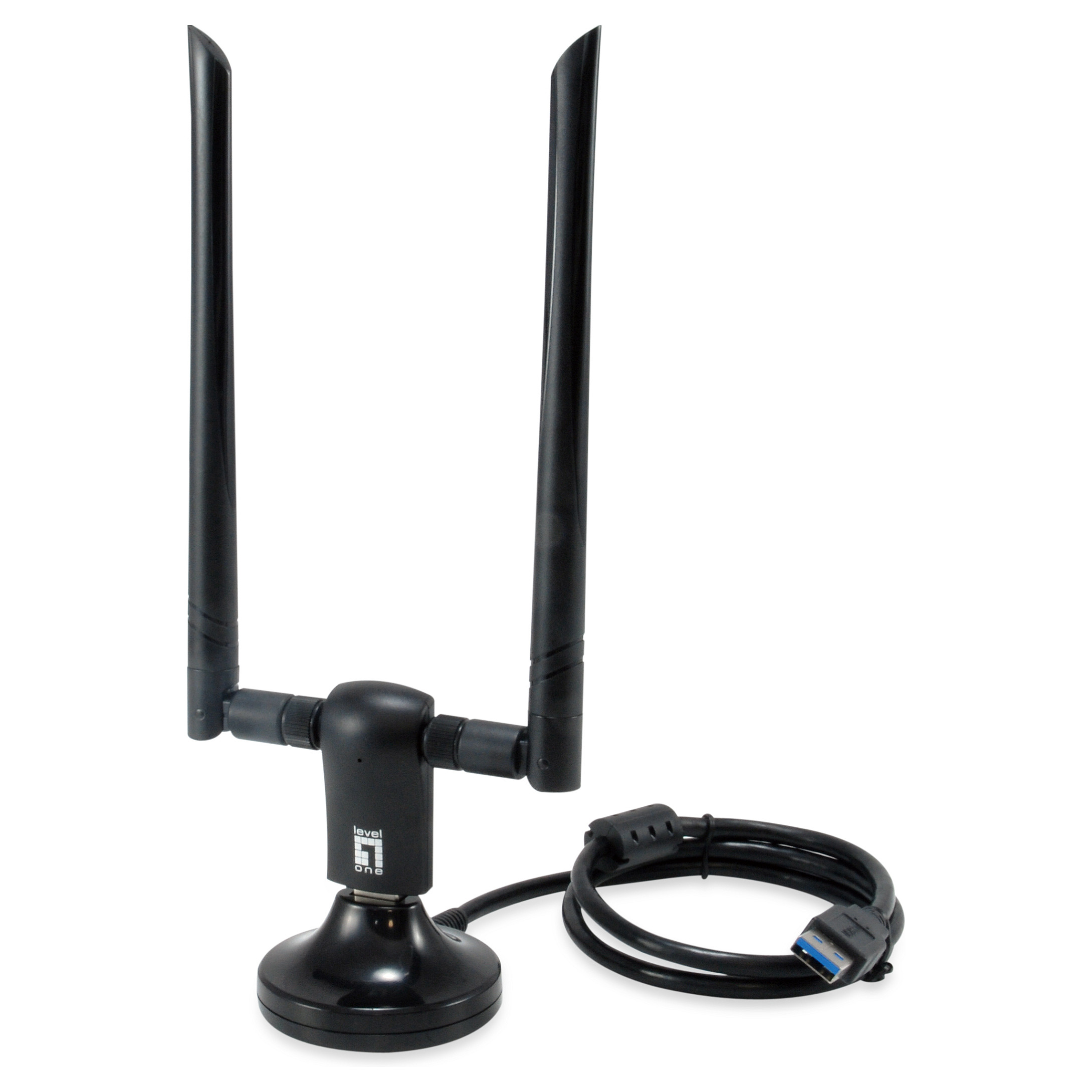

LevelOne WUA-1810E 2.4 GHz/5 GHz 867Mbit/s
Pre-Order
€39.99
VAT (19%) included
Description
MU-MIMO Technologie sorgt für erweiterte Performance Kompatibel mit IEEE 802.11a / b / g / n / ac Wave 2 Standard Unterstützt drahtlose Übertragungsraten von bis zu 300Mbps (2.4GHz) / 867Mbps (5GHz) Dual-Band-Technologie reduziert Interferenzen für zuverlässige Verbindungen Verfügt über abnehmbare 5dBi-Antenne Inklusive USB-Standfuss für optimale Signalstärke durch flexible Positionierung
Technical Specifications
SKU
KWUA-1810E
Connectivity Technology
Wireless
Host Interface
USB
Interface
WLAN
Usb Version
3.2 Gen 1 (3.1 Gen 1)
Maximum Data Transfer Rate
867 Mbit/s
Networking Standards
IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi Band
Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi Standard
Wi-Fi 5 (802.11ac)
Wi-Fi Standards
802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wlan Data Transfer Rates Supported
1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54, 130, 300, 867 Mbit/s
Modulation
DSSS, OFDM
Security Algorithms
64-bit WEP, 128-bit WEP, WPA-PSK, WPA-TKIP, WPA2-PSK, WPA2-TKIP
Channels Quantity (Eu)
13 channels
Mu-Mimo
2
Bandwidth (First)
2.4 GHz
Bandwidth (Second)
5 GHz
Maximum Operating Distance
10 m
Product Colour
Black
Antenna Design
External
Chipset
RTL8812BU
Led Indicators
Status
Country Of Origin
China
Receiver Sensitivity
11n:-68dBm@130M-68dBm@108M 11g:-69dBm@54M 11b:-85dBm@11M 11ac:-59dBm@867M
Certification
CE, LVD, RED
Input Current
0.5 A
Output Voltage
5 V
Windows Operating Systems Supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac Operating Systems Supported
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion
Operating Temperature (T-T)
0 - 40 °C
Storage Temperature (T-T)
-40 - 70 °C
Operating Relative Humidity (H-H)
10 - 90%
Storage Relative Humidity (H-H)
5 - 90%
Width
26.5 mm
Depth
62.5 mm
Height
14.6 mm
Weight
110 g
Package Type
Box
Package Width
103 mm
Package Depth
206 mm
Package Height
39 mm
Package Weight
170 g
Cables Included
USB
Compliance Certificates
RoHS
Harmonized System (Hs) Code
85176990
Gain
5 dBi
Antennas Quantity
2
Cable Length
0.7 m
