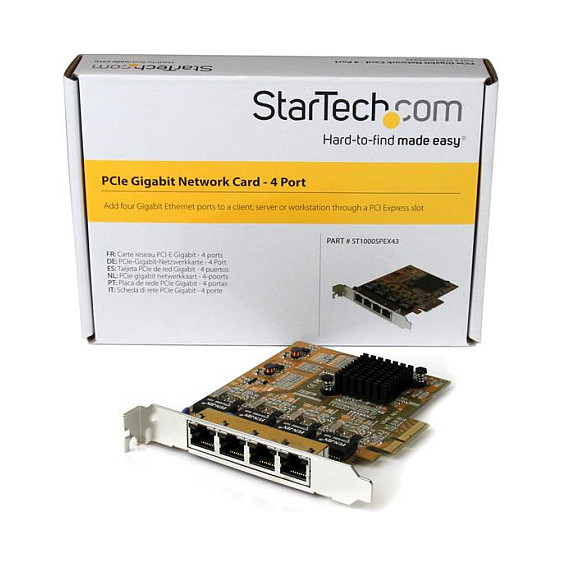

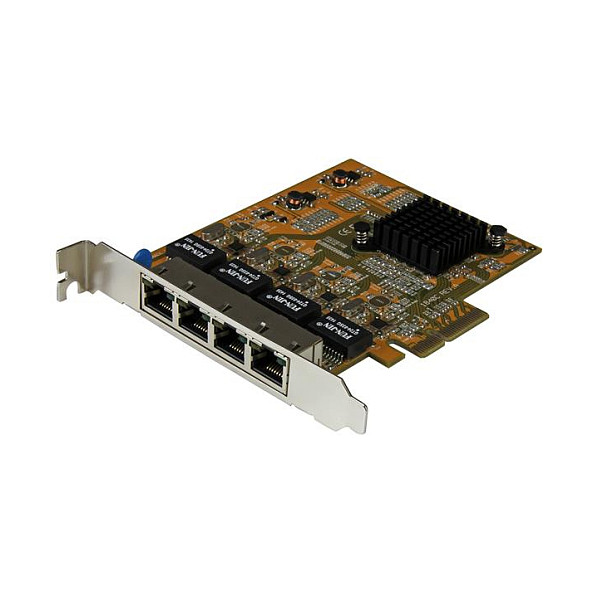

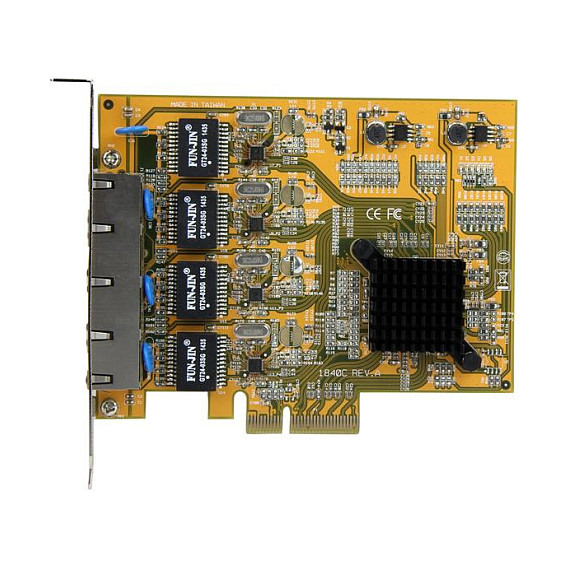

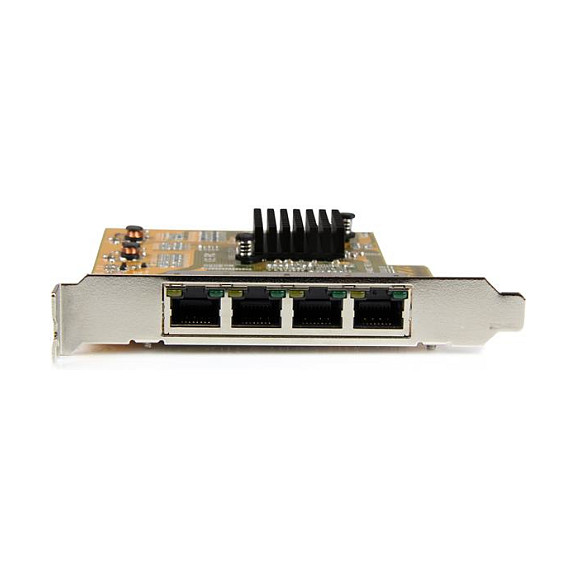

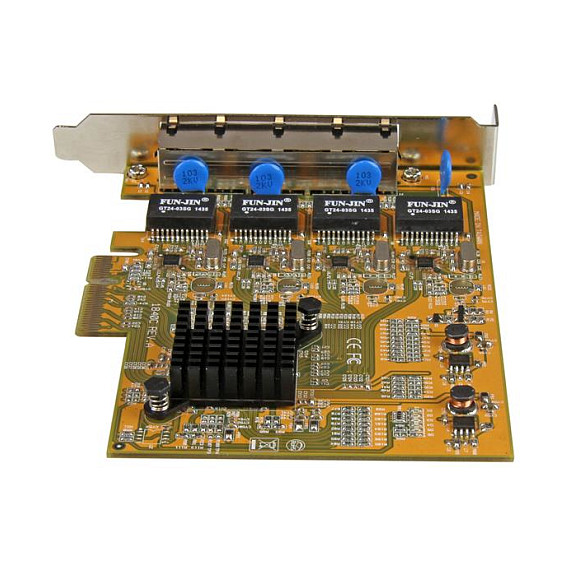

STARTECH.COM 4 Port PCIe Gigabit Netzwerkkarte - Quad Port PCI Express GbE NIC
Pre-Order
€192.99
VAT (19%) included
Description
Add four independent Gigabit RJ45 ports to connect to multiple networks for high-bandwidth workstations and servers Realtek RTL8111H chipset for reliable performance Supports full-duplex flow control Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab networks Supports autonegotiation with next-page capacity Crossover detection and auto-correction (Auto-MDIX) Up to 9K jumbo frame support Support for IEEE 802.1Q VLAN tagging and IEEE 802.1P layer 2 priority encoding Microsoft NDIS5 checksum offload (IP, TCP, UDP) and large send offload support
Technical Specifications
SKU
KST1000SPEX43
Connectivity Technology
Wired
Host Interface
PCI Express
Interface
Ethernet
Ethernet Lan (Rj-45) Ports
4
Maximum Data Transfer Rate
2000 Mbit/s
Networking Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Ethernet Lan Data Rates
10, 1000, 100 Mbit/s
Cabling Technology
10/100/1000BaseT(X)
Chipset
Realtek RTL8111G
Led Indicators
Activity, Link
Windows Operating Systems Supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Server Operating Systems Supported
Windows Server 2003, Windows Server 2012, Windows Server 2016, Windows Server 2019
Operating Temperature (T-T)
0 - 55 °C
Storage Temperature (T-T)
-40 - 75 °C
Operating Relative Humidity (H-H)
5 - 95%
Width
120 mm
Depth
138 mm
Height
18 mm
Weight
95 g
Package Width
145 mm
Package Depth
210 mm
Package Height
41 mm
Package Weight
184 g
Compliance Certificates
CE, RoHS
Harmonized System (Hs) Code
85176990
Master (Outer) Case Width
446 mm
Master (Outer) Case Length
530 mm
Master (Outer) Case Height
338 mm
Products Per Master (Outer) Case
50 pc(s)
Case Colour
Yellow
