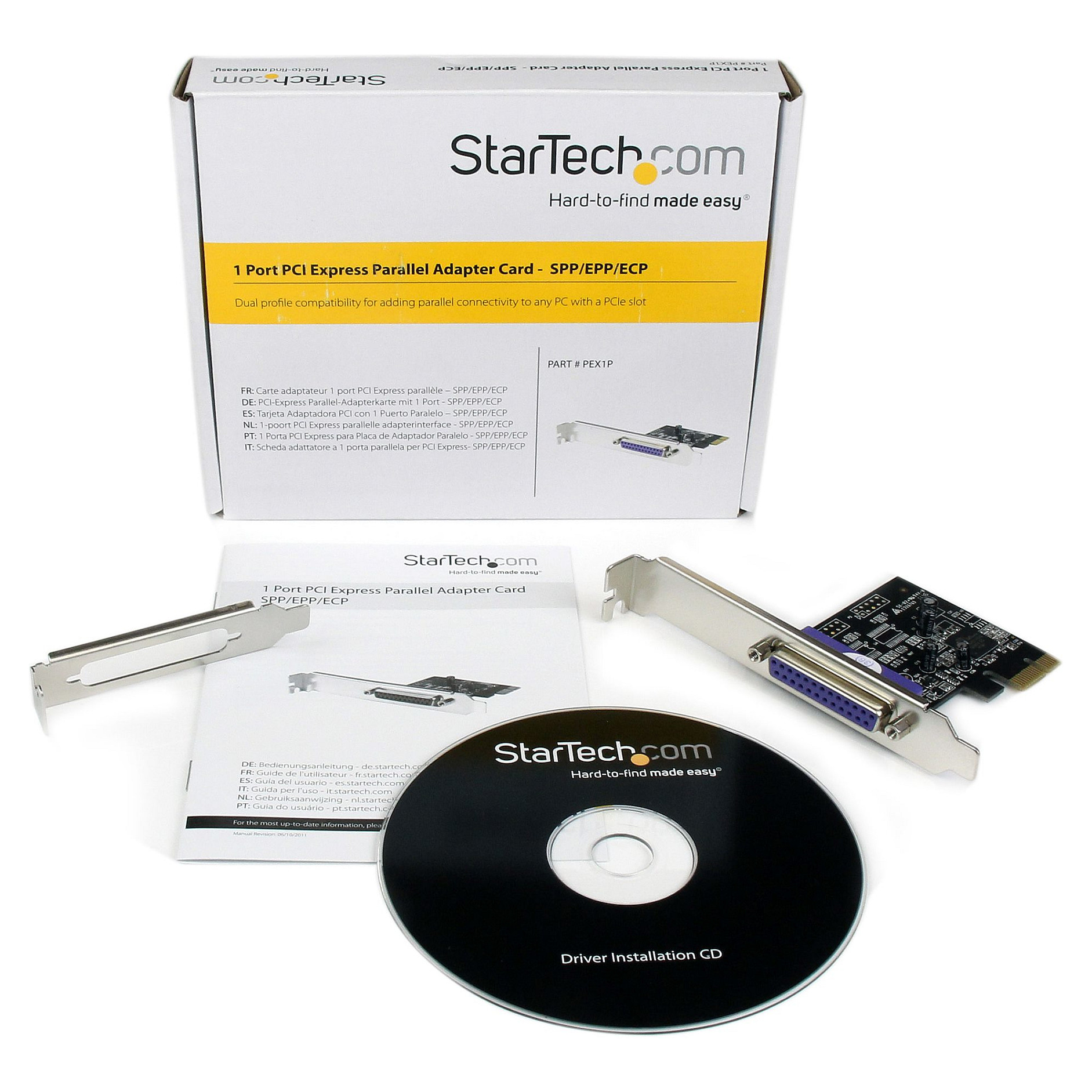

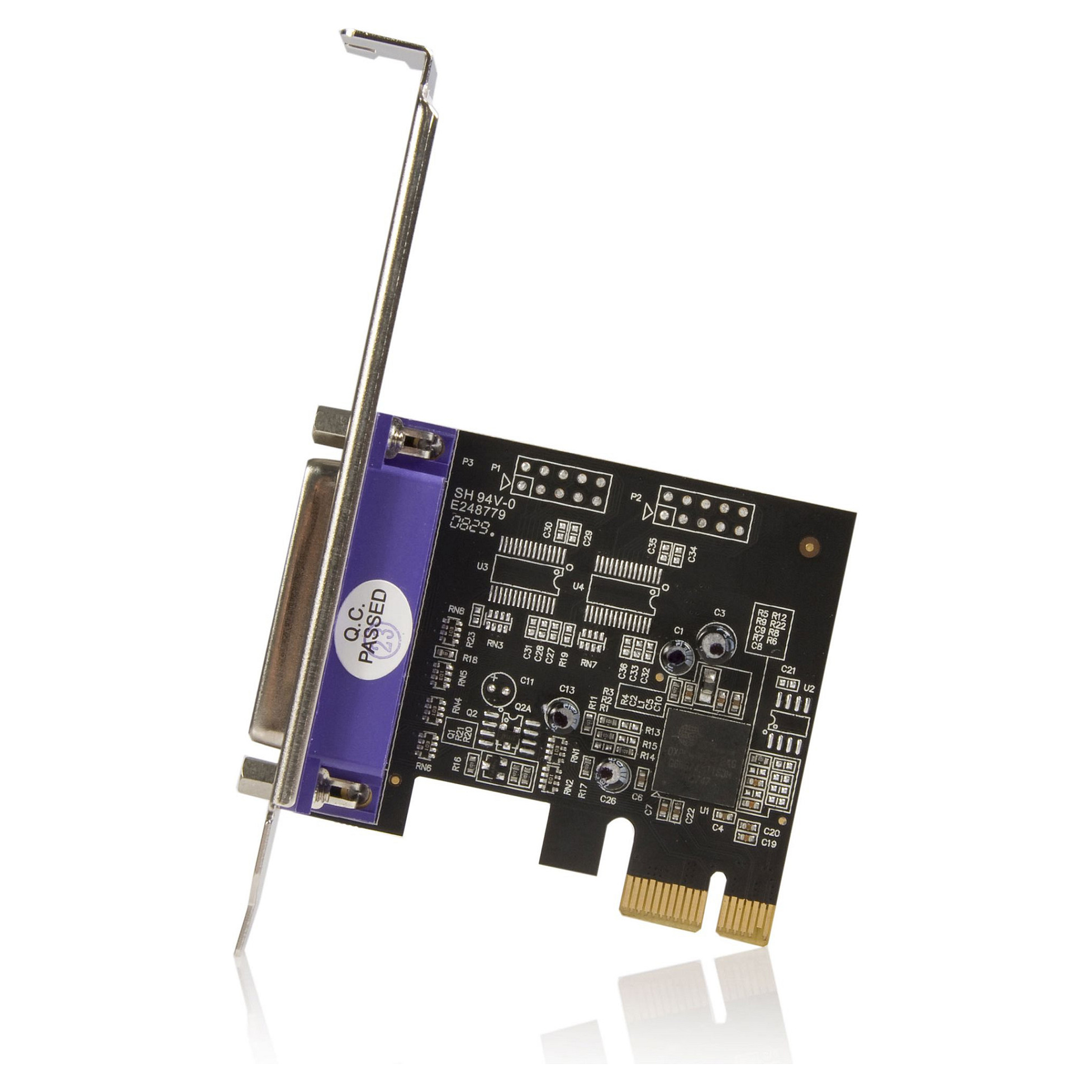

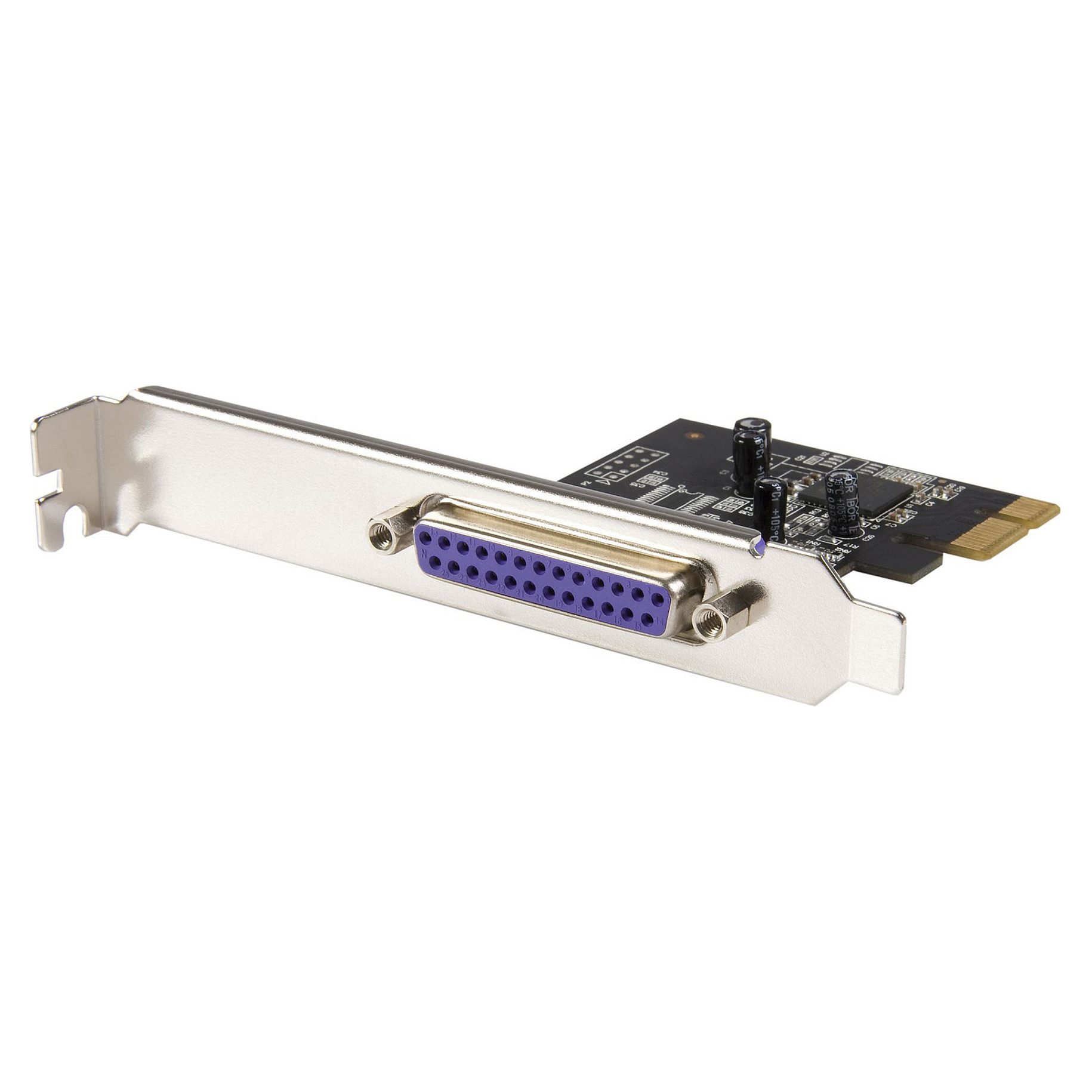

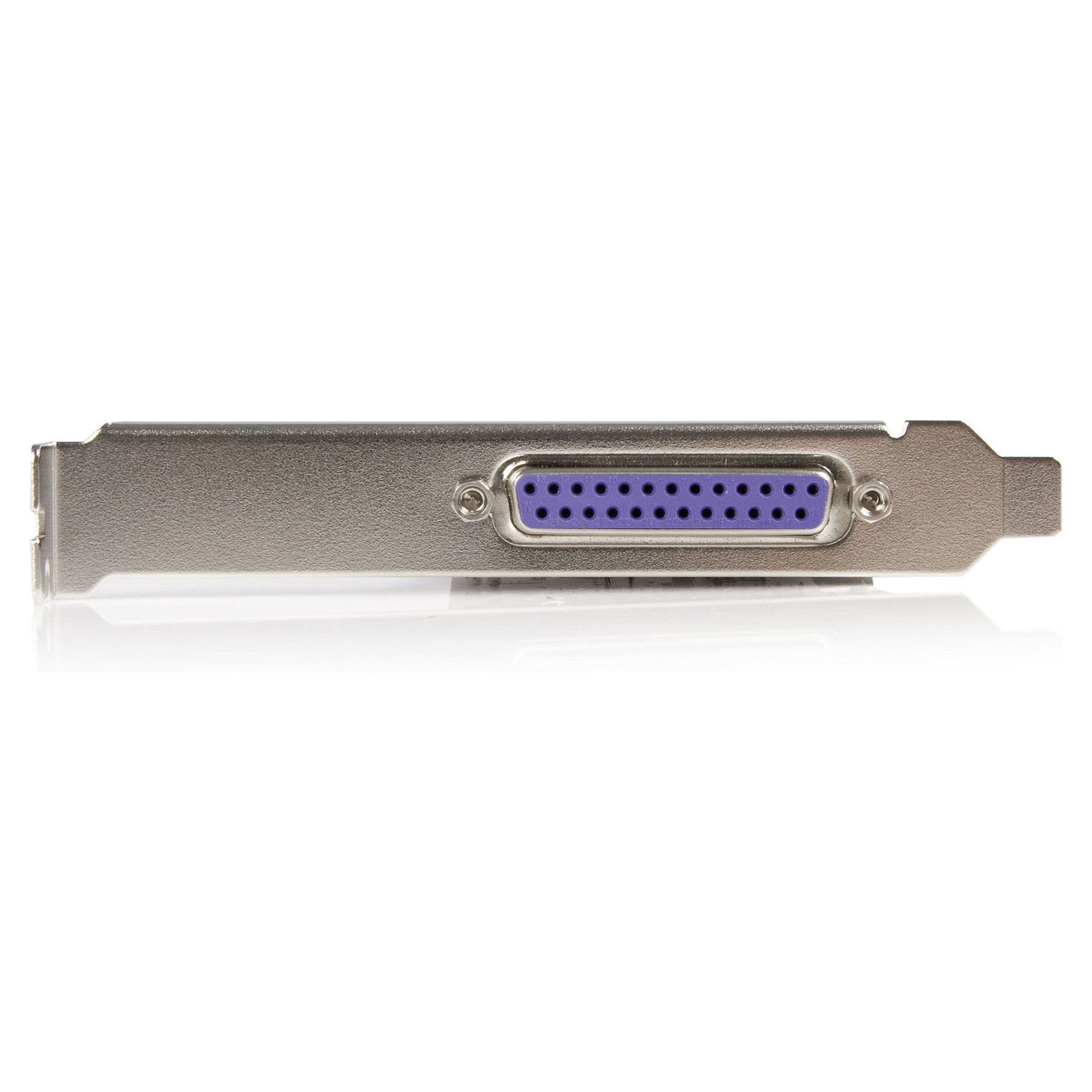

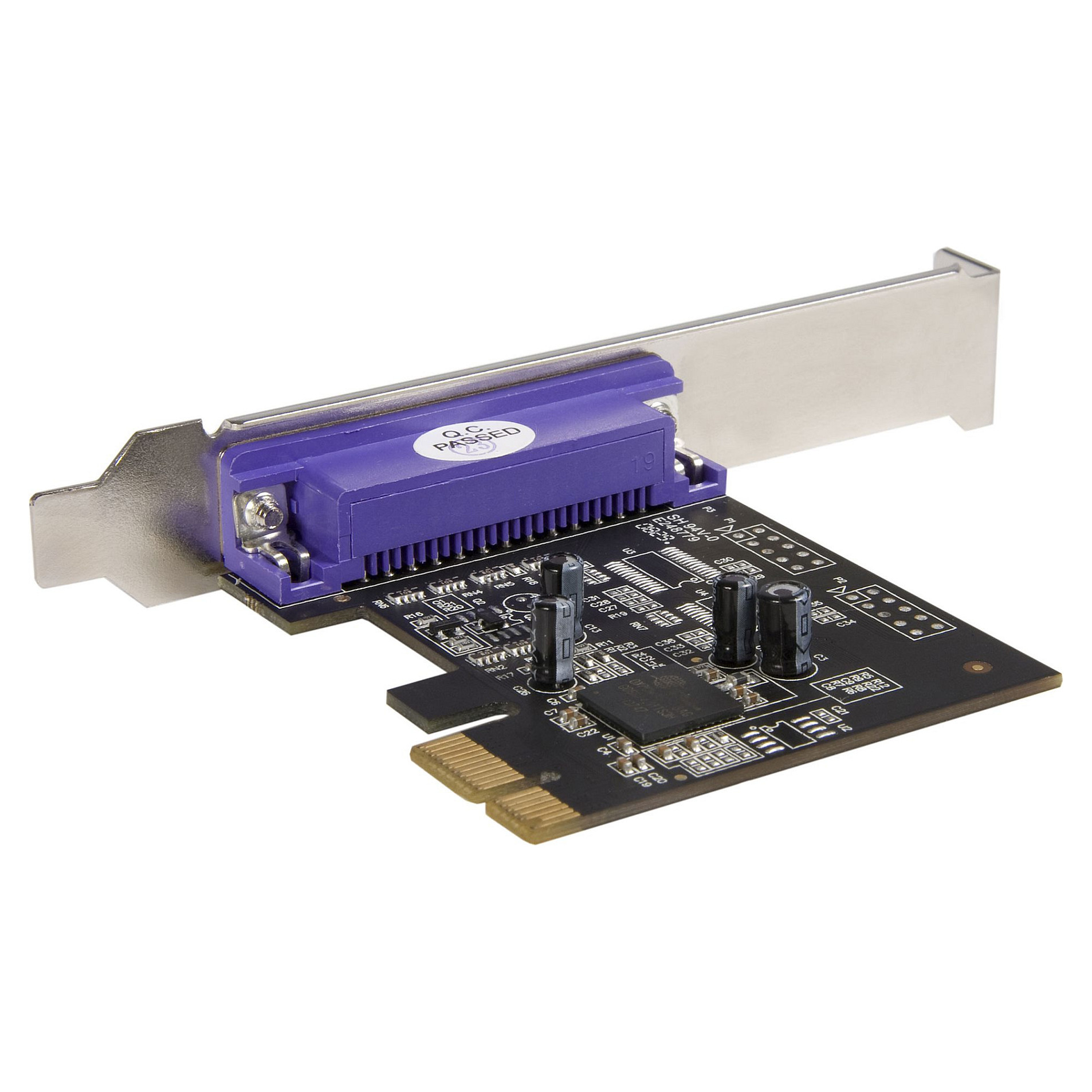

1 port PCIe expansion card - PCI-Express to parallel interface card - SPP/ECP PEX1P2
Pre-Order
€31.99
VAT (19%) included
Description
1-PORT PARALLEL PCIe CARD: Using a 1x PCI Express 2.0 Gen 1 slot, add a DB25 parallel communications port to your computer; Installs in full/standard or low profile PCIe cards slots (brackets incl.); Latest version of our popular parallel card PEX1P TECH SPECS: Parallel port LPT controller card supports SPP/Byte/Nibble/ECP modes / Compatible with IEEE 1284 / Speeds up to 2.5Mbps / Asix AX99100 chip / Full profile bracket pre-installed VERSATILE APPLICATIONS: Parallel port expansion card works with printers, scanners, plotters, point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, oscilloscope WIDE COMPATABILITY: Fully compliant with PCI Express Base Specifications Revision 1.1 and PCI Power Mgmt 1.2; Compatible with PCI-e x1 slot and up; Supports Windows (incl. XP and up) Windows Server (2003 and up) and Linux (2.6.X and up) STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years; These PCIe Parallel adapter card is backed for 2-years by StarTech.com, incl. free 24/5 North America based multi-lingual tech support
Technical Specifications
SKU
KPEX1P2
Host Interface
PCIe
Output Interface
Parallel
Expansion Card Standard
PCIe 1.0a
Parallel Ports Quantity
1
Product Colour
Black, Steel
Mean Time Between Failures (Mtbf)
26297 h
Chipset
PLX/Oxford - OXPCIe952
Windows Operating Systems Supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Server Operating Systems Supported
Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Compliance Certificates
CE, RoHS
Width
110 mm
Depth
210 mm
Height
120 mm
Weight
42 g
Package Width
216 mm
Package Depth
146 mm
Package Height
37 mm
Package Weight
133 g
Harmonized System (Hs) Code
84733020
Products Per Master (Outer) Case
40 pc(s)
Master (Outer) Case Width
450 mm
Master (Outer) Case Length
379 mm
Master (Outer) Case Height
327 mm
Data Transfer Rate
2.5 Mbit/s
Material
Steel
