Digitus

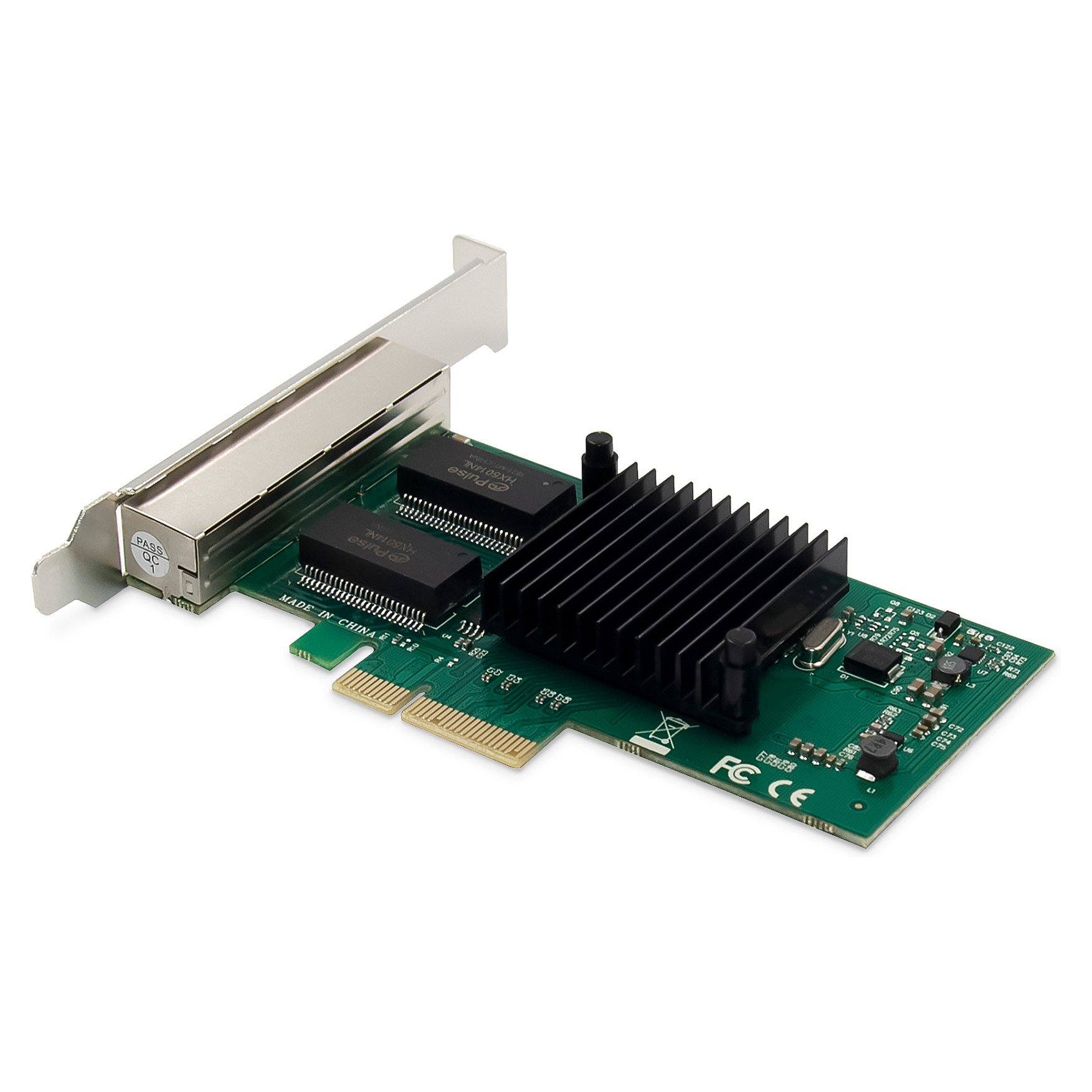

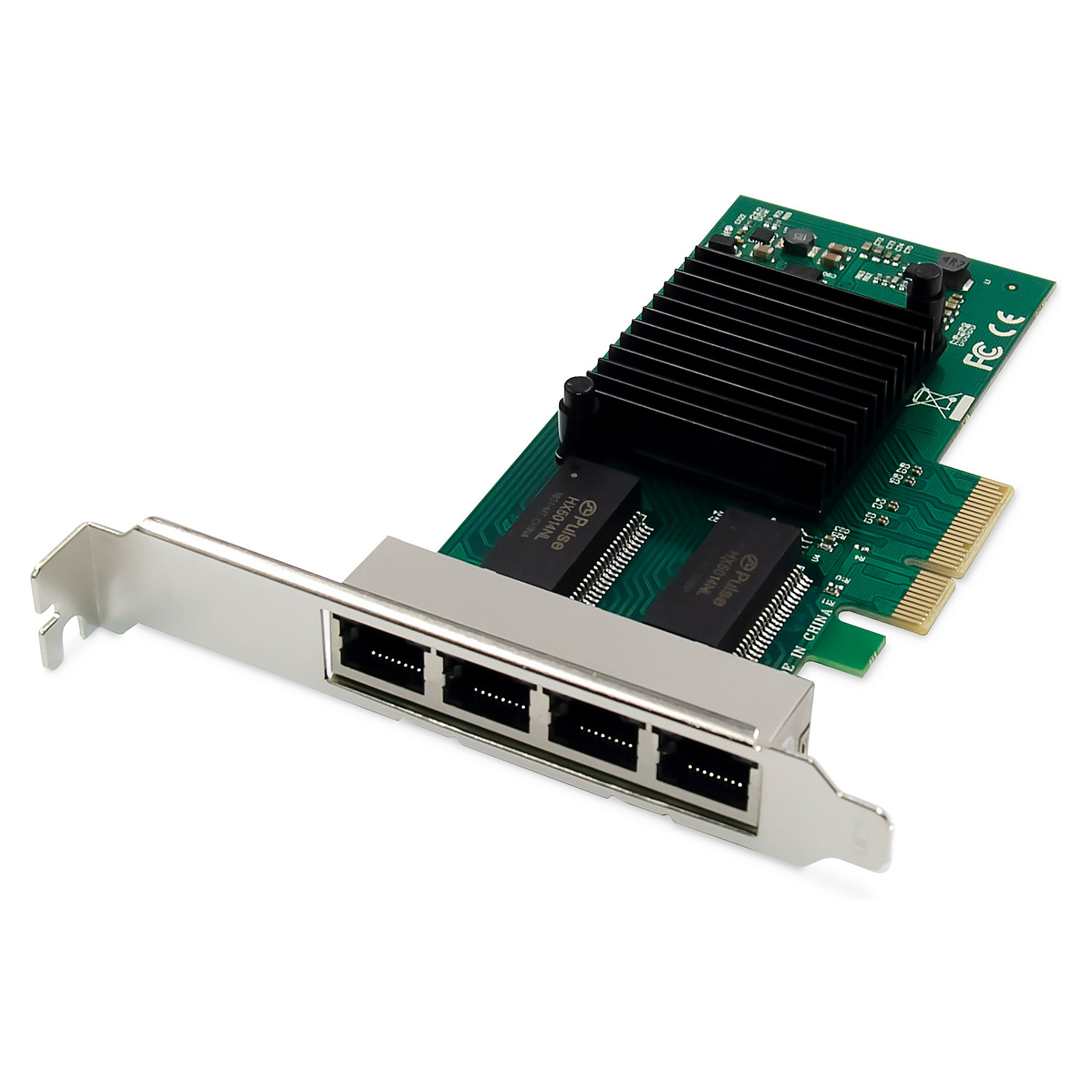

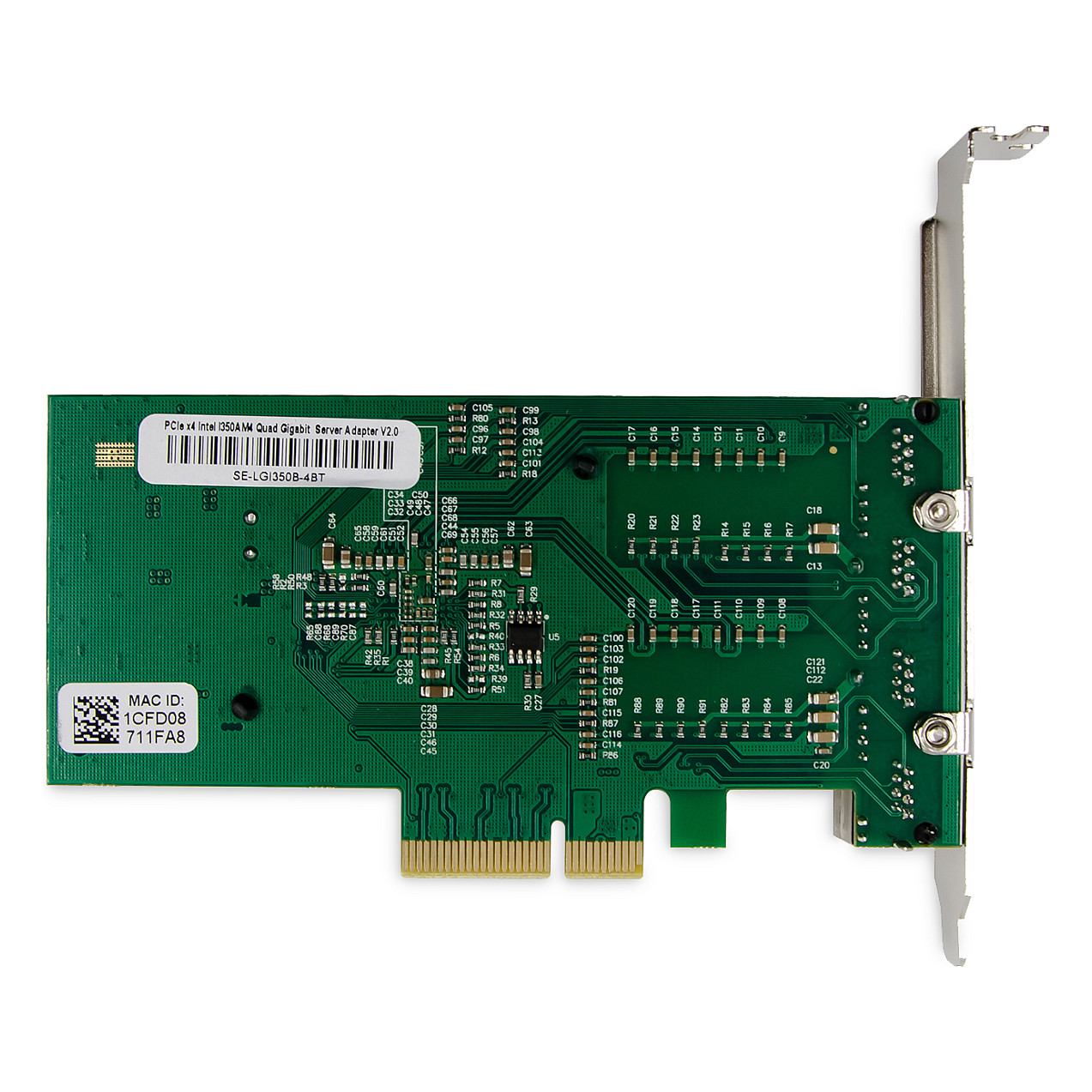

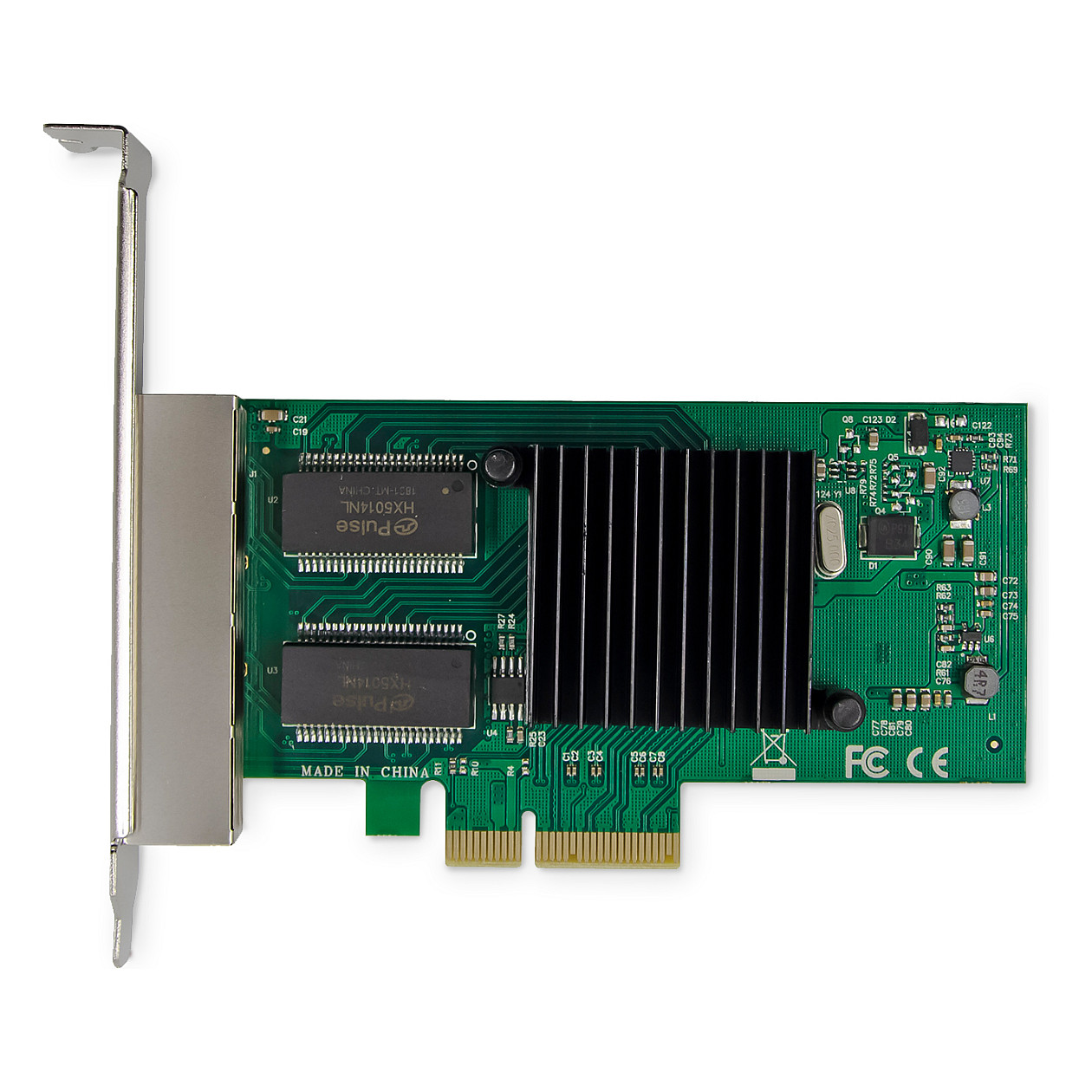

DIGITUS Netzwerkkarte PCI-e 4Port RJ45 Gigabit Intel I350
Pre-Order
€167.99
VAT (19%) included
Description
Halogen-free quad-port Gigabit Ethernet adapters with 4 RJ 45 Ports Innovative power management features including Energy Efficient Ethernet (EEE) and DMA Coalescingfor increased efficiency and reduced power consumption Flexible I/O virtualization for port partitioning and quality of service (QoS) of up to 32 virtual ports Scalable iSCSI performance delivering cost-effective SAN connectivity High-performing bridgeless design supporting PCI Express* Gen 2.1 5GT/s Reliable and proven Gigabit Ethernet technology from Intel Corporation Controller: Intel NHI350AM4 Transmission Rate Per Port: 10/100/1000 Mbps Network Standard Physical Layer Interfaces: 10BASE-T Cat3/4/5/5E/6:100m most, 100BASE-Tx Cat5/5E/6:100m most, 1000BASE-T Cat5E/6:100m most Jumbo Frame Support:Up to 9.5 KB Operating Temperature: 0 °C to 55 °C (32 °F to 131 °F) Boot Option and Virtualization: PXE support, Intel® VT-c LED Indicators: 1000Mbps: Yellow and Green Blinking,100Mbps: Green and Green Blinking, 10Mbps: Not illuminate Power Supply: PCI Express +12V±8% / +3.3V±9% SYSTEM SUPPORT: Windows Server 2003 / 2008 /2008 R2 / 2012 /2012 R2 /2016 R2, Windows XP / Vista / 7 / 8 / 8.1 / 10, Linux Stable Kernel version 2.4.x / 2.6.x / 3.x / 4.x or later, Linux SLES 10 / 11 or later
Technical Specifications
SKU
KDN-10114
Connectivity Technology
Wired
Host Interface
PCI Express
Interface
Ethernet
Ethernet Lan (Rj-45) Ports
4
Pci Version
2.1
Maximum Data Transfer Rate
5000 Mbit/s
Ethernet Interface Type
Fast Ethernet, Gigabit Ethernet
Ethernet Lan Data Rates
10, 100, 1000 Mbit/s
Cabling Technology
10/100/1000BaseT(X)
Jumbo Frames
9500
Component For
PC/Server
Product Colour
Black, Green
Chipset
Intel® I350
Country Of Origin
China
Output Voltage
5 - 12 V
Windows Operating Systems Supported
Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
Server Operating Systems Supported
Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Operating Temperature (T-T)
0 - 55 °C
Doesn'T Contain
Halogen
Width
70 mm
Depth
20 mm
Height
130 mm
Weight
80 g
Package Width
155 mm
Package Depth
30 mm
Package Height
220 mm
Package Weight
232.5 g
Uk Trade Tariff Code
84718000
Package Volume
1023 cm³
