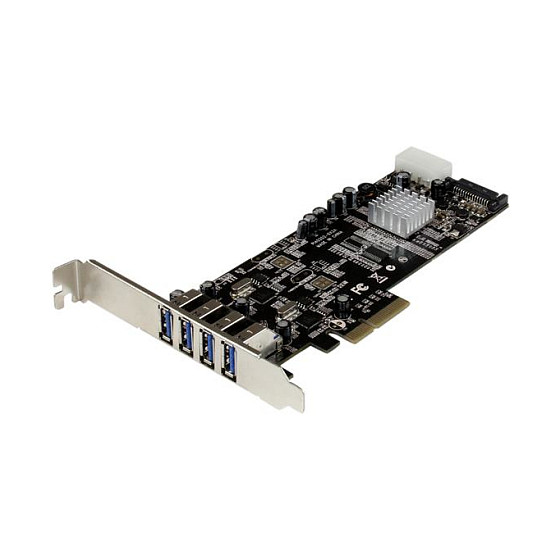

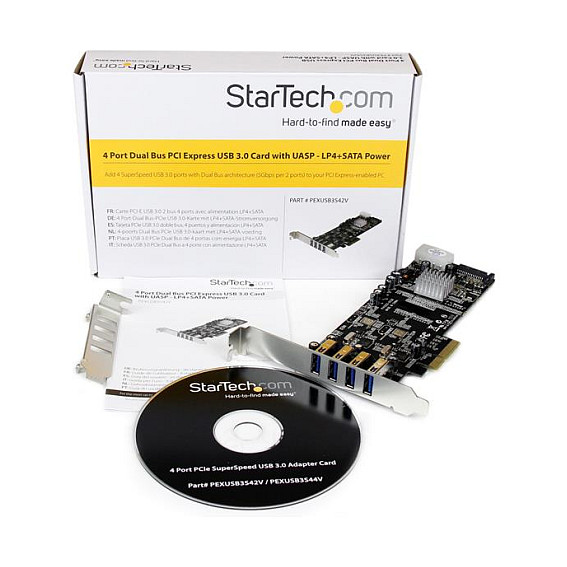

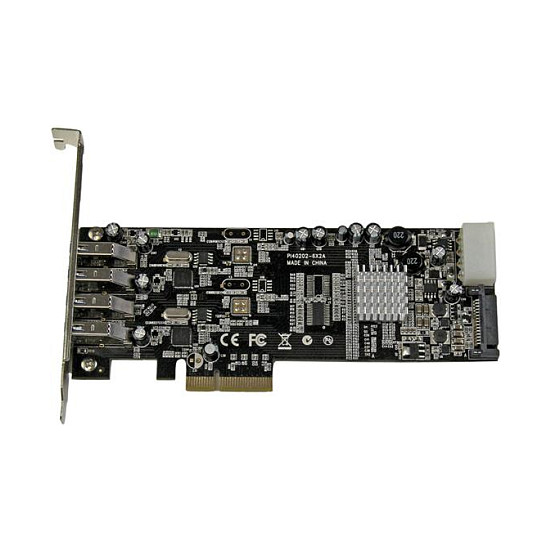

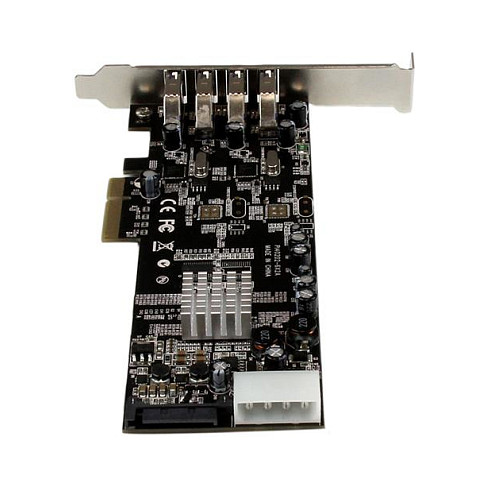

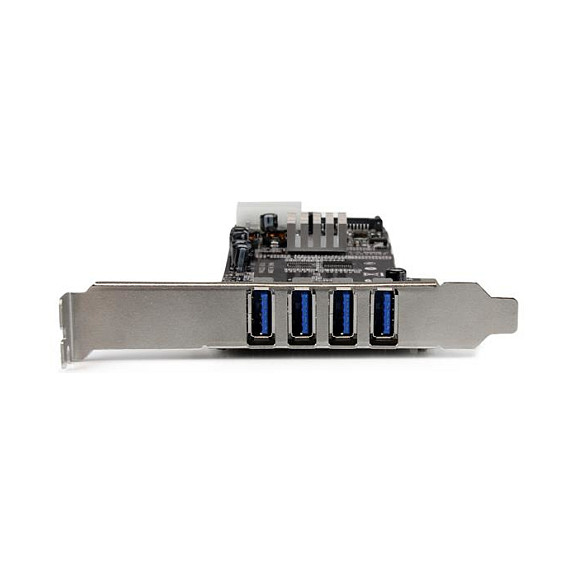

STARTECH.COM 4 Port USB 3.0 SuperSpeed PCI Express Schnittstellenkarte mit 2 5Gb/s Kanlen und UASP - SATA/LP4 Molex Strom
Pre-Order
€93.99
VAT (19%) included
Description
Provides four external, USB 3.2 Gen 1 Ports on two independent bus channels Supports up to 10 Gbps total transfer bandwidth - Up to 5 Gbps per two ports UASP support across all four ports PCIe x4 interface compliant with PCI Express 2.0 specifications Optional LP4 or SATA power connector provides up to 900mA per USB port Supports USB Battery Charging Specification 1.2 (Apple Mode only) Fully compliant with USB 3.2 Gen 1 rev 1.0 and Intel xHCI rev 1.0 specifications Backward compatible with USB 2.0 and USB 1.0/1.1 devices Includes a Low-Profile/half-height installation bracket Hot-swap feature to connect/disconnect devices without powering down the system
Technical Specifications
SKU
KPEXUSB3S42V
Host Interface
PCIe
Output Interface
USB 3.2 Gen 1 (3.1 Gen 1)
Expansion Card Form Factor
Full-height / Low-profile
Expansion Card Standard
PCIe 2.0
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
4
Peripheral (Molex) Power Connectors (4-Pin)
1
Maximum Cable Length
3 m
Certification
CE, FCC
Chipset
2 x Renesas / NEC - µPD720202
Data Transfer Rate (Max)
5 Gbit/s
Operating Temperature (T-T)
0 - 50 °C
Storage Temperature (T-T)
-20 - 60 °C
Operating Relative Humidity (H-H)
5 - 85%
Windows Operating Systems Supported
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Server Operating Systems Supported
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2
Compliance Certificates
RoHS
Width
15 mm
Depth
167 mm
Height
120 mm
Weight
90 g
Package Width
142 mm
Package Depth
207 mm
Package Height
41 mm
Package Weight
200 g
Harmonized System (Hs) Code
84733020
Products Per Master (Outer) Case
40 pc(s)
Master (Outer) Case Width
375 mm
Master (Outer) Case Length
440 mm
Master (Outer) Case Height
315 mm
