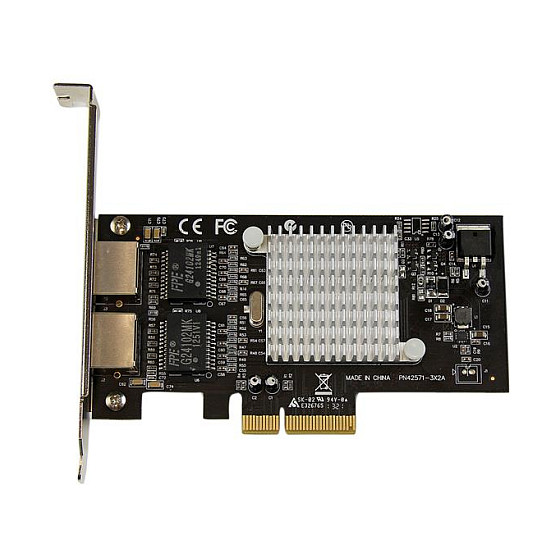

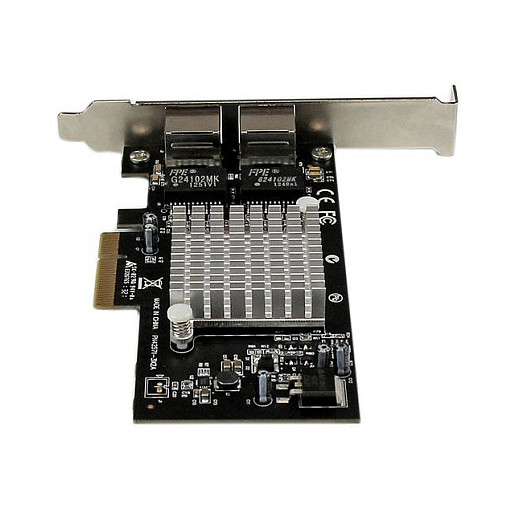

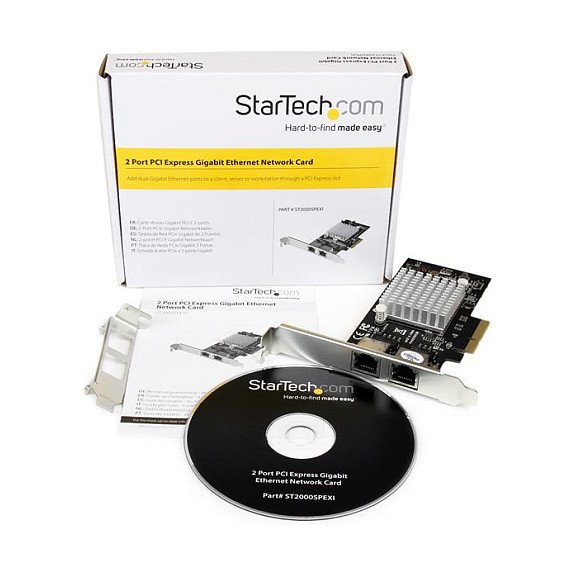

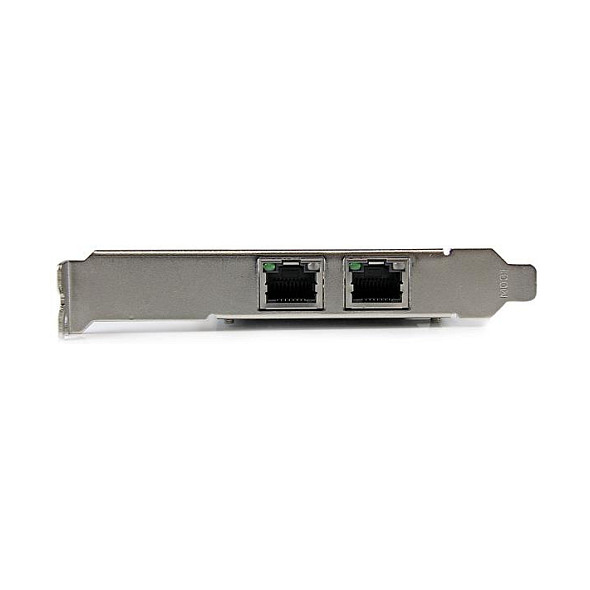

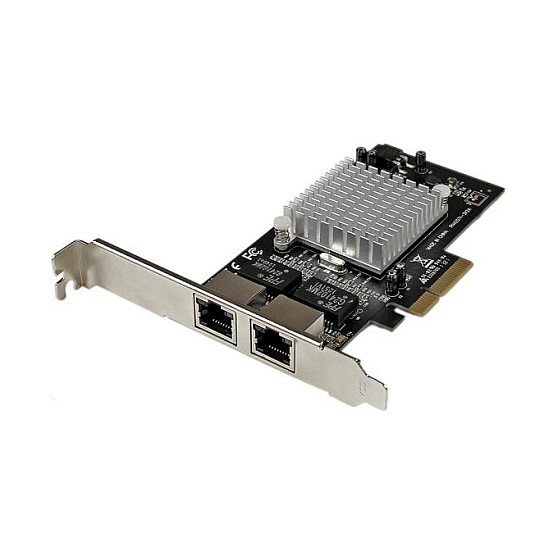

STARTECH.COM 2 Port PCI Express / PCIe Gigabit Ethernet Netzwerkkarte 2x RJ45 - PCI-e Intel i350 NIC Server Adapter
Pre-Order
€205.99
VAT (19%) included
Description
Two 10/100/1000Mbps compatible RJ-45 Ethernet ports Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3ad (link aggregation) and supports IEEE 802.1Q VLAN tagging Jumbo Frame support up to 9k bytes Teaming Support Supports Checksum Offload (IP, TCP, UDP), Transmit Segmentation Offload (TCP, UDP) and Large send Offload Wake-on-LAN / Remote Wake-up support Configured with standard profile bracket, low profile/half-height bracket included Supports Intel® Virtualization Technology (VT-c, VMDq, SR-IOV) Four-lane (x4) PCI Express compatible with x4, x8 and x16 PCIe slots Compatible with PCI Express Base Specification 2.1 (backward compatible with 1.0a/1.1)
Technical Specifications
SKU
KST2000SPEXI
Connectivity Technology
Wired
Host Interface
PCI Express
Interface
Ethernet
Ethernet Lan (Rj-45) Ports
2
Pci Version
2.1
Maximum Data Transfer Rate
2000 Mbit/s
Networking Standards
IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u
Ethernet Lan Data Rates
10, 100, 1000 Mbit/s
Cabling Technology
10/100/1000BaseT(X)
Jumbo Frames
9000
Lan Controller
Intel® I350-AM2
Component For
Server
Product Colour
Aluminium, Black
Chipset
Intel - I350-AM2
Led Indicators
Activity, Link
Mean Time Between Failures (Mtbf)
432400 h
Certification
CE, FCC, REACH
Windows Operating Systems Supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Server Operating Systems Supported
Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Operating Temperature (T-T)
0 - 50 °C
Storage Temperature (T-T)
-20 - 60 °C
Operating Relative Humidity (H-H)
5 - 85%
Width
19 mm
Depth
67 mm
Height
121 mm
Weight
80 g
Package Width
142 mm
Package Depth
170 mm
Package Height
32 mm
Package Weight
165 g
Compliance Certificates
RoHS
Harmonized System (Hs) Code
85176990
Master (Outer) Case Width
318 mm
Master (Outer) Case Length
590 mm
Master (Outer) Case Height
364 mm
Products Per Master (Outer) Case
80 pc(s)
