STARTECH.COM 2 Port PCI Express Serielle Schnittstellenkarte PCIe auf RS232 Karte Serielle Adapter Karte / Erweiterungskarte COM Ret
Pre-Order
€76.99
VAT (19%) included
Description

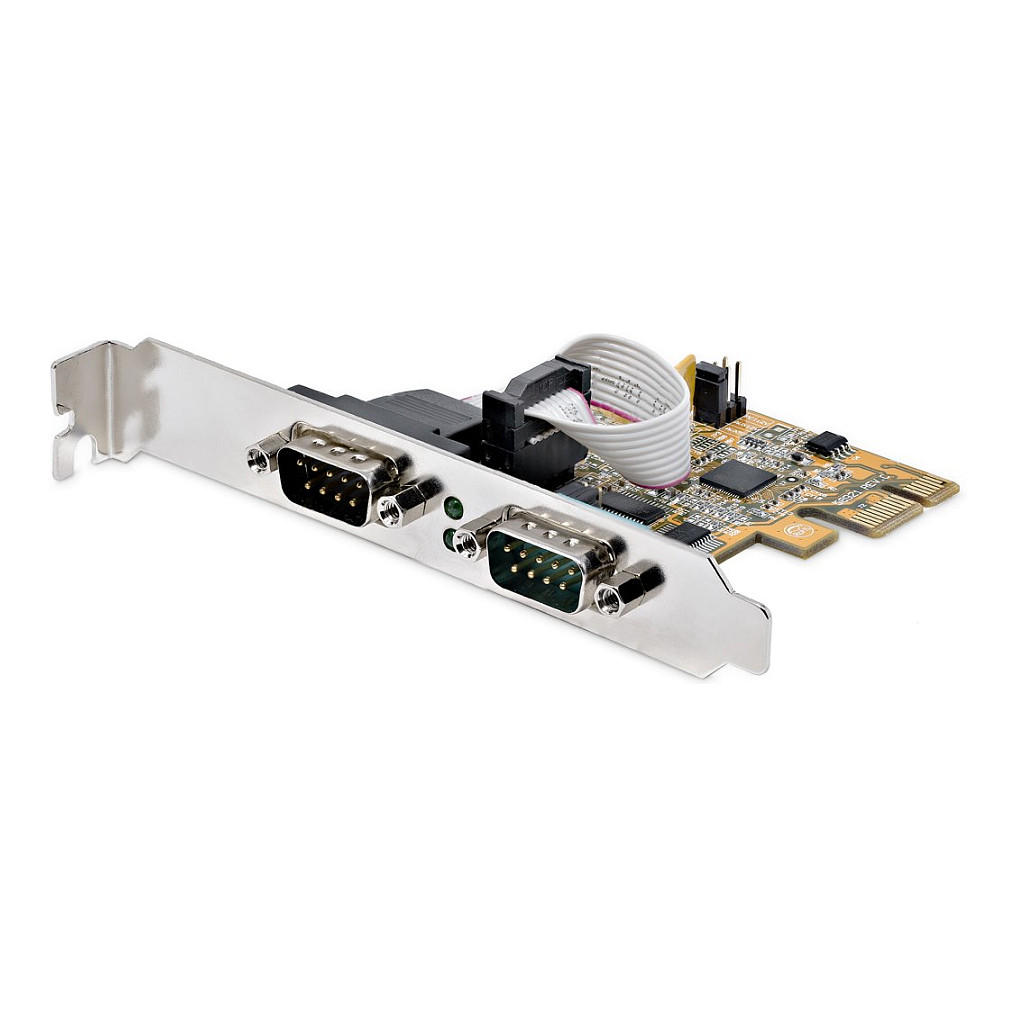

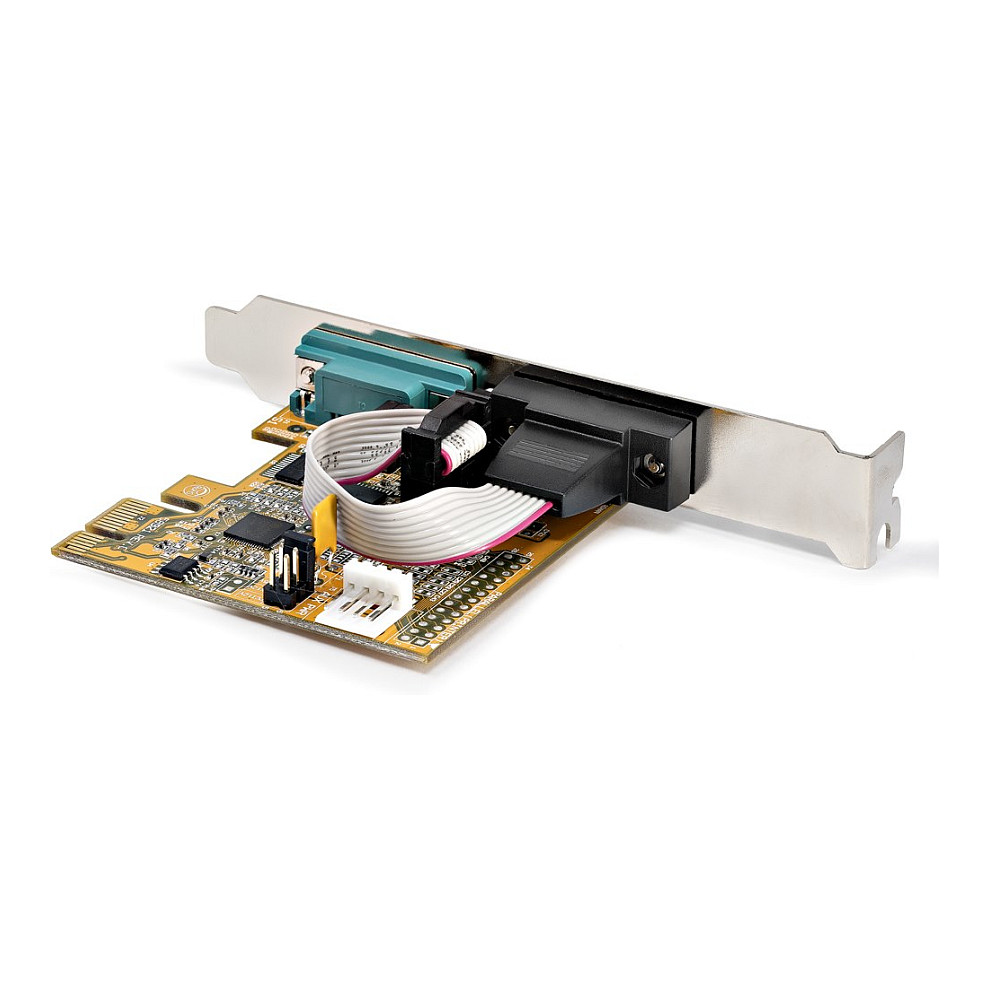

PCIE TO SERIAL: Connect serial RS232 (DB9) devices to a computer with this low profile PC serial card; Features support for high performance 16C1050 UART on both DB9 male ports; Monitor activity with the built-in LED status lights on the PCI express DB9 card DEVICE COMPATIBILITY: Use this serial interface card to connect barcode readers/scanners, receipt printers, scales, PLCs, medical devices, etc; The UART PCIe card supplies 5V or 12V power over pin 9; Full-profile bracket included APPLICATIONS: This card is ideal for IT applications such as server rooms, industrial control/automation, logistics, and laboratories; Continue using legacy hardware with this RS232 PCIe card; DB9 ports accept screw locking serial cables DUAL SERIAL PORT CARD SPECS: 16C1050 UART, Max Baud 921.6 Kbps per Port, 256 Byte FIFO, COM Retention, Supports Windows/Linux, ASIX AX99100 Chipset, Odd/Even/Mark/Space/None Parity Modes, 5/6/7/8/9 Data Bits, PCIe 2.0 x1, Low-Profile Brackets Installed THE IT PRO'S CHOICE: Designed and built for IT Professionals, this PCIe to RS232 card is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance
Technical Specifications
SKU
K21050-PC-SERIAL-LP
Host Interface
PCIe
Output Interface
Serial
Expansion Card Form Factor
Full-height / Low-profile
Expansion Card Standard
PCI 2.0
Serial Ports Quantity
2
Serial Interface Type
RS-232
Product Colour
Yellow
Led Indicators
Activity
Chipset
ASIX - AX99100, ASIX - ZT3243LFEY
Baud Rate
921.6 Kbit/s
Fifo (First In, First Out)
256 B
Data Bits
5, 6, 7, 8, 9
Parity Bit
Even, Mark, No, Odd, Space
Operating Temperature (T-T)
0 - 55 °C
Storage Temperature (T-T)
-40 - 75 °C
Operating Relative Humidity (H-H)
5 - 95%
Windows Operating Systems Supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Server Operating Systems Supported
Windows Server 2016, Windows Server 2019
Width
66 mm
Depth
67 mm
Height
18 mm
Weight
160 g
Package Width
145 mm
Package Depth
211 mm
Package Height
41 mm
Package Weight
160 g
Products Per Master (Outer) Case
50 pc(s)
Master (Outer) Case Width
533 mm
Master (Outer) Case Length
452 mm
Master (Outer) Case Height
345 mm
Material
Steel
