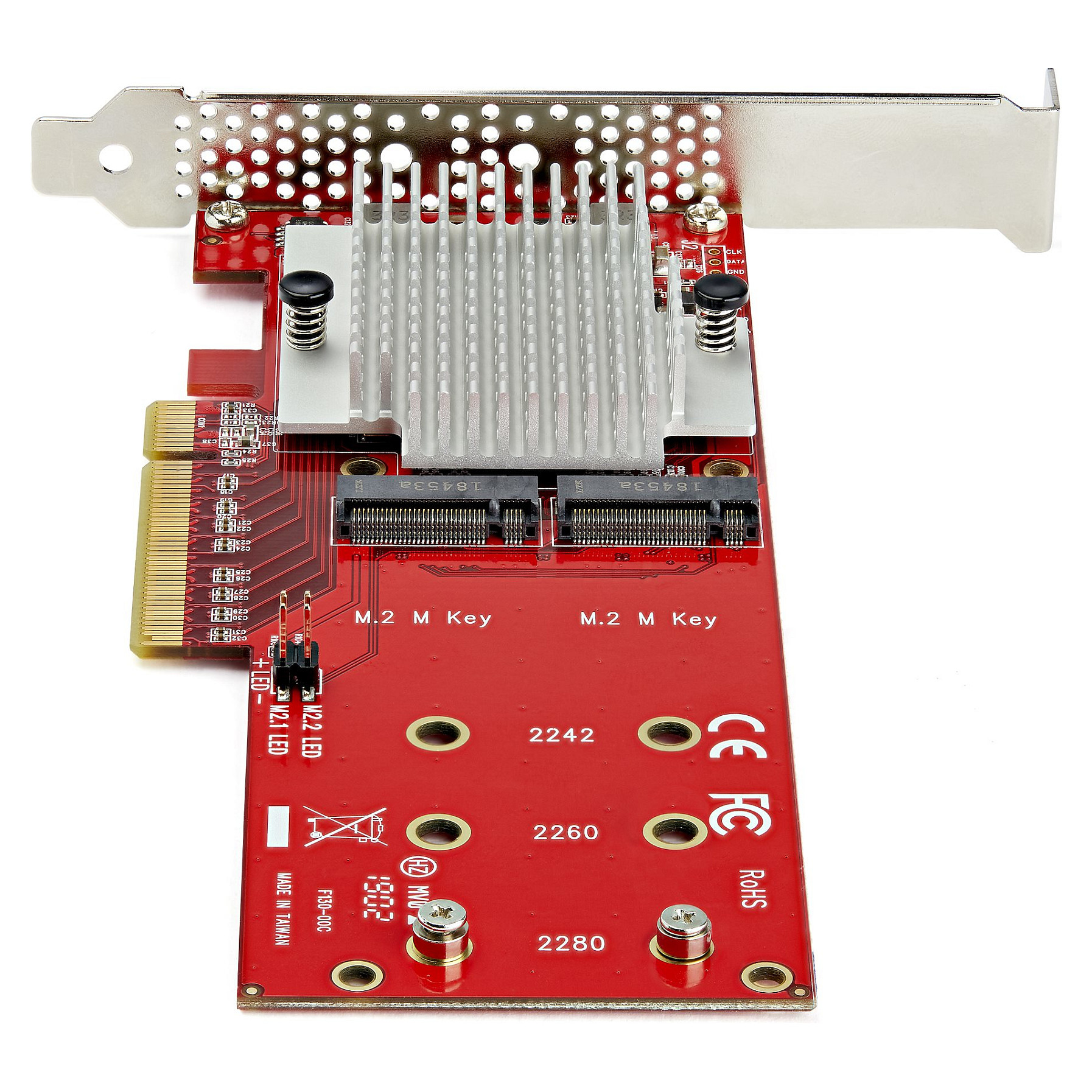

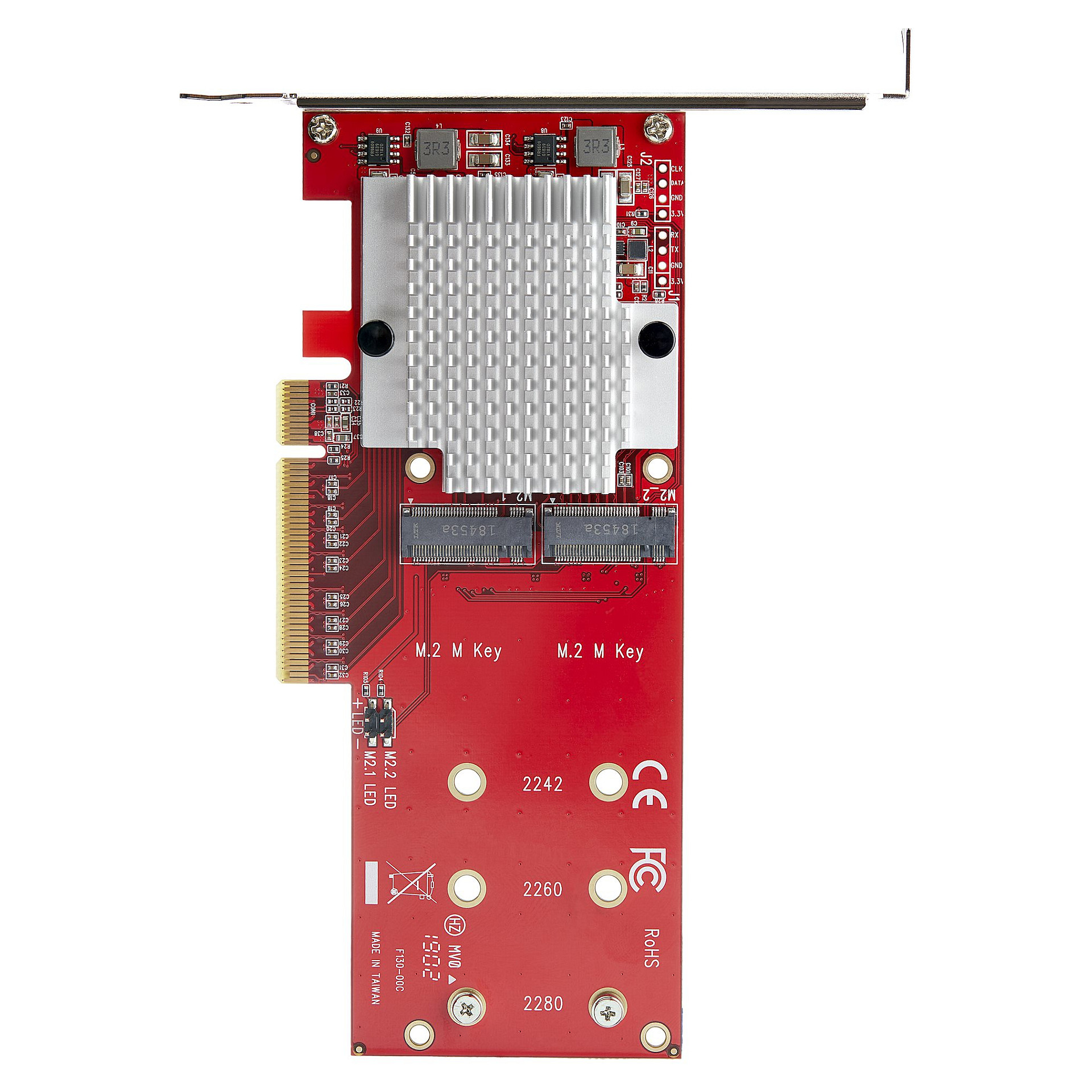

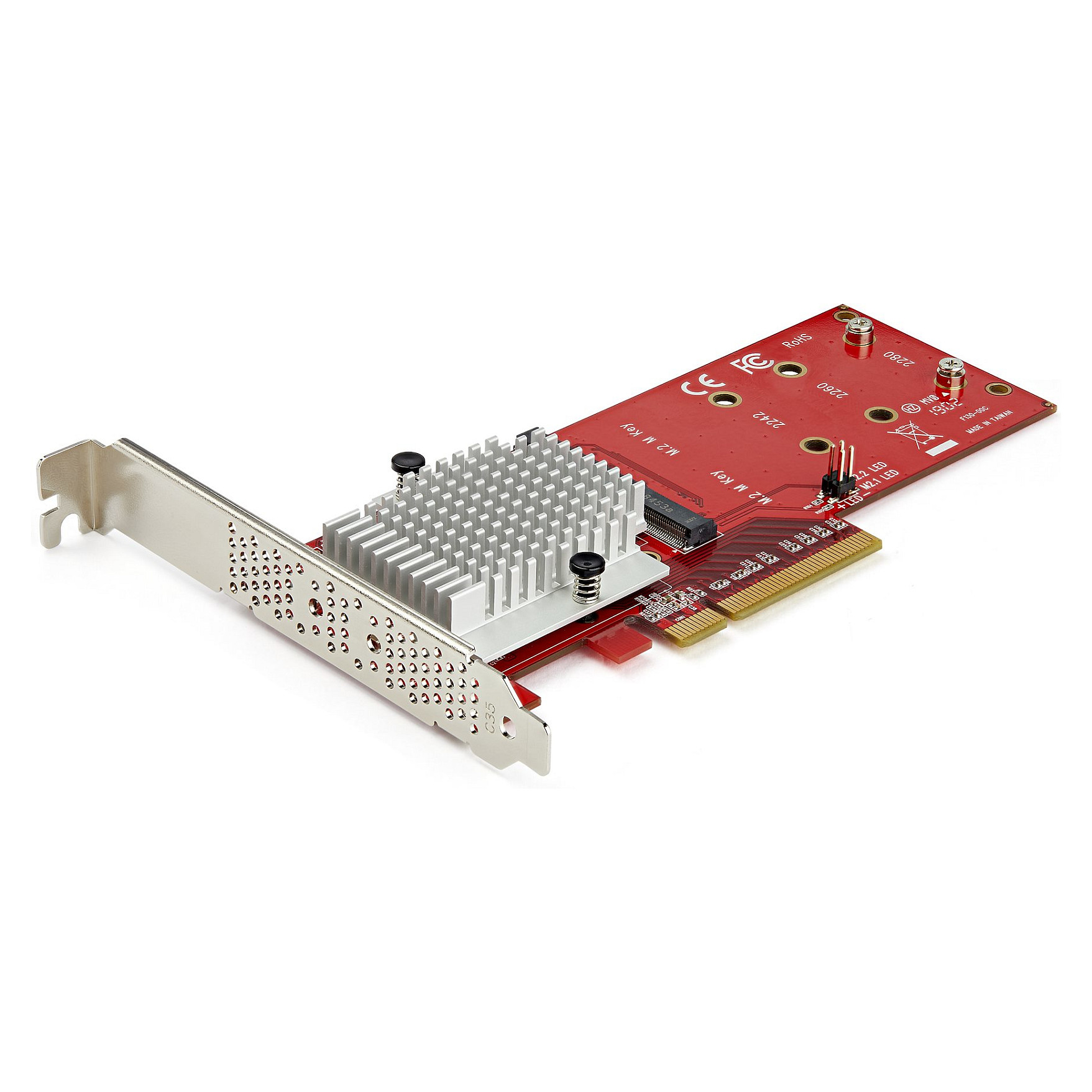

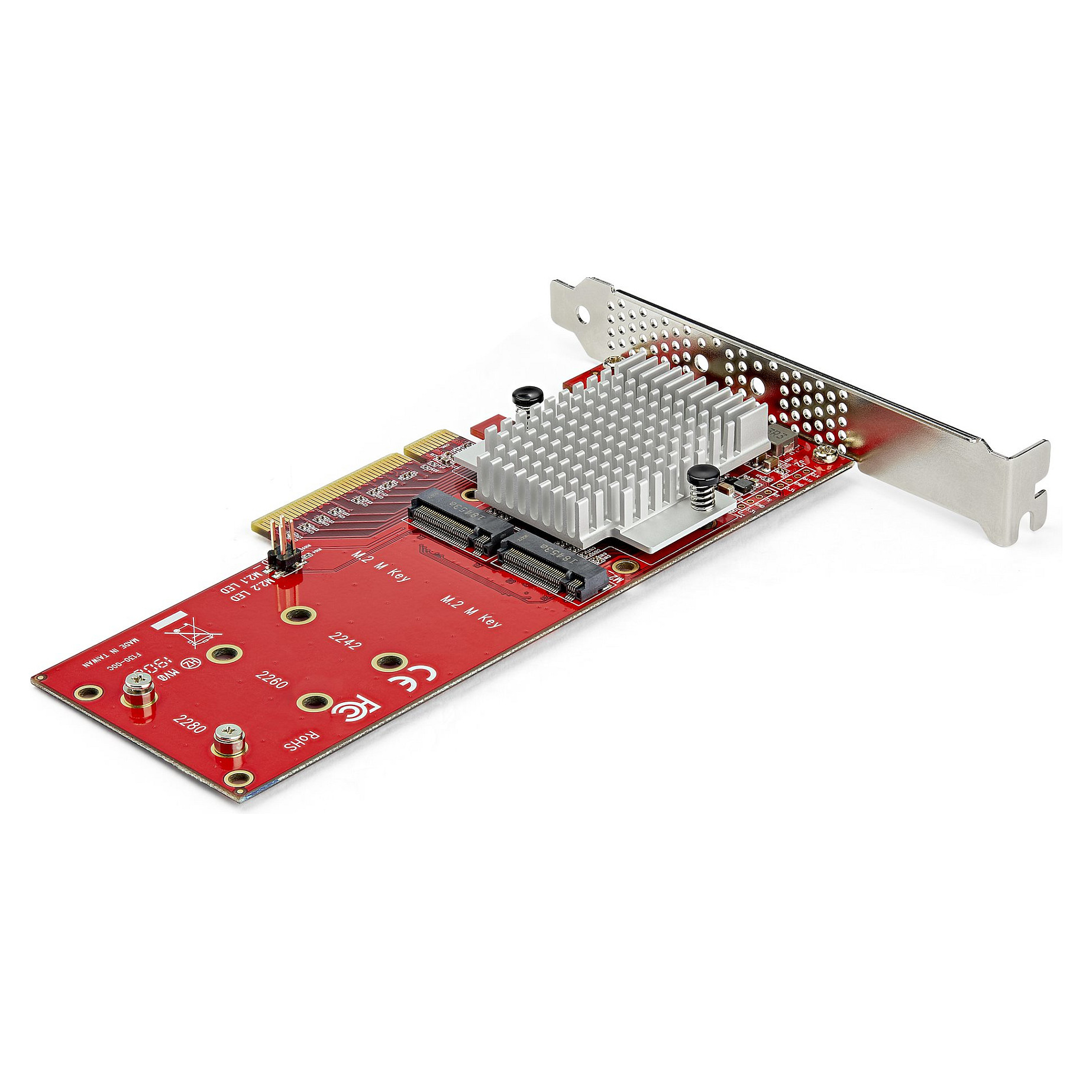

STARTECH.COM x8 Dual M.2 PCIe SSD Adapter PCIe 3.0 PCI Express M.2 SSD Netzwerkkarte PCIe PEX8M2E2
Pre-Order
€206.99
VAT (19%) included
Description

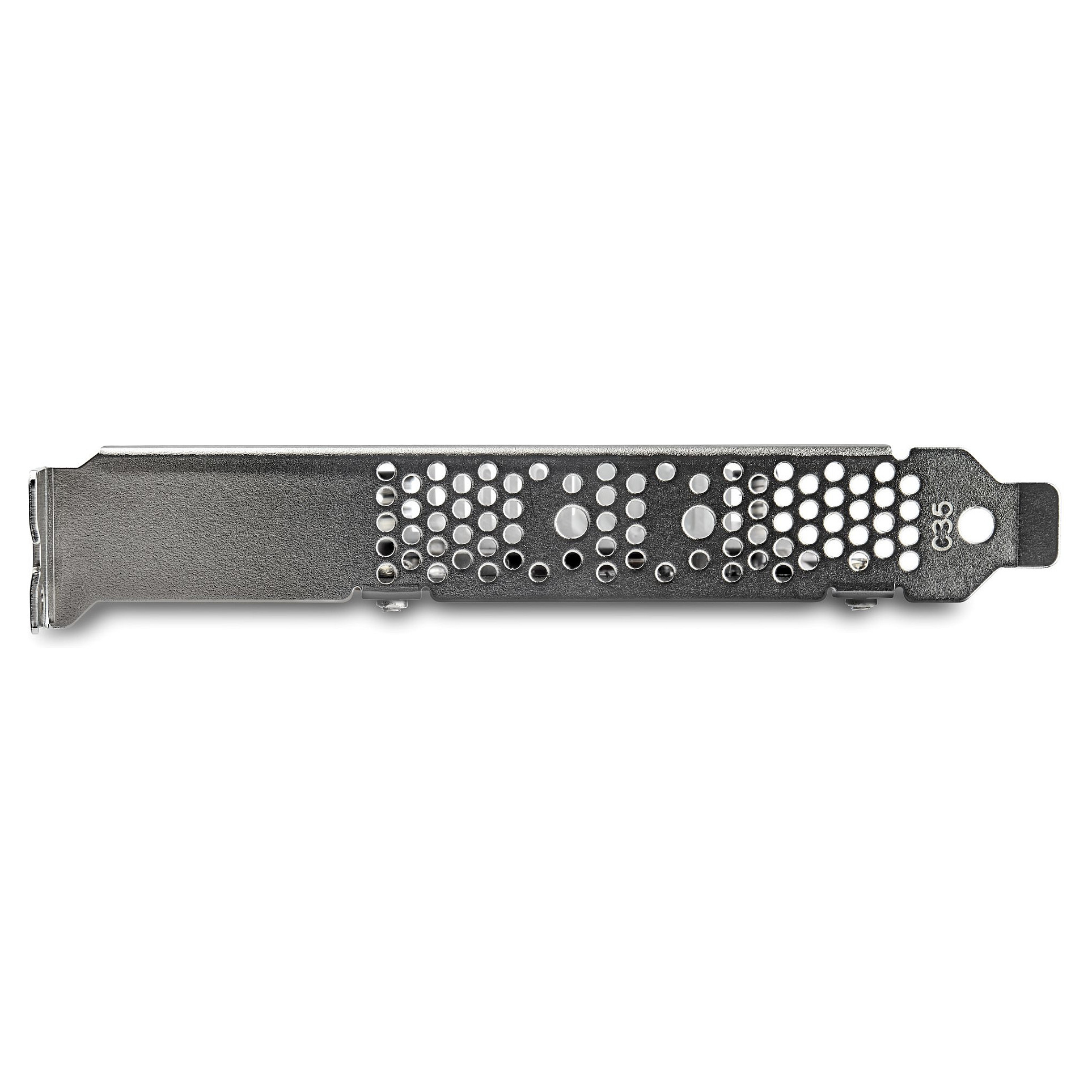

HIGH PERFORMANCE: Install 2 PCIe 3.0 M.2 SSDs (NVMe or AHCI) into your workstation or server for read/write speeds up to 3GB/s and 2.8GB/s for single-drives or 2.4GB/s and 1.42GB/s (per drive) for 2 WIDE COMPATIBILITY: Dual M.2 PCIe SSD adapter card was extensively tested to ensure compatibility w/ Samsung 970 evo, 950 Pro, SM951, & other 2242, 2260, 2280mm PCIe M-Key M.2 NGFF SSDs (NVMe or AHCI) BACKWARD COMPATIBILITY: Compatible w/ PCIe 1.0 & 2.0 and x8 or x16 slots, PCIe bifurcation is not required. Works with all workstation and server OS's such as Windows, Linux, and macOS incl. legacy. SOFTWARE RAID FUNCTIONALITY: M.2 PCI Express adapter lets you use SSDs individually or in a storage pool using OS or 3rd party RAID software & supports RAID 0, 1, SPAN, JBOD for tiered/hybrid storage VENTED DUAL-PROFILE BRACKETS: Pre-installed full profile bracket with low-profile (half-height) bracket in box & vented design for better cooling, avoiding drive throttling and improving reliability.
Technical Specifications
SKU
KPEX8M2E2
Host Interface
PCIe
Output Interface
M.2
Expansion Card Standard
PCI 3.0
Number Of M.2 (M) Slots
2
Sata Connector Insertion Cycles
60
Product Colour
Red
Mean Time Between Failures (Mtbf)
3336103 h
Certification
CE, FCC, TAA, REACH
Chipset
ASMedia - ASM2824
Data Transfer Rate (Max)
8 Gbit/s
Operating Temperature (T-T)
0 - 70 °C
Storage Temperature (T-T)
-25 - 70 °C
Operating Relative Humidity (H-H)
15 - 90%
Supported Storage Drive Heights
22 mm
Compliance Certificates
RoHS
Width
16 mm
Depth
159 mm
Height
69 mm
Weight
88 g
Quantity
1
Package Width
158 mm
Package Depth
219 mm
Package Height
49 mm
Package Weight
157 g
Harmonized System (Hs) Code
84733020
Products Per Master (Outer) Case
40 pc(s)
Master (Outer) Case Width
342 mm
Master (Outer) Case Length
468 mm
Master (Outer) Case Height
498 mm
