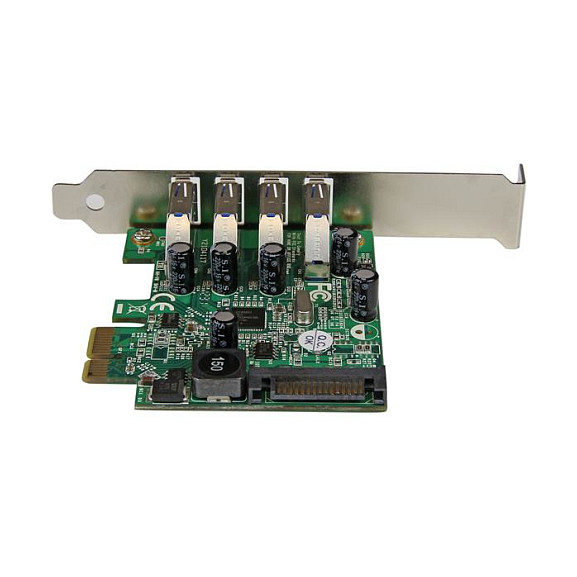

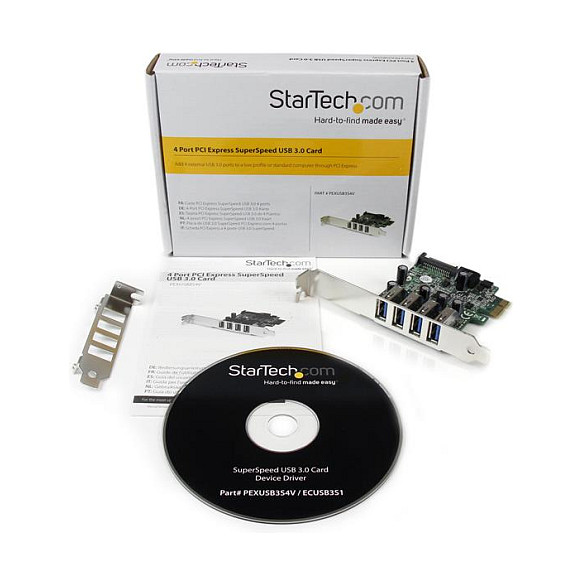

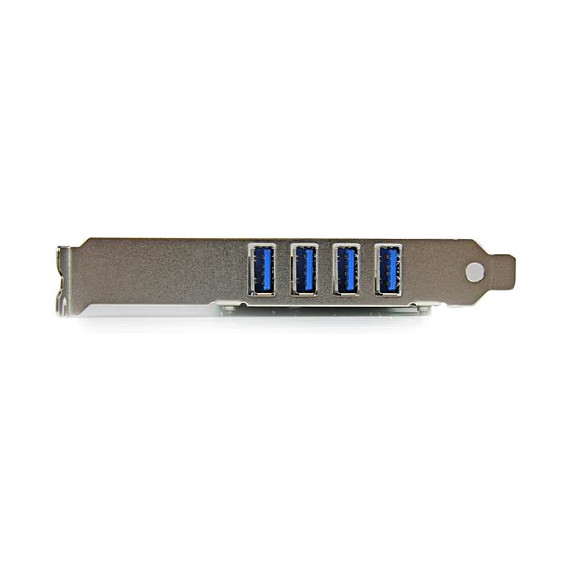

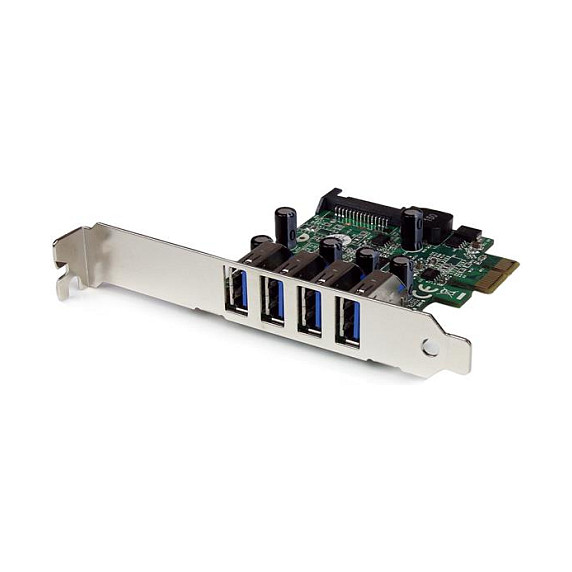

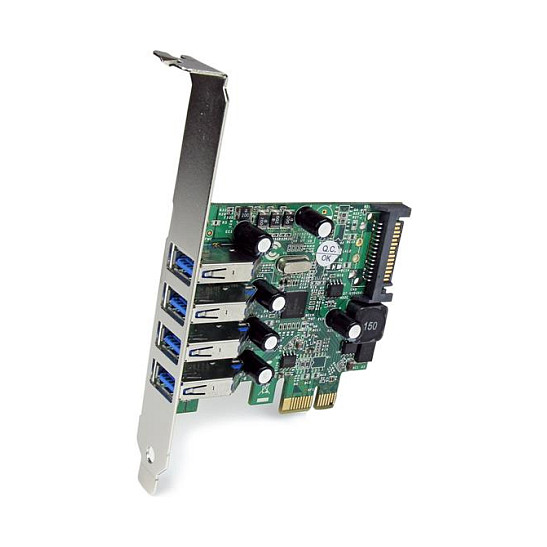

StarTech PEXUSB3S4V 4 Port PCI Express USB 3.0 Card
Pre-Order
€62.99
VAT (19%) included
Description
4 external USB 3.2 Gen 1 (5Gbps) ports in a stacked layout UASP support for more efficient data transfer Fully compliant with USB 3.2 Gen 1 revision 1.0 specifications and Intel xHCI rev0.95 specifications Built-in optional SATA power connector for bus-powered USB devices Optionally provides up to 900mA per USB port Backward compatible with USB 2.0 and USB 1.0/1.1 devices Compliant with PCI Express 2.0 specifications Includes a Low Profile/half-height installation bracket
Technical Specifications
SKU
KPEXUSB3S4V
Host Interface
PCIe
Output Interface
USB 3.2 Gen 1 (3.1 Gen 1)
Expansion Card Standard
PCIe 2.0
Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports Quantity
4
Internal Sata Ports Quantity
1
Certification
CE, FCC
Chipset
NEC uPD720201
Data Transfer Rate (Max)
5 Gbit/s
Operating Temperature (T-T)
5 - 50 °C
Storage Temperature (T-T)
-20 - 70 °C
Operating Relative Humidity (H-H)
20 - 80%
Windows Operating Systems Supported
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Server Operating Systems Supported
Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Compliance Certificates
RoHS
Width
68 mm
Depth
19 mm
Height
75 mm
Weight
45 g
Package Width
131 mm
Package Depth
162 mm
Package Height
33 mm
Package Weight
138 g
Harmonized System (Hs) Code
84733020
Products Per Master (Outer) Case
100 pc(s)
Master (Outer) Case Width
566 mm
Master (Outer) Case Length
504 mm
Master (Outer) Case Height
340 mm
Compatible Operating Systems
Windows XP (32/64-bit)/ Server 2003 (32/64-bit)/ Server 2008 R2/ Vista (32/64-bit)/ 7 (32/64-bit)/ 8 (32/64-bit)
