Deepcool

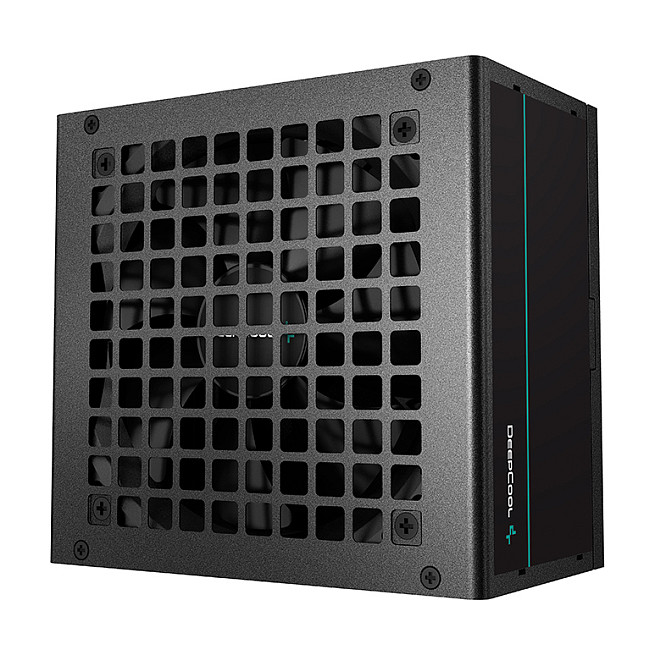

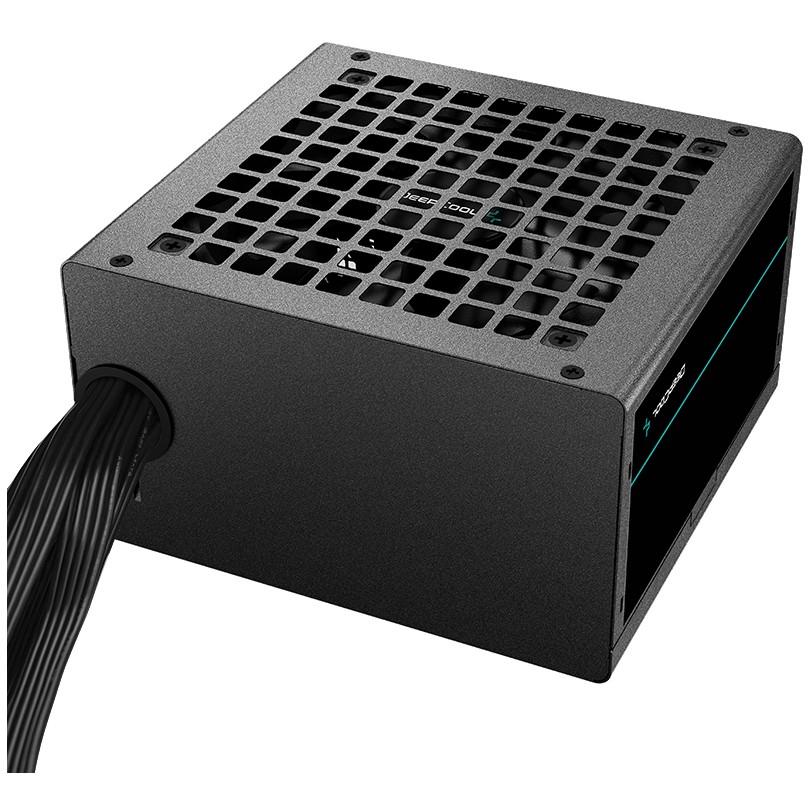

500W DeepCool PF500 80+
Out of Stock
€37.99
VAT (19%) included
Description
Over Power Protection Over Voltage Protection Short Circuit Protection Under Voltage Protection
Technical Specifications
SKU
KR-PF500D-HA0B-EU
Total Power
500 W
Ac Input Voltage
220 - 240 V
Ac Input Frequency
50 Hz

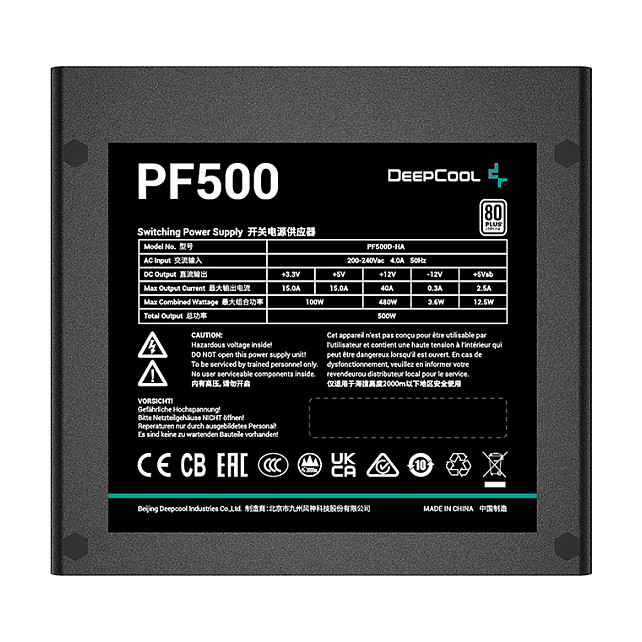

Combined Power (+3.3V)
100 W
Combined Power (+12V)
480 W
Combined Power (+5V)
100 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
12.5 W
Max Output Current (+3.3V)
15 A
Max Output Current (+12V)
40 A
Max Output Current (+5V)
15 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
2.5 A
Hold Time
16 ms
Efficiency
85%
Power Protection Features
Over power, Over voltage, Short circuit, Under voltage
Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
55 cm
Number Of Sata Power Connectors
4
Sata Power Cable Length
450, 600, 750, 900 mm
Pci Express Power Connectors (6+2 Pin)
2
Cabling Type
Non-Modular
80 Plus Certification
80 PLUS
Purpose
PC/Server
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
2.4
Mean Time Between Failures (Mtbf)
100000 h
Product Colour
Black
Cooling Type
Active
Fan Diameter
12 cm
Number Of Fans
1 fan(s)
Operating Temperature (T-T)
0 - 40 °C
Cables Included
AC
Width
150 mm
Depth
140 mm
Height
86 mm
Package Type
Box
