Be Quiet!
1200W be quiet! DARK Power 14 black
Out of Stock
€297.99
VAT (19%) included
Description

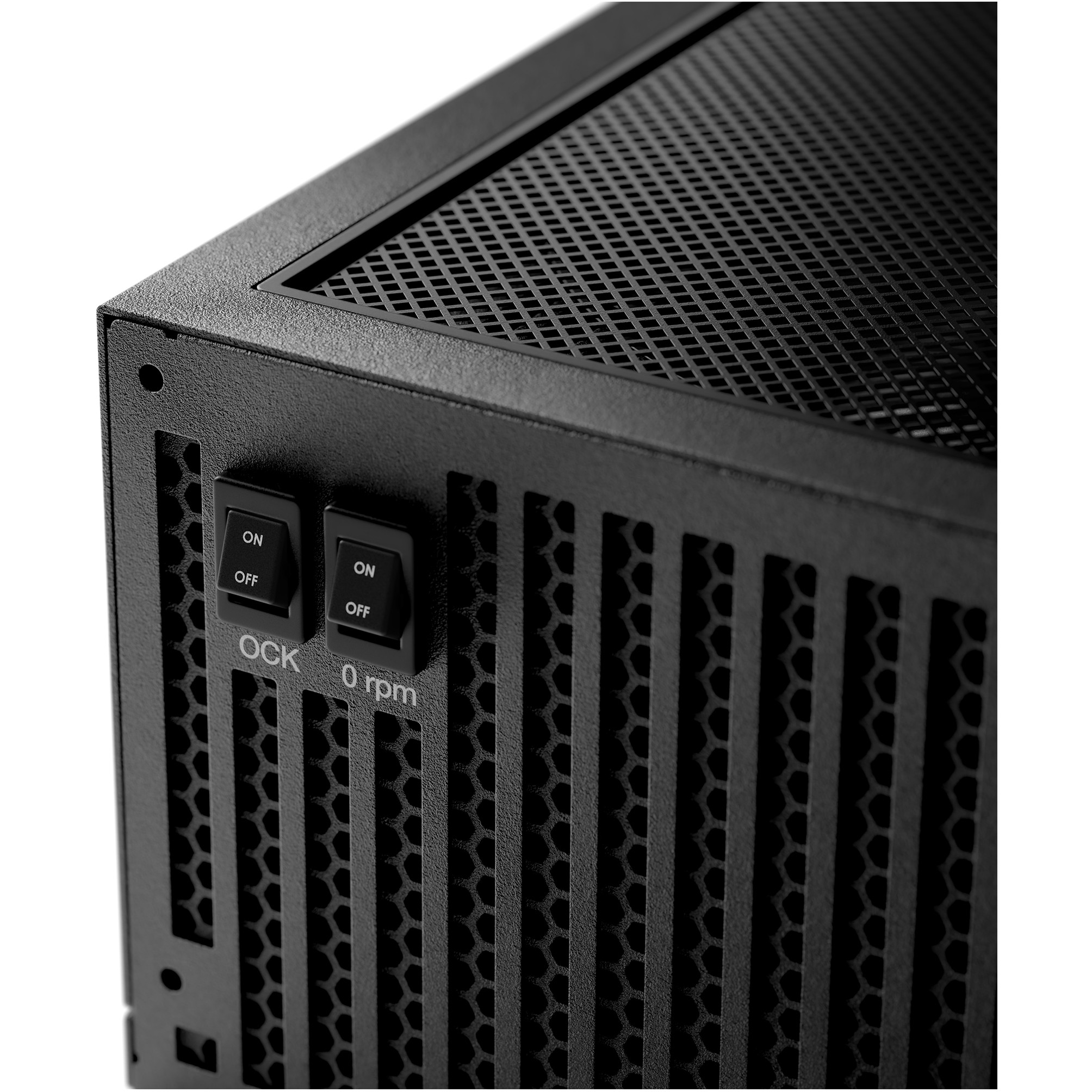

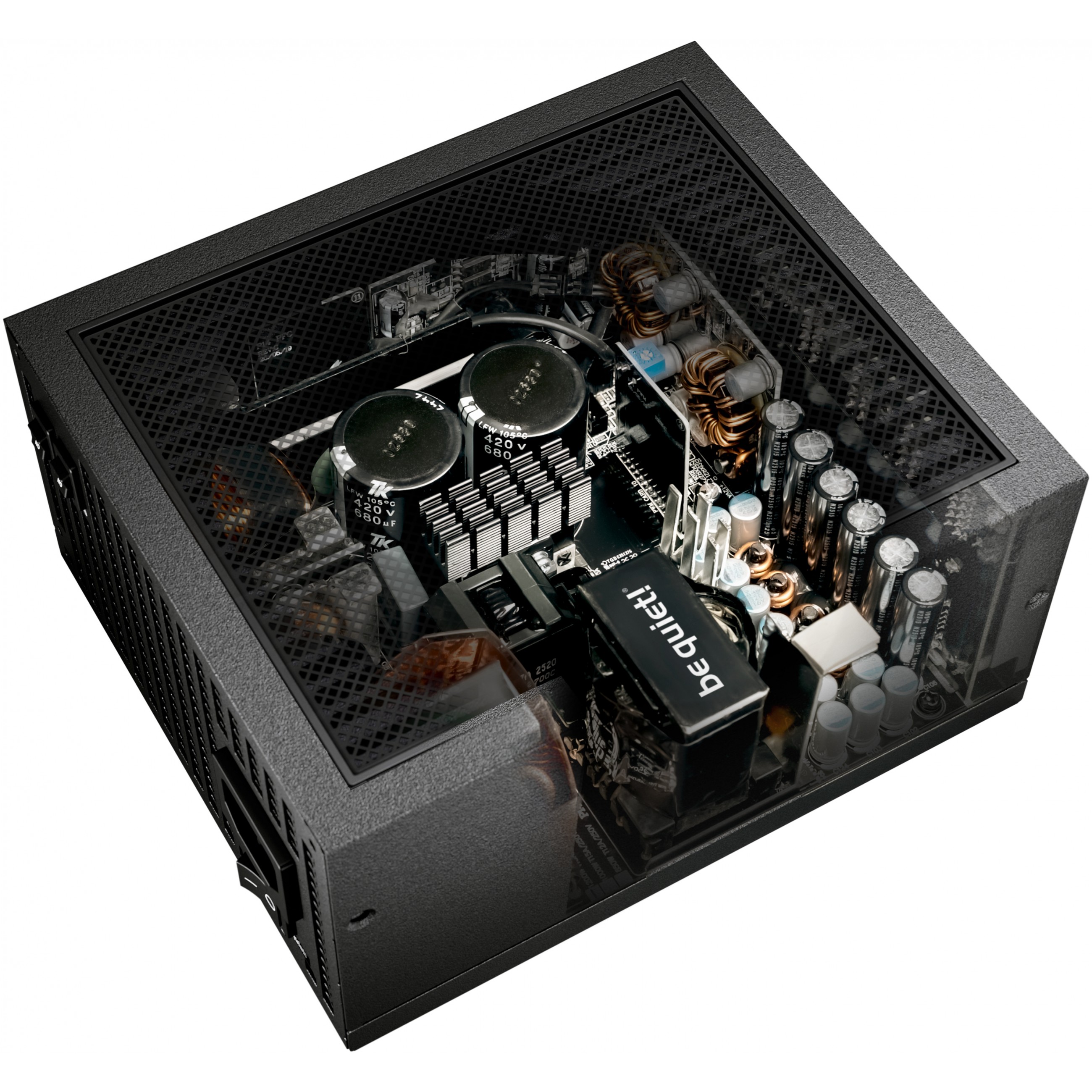

80 PLUS® Titanium and Cybenetics Titanium efficiency (up to 95.42 %) ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2-pin connector Active and semi-passive cooling can be selected with the push of a button Aluminum heat sink to support the semi-passive cooling concept and improve the longevity of the components Silent Wings fan for virtually inaudible operation Full bridge + Synchronous Rectifier + LLC technology provides unmatched signal stability and extremely high efficiency Button to switch between single and multi-rail operation Full-mesh front with funnel-shaped air inlet upholds the high air circulation abilities Modular cable management for maximum convenience Product conception, design and quality control in Germany
Technical Specifications
SKU
KBP021EU
Total Power
1200 W
Peak Power
1300 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50/60 Hz
Maximum Input Current (@110V)
10 A
Maximum Input Current (@220V)
5 A
Power Factor
0.98
Number Of +12V Rail(S)
4
Combined Power (+3.3V)
120 W
Combined Power (+12V)
1200 W
Combined Power (+5V)
120 W
Max Output Current (+3.3V)
25 A
Max Output Current (+12V1)
33 A
Max Output Current (+12V2)
33 A
Max Output Current (+12V3)
45 A
Max Output Current (+12V4)
45 A
Max Output Current (+5V)
24 A
Max Output Current (-12V)
0.5 A
Max Output Current (+5Vsb)
3 A
Hold Time
19.5 ms
Efficiency
93.1%
Power Protection Features
Over current, Over voltage, Overheating, Overload, Short circuit, Surge & inrush protection (SIP), Under voltage
Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
60 cm
Number Of Sata Power Connectors
13
Sata Power Cable Length
600, 750, 900, 1050 mm
Number Of Sata Power Cables
4
Peripheral (Molex) Power Connectors (4-Pin)
2
Peripheral (Molex) Power Cable Length
900, 1050 mm
Pci Express Power Connectors (6+2 Pin)
4
Pci Express Power Connectors (12-Pin)
2
Pci Express Power Cable Length
60 cm
Cpu Power Cable Length
70 cm

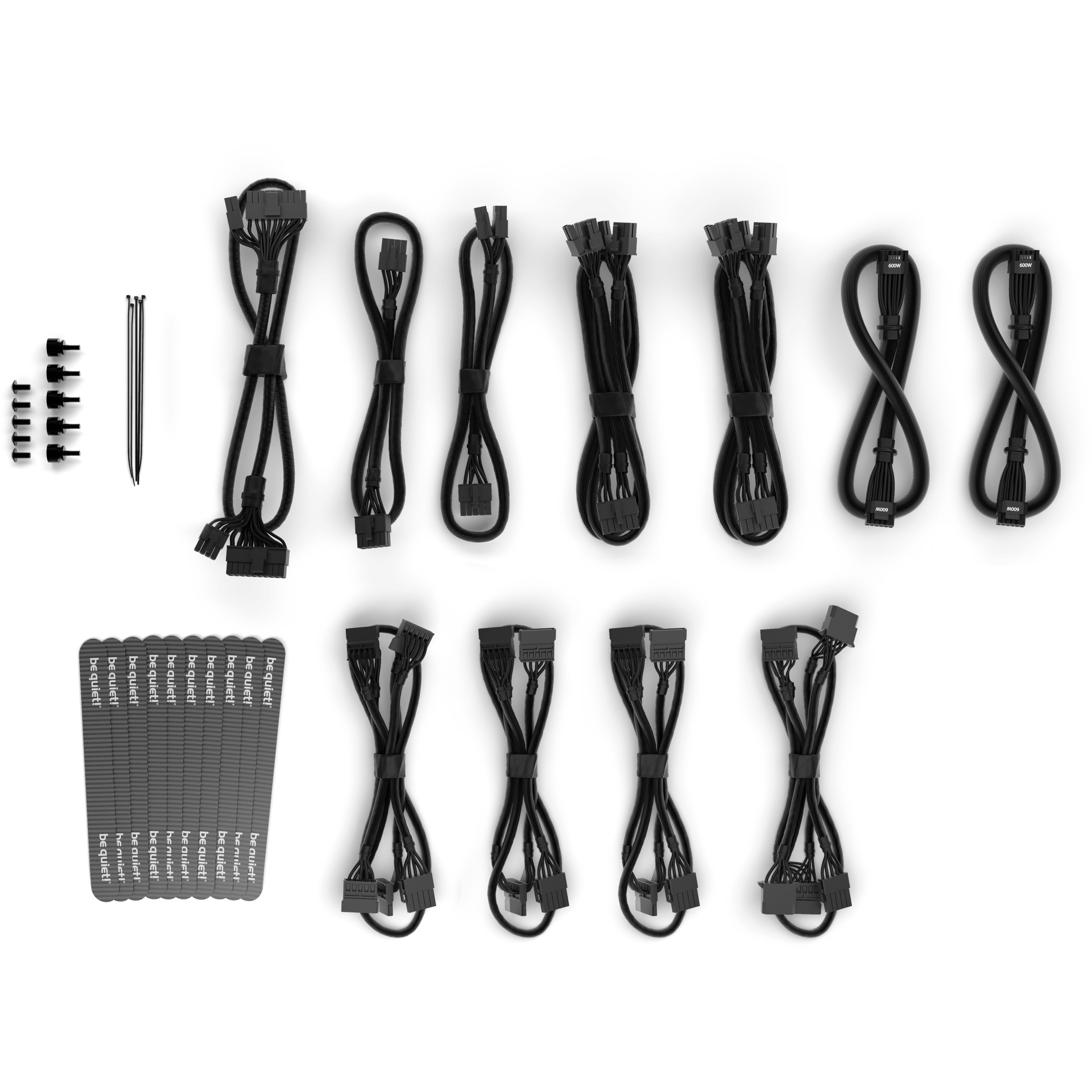

Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Titanium
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
3.1
Eps Version
2.92
Noise Level
21.1 dB
Bearing Technology
FDB
Mean Time Between Failures (Mtbf)
100000 h
Product Colour
Black
Cooling Type
Active
Fan Diameter
13.5 cm
Number Of Fans
1 fan(s)
Fan Speed
0 - 2100 RPM
Operating Temperature (T-T)
0 - 40 °C
Compliance Certificates
CB, Federal Communications Commission (FCC), RoHS, TÜV mark, UKCA, WEEE, cTUVus
Width
150 mm
Depth
175 mm
Height
86 mm
Weight
2.3 kg
Manual Languages
Simplified Chinese, German, English, Spanish, French, Italian, Japanese, Polish, Russian, Thai, Ukrainian
Package Width
230 mm
Package Depth
126 mm
Package Height
355 mm
Package Weight
3.7 kg
Sustainability Certificates
ENERGY STAR, ErP, Triman
Shipping (Inner) Case Length
52.8 cm
Shipping (Inner) Case Width
36.8 cm
Shipping (Inner) Case Height
26 cm
Shipping (Inner) Case Net Weight
20.1 kg
Products Per Shipping (Inner) Case
4 pc(s)
