Be Quiet!

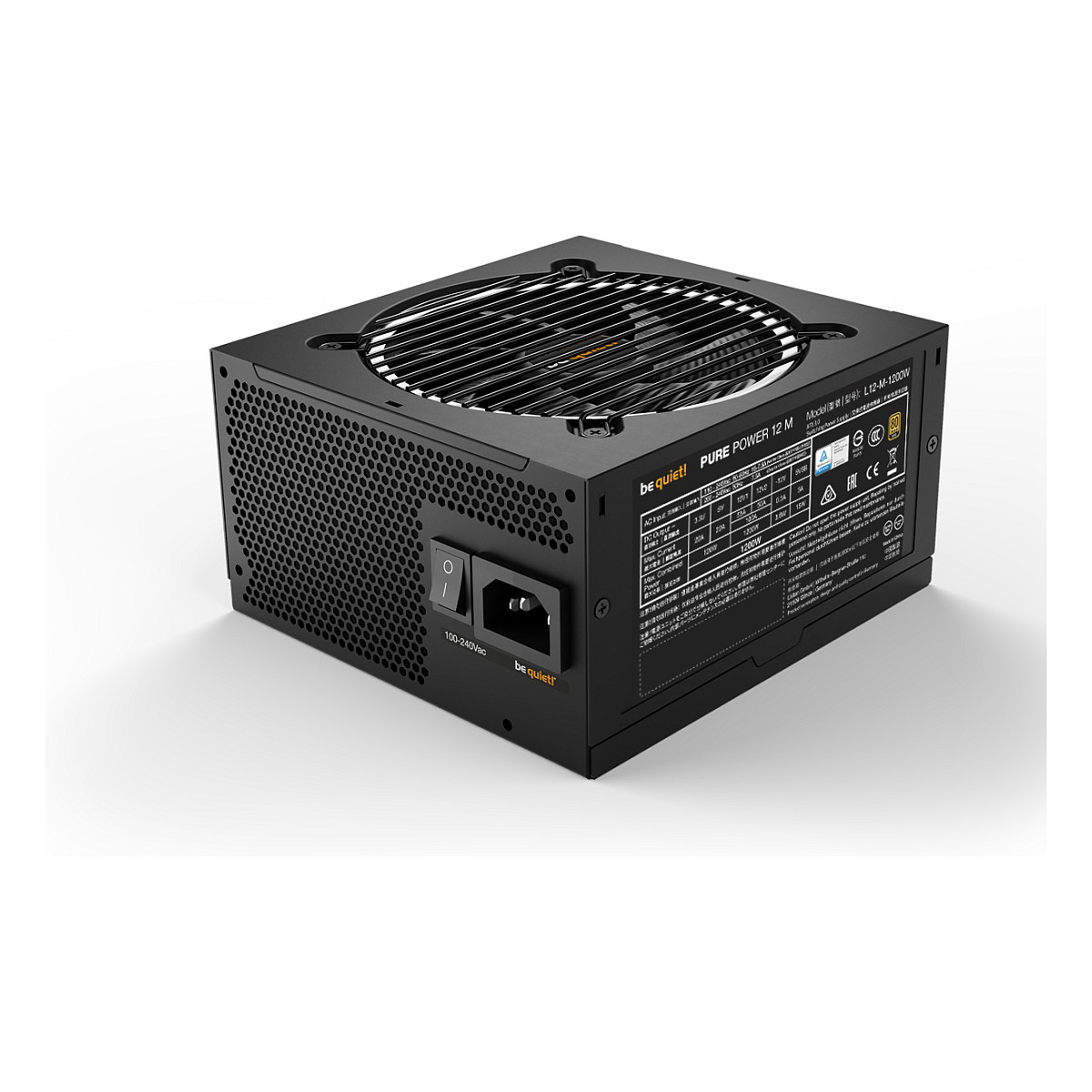

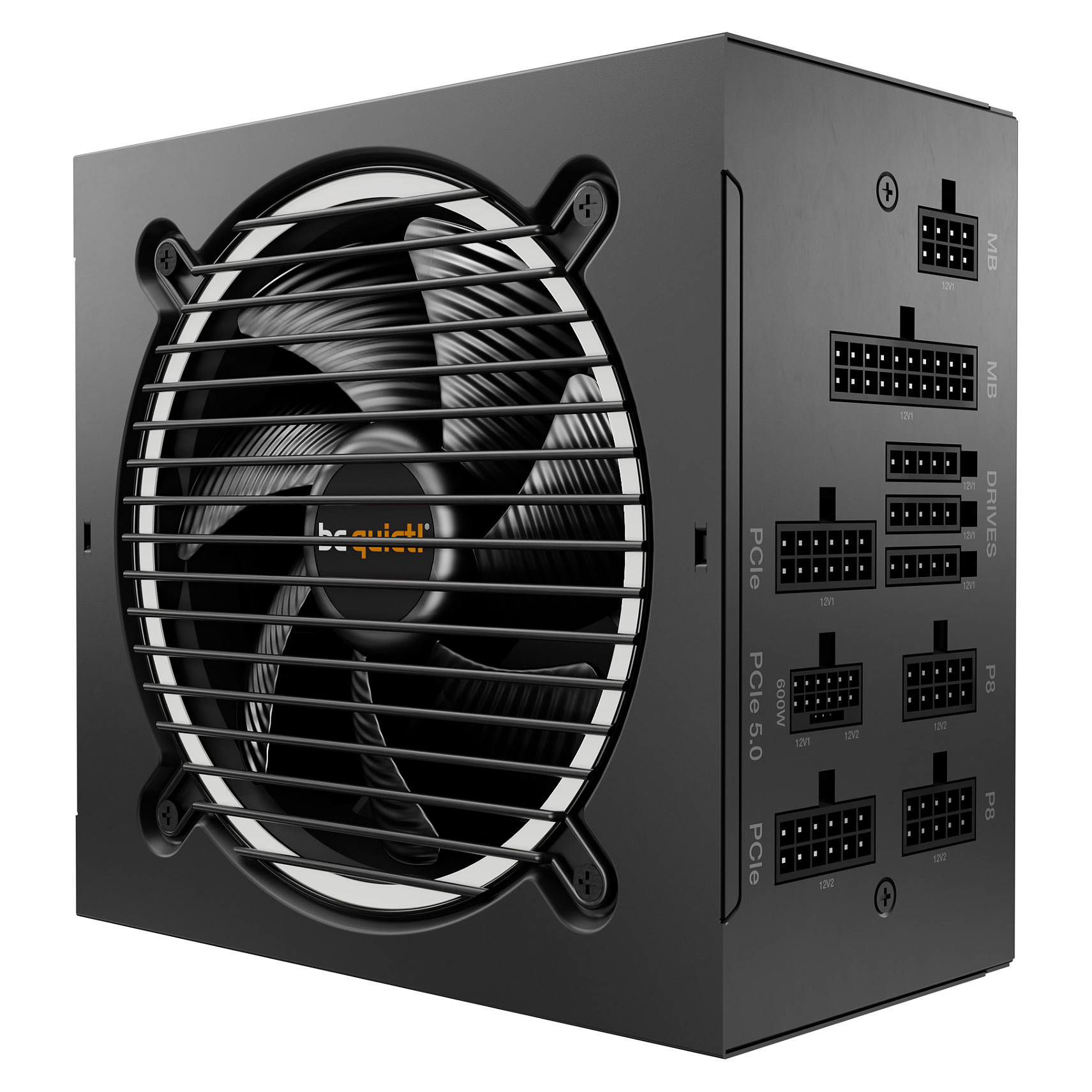

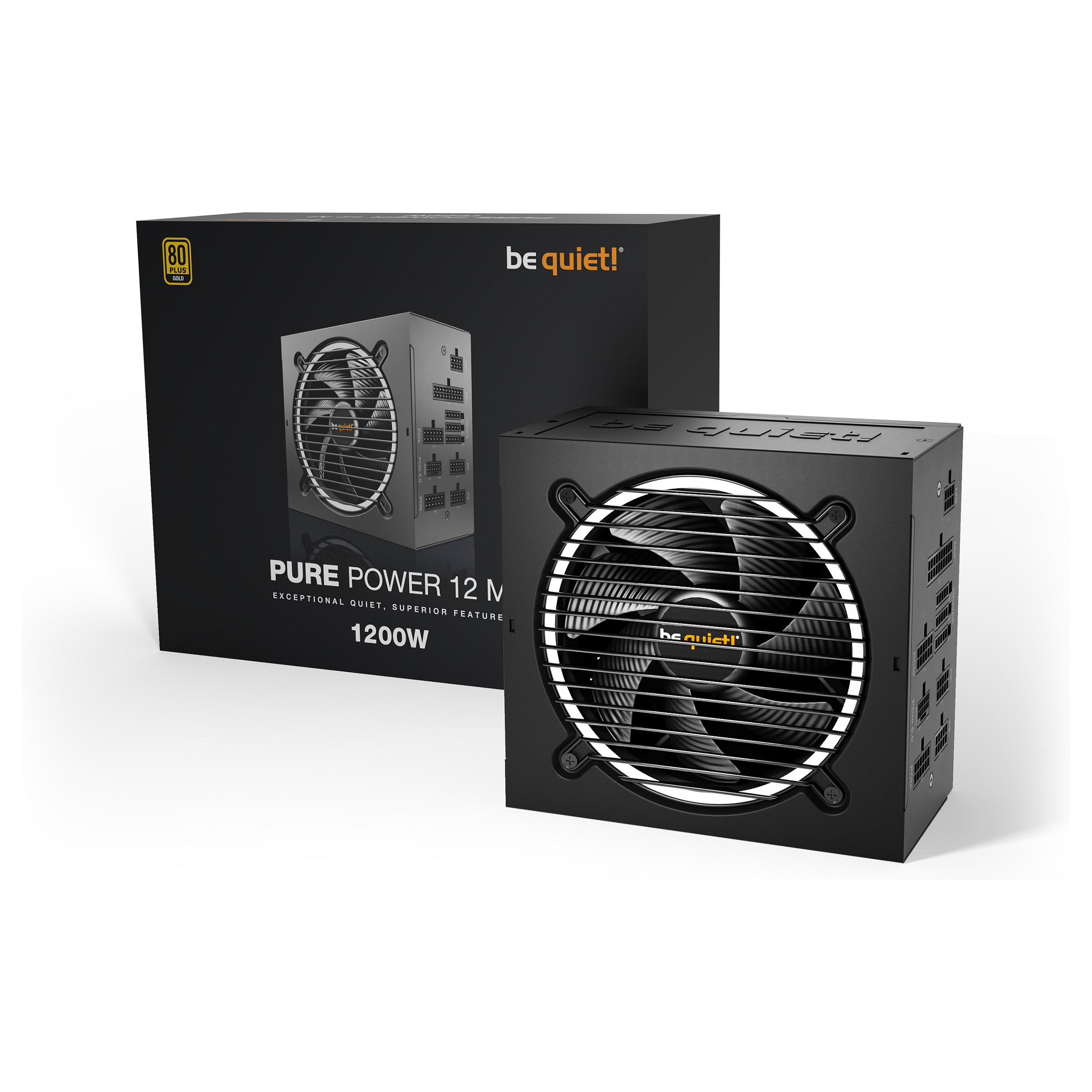

1200W be quiet! PURE Power 12 M | 80+ Gold ATX 3.1
Out of Stock
€153.99
VAT (19%) included
Description
80 PLUS® Gold efficiency (up to 93.7%) ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors Handles massive power excursions Exceptionally silent 120mm be quiet! fan Advanced stability and voltage regulation thanks to LLC technology 2 strong 12V-rails Modular cables for maximum build flexibility One PCIe 5.1 12V-2x6 600W and 4 PCIe 6+2 connectors for overclocked high-end GPUs Full suite of safety features Meets latest requirements for modern standby
Technical Specifications
SKU
KBN346
Total Power
1200 W
Peak Power
1250 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50/60 Hz
Input Current
15 - 7.5 A
Power Factor
0.98
Combined Power (+3.3V)
120 W
Combined Power (+12V)
1200 W
Combined Power (+5V)
120 W
Max Output Current (+3.3V)
22 A
Max Output Current (+12V1)
55 A
Max Output Current (+12V2)
50 A
Max Output Current (+5V)
22 A
Max Output Current (-12V)
0.3 A
Hold Time
19 ms
Efficiency
91.5%
Power Protection Features
Over current, Over power, Over voltage, Overheating, Short circuit, Under power, Under voltage
Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
55 cm
Number Of Sata Power Connectors
6
Number Of Pata Power Connectors
2
Sata Power Cable Length
500, 650, 800, 950 mm
Peripheral (Molex) Power Cable Length
800, 950 mm
Pci Express Power Connectors (6+2 Pin)
4
Pci Express Power Cable Length
60 cm
Cpu Power Cable Length
60 cm
Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Gold
Supported Motherboard Form Factors
ATX
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
3.1
Eps Version
2.92

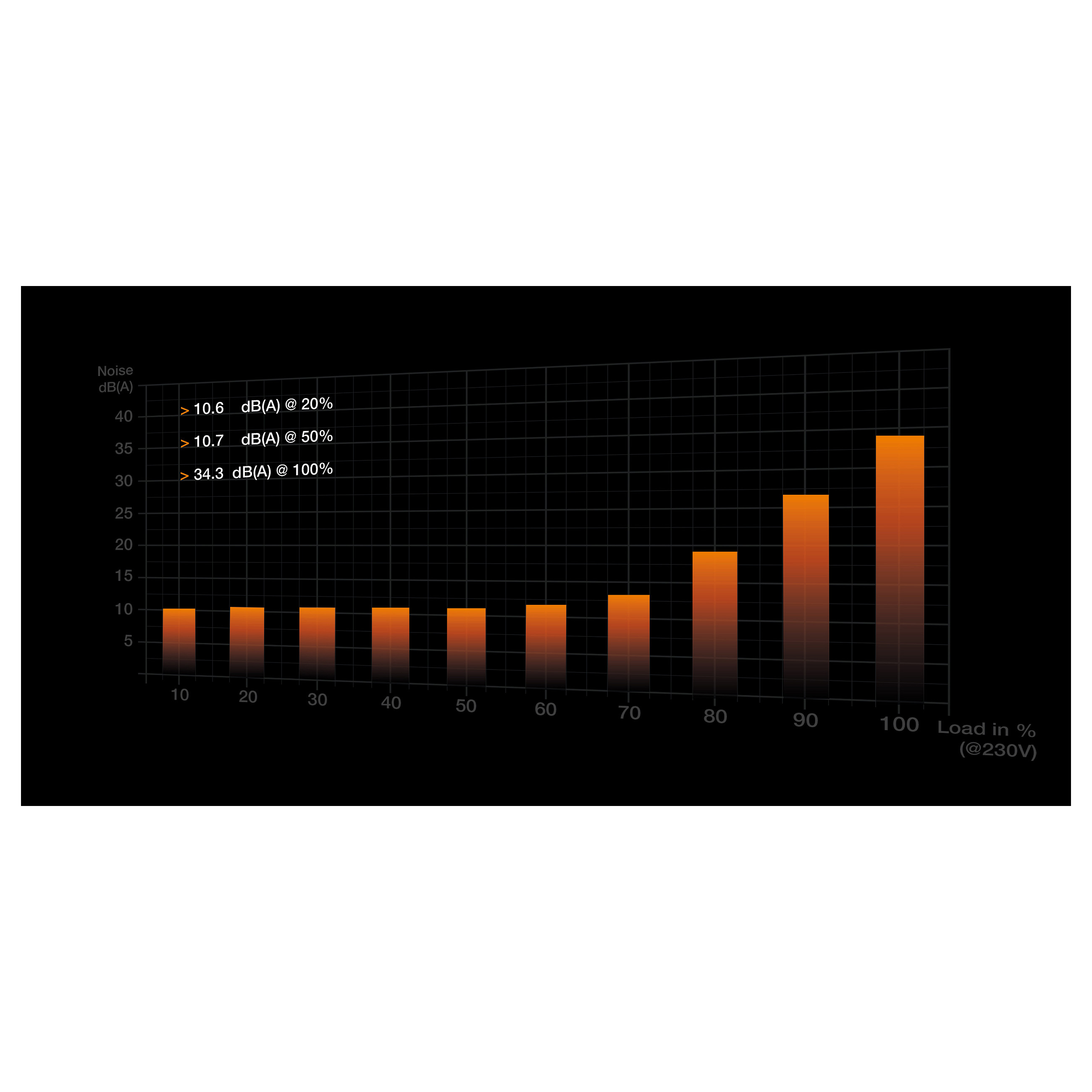

Noise Level
34.3 dB
Bearing Technology
Rifle
Mean Time Between Failures (Mtbf)
100000 h
Product Colour
Black
Cooling Type
Active
Fan Diameter
12 cm
Number Of Fans
1 fan(s)
Fan Speed
0 - 2700 RPM
Operating Temperature (T-T)
0 - 40 °C

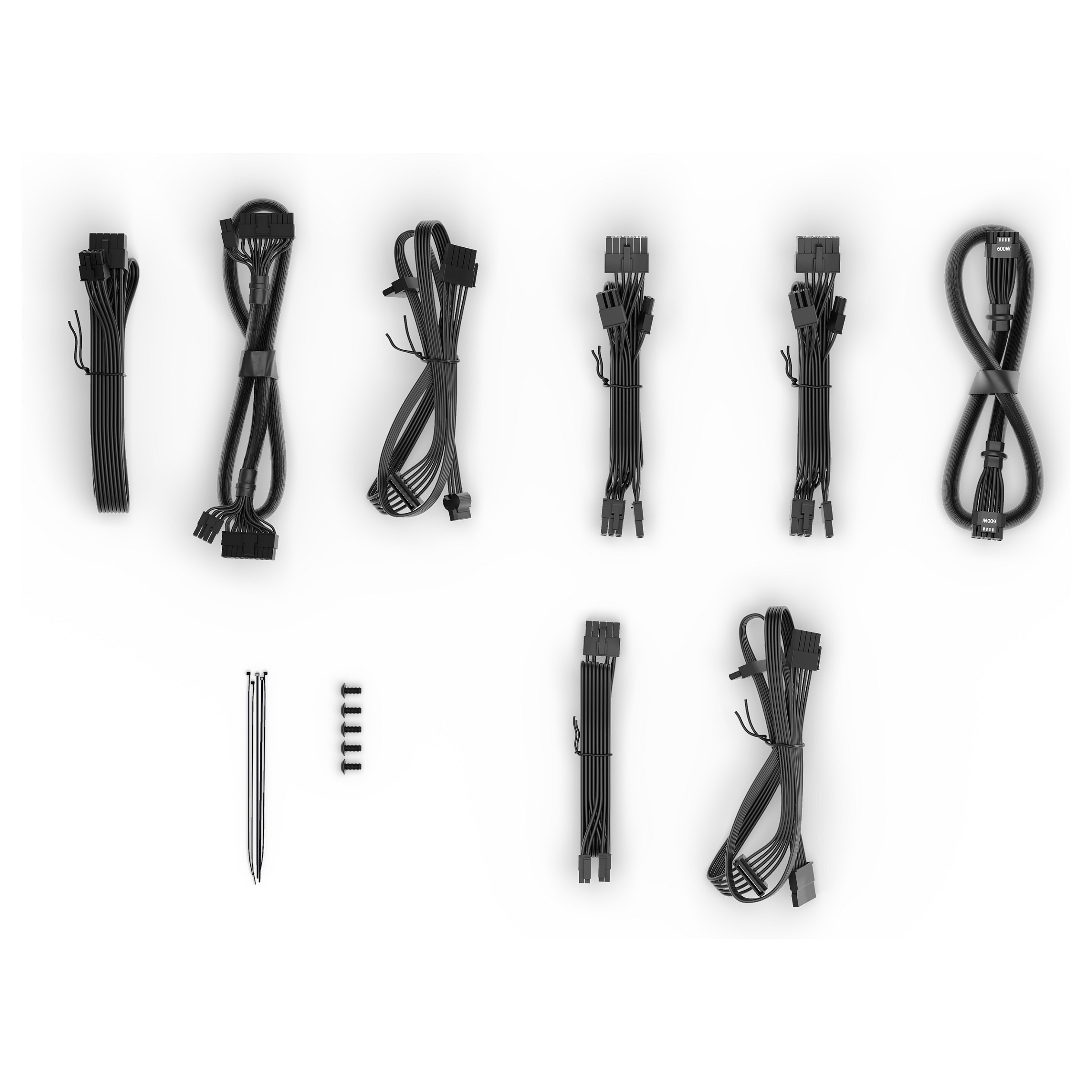

Cables Included
AC, CPU, PATA, PCIe, SATA
Compliance Certificates
BSMI, CB, CCC, CE, Federal Communications Commission (FCC), RoHS, cTUVus, UKCA, WEEE
Width
150 mm
Depth
160 mm
Height
86 mm
Weight
1.92 kg
Package Width
220 mm
Package Depth
284 mm
Package Height
100 mm
Package Weight
3.19 kg
Package Type
Box
Sustainability Certificates
ENERGY STAR, ErP, Triman
Shipping (Inner) Case Length
29.8 cm
Shipping (Inner) Case Width
42.6 cm
Shipping (Inner) Case Height
24.3 cm
Shipping (Inner) Case Net Weight
12.7 kg
Products Per Shipping (Inner) Case
4 pc(s)
