FSP

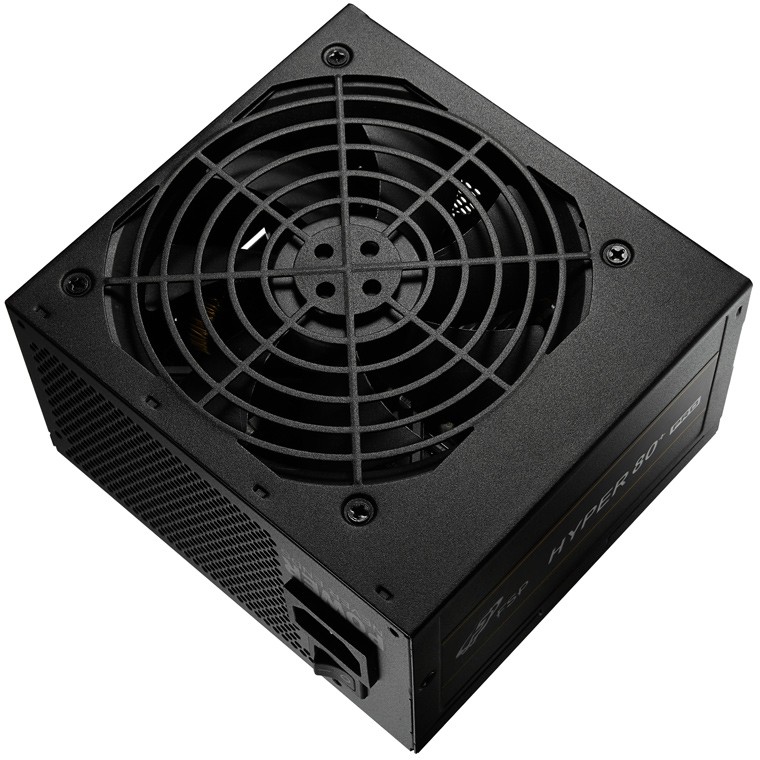

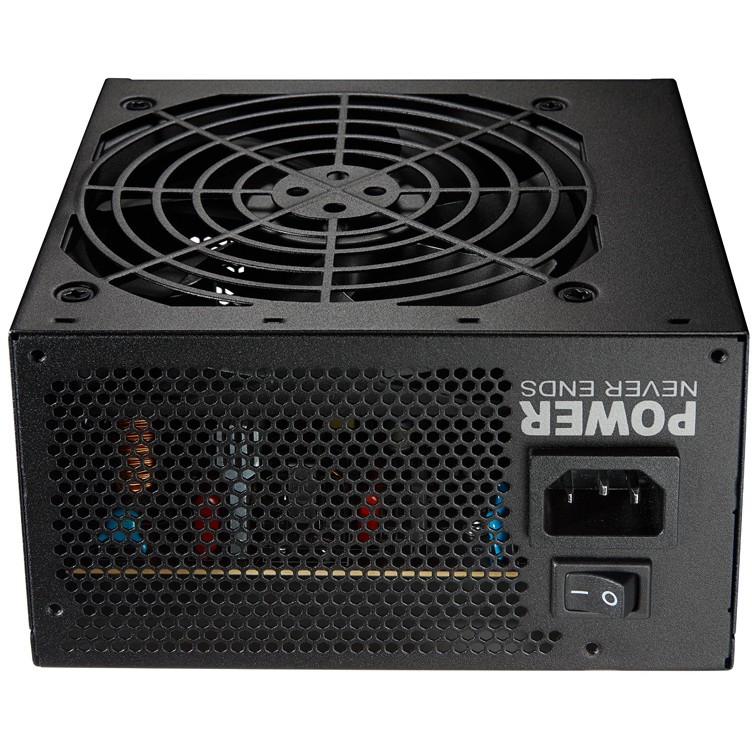

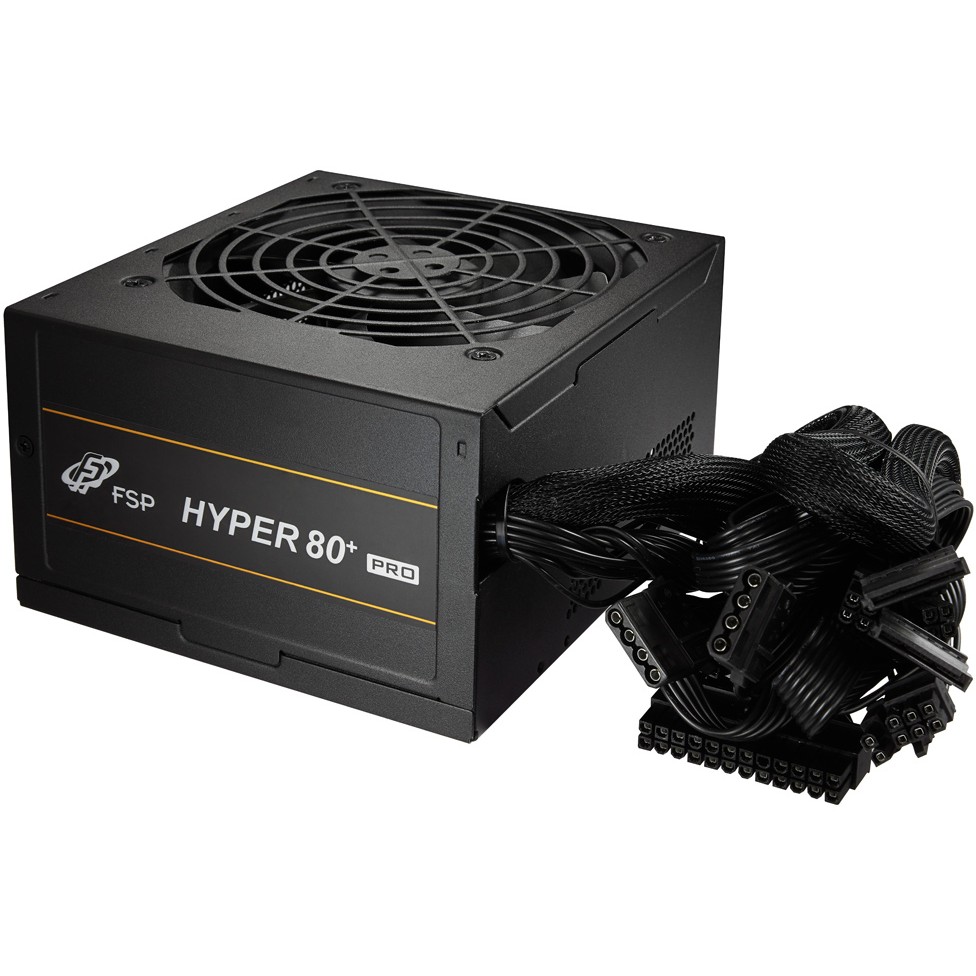

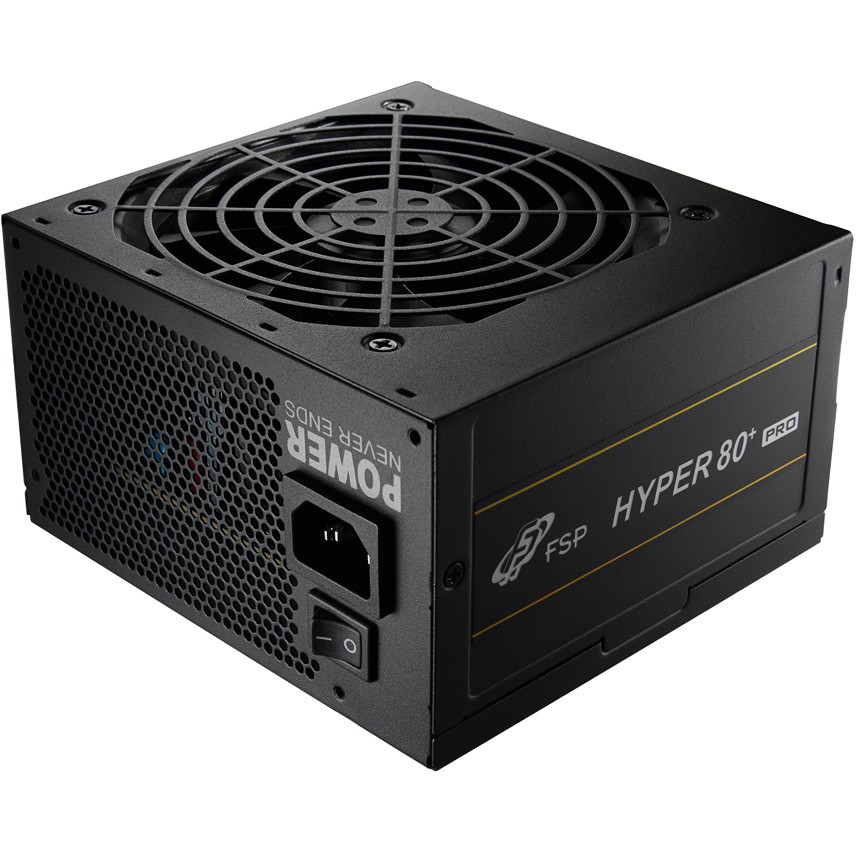

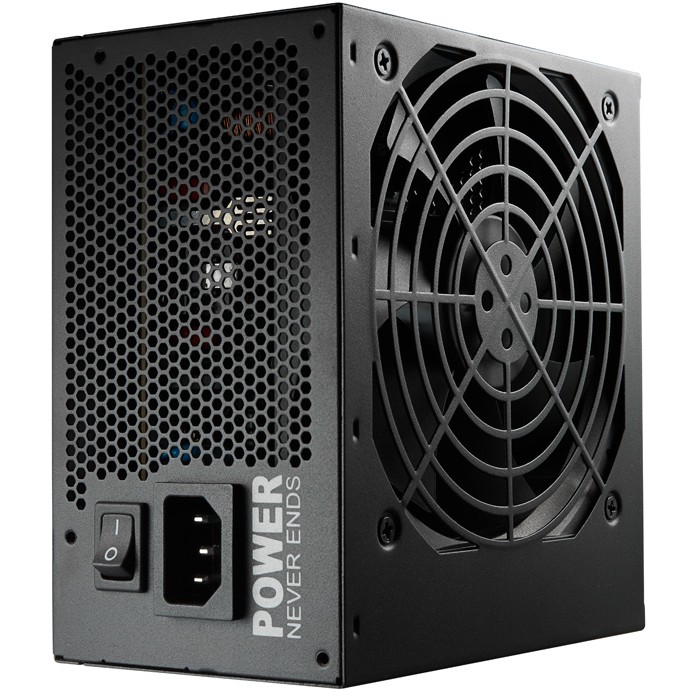

450W FSP Hyper PRO 80+ Bronze
Out of Stock
€41.99
VAT (19%) included
Description
Complies with ATX12V V2.52 & EPS12 v2.92 Efficiency ≥ 85% @ typical load Active PFC ≥ 0.9 Hold up time > 17ms @80% load 450V, 105°C capacitors for a long product life cycle +12V single-rail design +5V &3.3V DC to DC module design 120mm silent and long life fan All black round cables Complete protection: OCP/OVP/OPP/SCP
Technical Specifications
SKU
K9PA450A404
Total Power
450 W
Ac Input Voltage
200 - 240 V
Ac Input Frequency
50/60 Hz
Input Current
3 A
Power Factor
0.9
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
85 W
Combined Power (+12V)
450 W
Combined Power (+5V)
85 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
12.5 W
Max Output Current (+3.3V)
16 A
Max Output Current (+12V)
37.5 A
Max Output Current (+5V)
16 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
2.5 A
Hold Time
17 ms
Efficiency
88%
Power Protection Features
Over current, Over power, Over voltage, Short circuit
Motherboard Power Connector
24-pin ATX
Number Of Sata Power Connectors
5
Peripheral (Molex) Power Connectors (4-Pin)
2
Pci Express Power Connectors (6+2 Pin)
2
Floppy Drive Power Connector
1
Cabling Type
Non-Modular
80 Plus Certification
80 PLUS Bronze
Purpose
PC/Server
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
3.1
Bearing Technology
Sleeve
Product Colour
Black
Cooling Type
Active
Fan Diameter
12 cm
Number Of Fans
1 fan(s)
Compliance Certificates
EuP
Width
140 mm
Depth
150 mm
Height
86 mm
Weight
1.24 kg
Sustainability Certificates
ErP
