Deepcool

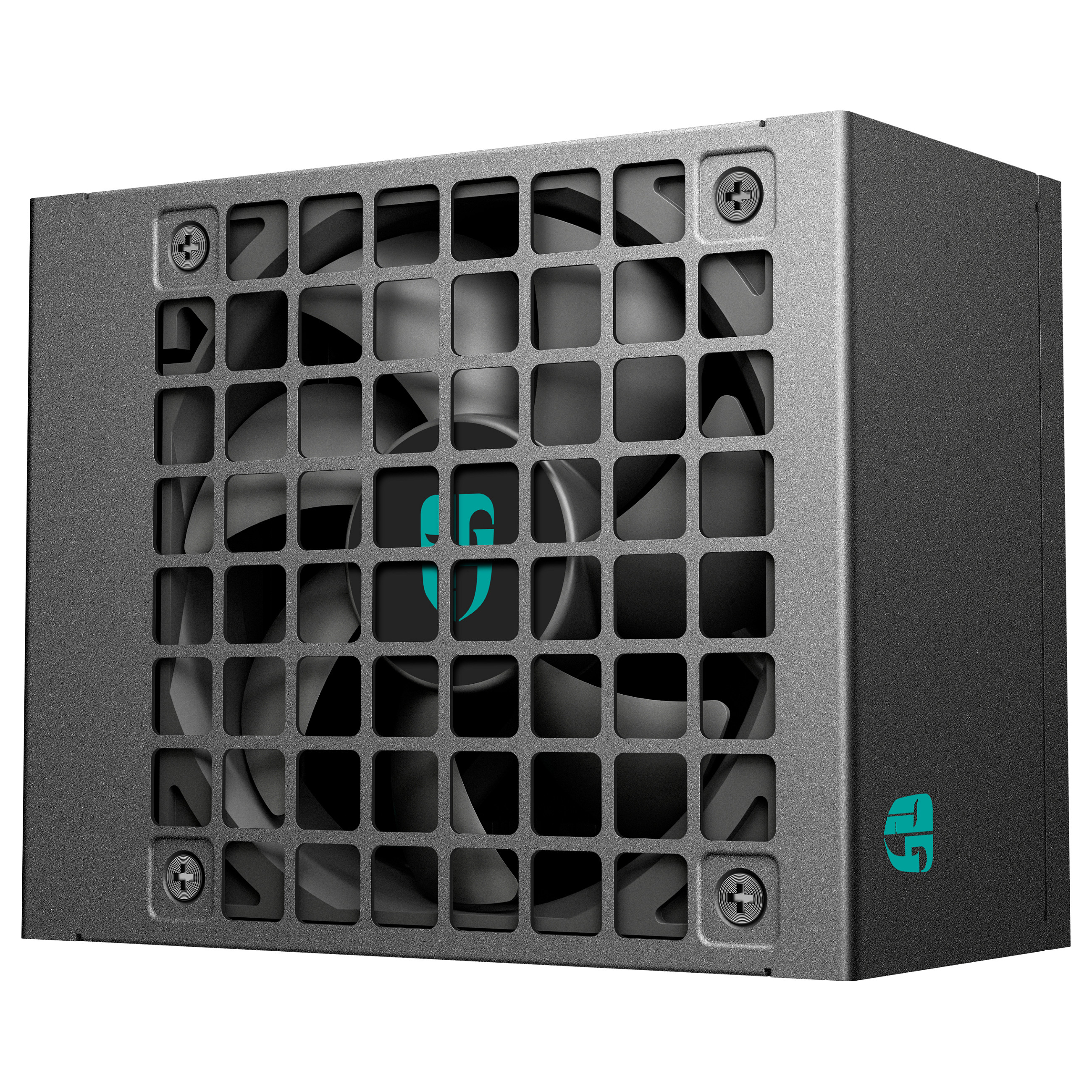

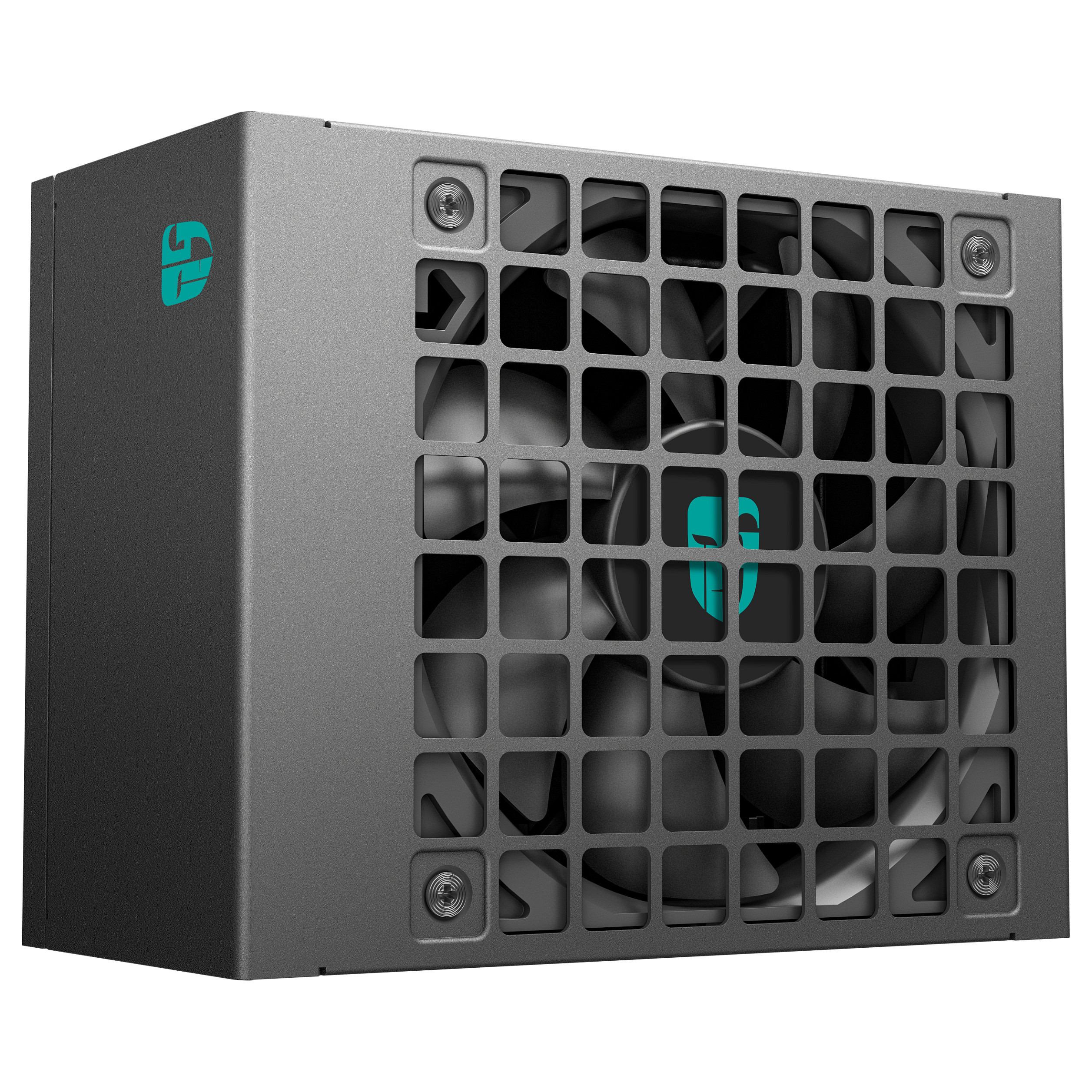

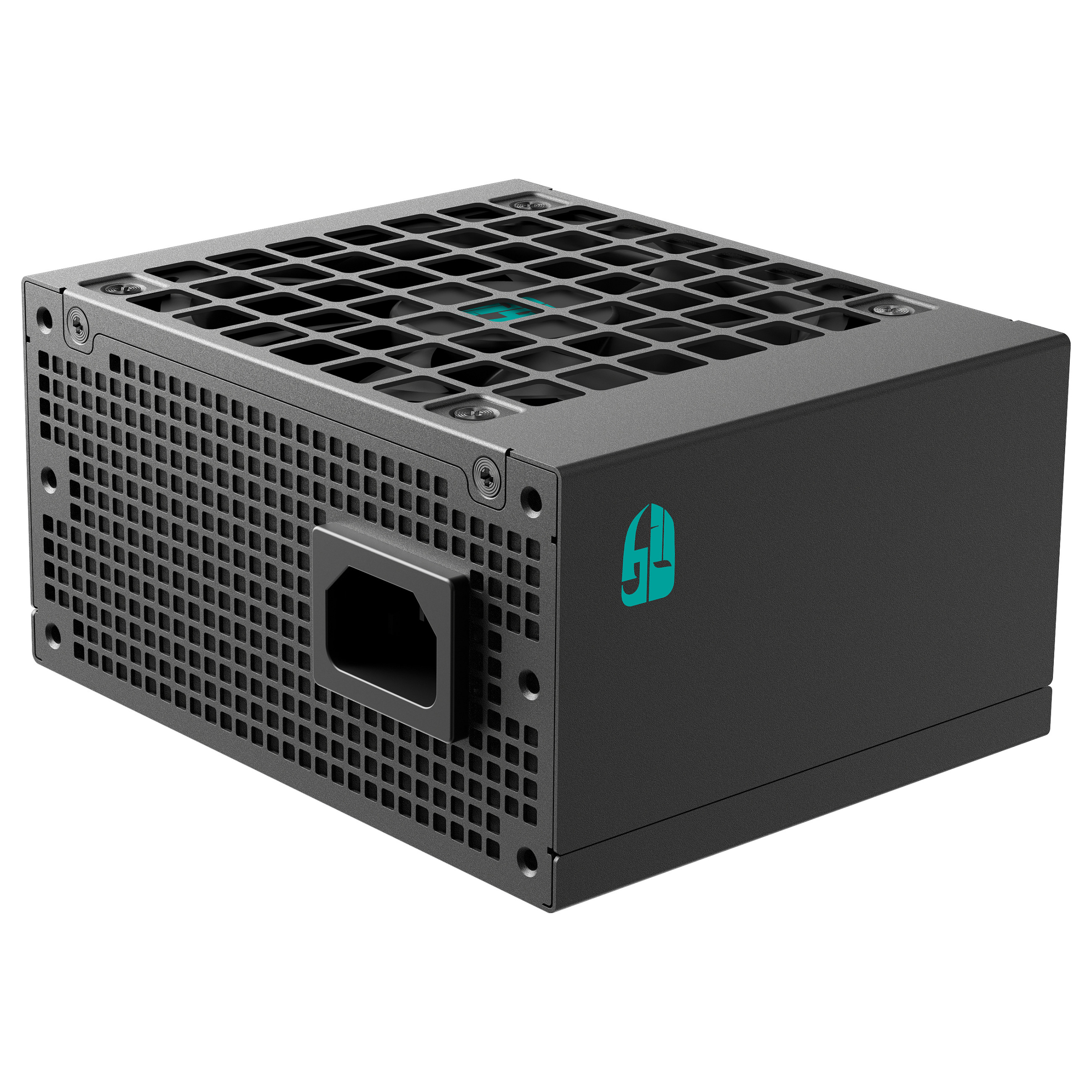

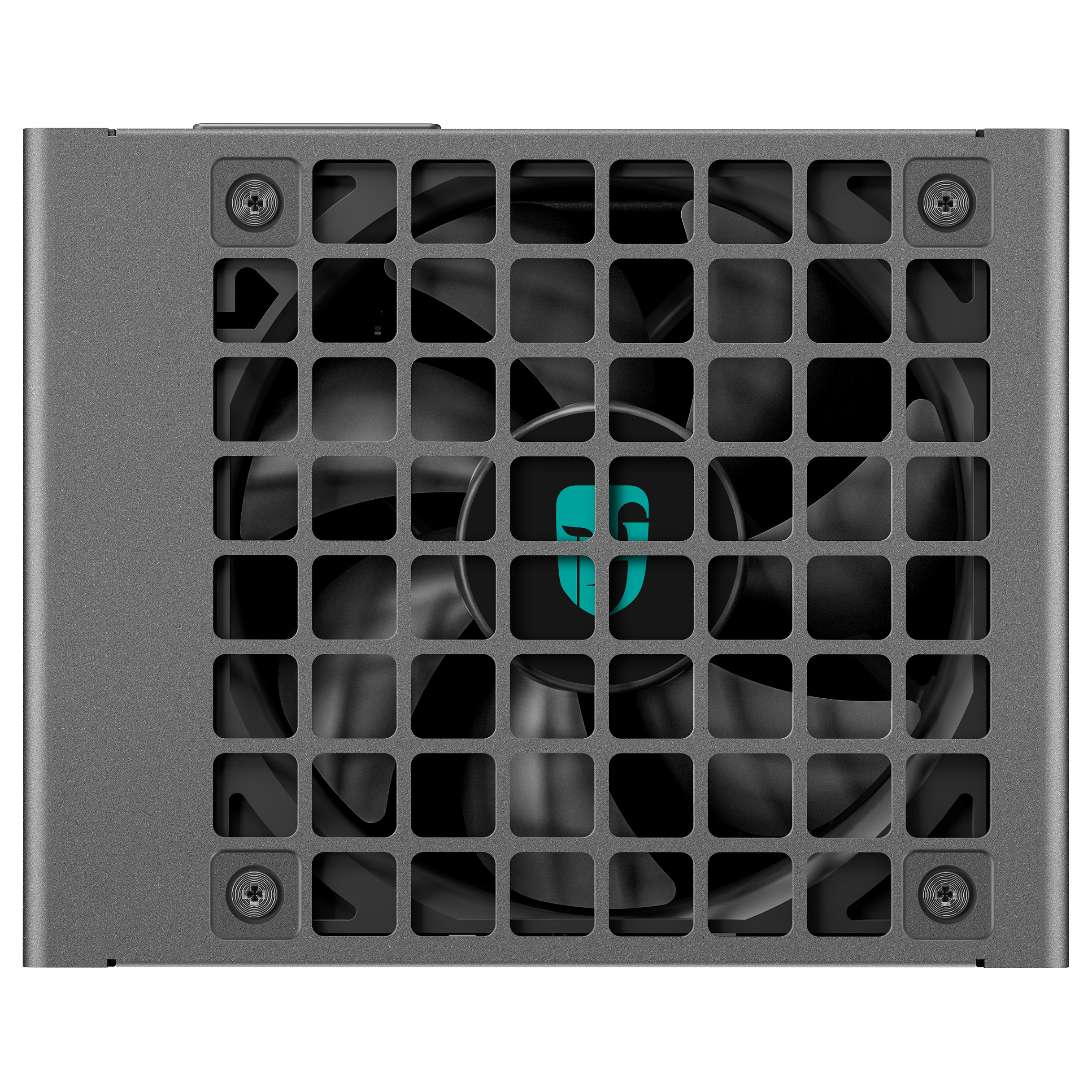

750W DeepCool PS750G SFX ATX 3.1 80 Plus Gold
Out of Stock
€94.99
VAT (19%) included
Description
750 W 100 - 240 V 50/60 Hz Motherboard power connector: 20+4 pin ATX PC SFX Active 9.2 cm Black
Technical Specifications
SKU
KR-PS750G-FE0B-JGEU
Total Power
750 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50/60 Hz
Input Current
10 - 5 A
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
100 W
Combined Power (+12V)
750 W
Combined Power (+5V)
100 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
62.5 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Hold Time
16 ms
Efficiency
90%
Power Protection Features
Over power, Over voltage, Short circuit, Overheating, Over current, Under voltage, Surge & inrush protection (SIP), No load operation

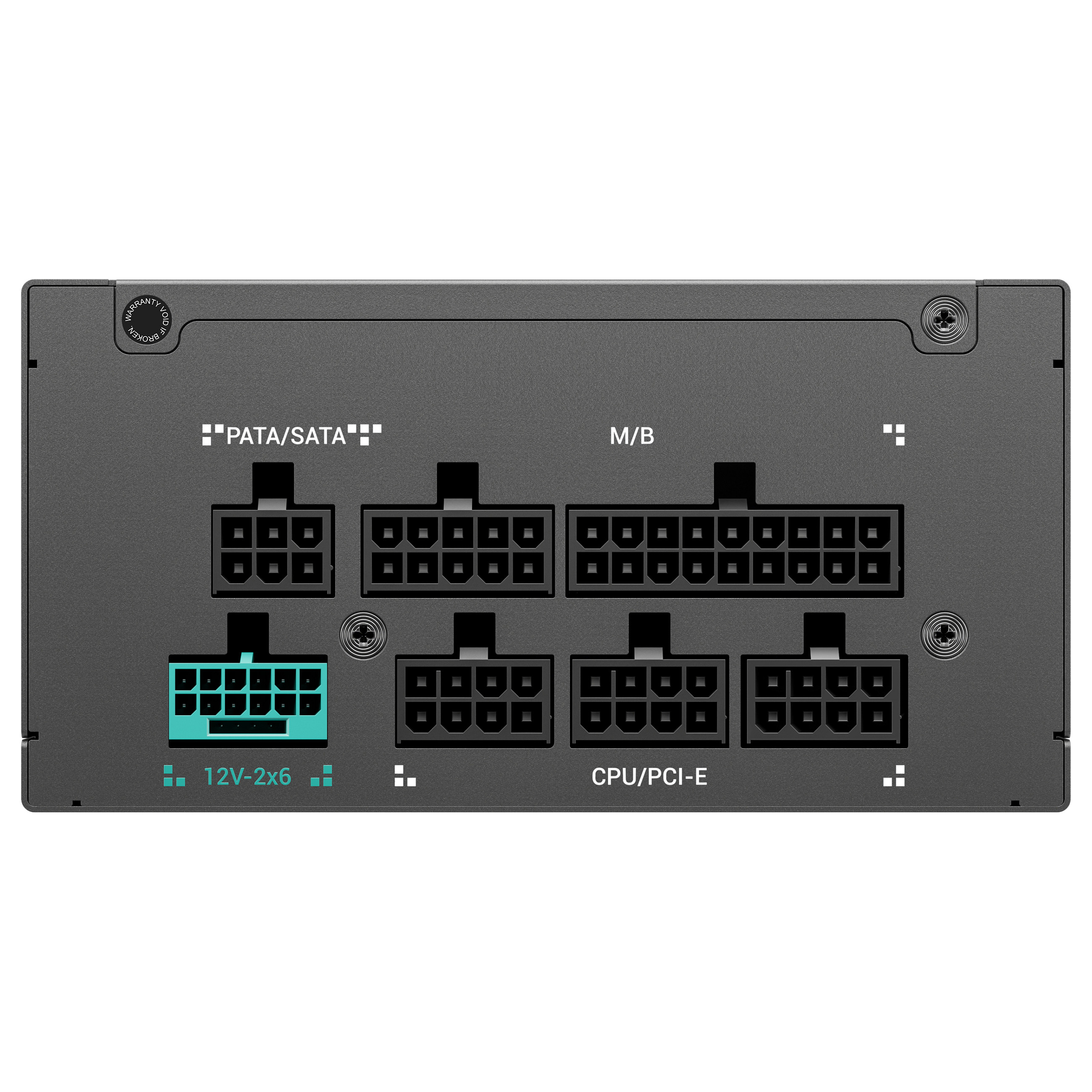

Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
35 cm
Number Of Sata Power Connectors
3
Sata Power Cable Length
300, 120 mm
Peripheral (Molex) Power Connectors (4-Pin)
1
Peripheral (Molex) Power Cable Length
120 mm
Pci Express Power Connectors (6+2 Pin)
3
Pci Express Power Connectors (16-Pin)
1
Pci Express Power Cable Length
45 cm
Cpu Power Cable Length
50 cm
Cabling Type
Fully-Modular
Purpose
PC
Power Supply Unit (Psu) Form Factor
SFX
Atx Version
3.1
Bearing Technology
FDB
Mean Time Between Failures (Mtbf)
100000 h
Product Colour
Black
Cooling Type
Active
Fan Diameter
9.2 cm
Number Of Fans
1 fan(s)
Operating Temperature (T-T)
0 - 40 °C
Cables Included
CPU, PCIe, Peripheral (Molex), SATA, AC
Compliance Certificates
CCC, CE, TÜV mark, EAC, RCM, RoHS, KC, ICES
Certification
Cybenetics Platinum/PPLP Gold ATX3.1
Width
125 mm
Depth
100 mm
Height
63.5 mm
Package Type
Box
Sustainability Certificates
ErP, Triman
Warranty Period
5 year(s)
