Deepcool

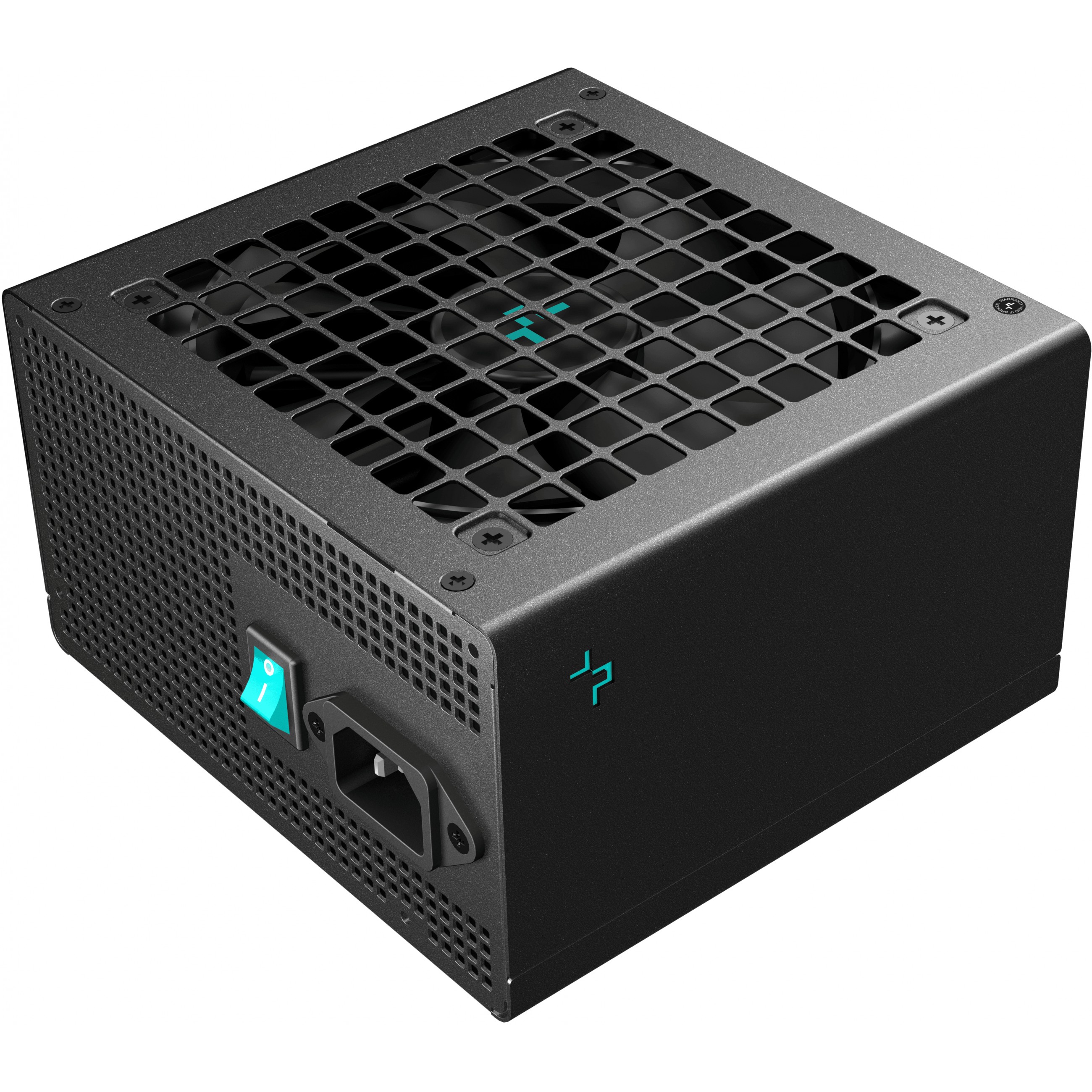

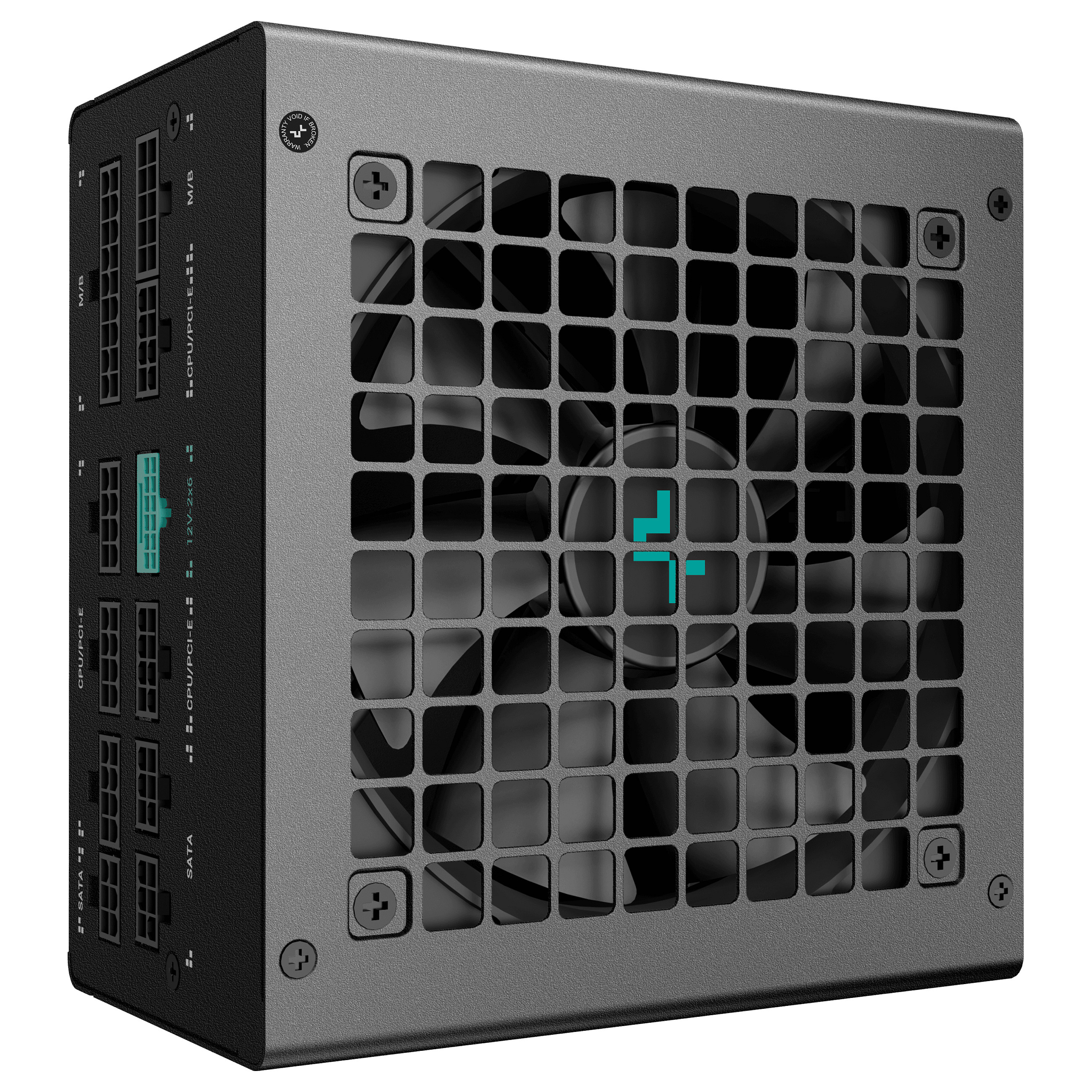

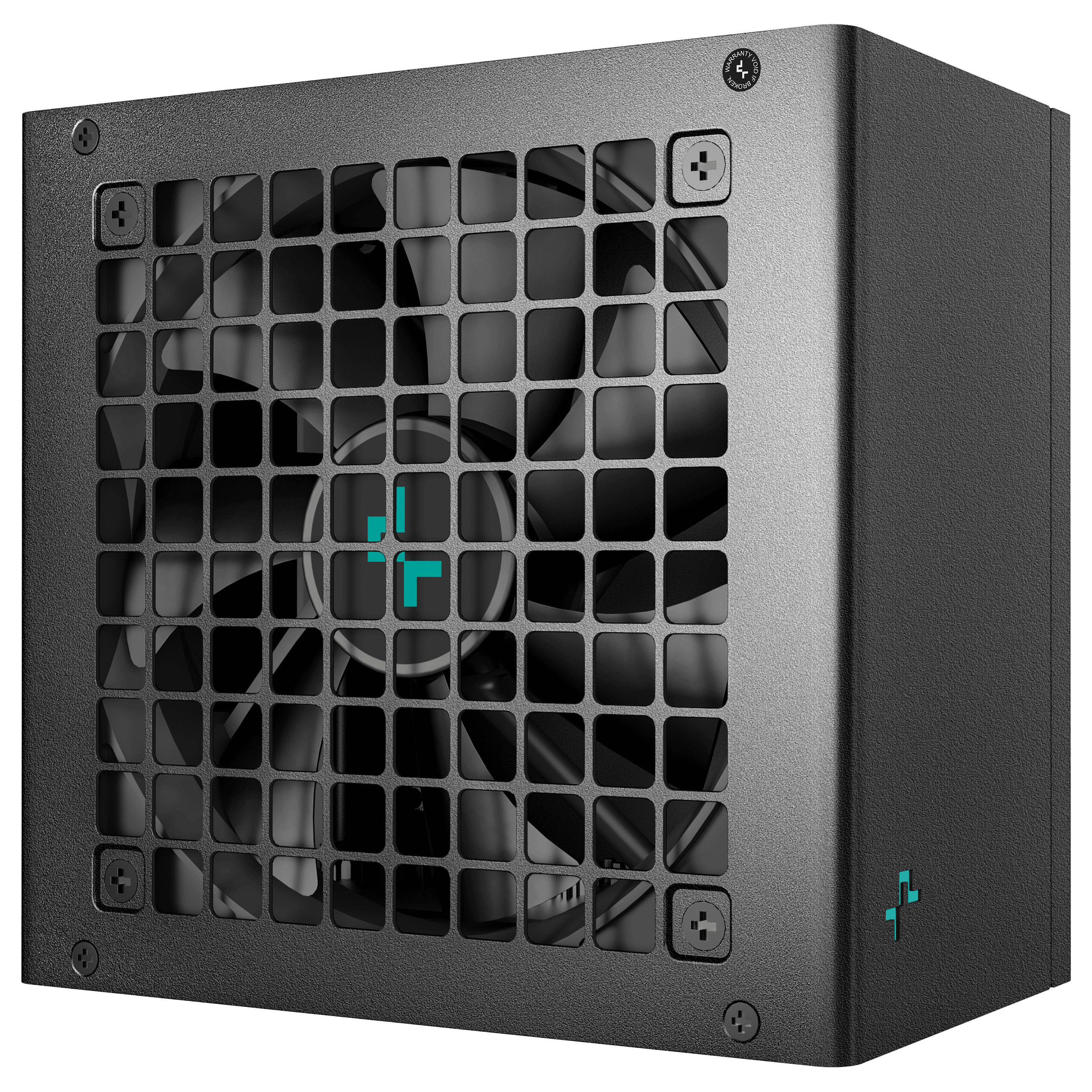

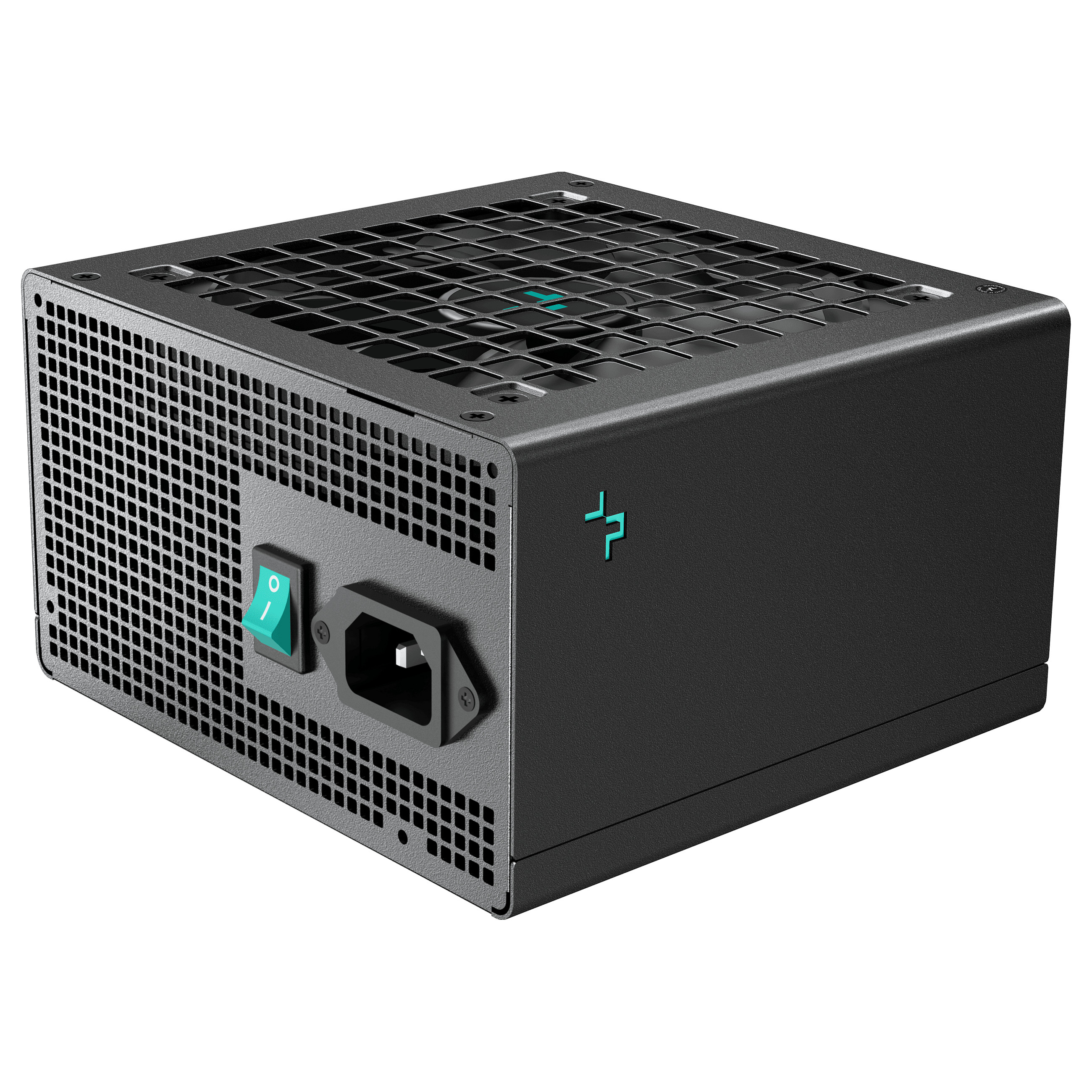

750W DeepCool PN750-M
Out of Stock
€89.99
VAT (19%) included
Description
750 W 100 - 240 V 50/60 Hz Motherboard power connector: 20+4 pin ATX PC ATX 80 PLUS Gold Active 12 cm Black
Technical Specifications
SKU
KR-PN750M-FC0B-JGEU
Total Power
750 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50/60 Hz
Input Current
10 - 5 A
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
110 W
Combined Power (+12V)
750 W
Combined Power (+5V)
110 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
62.5 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Hold Time
16 ms
Efficiency
90%
Power Good Signal Delay Range
100 - 150 ms
Power Protection Features
No load operation, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Surge protection, Under voltage

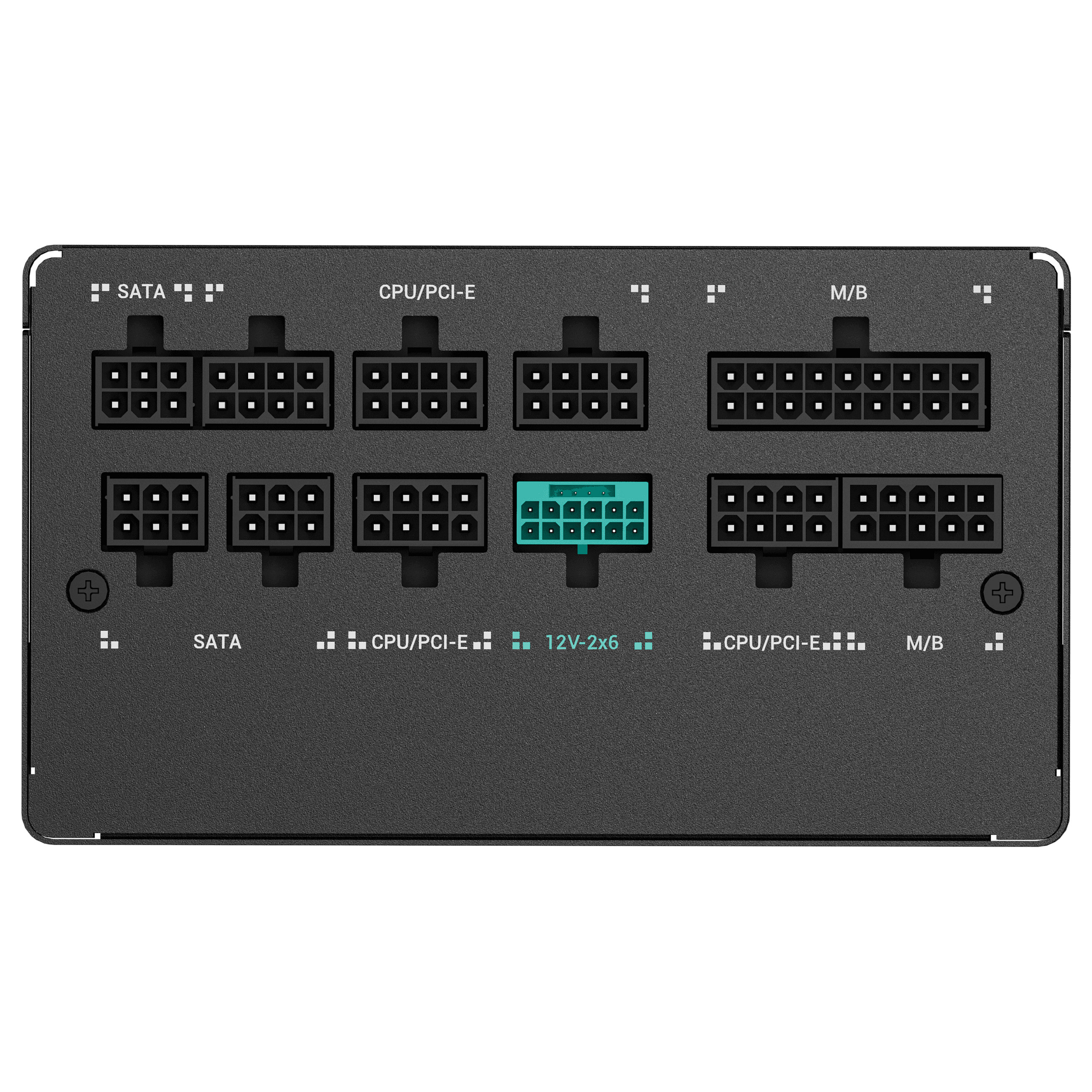

Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
55 cm
Number Of Sata Power Connectors
8
Sata Power Cable Length
450, 570, 690, 810 mm
Peripheral (Molex) Power Connectors (4-Pin)
2
Peripheral (Molex) Power Cable Length
930 mm
Pci Express Power Connectors (6+2 Pin)
3
Pci Express Power Connectors (16-Pin)
1
Cpu Power Cable Length
70 cm
Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Gold
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
3.1
Bearing Technology
FDB
Mean Time Between Failures (Mtbf)
100000 h
Product Colour
Black
Cooling Type
Active

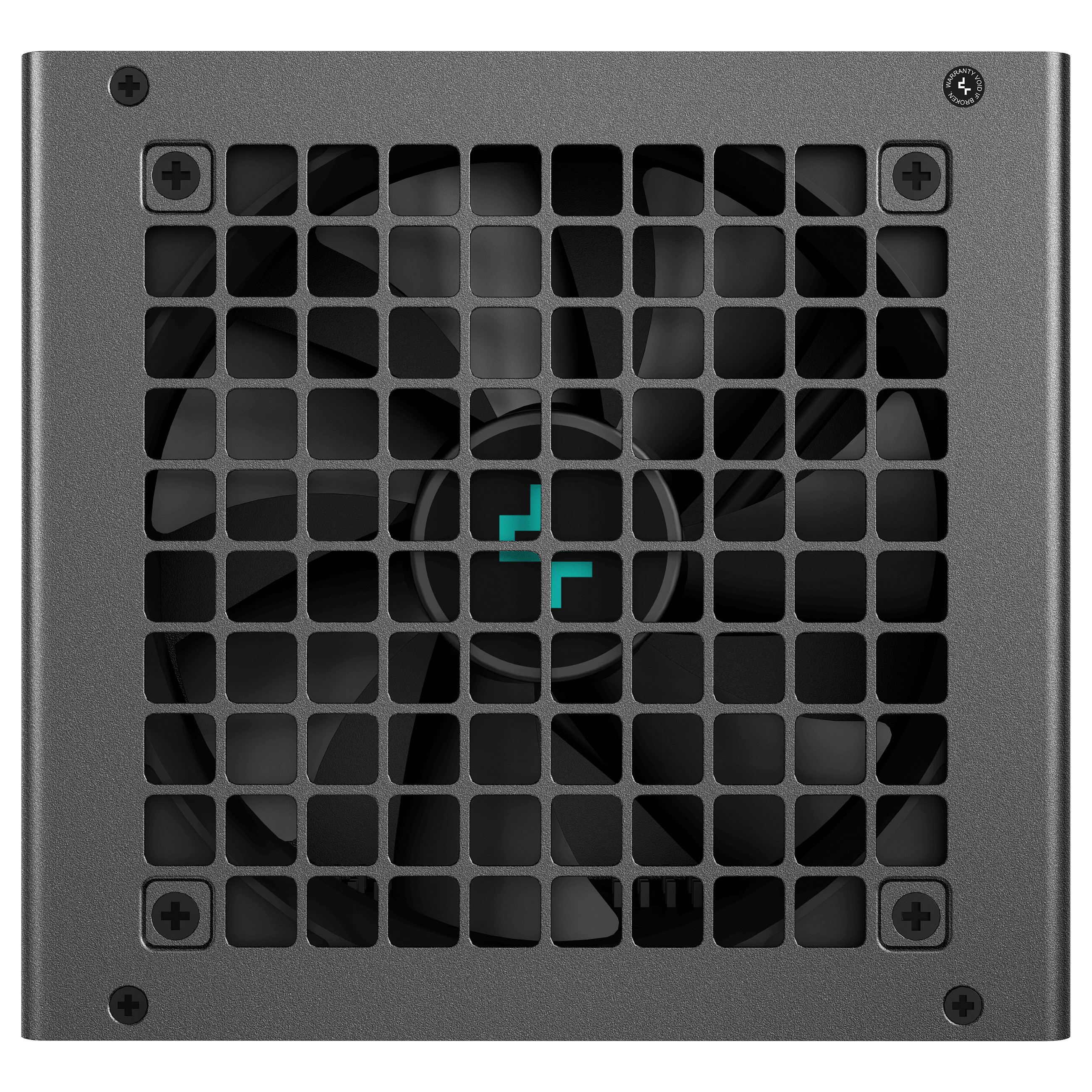

Fan Diameter
12 cm
Number Of Fans
1 fan(s)
Fan Location
Top
Operating Temperature (T-T)
0 - 40 °C

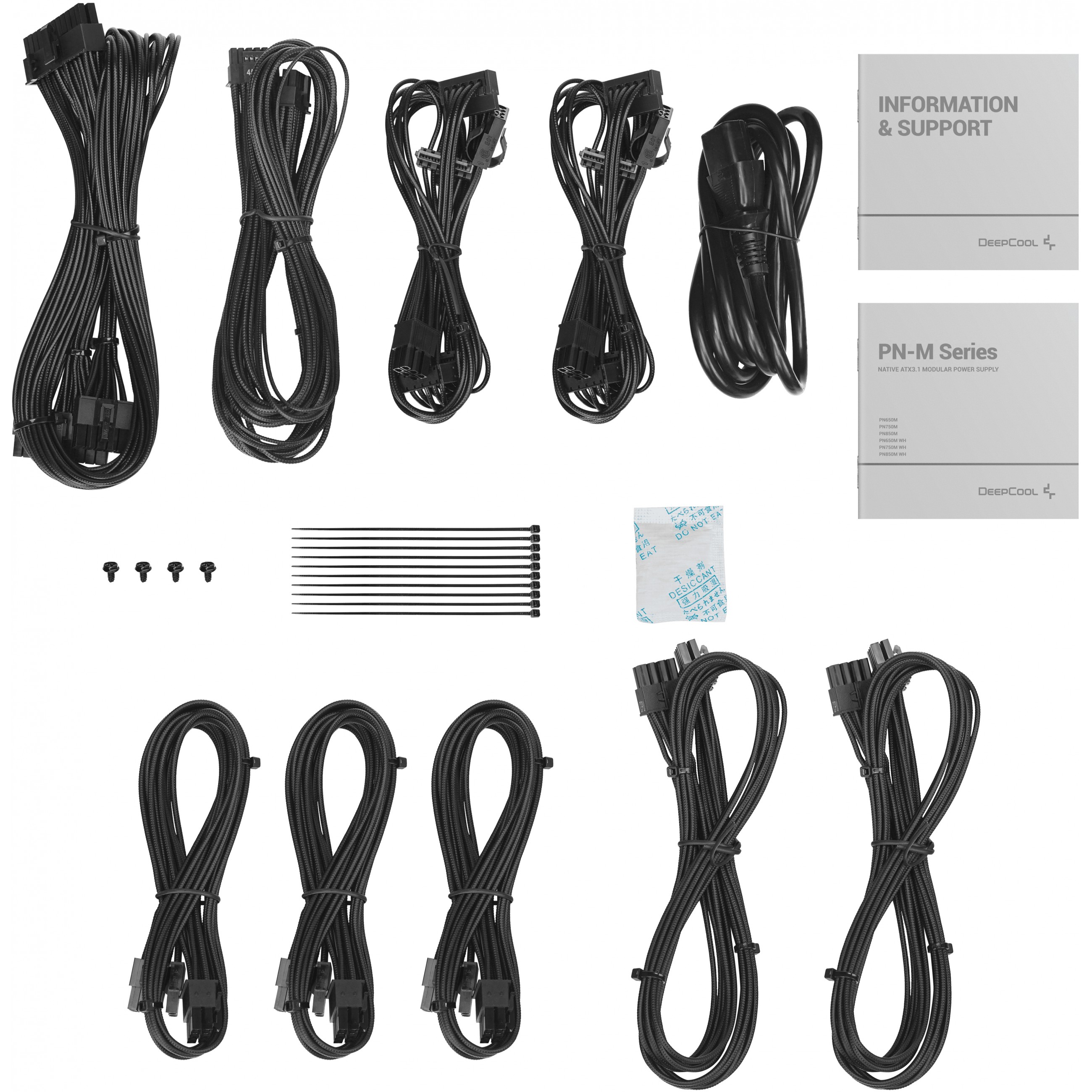

Cables Included
AC, CPU, PCIe, Peripheral (Molex), SATA
Compliance Certificates
CCC, CE, EAC, Federal Communications Commission (FCC), RCM, RoHS, WEEE
Width
150 mm
Depth
140 mm
Height
86 mm
Package Type
Box
Sustainability Certificates
ErP, Triman
Warranty Period
10 year(s)
