Be Quiet!

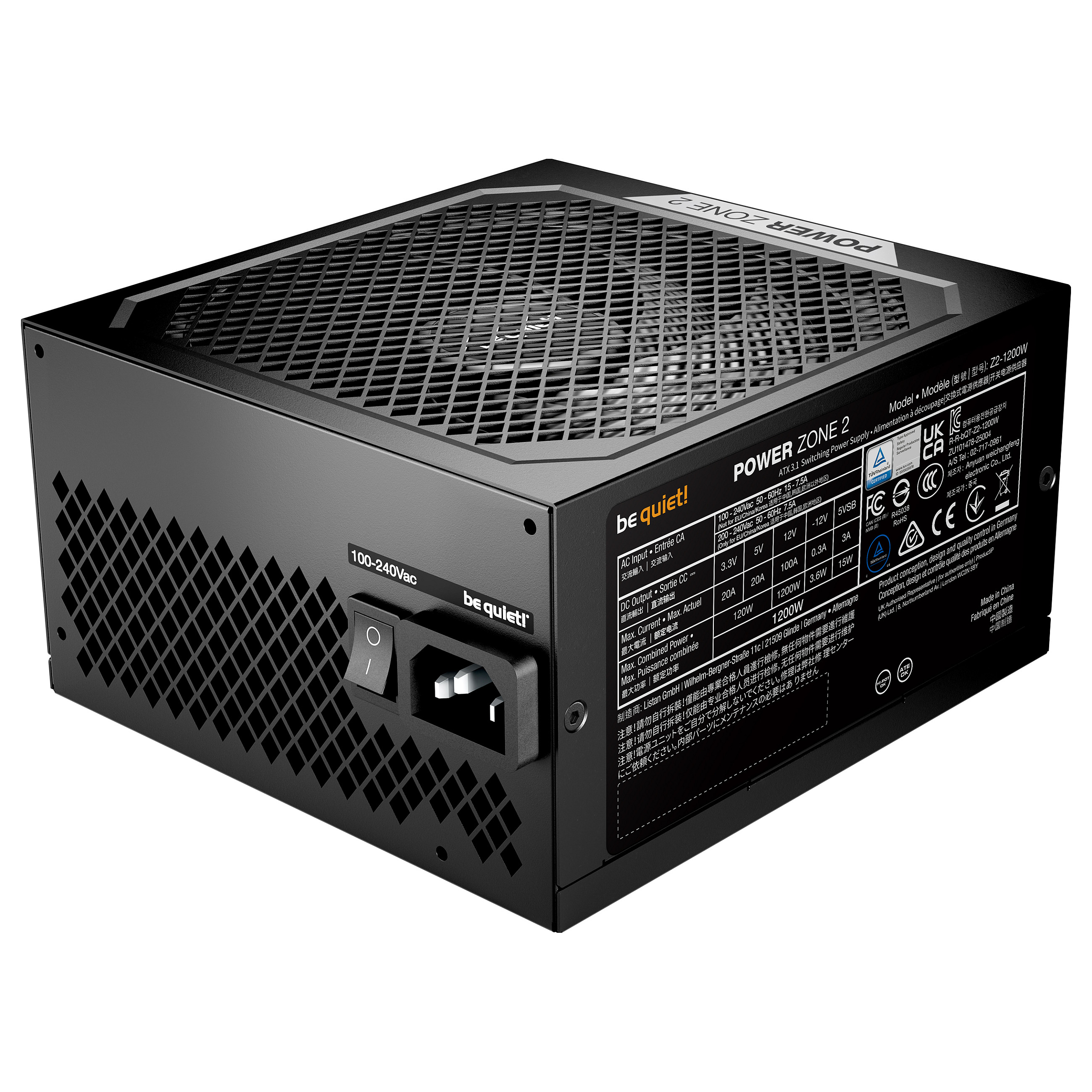

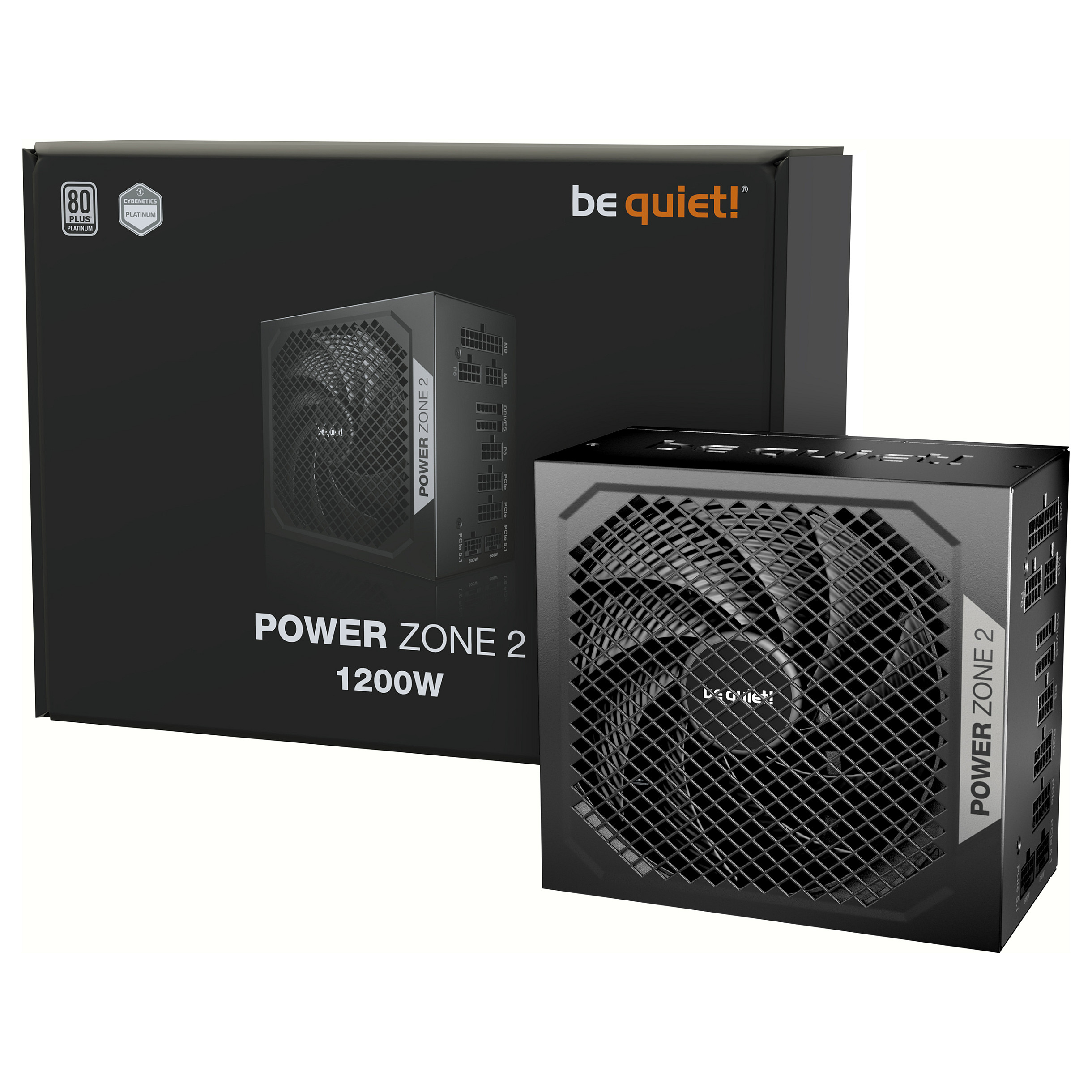

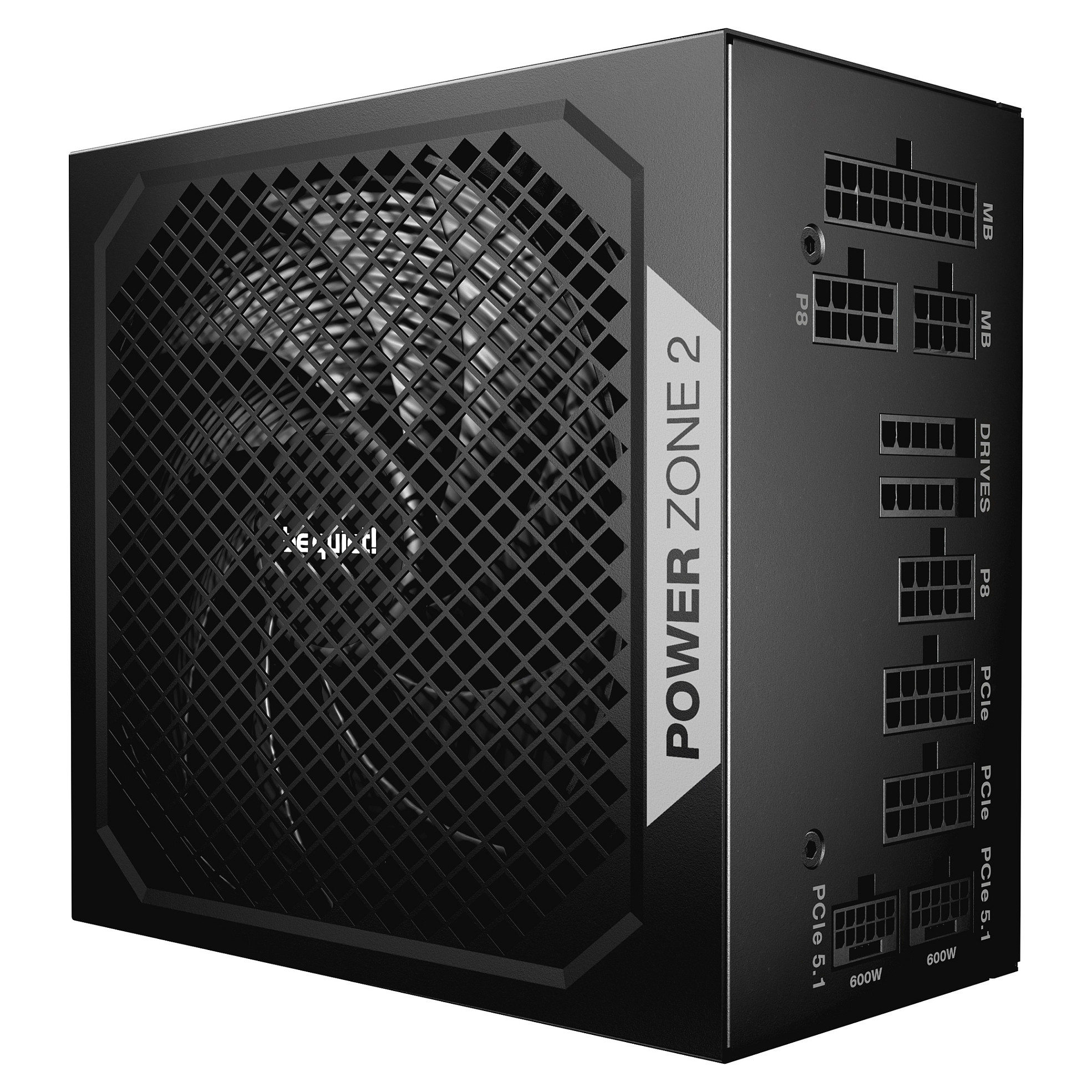

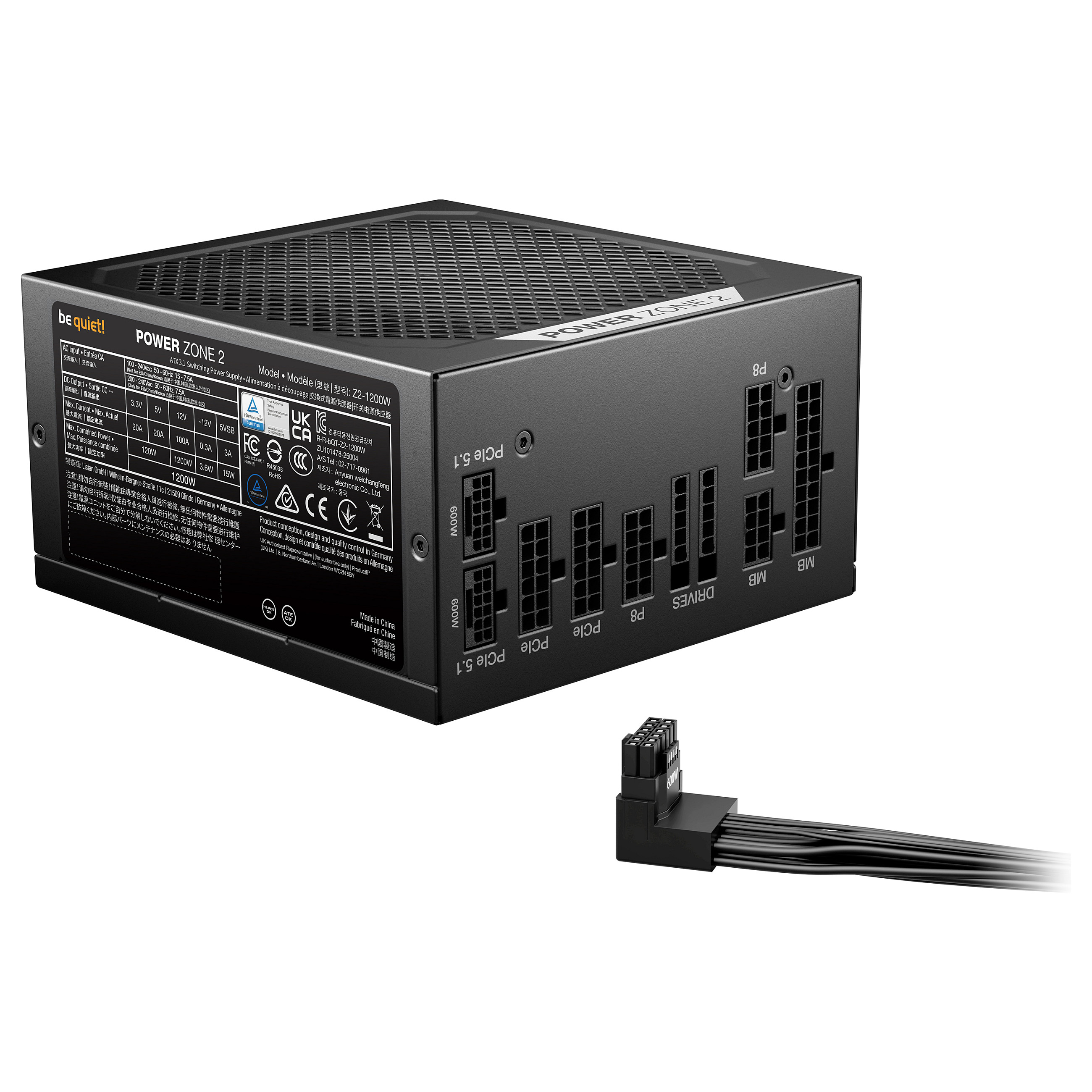

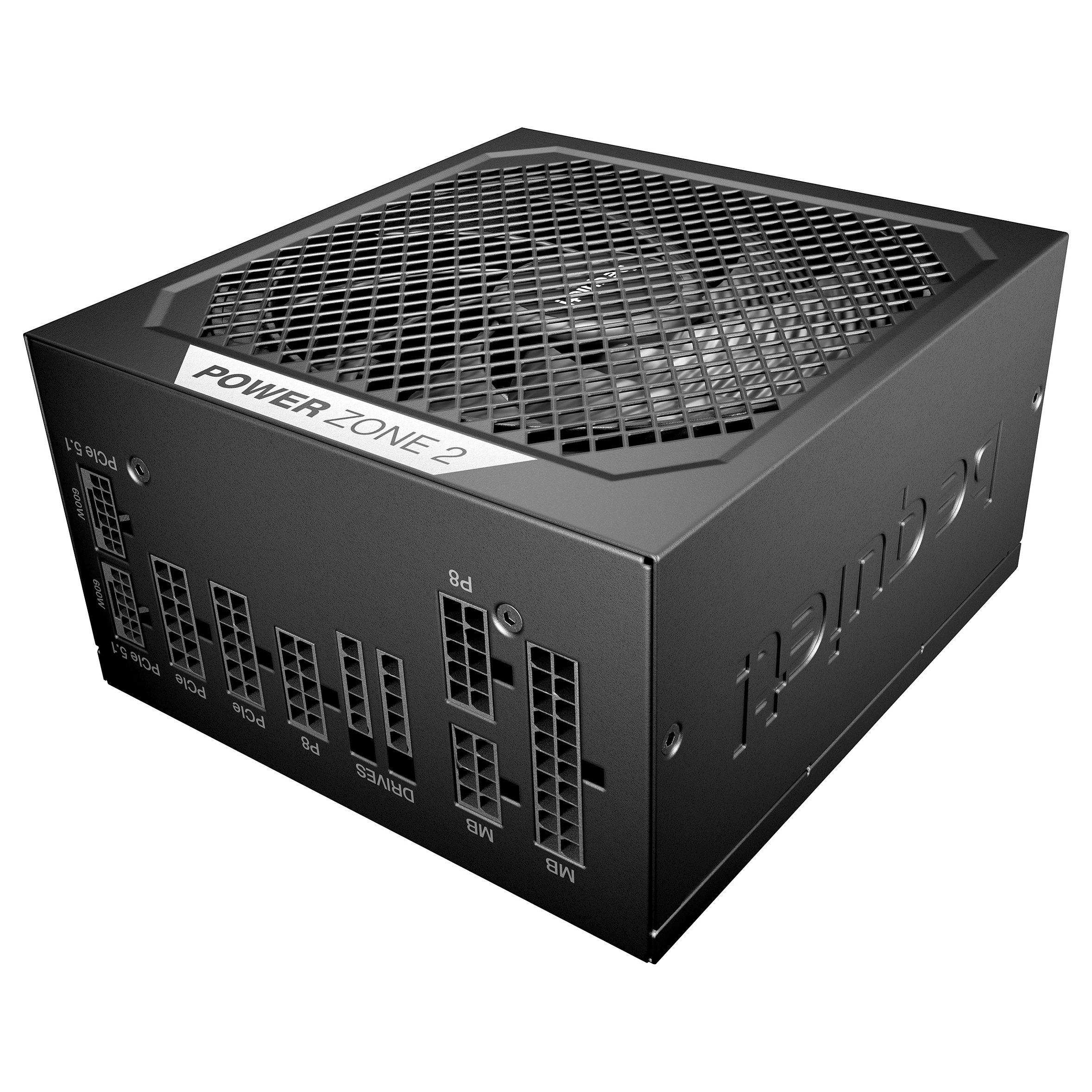

be quiet! Power Zone 2 1200W ATX 3.1
Out of Stock
€172.99
VAT (19%) included
Description
80 PLUS® Platinum and Cybenetics Platinum efficiency rating (up to 94.3%) Semi-passive zero-RPM cooling Fan runs on for 2-5 minutes to avoid frequent starting noise Pure Wings 3 140mm fan for quiet and efficient cooling 2 x 90° angled 12V-2x6 connectors and PCIe 5.1/ATX 3.1 compatibility Advanced voltage regulation and stability thanks to LLC technology One massive high-performance 12V-rail Unique look with an unmistakable mesh design Product conception, design and quality control in Germany
Technical Specifications
SKU
KBP030EU
Total Power
1200 W
Peak Power
1270 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50/60 Hz
Maximum Input Current (@110V)
15 A
Maximum Input Current (@220V)
7.5 A
Power Factor
0.97
Number Of +12V Rail(S)
1
Combined Power (+3.3V)
120 W
Combined Power (+12V)
1200 W
Combined Power (+5V)
120 W
Combined Power (-12V)
6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
100 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Hold Time
20.42 ms
Efficiency
92.7%
Power Protection Features
Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush, Under voltage
Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
60 cm
Number Of Sata Power Connectors
7
Sata Power Cable Length
550, 700, 850, 1000 mm
Number Of Sata Power Cables
2
Peripheral (Molex) Power Connectors (4-Pin)
1
Peripheral (Molex) Power Cable Length
1000 mm
Pci Express Power Connectors (6+2 Pin)
3
Pci Express Power Connectors (12-Pin)
2
Pci Express Power Cable Length
60 cm
Cpu P4 Connector (4-Pin)
1
Cpu Power Cable Length
70 cm
Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Platinum
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
3.1
Eps Version
2.92
Noise Level
25.5 dB
Bearing Technology
Rifle
Mean Time Between Failures (Mtbf)
100000 h
Product Colour
Black
Cooling Type
Active
Fan Diameter
14 cm
Number Of Fans
1 fan(s)
Fan Speed
0 - 2100 RPM
Operating Temperature (T-T)
0 - 40 °C
Storage Temperature (T-T)
-40 - 70 °C
Operating Relative Humidity (H-H)
0 - 85%
Storage Relative Humidity (H-H)
0 - 95%
Compliance Certificates
BSMI, CB, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, TÜV mark, UKCA, WEEE
Width
150 mm
Depth
160 mm
Height
86 mm
Weight
1.88 kg
Manual Languages
German, English, Spanish, French, Polish, Russian, Ukrainian
Package Width
248 mm
Package Depth
328 mm
Package Height
102 mm
Package Weight
3.5 kg
Package Type
Box
Sustainability Certificates
ENERGY STAR, ErP, Triman
Shipping (Inner) Case Length
43 cm
Shipping (Inner) Case Width
26.5 cm
Shipping (Inner) Case Height
34 cm
Products Per Shipping (Inner) Case
4 pc(s)
Shipping (Inner) Case Gross Weight
14.9 kg
