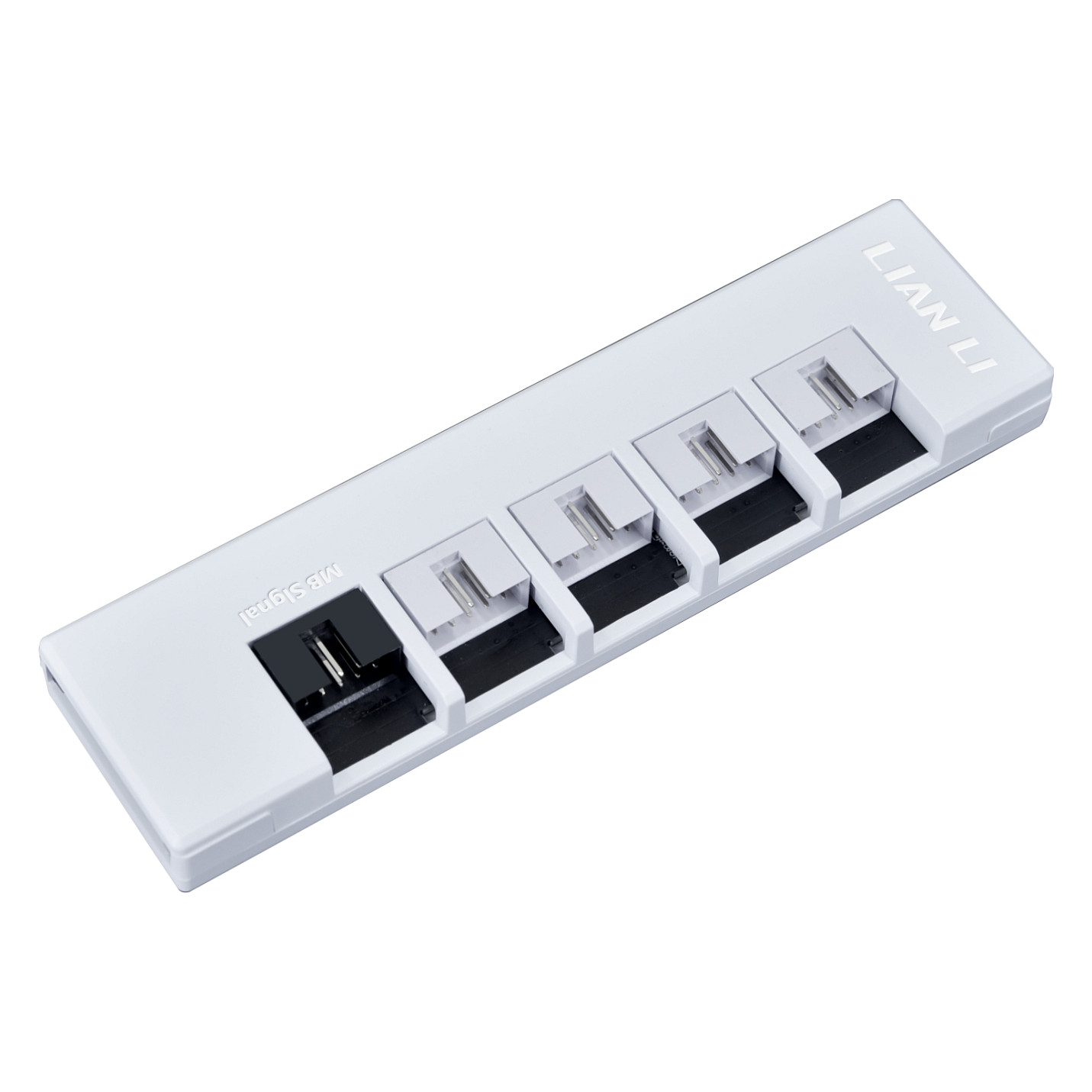

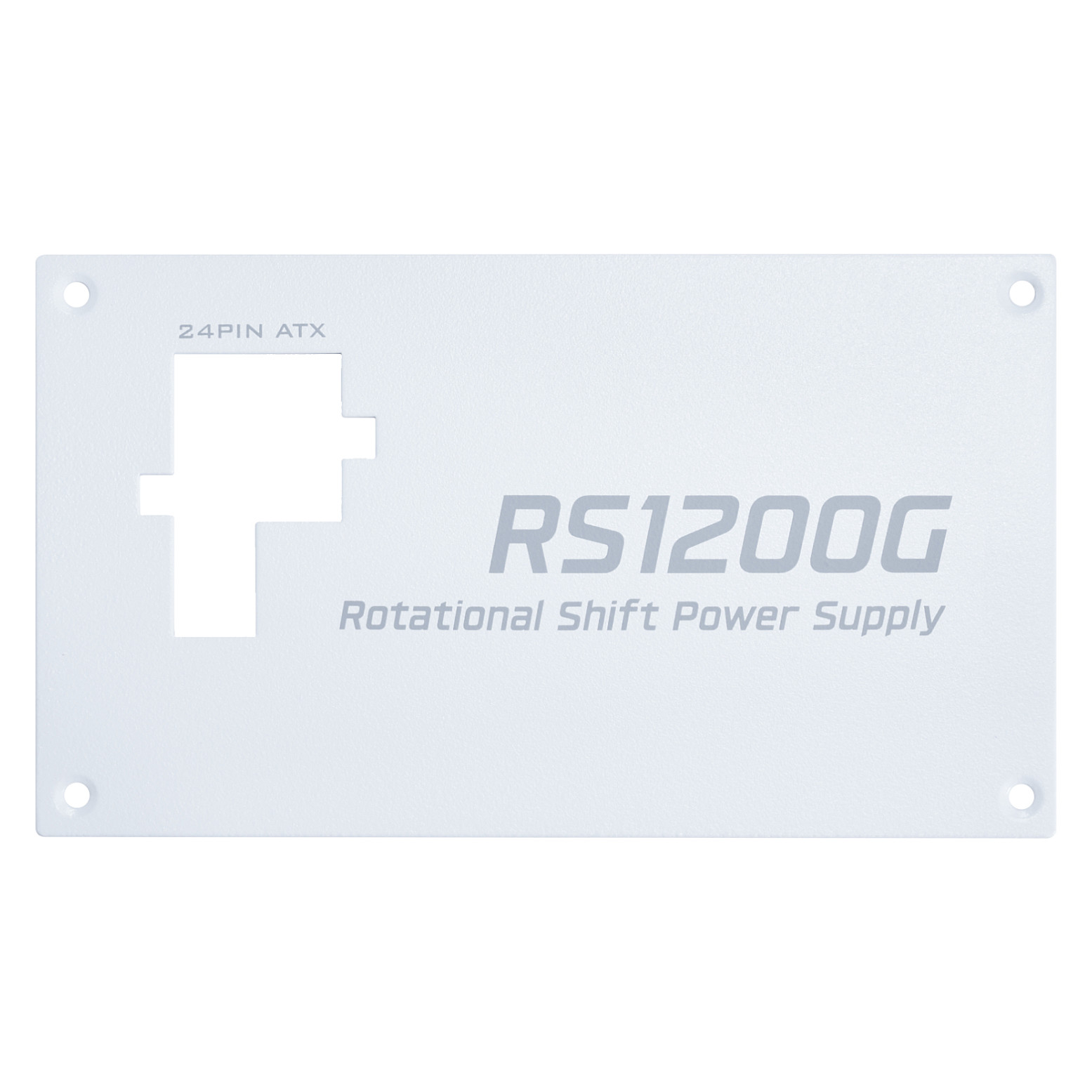

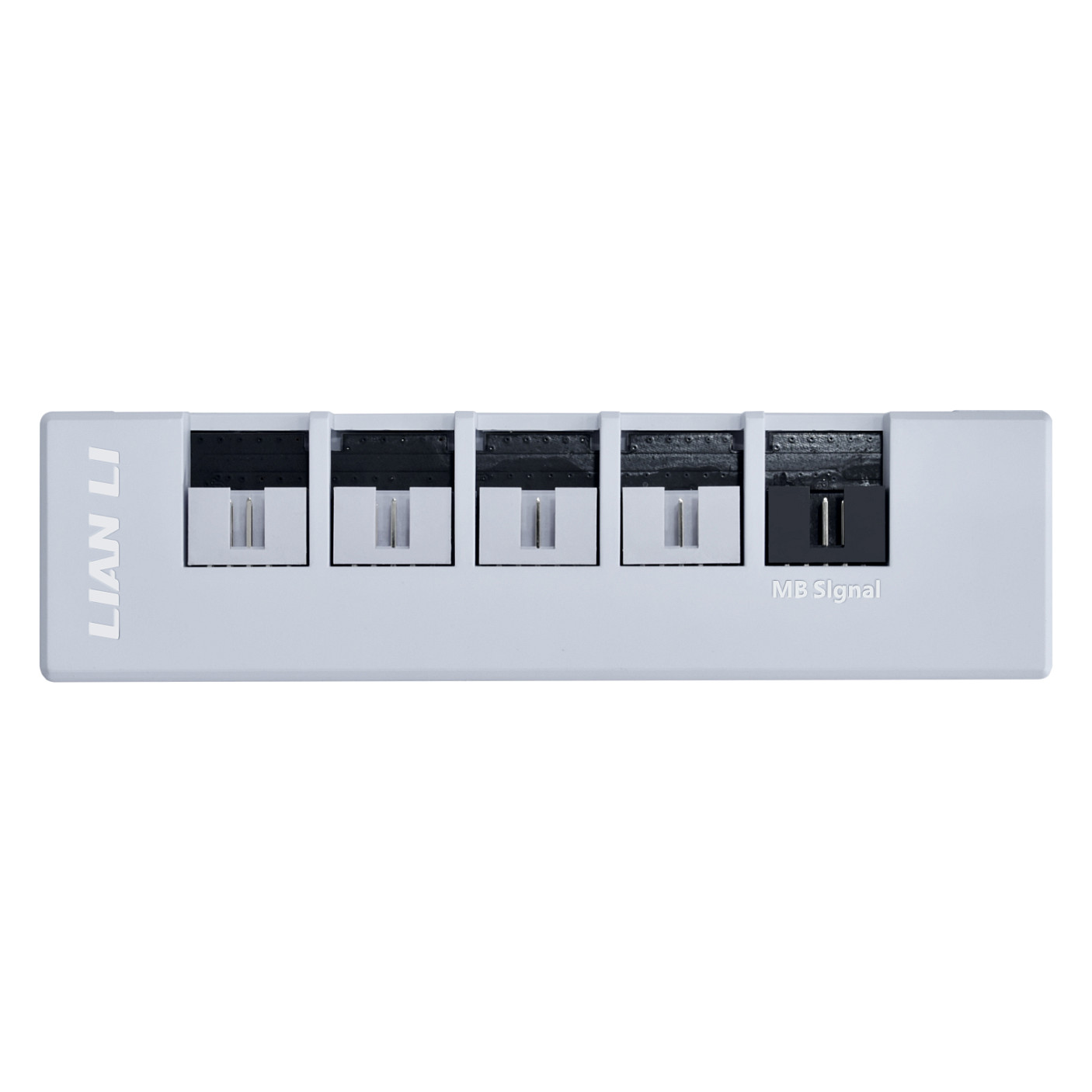

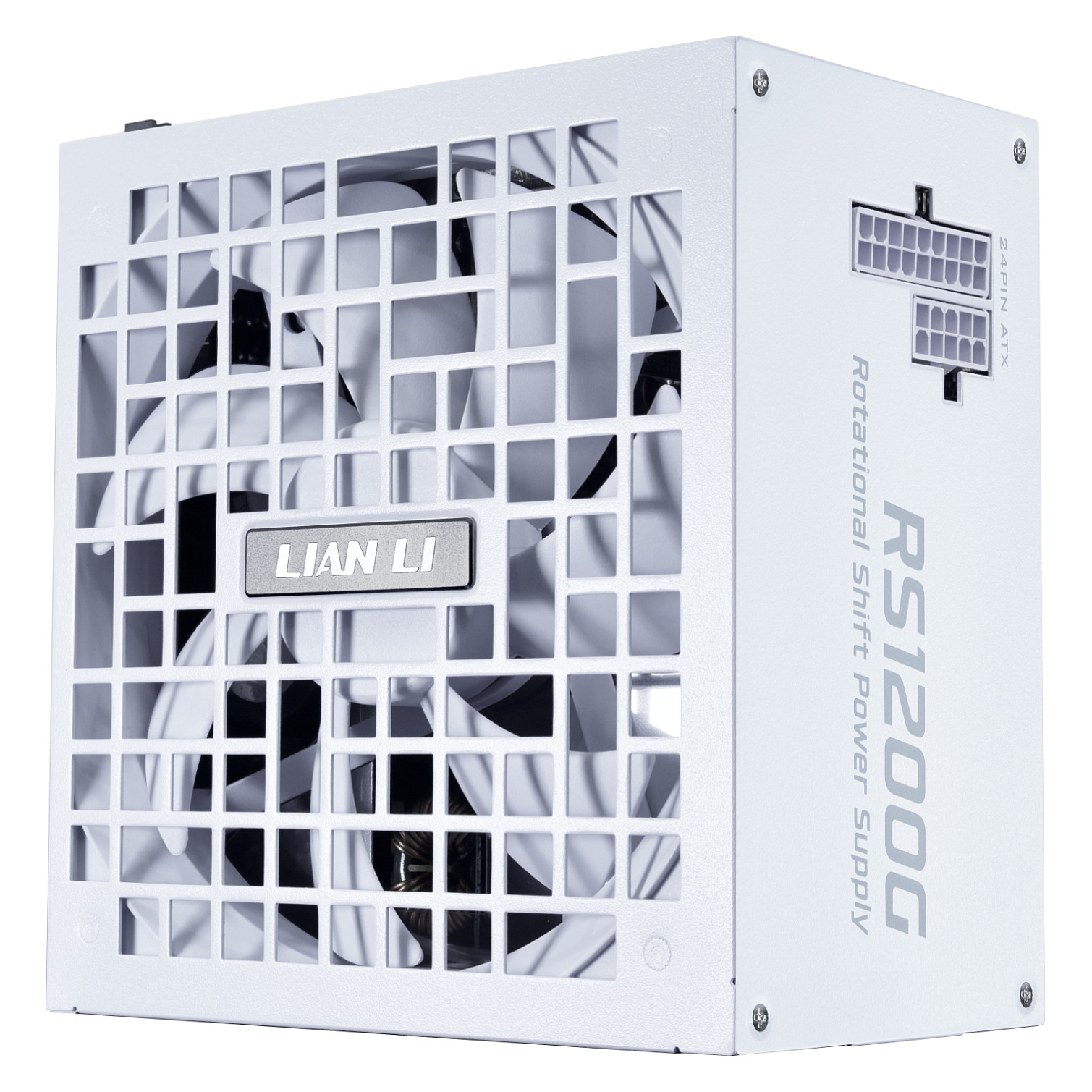

1200W Lian Li RS Series ATX 3.1 Weiß mit RS-Hub
Pre-Order
€139.99
VAT (19%) included
Description

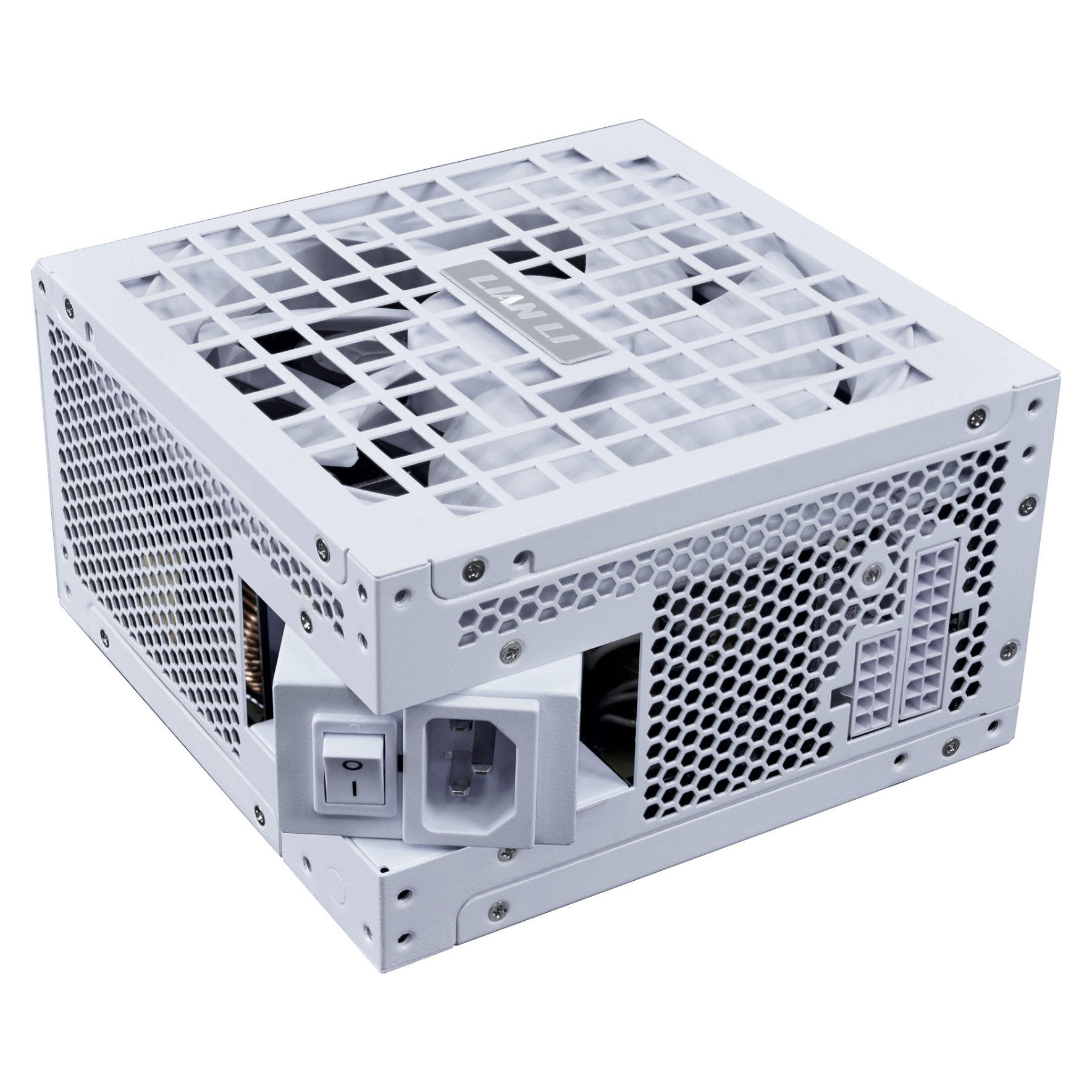

80 Plus Gold certified with Cybenetics Platinum-level efficiency performance. 90° rotatable AC inlet for standard or vertical PSU installation German EPCOS industrial-grade capacitors for long-term reliability Compact 150 × 86 × 150 mm ATX design with 135 mm cooling fan Ultra-quiet operation with PPLP.info SSS and Cybenetics A noise ratings ATX 3.1 ready with native 12V-2×6 high-current copper alloy terminals Dual-sided 20+4-pin ATX output for easier 24-pin cable routing
Technical Specifications
SKU
KG9P.RS1200G.WH00.EU
Total Power
1200 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50/60 Hz
Input Current
8 - 15 A
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
100 W
Combined Power (+12V)
1200 W
Combined Power (+5V)
100 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
100 A
Max Output Current (+5V)
20 A
Max Output Current (+5Vsb)
3 A
Power Protection Features
No load operation, Over current, Over power, Over voltage, Short circuit, Surge & inrush protection (SIP), Under temperature, Under voltage
Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
62 cm
Number Of Sata Power Connectors
12
Peripheral (Molex) Power Connectors (4-Pin)
4
Peripheral (Molex) Power Cable Length
500 mm
Pci Express Power Connectors (6+2 Pin)
2
Pci Express Power Cable Length
65 cm
Cpu Power Cable Length
70 cm
Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Gold
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
3.1
Noise Level
36.27 dB
Bearing Technology
FDB
Mean Time Between Failures (Mtbf)
100000 h
Product Colour
White
Fan Diameter
13.5 cm
Number Of Fans
1 fan(s)
Fan Speed
0 - 2400 RPM
Operating Temperature (T-T)
0 - 40 °C
Width
86 mm
Depth
150 mm
Height
150 mm
