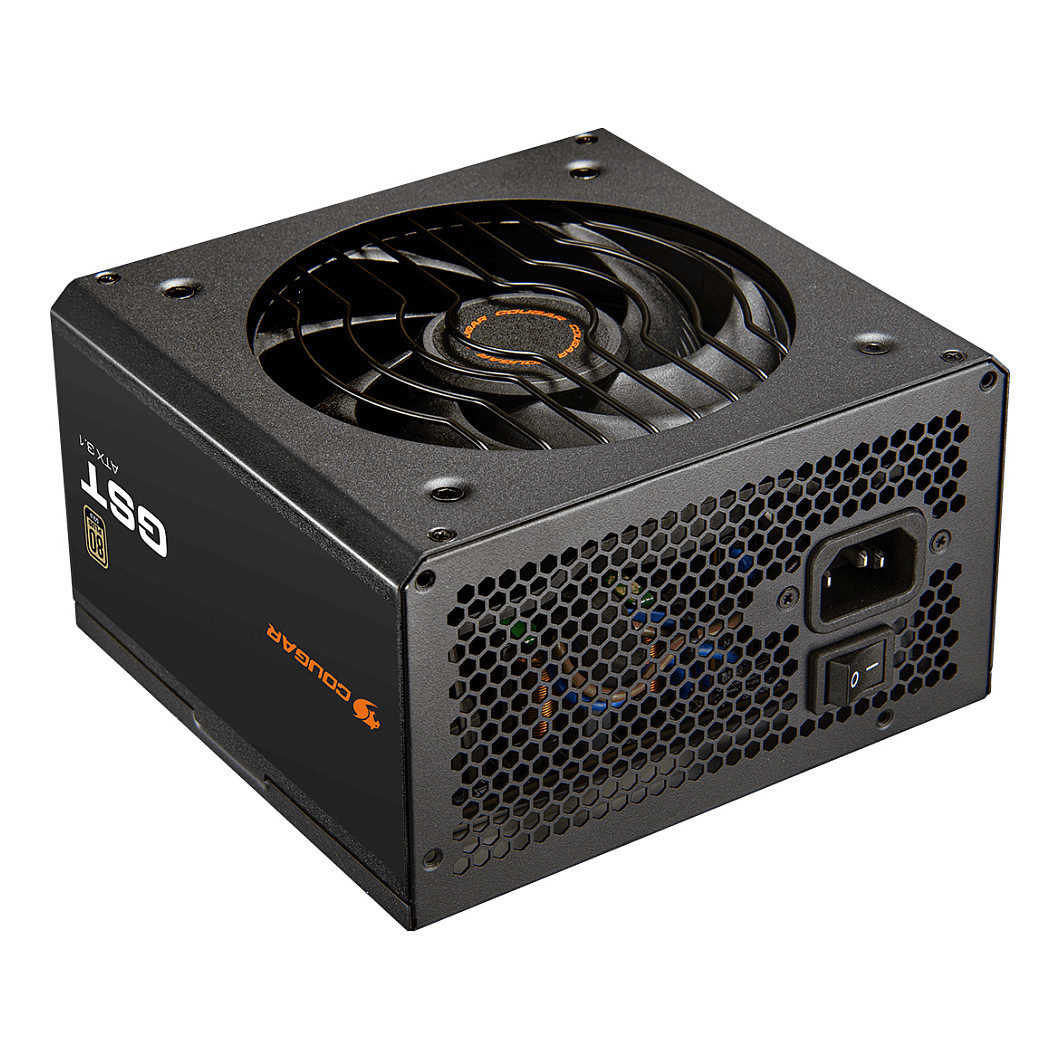

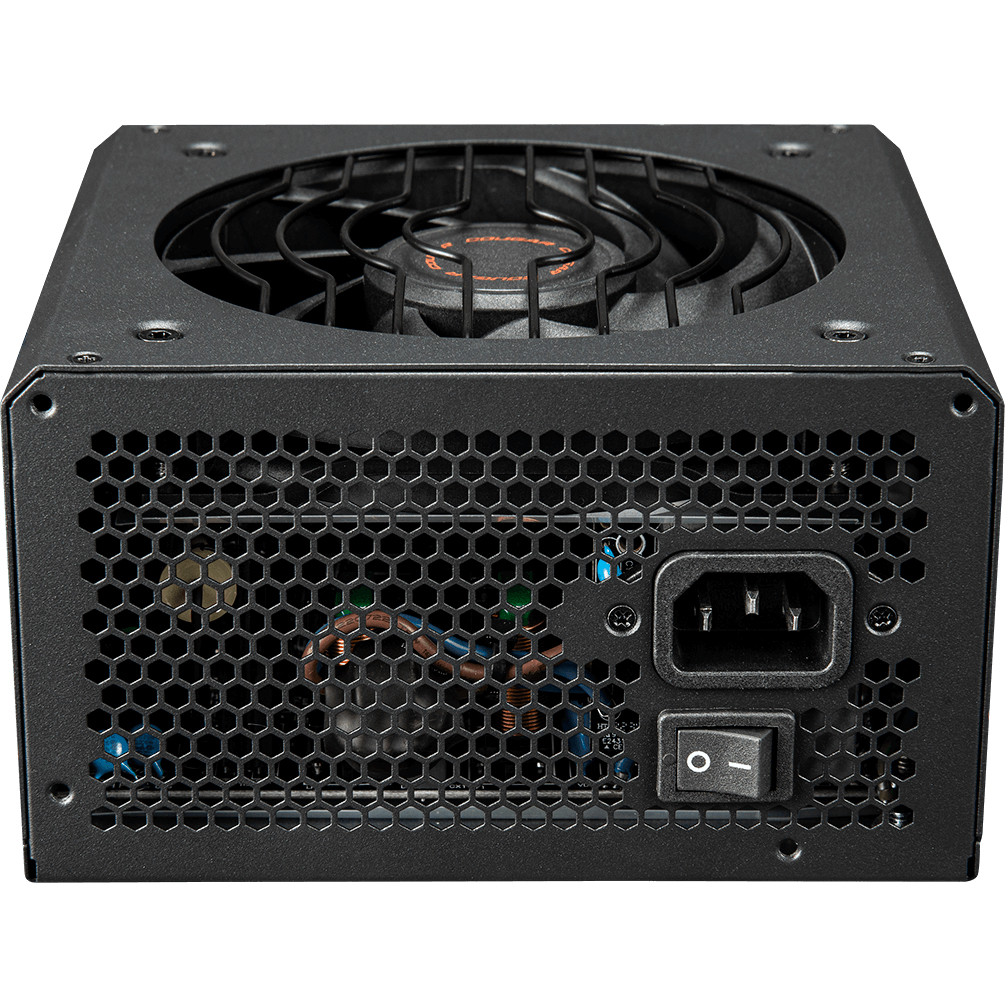

750W COUGAR Netzteil GST 750W ATX3.1 / 80 Plus Gold
Pre-Order
€97.99
VAT (19%) included
Description

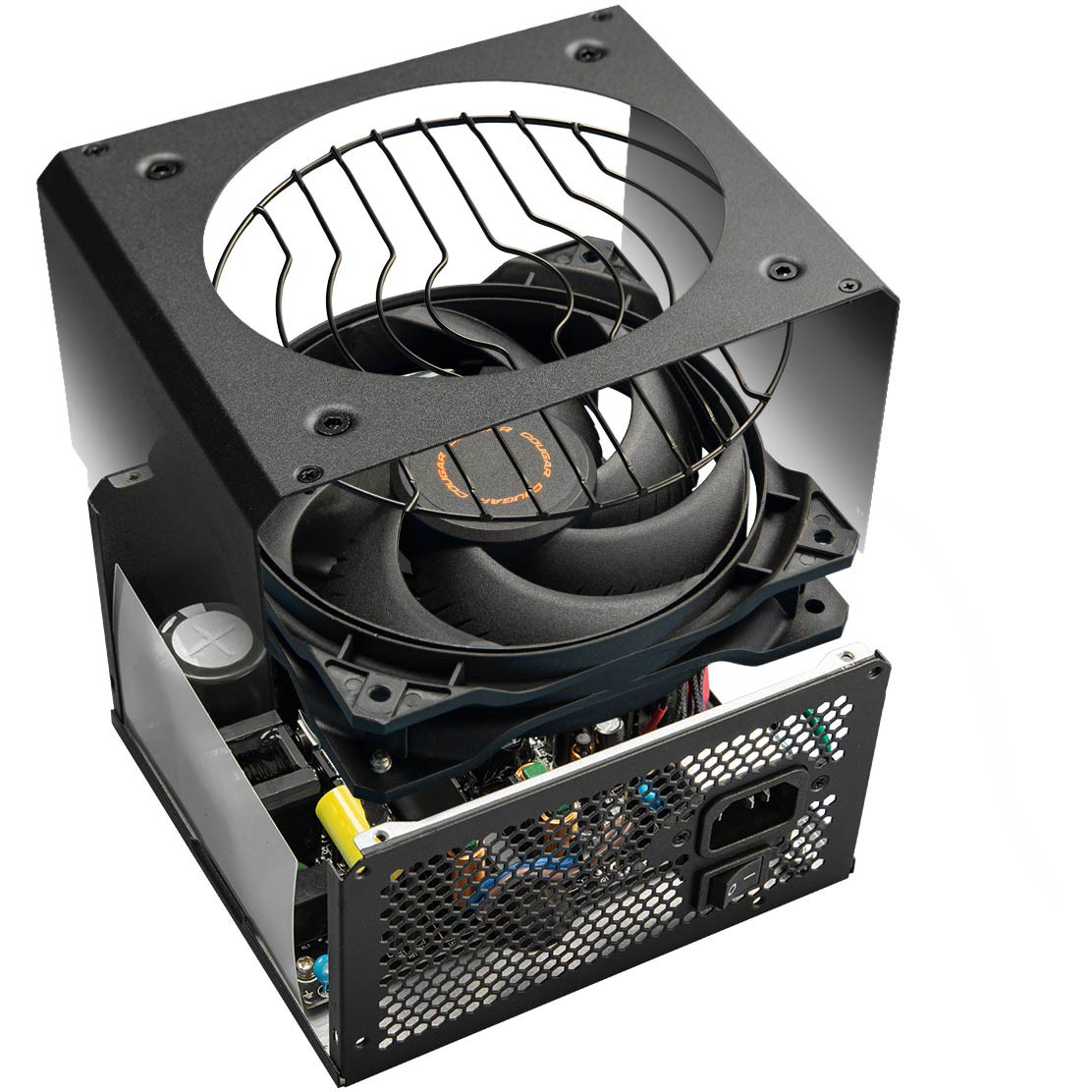

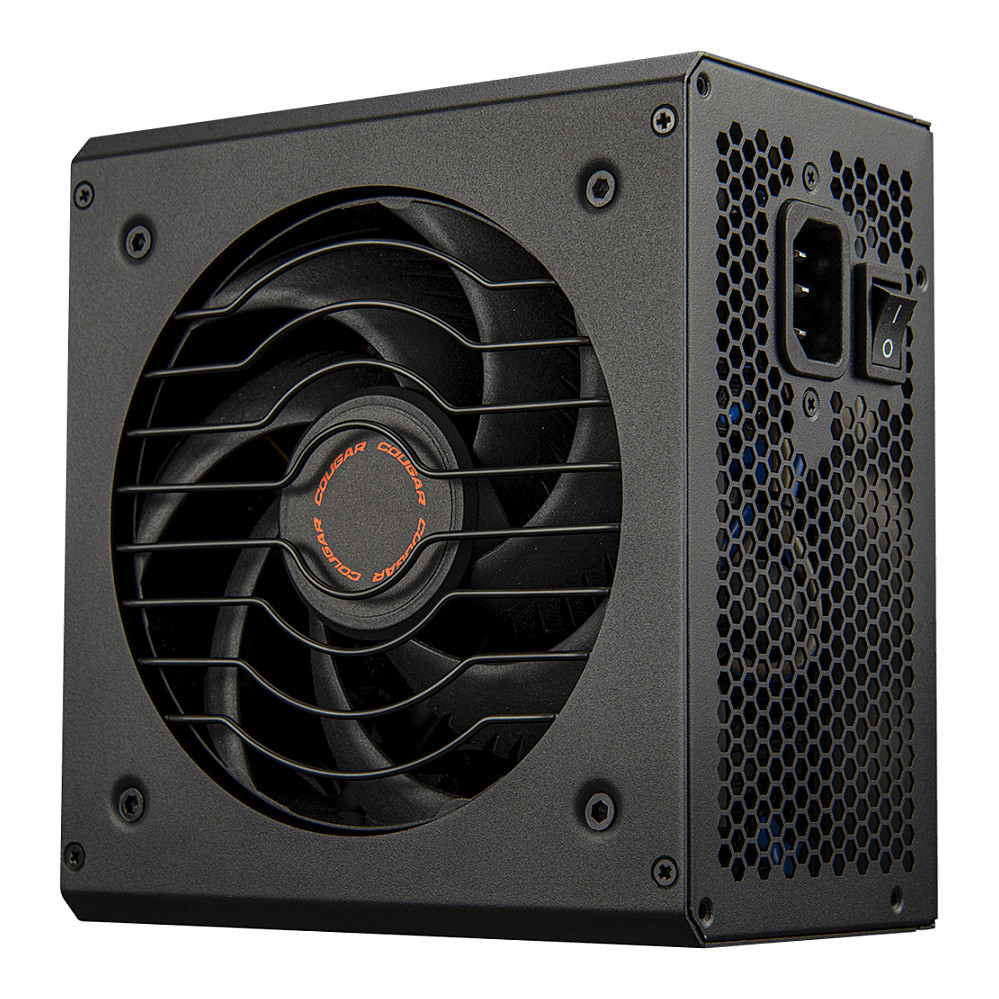

Supports PCI Express 5.1 Graphics Cards with 12+4 Pin Connector for true 200% power excursion dynamic outputs 80 PLUS Gold Certified for up to 91% efficiency in power conversion, reducing electricity bills Durable HDB Fan with Hydro Dynamic Bearing for extended durability and lower noise levels 105°C Japanese capacitors for standby power Designed for current and next-generation multi-core CPU platforms, is compatible with the latest PC technology Powerful performance even at 40°C ambient temperature
Technical Specifications
SKU
KGST750
Total Power
750 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50/60 Hz
Input Current
10 - 5 A
Combined Power (+3.3V)
120 W
Combined Power (+12V)
750 W
Combined Power (+5V)
120 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
62.5 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Efficiency
91%
Power Protection Features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
55 cm
Number Of Sata Power Connectors
6
Sata Power Cable Length
150, 450 mm
Peripheral (Molex) Power Connectors (4-Pin)
3
Peripheral (Molex) Power Cable Length
150, 450 mm
Pci Express Power Connectors (6+2 Pin)
4
Pci Express Power Connectors (12+4 Pin)
1
Pci Express Power Connectors (12+4 Pin) Cable Length
600 mm
Pci Express Power Cable Length
55 cm
Cpu Power Cable Length
60 cm
Cabling Type
Non-Modular
80 Plus Certification
80 PLUS Gold
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
3.1
Bearing Technology
HDB
Product Colour
Black
Cooling Type
Active
Fan Diameter
12 cm
Number Of Fans
1 fan(s)
Operating Temperature (T-T)
10 - 40 °C
Storage Temperature (T-T)
-40 - 70 °C
Operating Relative Humidity (H-H)
20 - 85%
Storage Relative Humidity (H-H)
5 - 95%
Compliance Certificates
CE, EAC, Federal Communications Commission (FCC), RoHS, TÜV mark, UKCA
Width
150 mm
Depth
140 mm
Height
86 mm
Weight
2.01 kg
Package Width
215 mm
Package Depth
290 mm
Package Height
105 mm
Package Weight
2.81 kg
