ASUS

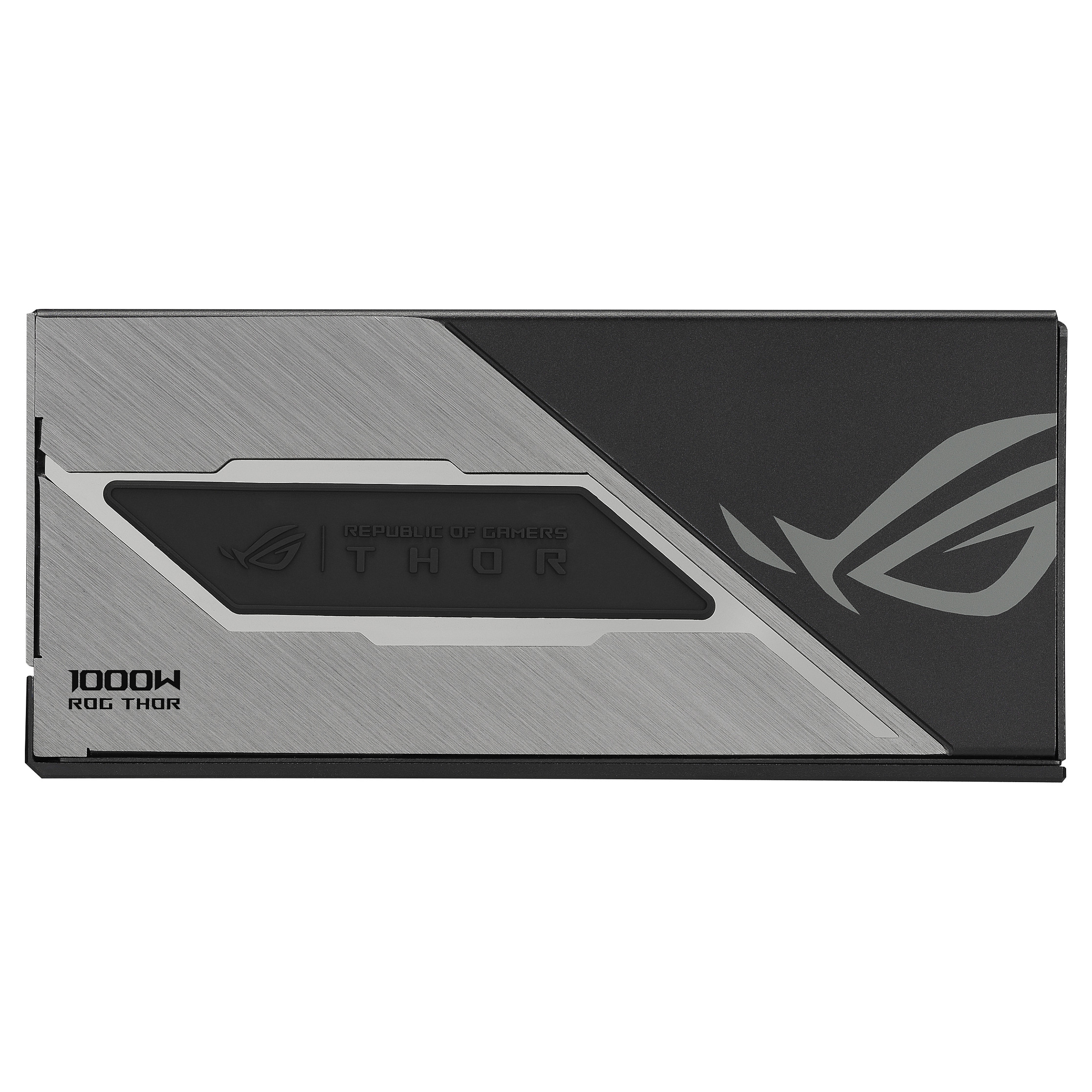

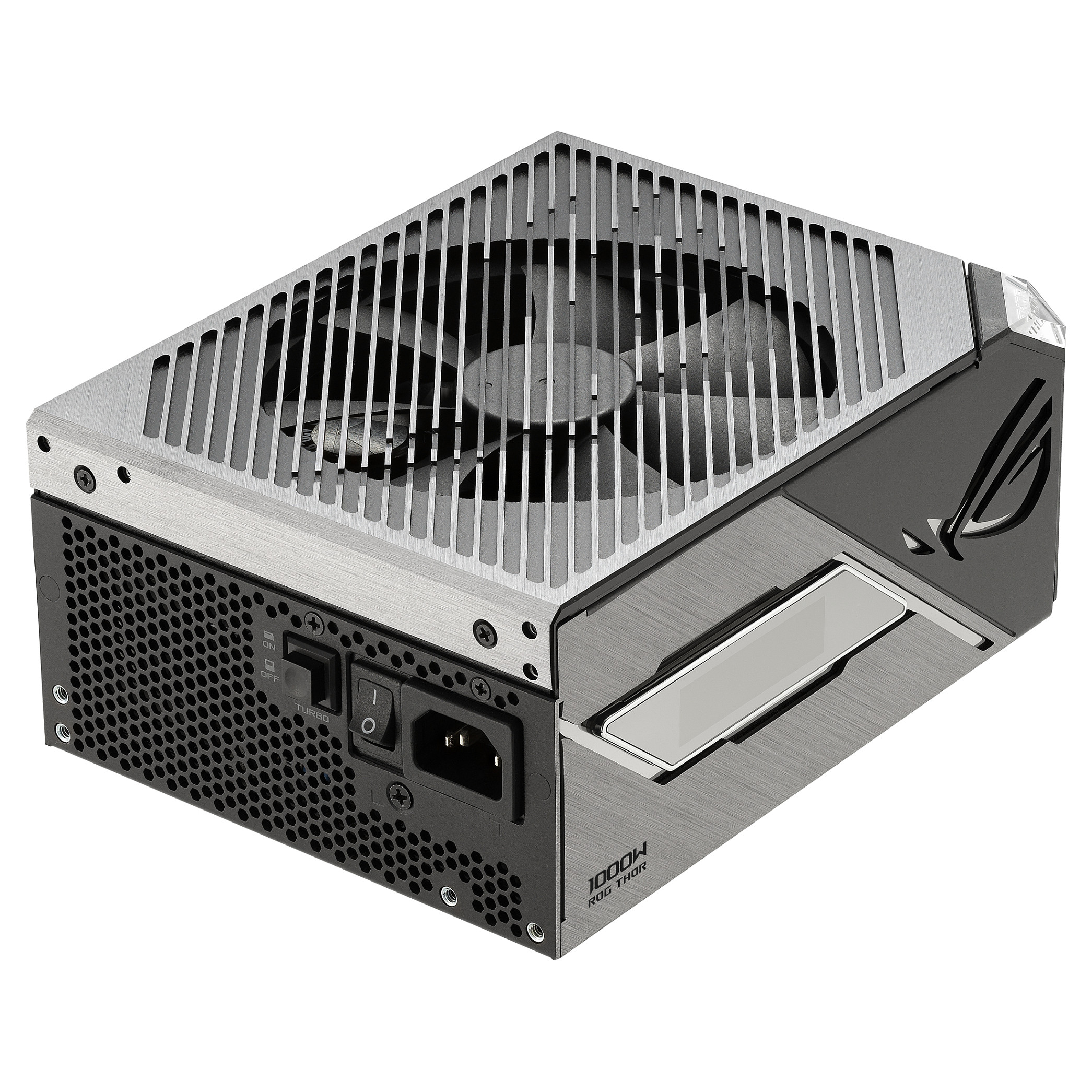

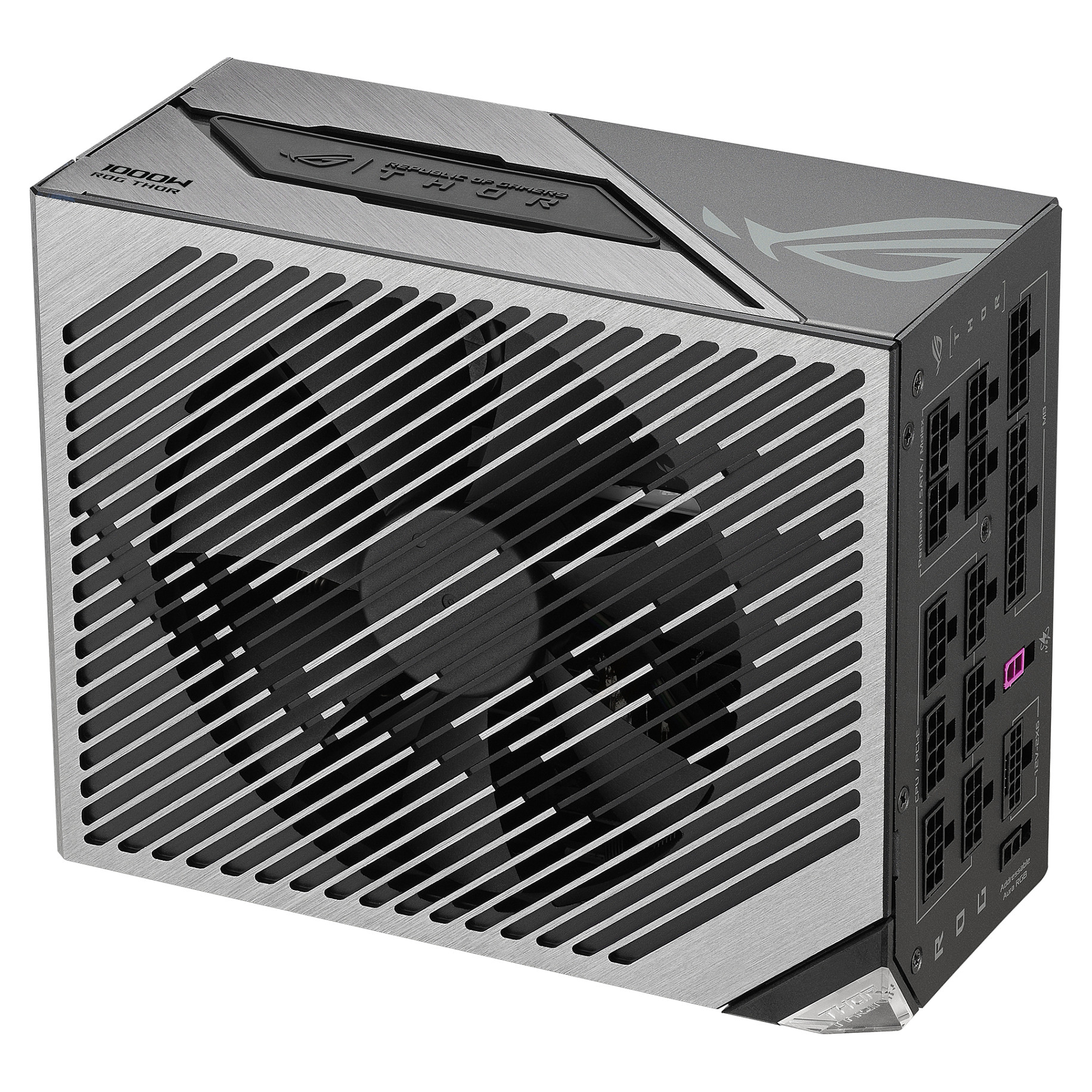

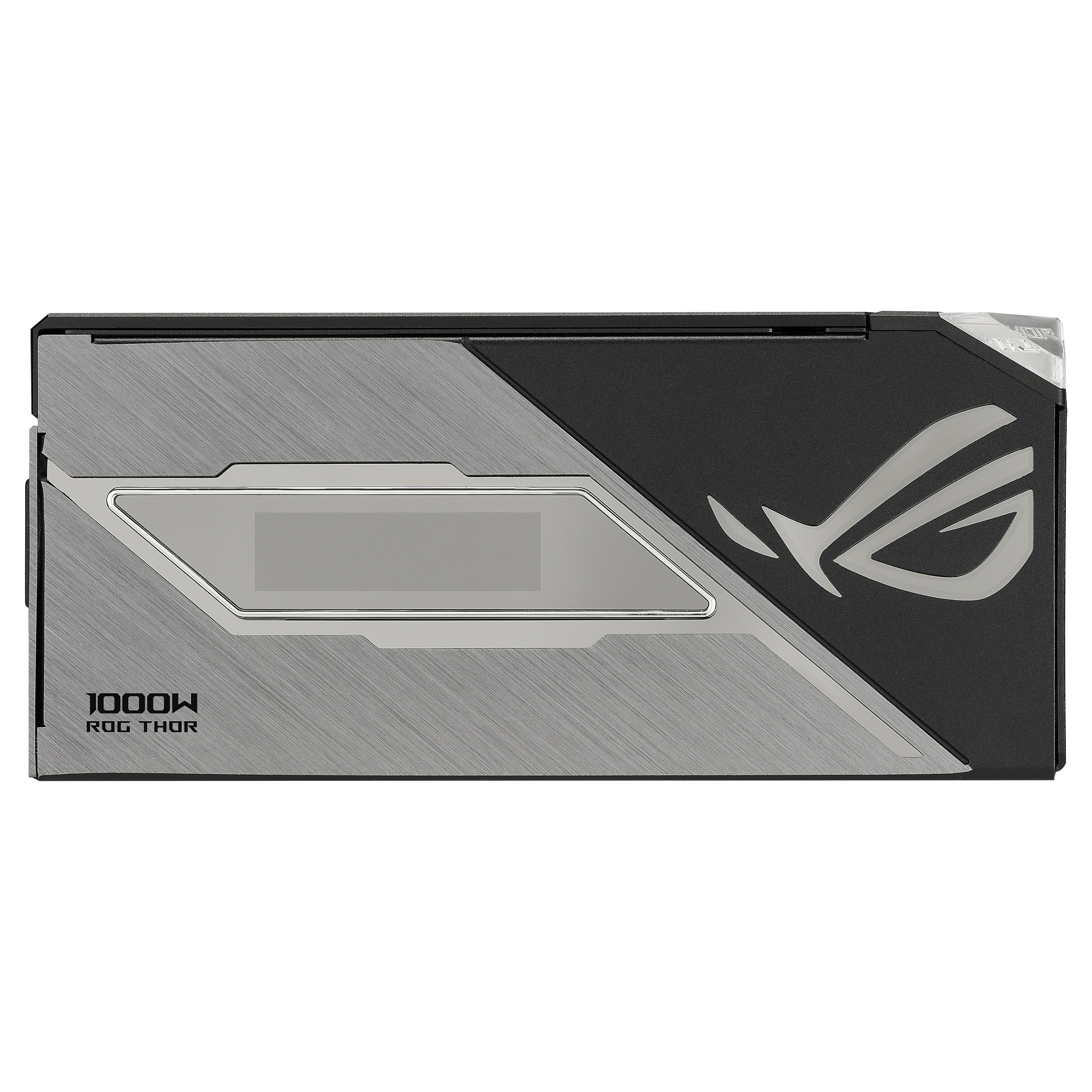

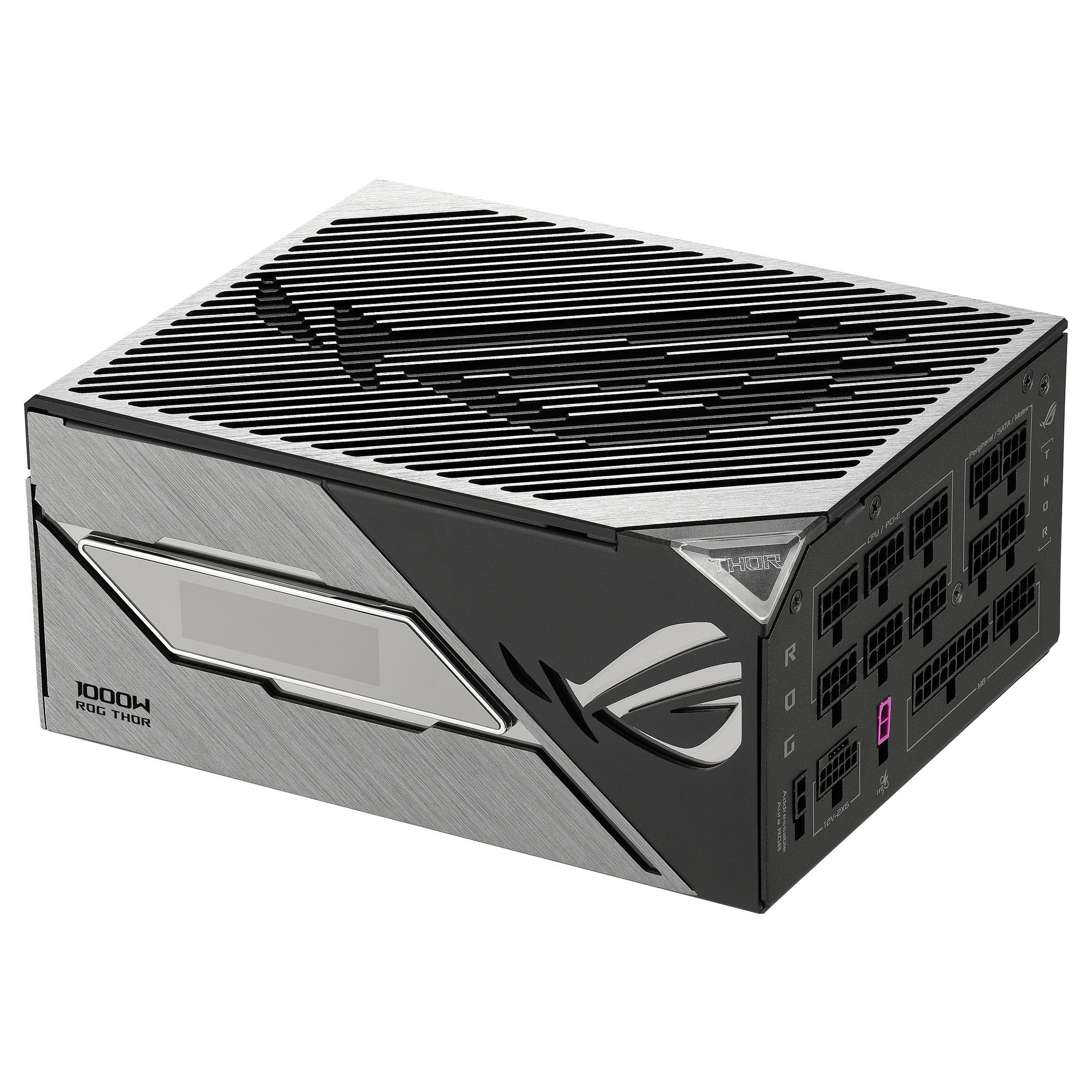

1000W ASUS Netzteil ROG-THOR-1000P3-G 80+ Platinum
Pre-Order
€367.99
VAT (19%) included
Description
GaN MOSFET delivers up to 30% more power efficiency than standard MOSFETs and a more organized internal layout for cooler operation "GPU-First" voltage sensing with patented intelligent voltage stabilizer enhances voltage delivery to your graphics card by up to 45% for smoother gaming and unwavering performance Magnetic OLED display shows a real-time power draw and can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation Turbo Mode: Premium components and a fine-tuned fan curve unlock support for extended power excursions ROG heatsinks and a fully aluminum enclosure synergize for superior cooling, keeping your system thermals under control Dual-ball-fan bearings can last up to twice as long as sleeve bearing designs ATX 3.1 compatible: ROG Thor Platinum III is compliant with the ATX 3.1 standard, ensuring enhanced voltage and current regulation for the latest hardware Etched modular cables with a pliable premium material ensure effortless cable management and exceptional safety 80 PLUS Platinum certified: ROG Thor III utilizes low-ESR capacitors and premium components for industry-leading power efficiency
Technical Specifications
SKU
K90YE00V3-B0NA00
Total Power
1000 W
Ac Input Voltage
100 - 240 V
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
125 W
Combined Power (+12V)
1000 W
Combined Power (+5V)
125 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
30 A
Max Output Current (+12V)
83.33 A
Max Output Current (+5V)
25 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Power Protection Features
Over current, Over power, Over voltage, Overheating, Short circuit, Under power
Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
61 cm
Number Of Sata Power Connectors
7
Sata Power Cable Length
400, 120 mm
Peripheral (Molex) Power Connectors (4-Pin)
6
Peripheral (Molex) Power Cable Length
400, 150 mm
Pci Express Power Connectors (6+2 Pin)
4
Pci Express Power Connectors (16-Pin)
1
Pci Express Power Cable Length
75 cm
Cpu Power Cable Length
100 cm
Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Platinum
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
3.1
Bearing Technology
DBB
Mean Time Between Failures (Mtbf)
120000 h
Product Colour
Black
Cooling Type
Active
Number Of Fans
1 fan(s)
Fan Location
Top
Cables Included
CPU, PCIe, SATA, Peripheral (Molex)
Width
190 mm
Depth
150 mm
Height
86 mm
Weight
2.37 kg
Package Width
379 mm
Package Depth
241 mm
Package Height
127 mm
Package Weight
5.08 kg
Package Type
Box
