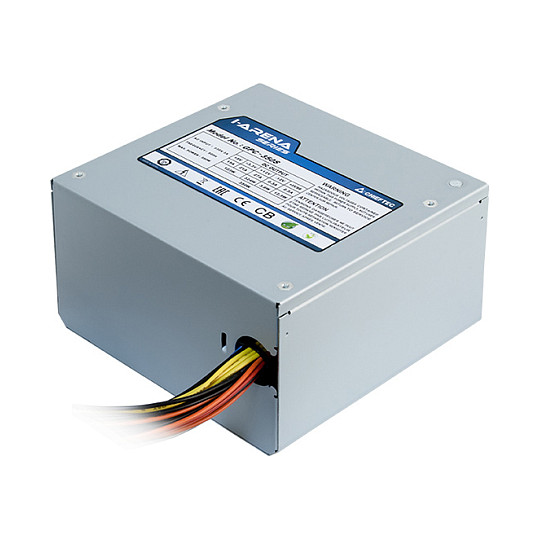

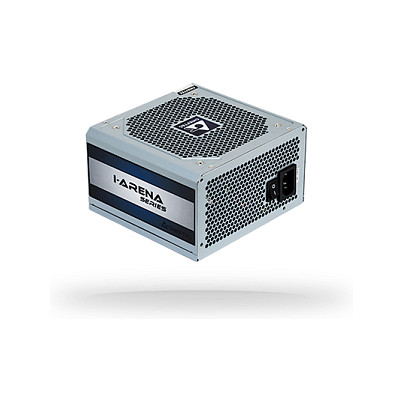

700W Chieftec iARENA Serie GPC-700S
Pre-Order
€56.99
VAT (19%) included
Description
700 W 230 V 50 Hz Motherboard power connector: 24-pin ATX PC PS/2 12 cm Silver
Technical Specifications
SKU
KGPC-700S
Total Power
700 W
Ac Input Voltage
230 V
Ac Input Frequency
50 Hz
Input Current
6.3 A
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
130 W
Combined Power (+5Vsb)
12.5 W
Max Output Current (+3.3V)
22 A
Max Output Current (+12V1)
52.5 A
Max Output Current (+5V)
22 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
2.5 A
Power Protection Features
Over voltage, Overload, Short circuit, Under voltage
Motherboard Power Connector
24-pin ATX
Number Of Sata Power Connectors
6
Peripheral (Molex) Power Connectors (4-Pin)
2
Cabling Type
Non-Modular
Purpose
PC
Power Supply Unit (Psu) Form Factor
PS/2
Atx Version
2.3
Product Colour
Silver
Fan Diameter
12 cm
Number Of Fans
1 fan(s)
Width
140 mm
Depth
150 mm
Height
87 mm
Harmonized System (Hs) Code
84733020
