ASUS

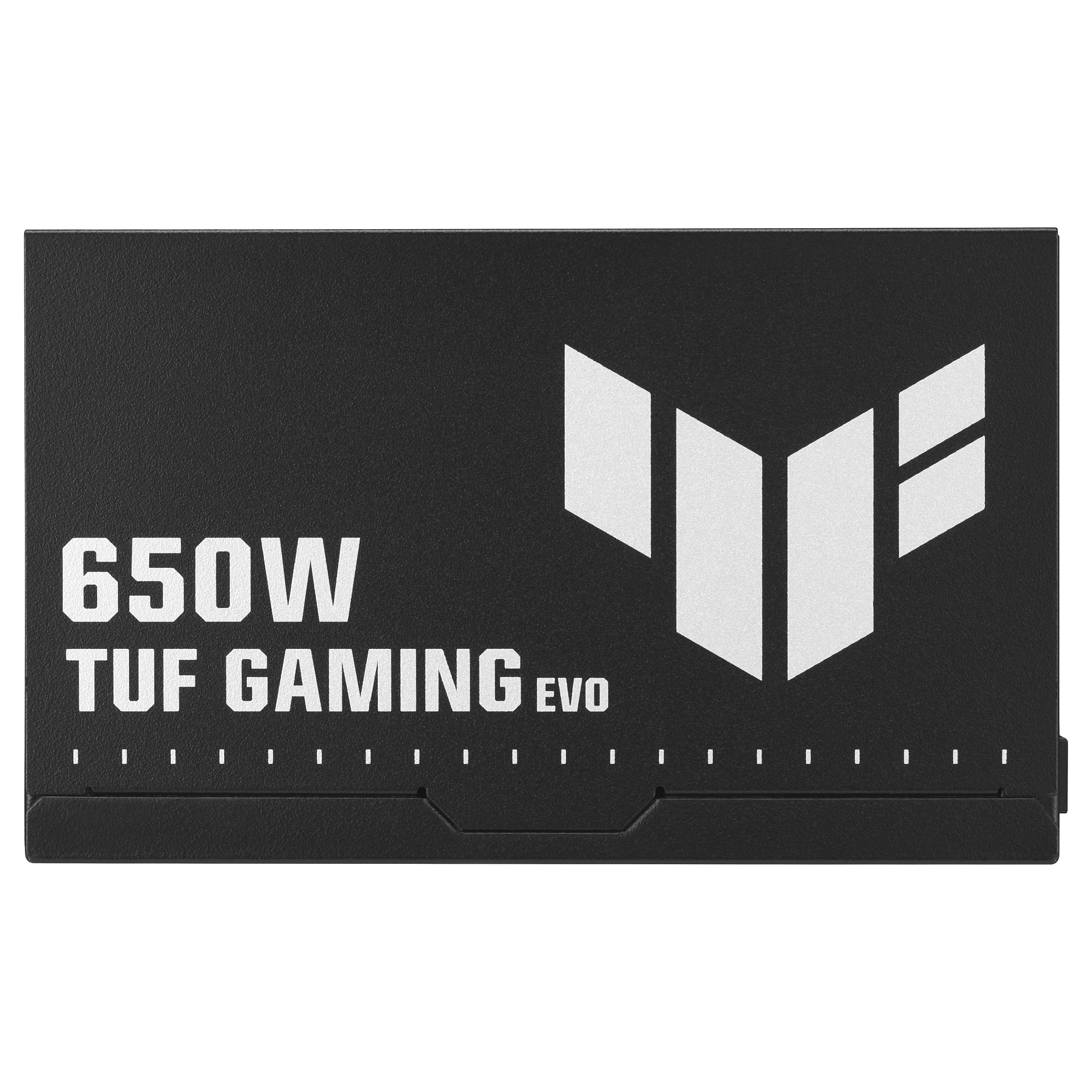

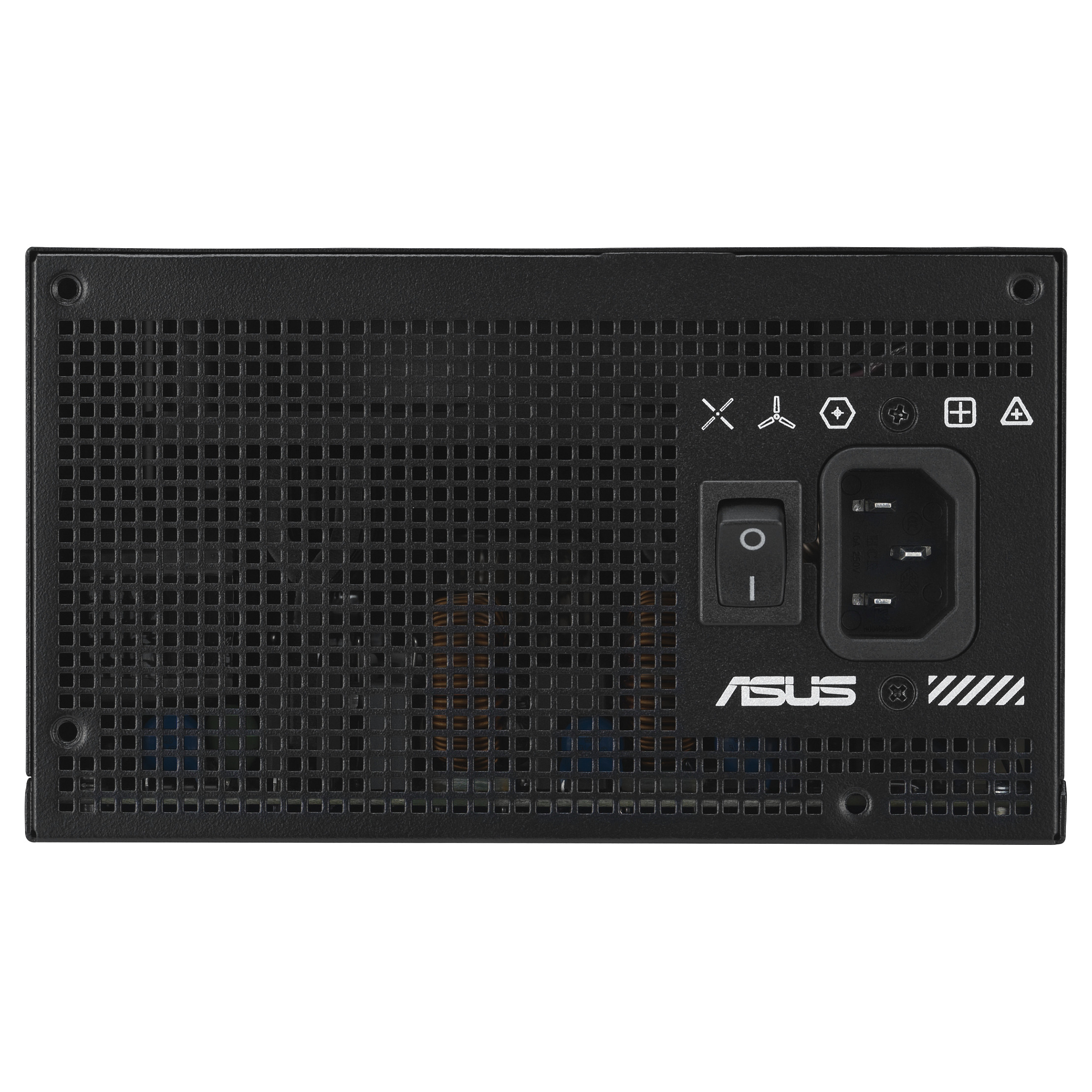

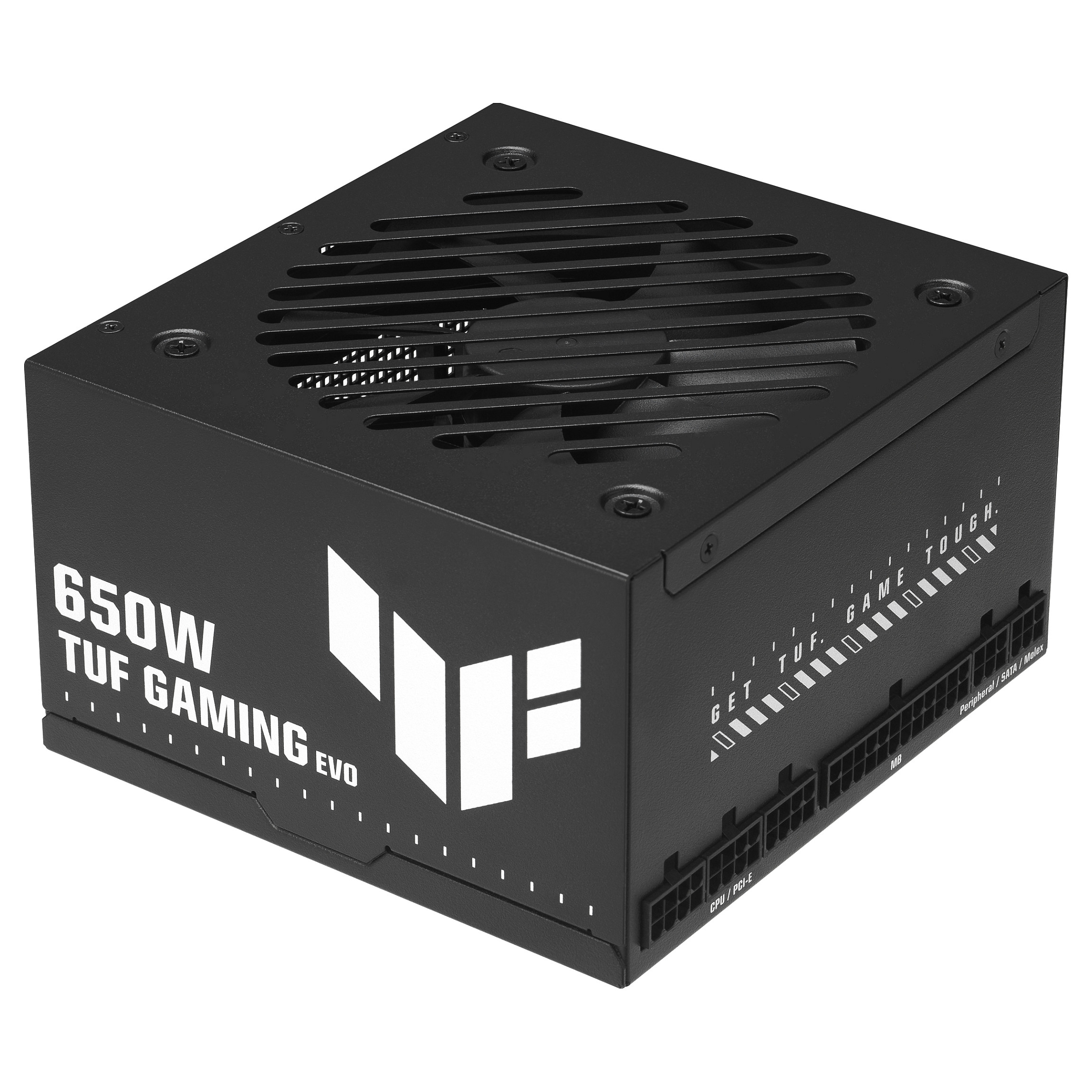

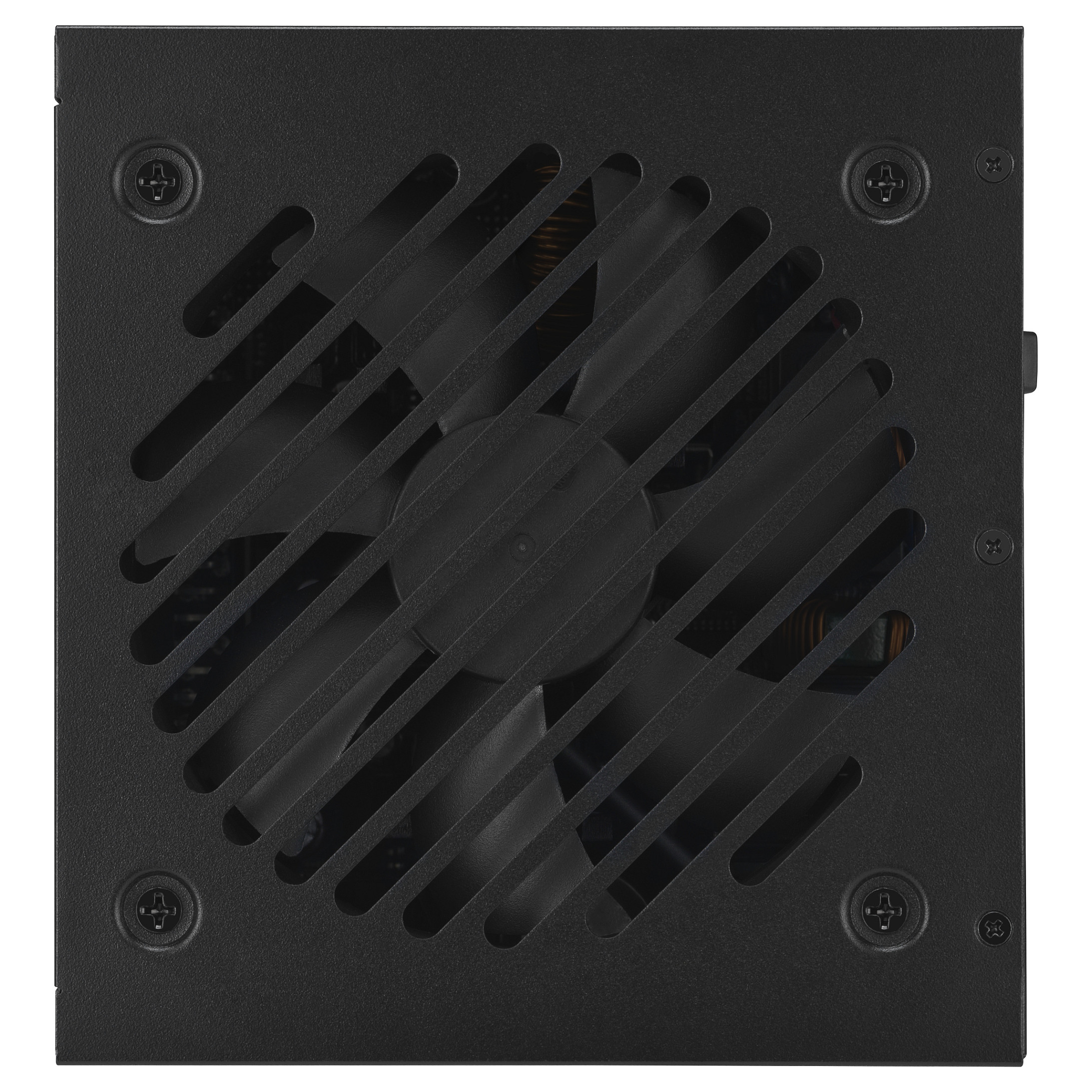

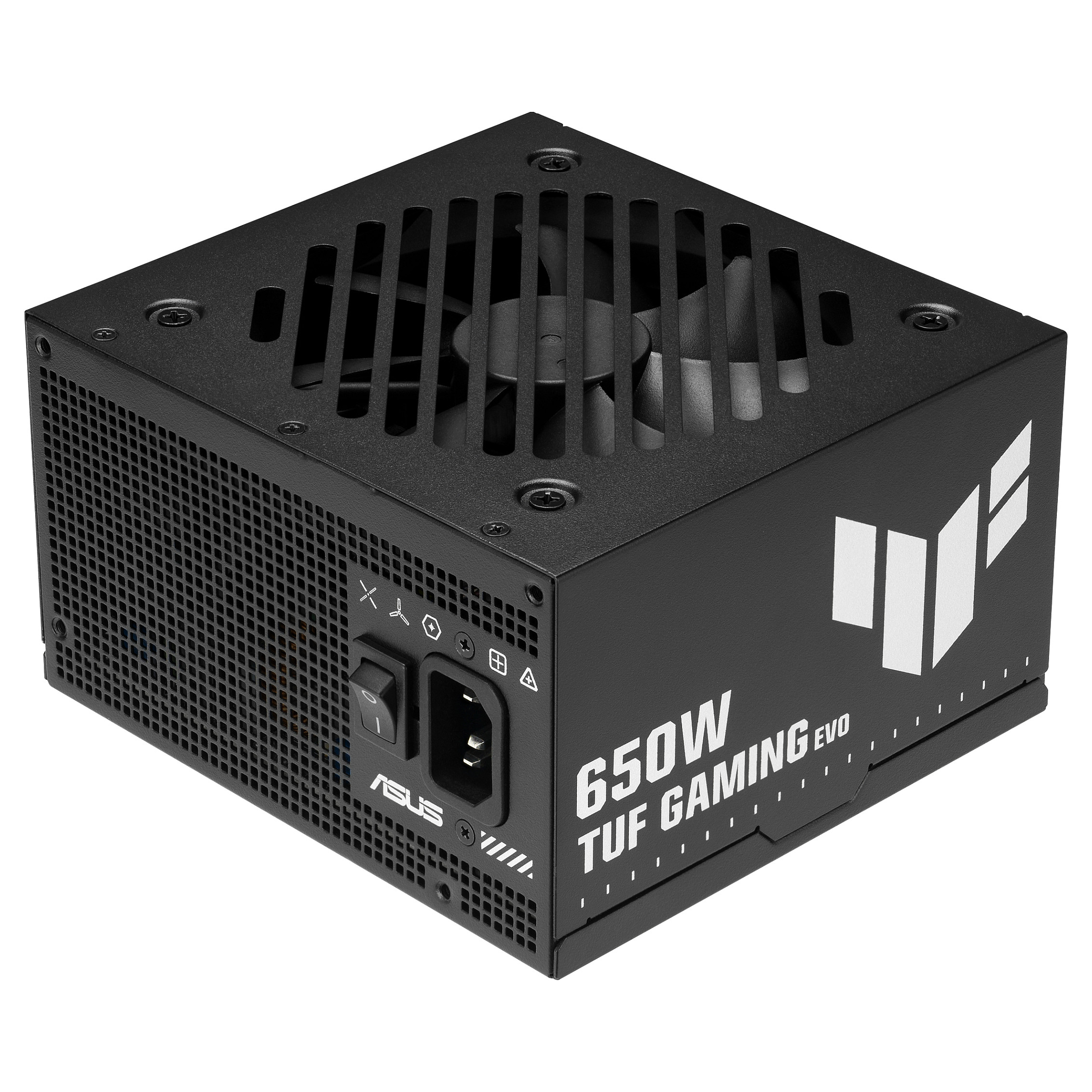

650W ASUS Netzteil TUF Gaming 650B-EVO 80+ Bronze
Pre-Order
€98.99
VAT (19%) included
Description
Capacitors and chokes pass demanding tests to achieve military-grade certification. ATX 3.1 compatible ensuring enhanced voltage and current regulation for the latest hardware. Dual-ball fan bearings can last up to twice as long as sleeve bearings. A Protective PCB coating protects against moisture, dust, and extreme temperatures. 80 Plus Bronze certification due to low-ESR electrolytic capacitors and other premium components. Fully modular design with premium cables helps create a clean and tidy setup. Etched cables offer high flexibility for easy installation.
Technical Specifications
SKU
K90YE00D6-B0NA00
Total Power
650 W
Ac Input Voltage
100 - 240 V
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
80 W
Combined Power (+12V)
650 W
Combined Power (+5V)
80 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
12 A
Max Output Current (+12V)
54.16 A
Max Output Current (+5V)
12 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Power Protection Features
Overheating, Over current, Over power, Under voltage, Over voltage, Short circuit
Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
50 cm
Number Of Sata Power Connectors
4
Sata Power Cable Length
400, 120 mm
Peripheral (Molex) Power Connectors (4-Pin)
2
Peripheral (Molex) Power Cable Length
400, 120 mm
Pci Express Power Connectors (6+2 Pin)
2
Cpu Power Cable Length
65 cm
Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Bronze
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
3.1
Bearing Technology
DBB
Mean Time Between Failures (Mtbf)
120000 h
Product Colour
Black
Cooling Type
Active
Number Of Fans
1 fan(s)
Fan Location
Top
Cables Included
CPU, PCIe, Peripheral (Molex), SATA
Width
140 mm
Depth
150 mm
Height
86 mm
Weight
1.25 kg
Package Width
282 mm
Package Depth
182 mm
Package Height
127 mm
Package Weight
2.07 kg
Package Type
Box
