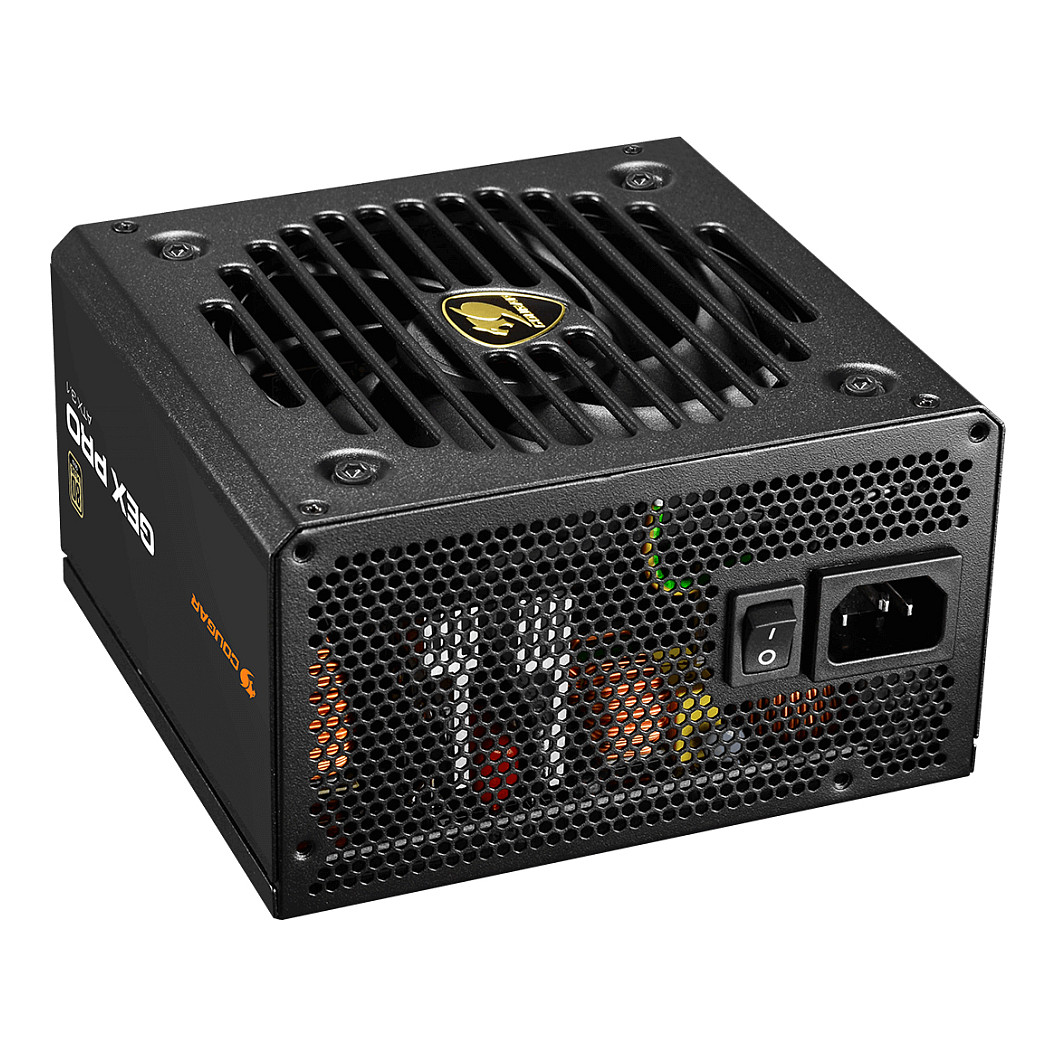

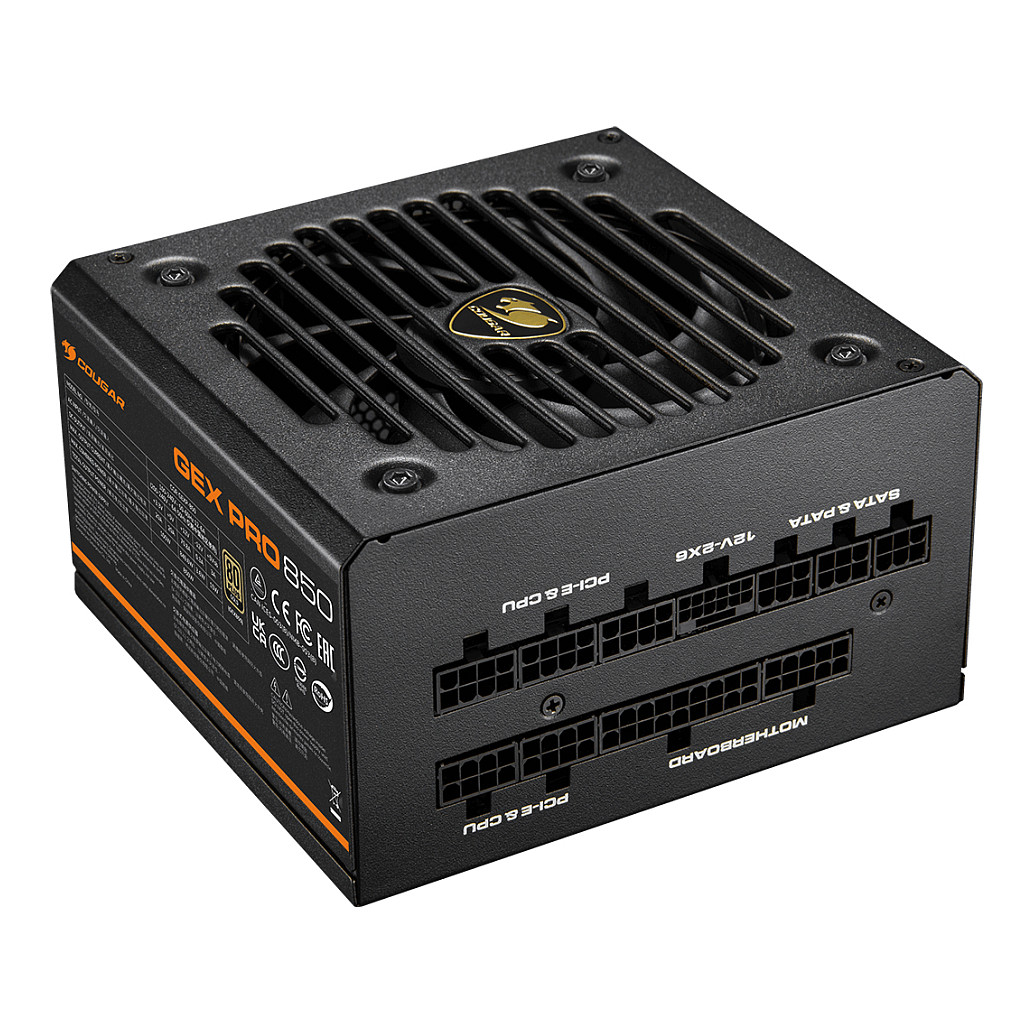

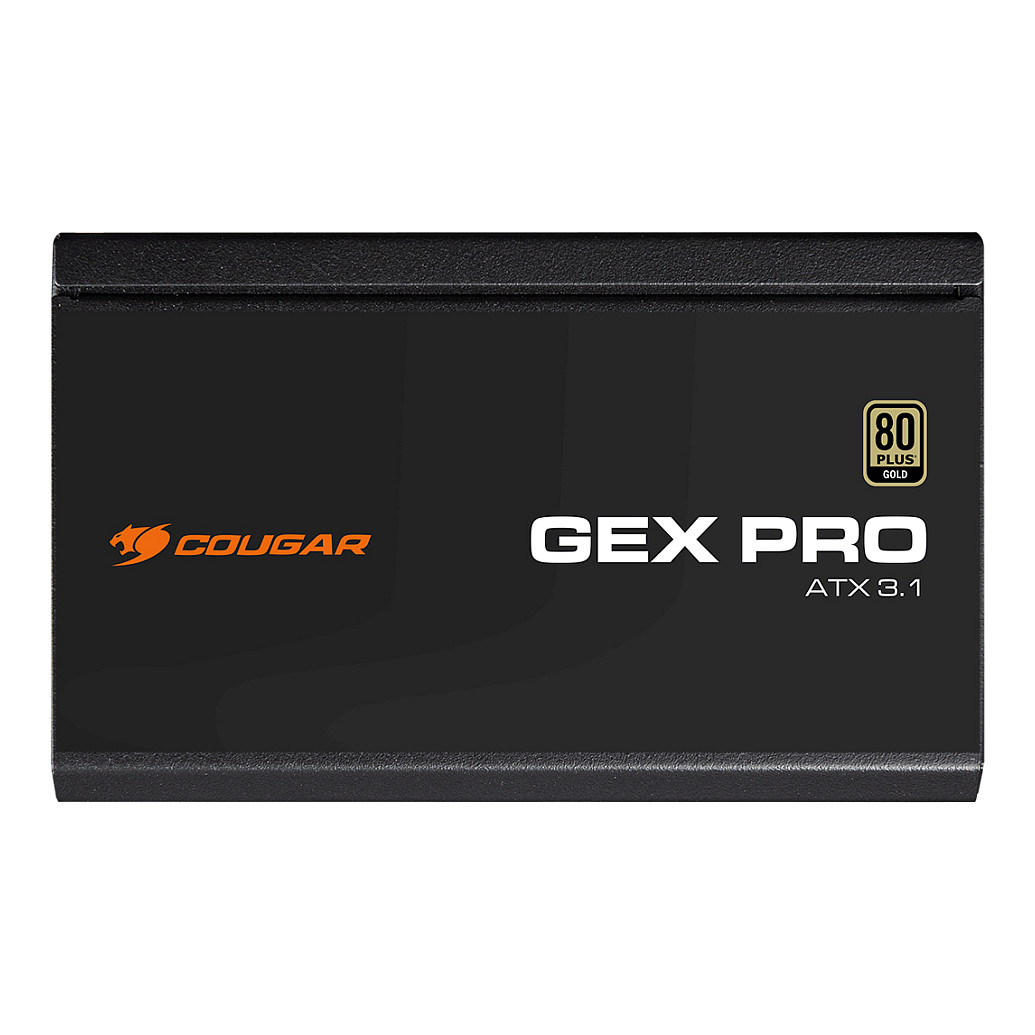

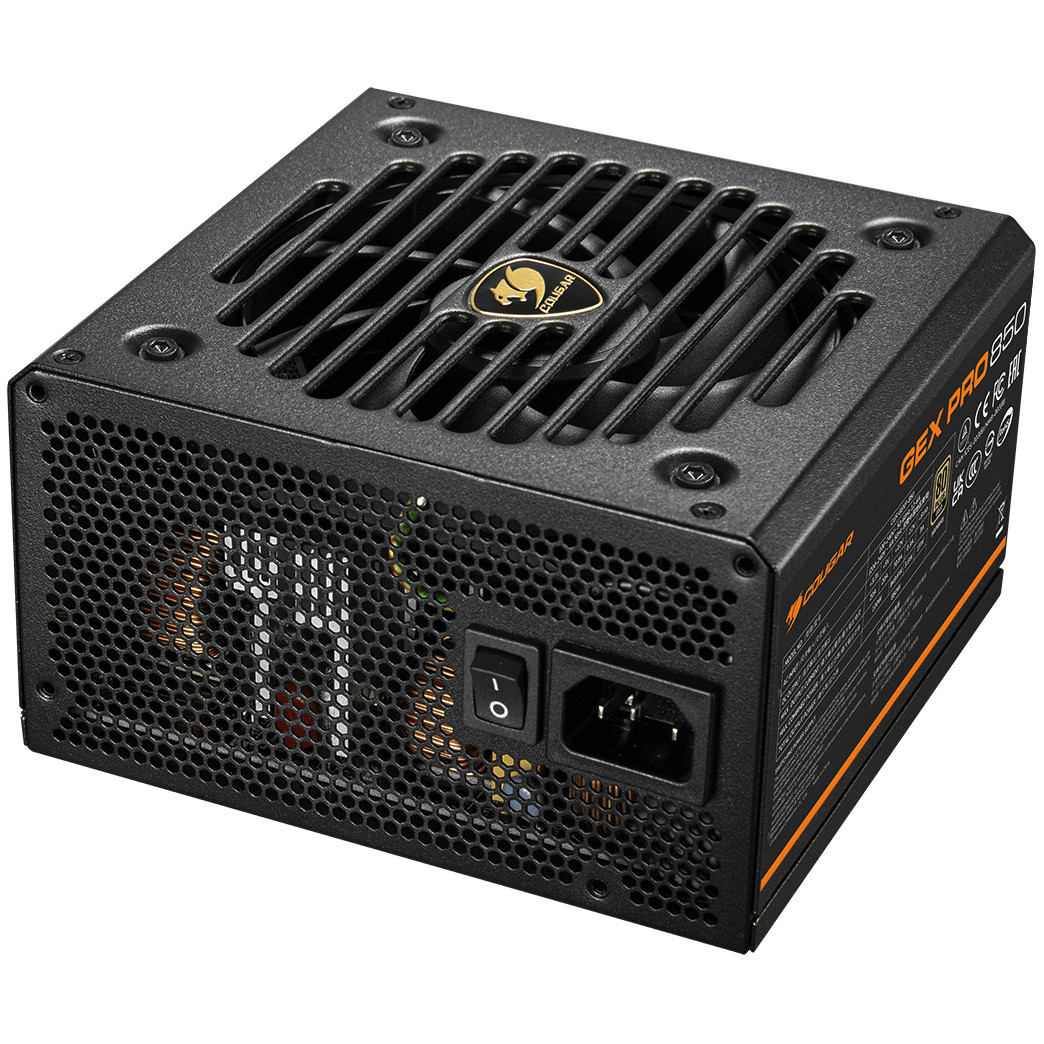

650W COUGAR Netzteil GEX PRO 650W ATX3.1 / 80 Plus Gold / Modular
Pre-Order
€102.99
VAT (19%) included
Description

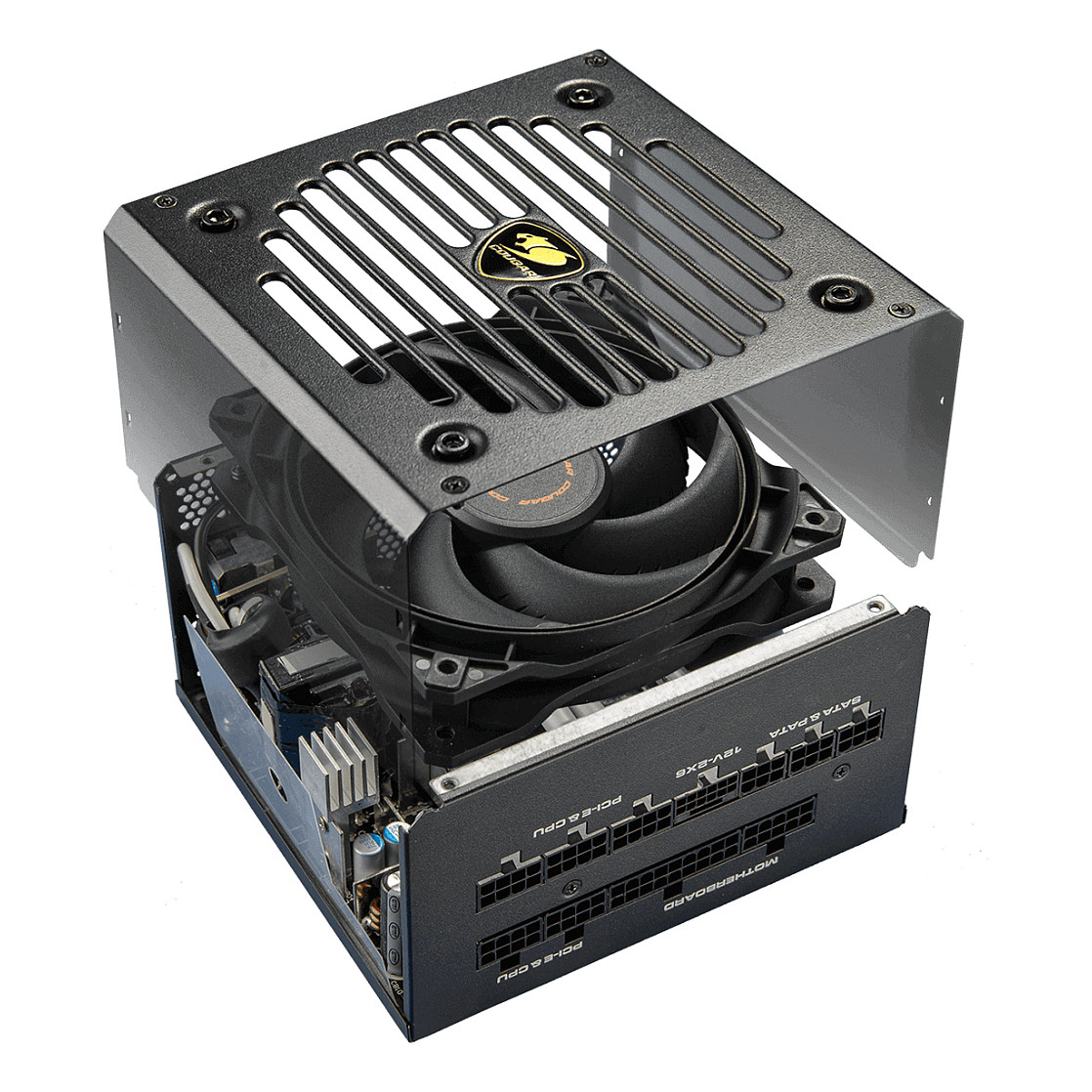

Supports PCI Express 5.1 Graphics Cards with 12+4 Pin Connector for true 200% power excursion dynamic outputs 80 PLUS Gold Certified for up to 91% efficiency in power conversion, reducing electricity bills Durable HDB Fan with Hydro Dynamic Bearing groundbreaking grooved fan blade design lets you experience noiseless gaming It includes 105°C Japanese capacitors for standby power to ensure keep providing computer with stable electrical supply At 140mm in length, GEX PRO is one of the most compact fully modular PSU. This means it will fit in a wide range of cases, and give you additional flexibility for building your PC Compatible with the Latest PC Technology, designed for users with current and next-generation multi-core CPU platforms Powerful performance even at 40°C ambient temperature Gold Cybenetics rating for efficiency(750W/850W) A+ Cybenetics rating for noise level. (750W/850W)
Technical Specifications
SKU
KCGR GEXP-650
Total Power
650 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50/60 Hz
Input Current
10-5 A
Combined Power (+3.3V)
100 W
Combined Power (+12V)
649.2 W
Combined Power (+5V)
100 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
54.1 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Efficiency
91%
Power Protection Features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

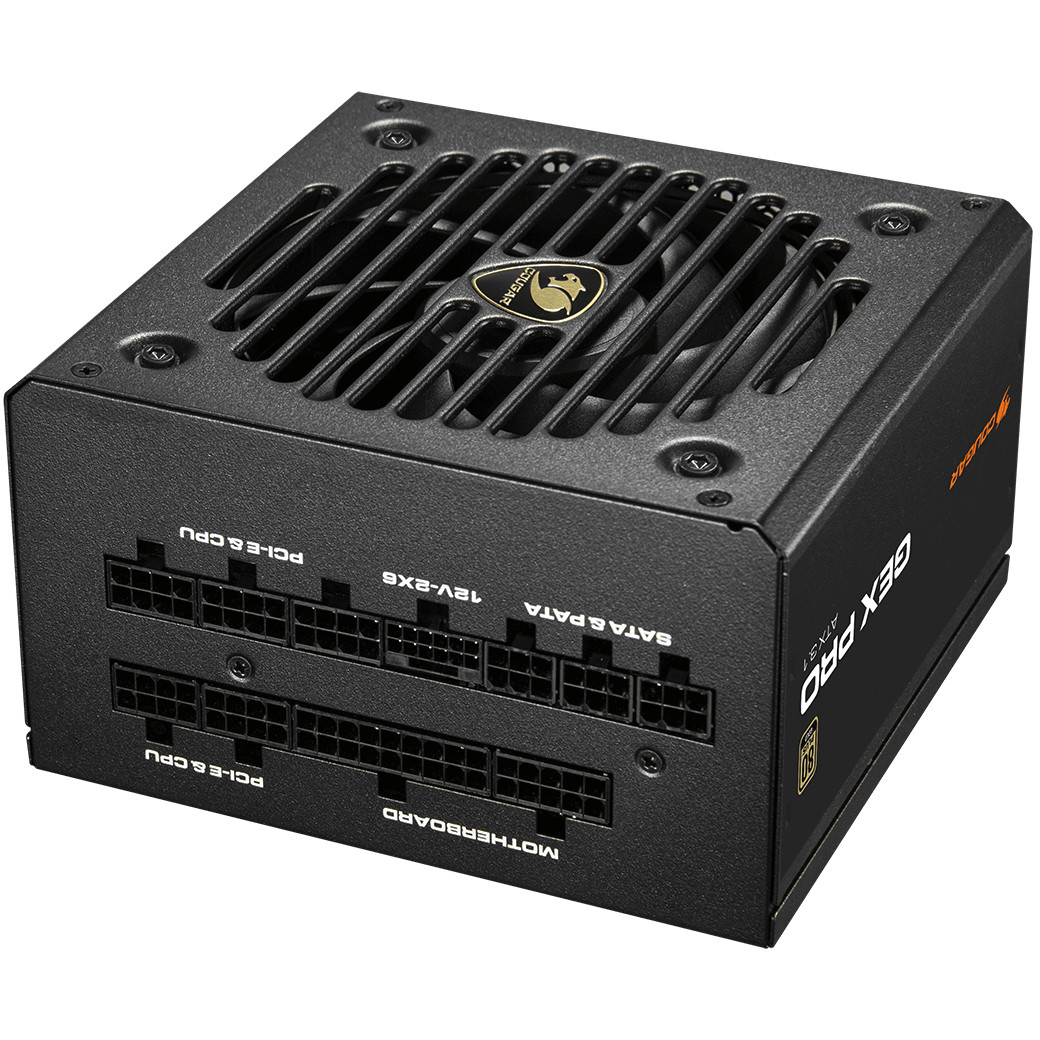

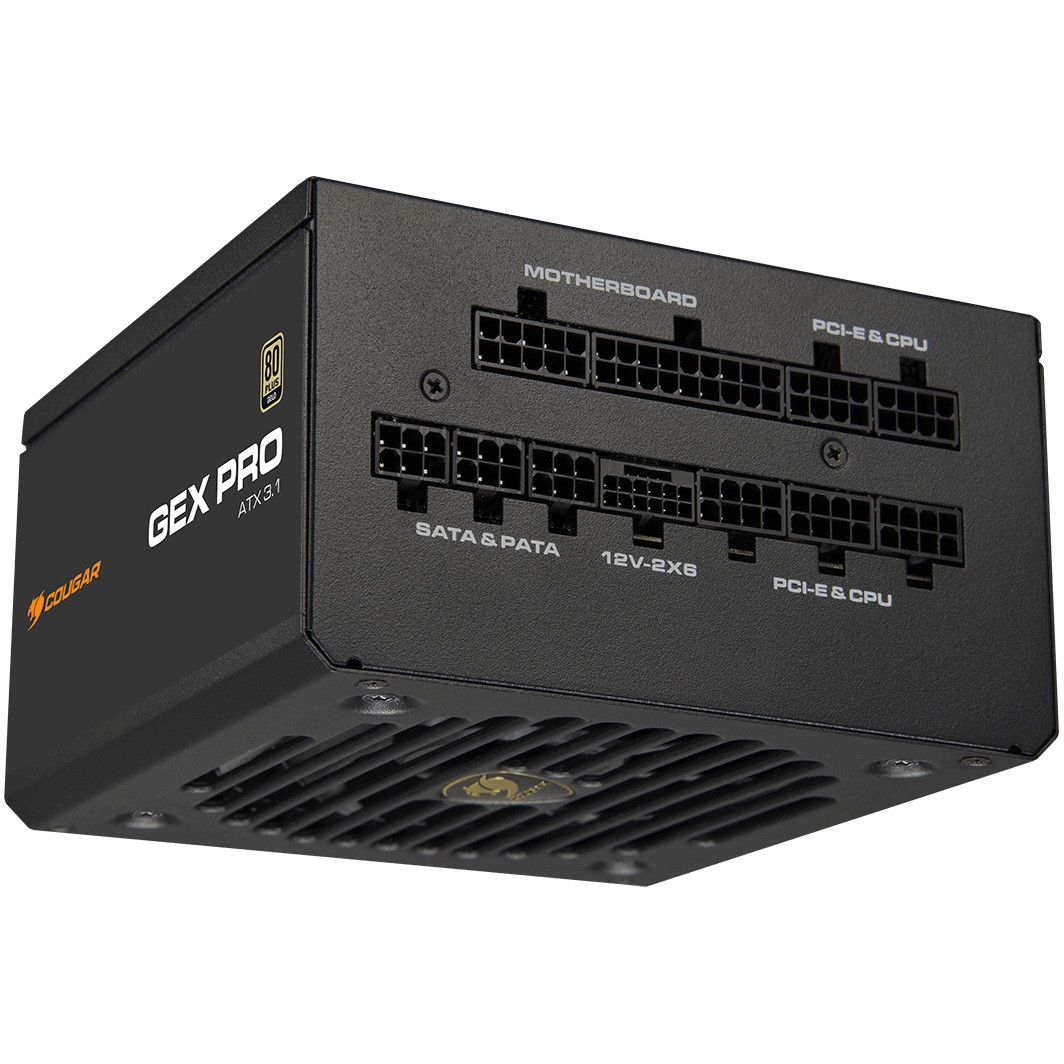

Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
61 cm
Number Of Sata Power Connectors
8
Number Of Pata Power Connectors
3
Sata Power Cable Length
400, 520, 640, 760 mm
Pci Express Power Connectors (6+2 Pin)
2
Pci Express Power Connectors (12+4 Pin)
1
Pci Express Power Connectors (12+4 Pin) Cable Length
650 mm
Cpu Power Cable Length
70 cm
Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Gold
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
3.1
Bearing Technology
HDB
Product Colour
Black
Cooling Type
Active
Fan Diameter
12 cm
Number Of Fans
1 fan(s)
Fan Location
Top
Operating Temperature (T-T)
10 - 40 °C
Storage Temperature (T-T)
-40 - 70 °C
Operating Relative Humidity (H-H)
20 - 85%
Storage Relative Humidity (H-H)
5 - 95%
Compliance Certificates
CE, EAC, Federal Communications Commission (FCC), RoHS, UKCA
Width
150 mm
Depth
140 mm
Height
56 mm
Weight
2.05 kg
Package Width
215 mm
Package Depth
330 mm
Package Height
107 mm
Package Weight
2.07 kg
Package Type
Box
