750W Lian Li RB Series ATX 3.1 Schwarz
Pre-Order
€81.99
VAT (19%) included
Description

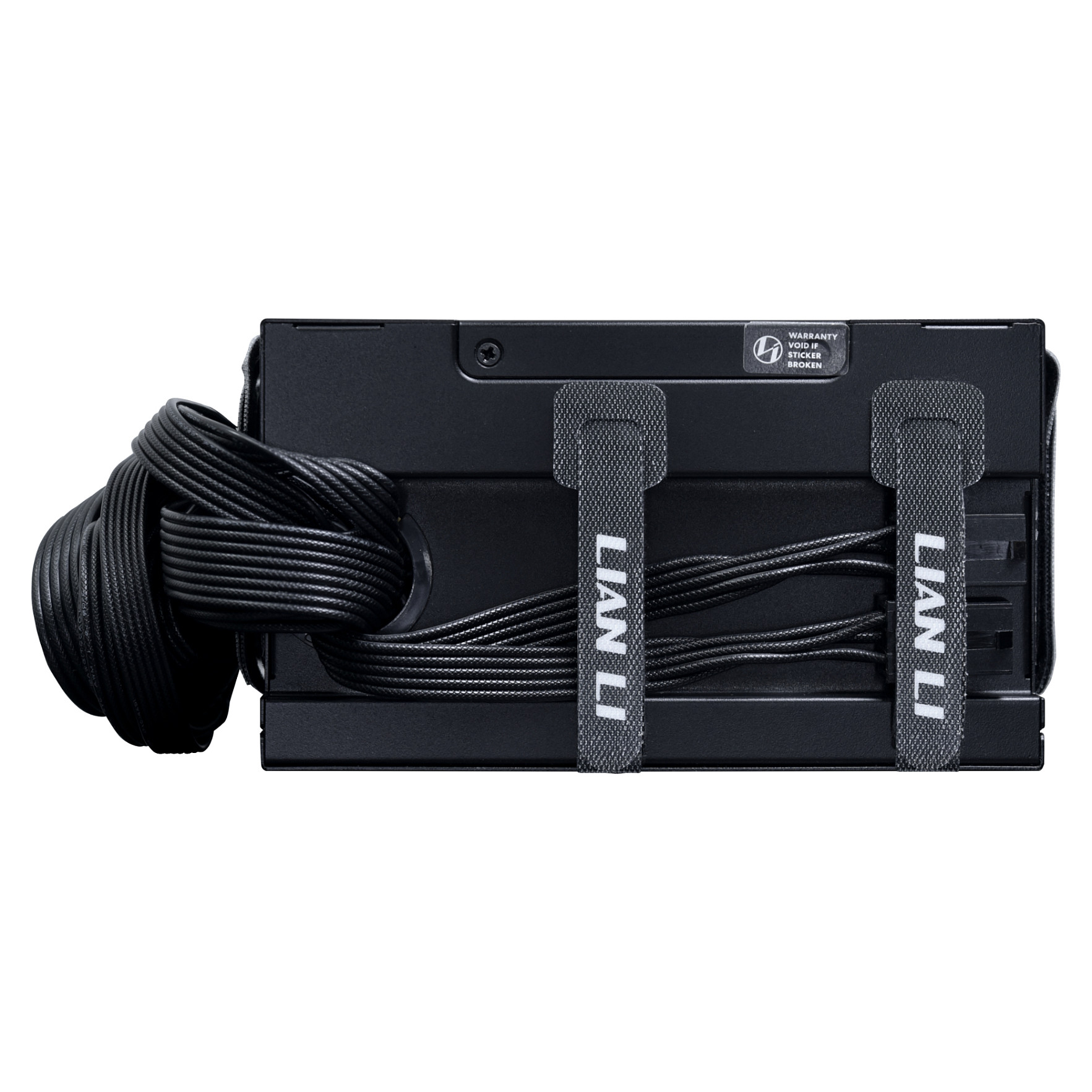

Compact 150 mm ATX size for wide case compatibility. 80 PLUS Bronze certified with up to 85% efficiency for everyday systems. ATX 3.1 ready with native 12V-2×6 connector for next-gen GPU support. A Built-in cable routing channel with Velcro straps for neat management. Three-sided cable exits designed for back-connector motherboards. 135 mm HYB smart temperature-controlled fan for quiet cooling. Six protection mechanisms including OVP, UVP, OCP, OPP, OTP, SCP. Includes full cable set for CPU, GPU, SATA, and PATA connections.
Technical Specifications
SKU
KG9P.RB0750B.B000.EU
Total Power
750 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50/60 Hz
Input Current
10 A
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
100 W
Combined Power (+12V)
750 W
Combined Power (+5V)
100 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
62.5 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Efficiency
85%
Power Protection Features
Over current, Over power, Over voltage, Short circuit, Under temperature, Under voltage
Motherboard Power Connector
24-pin ATX
Motherboard Power Cable Length
60 cm
Number Of Pata Power Connectors
3
Pci Express Power Connectors (6+2 Pin)
4
Cpu Power Cable Length
65 cm
Floppy Drive Power Connector
1
Cabling Type
Non-Modular
80 Plus Certification
80 PLUS Bronze
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
3.1
Noise Level
40.1 dB
Mean Time Between Failures (Mtbf)
100000 h
Product Colour
Black
Fan Diameter
13.5 cm
Number Of Fans
1 fan(s)
Fan Speed
0 - 1600 RPM
Certification
CE/CB/cTUVus/TÜV/FCC/BSMI/CCC/KCC/SAA+RCM
Width
86 mm
Depth
150 mm
Height
150 mm
