Deepcool

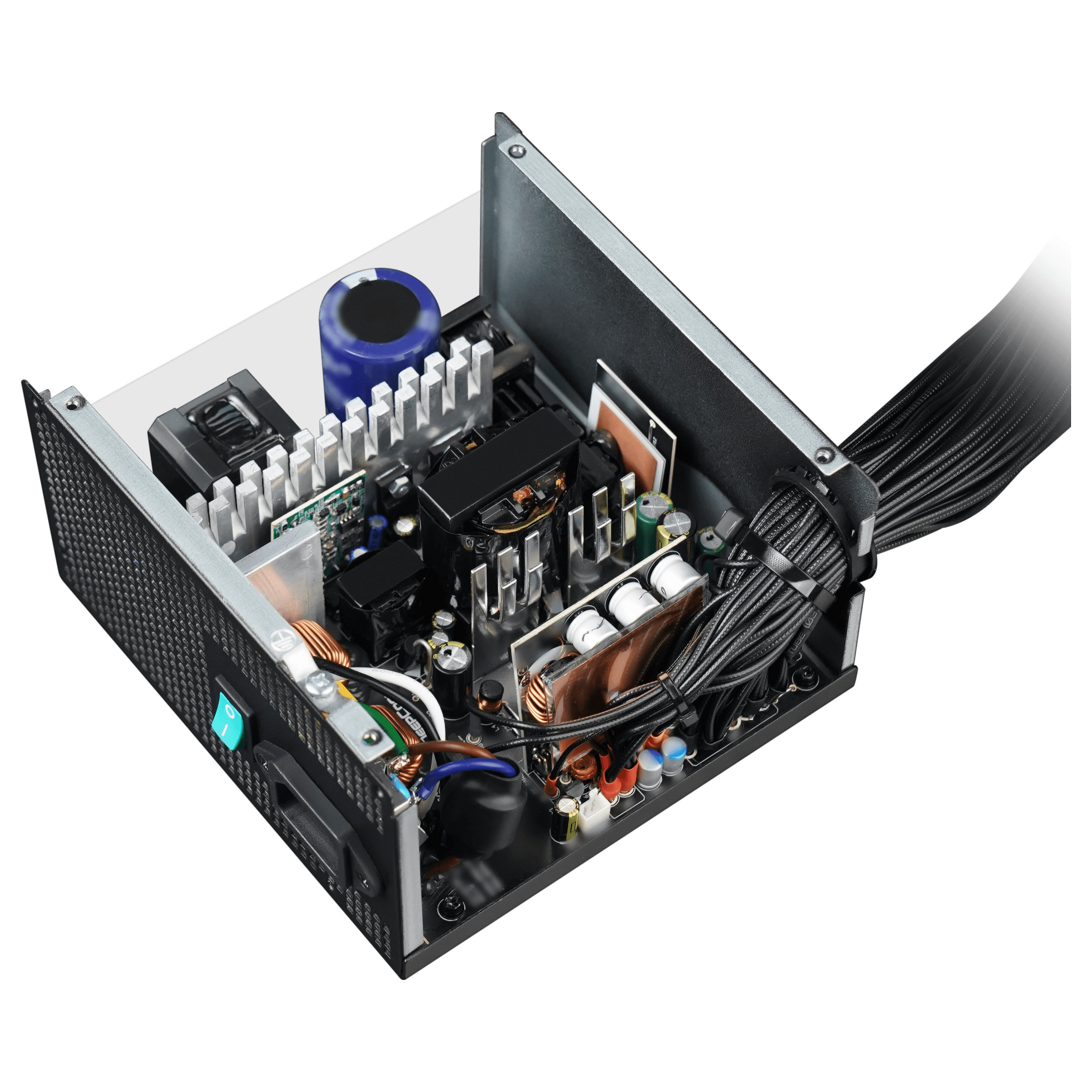

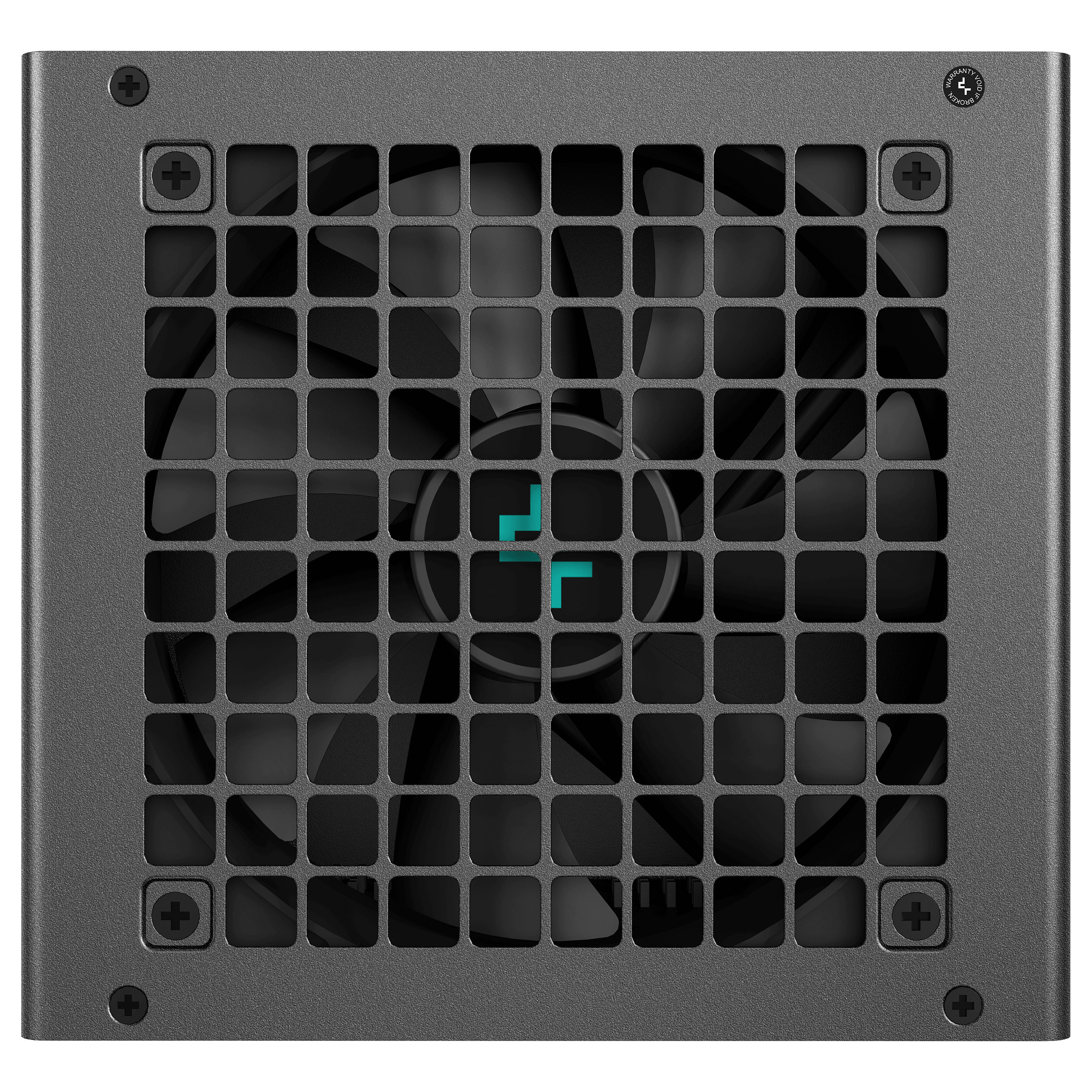

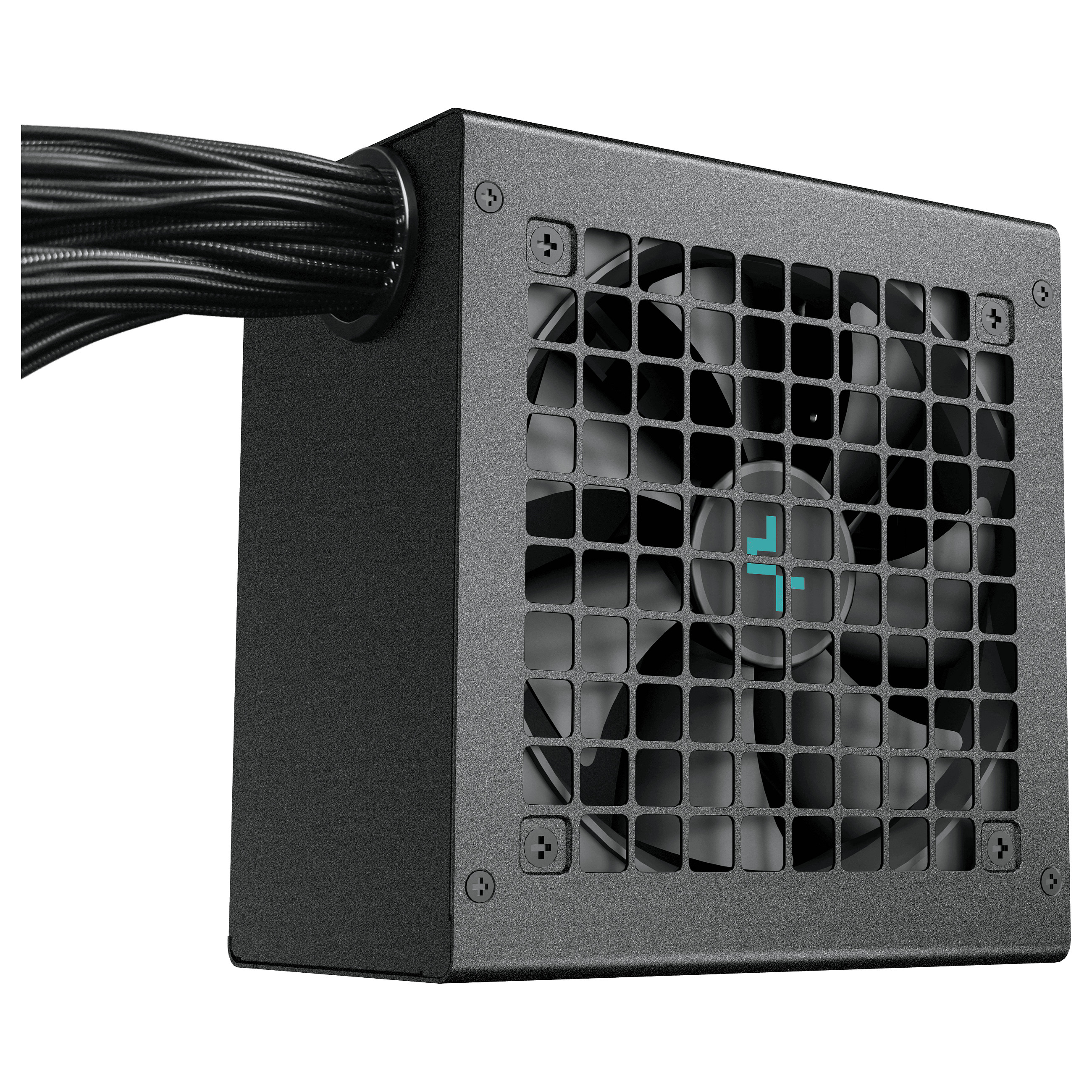

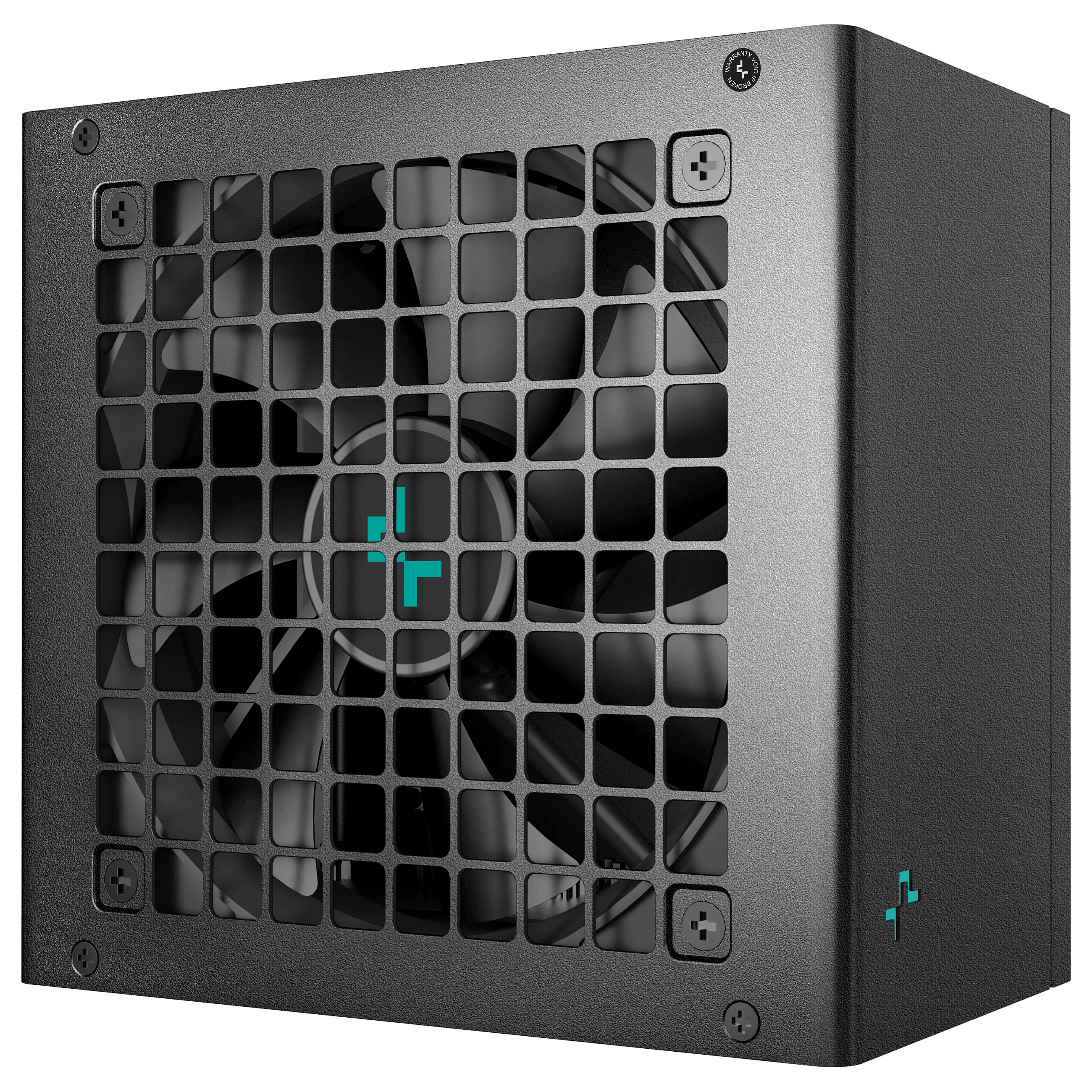

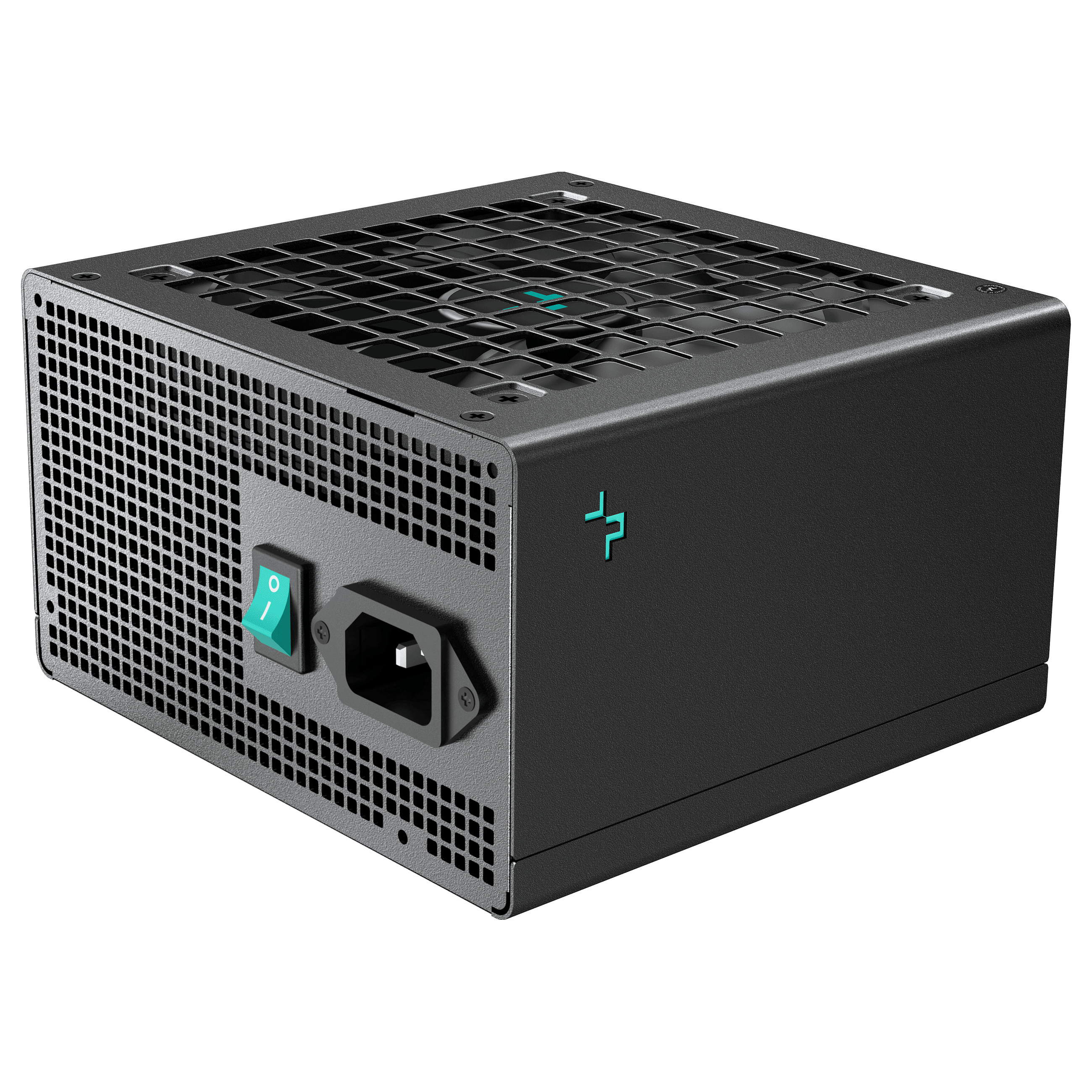

DeepCool PN750Dv2 ATX3.1 80 PLUS Gold Direct 750W Power Supply 120mm Dynamic Hydro Bearin
Pre-Order
Usually ready in 3-5 business days
+ €30 Supplier Shipping
€87.99
VAT (19%) included
Description
750 W 100 - 240 V 50/60 Hz Motherboard power connector: 20+4 pin ATX PC ATX 80 PLUS Gold Active 12 cm Black
Technical Specifications
SKU
KR-PN750D-FC0B-EU-V2
Total Power
750 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50/60 Hz
Input Current
10 - 5 A
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
100 W
Combined Power (+12V)
750 W
Combined Power (+5V)
100 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
62.5 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Hold Time
16 ms
Efficiency
90%
Power Good Signal Delay Range
100 - 150 ms
Power Protection Features
No load operation, Over current, Over power, Over voltage, Overheating, Surge & inrush protection (SIP), Surge protection, Under voltage
Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
55 cm
Number Of Sata Power Connectors
8
Sata Power Cable Length
450, 570, 690, 810 mm
Peripheral (Molex) Power Connectors (4-Pin)
1
Peripheral (Molex) Power Cable Length
930 mm
Pci Express Power Connectors (6+2 Pin)
3
Pci Express Power Connectors (16-Pin)
1
Cpu Power Cable Length
70 cm
Cabling Type
Non-Modular
80 Plus Certification
80 PLUS Gold
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
3.1
Bearing Technology
HYB
Mean Time Between Failures (Mtbf)
100000 h
Product Colour
Black
Cooling Type
Active
Fan Diameter
12 cm
Number Of Fans
1 fan(s)
Fan Location
Top
Operating Temperature (T-T)
0 - 40 °C
Compliance Certificates
RoHS, WEEE
Certification
CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B) /TUV-RH
Width
150 mm
Depth
140 mm
Height
86 mm
Package Type
Box
Sustainability Certificates
ErP, Triman
Country Of Origin
China
