NZXT

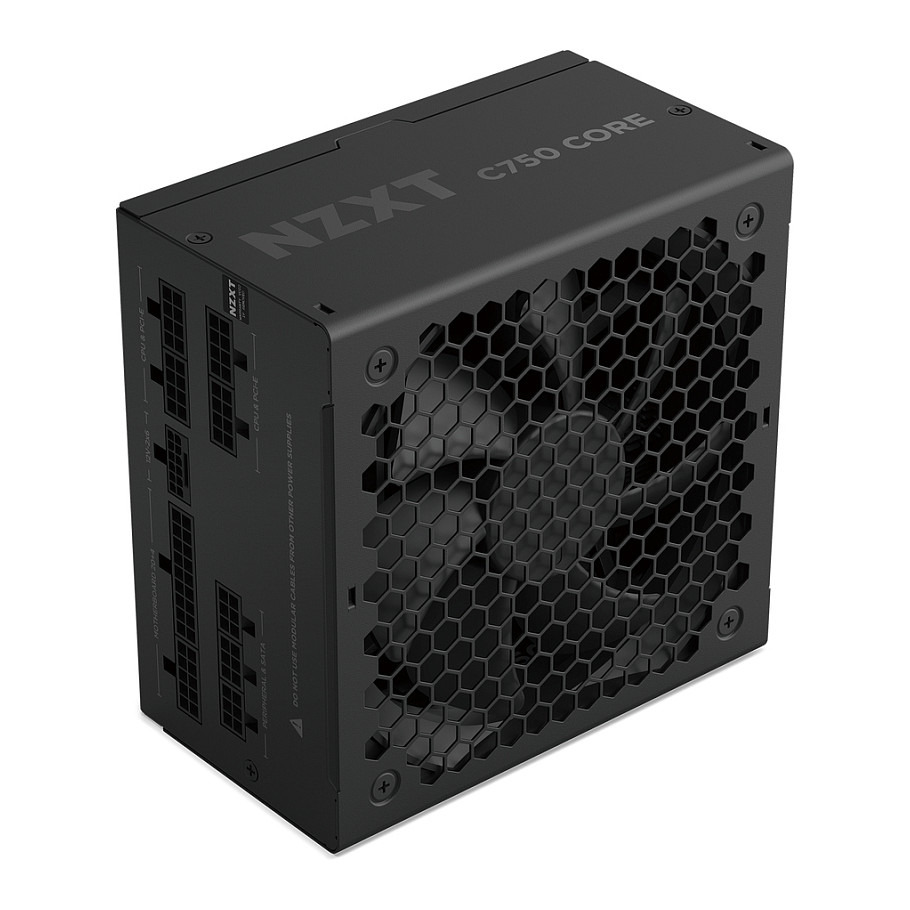

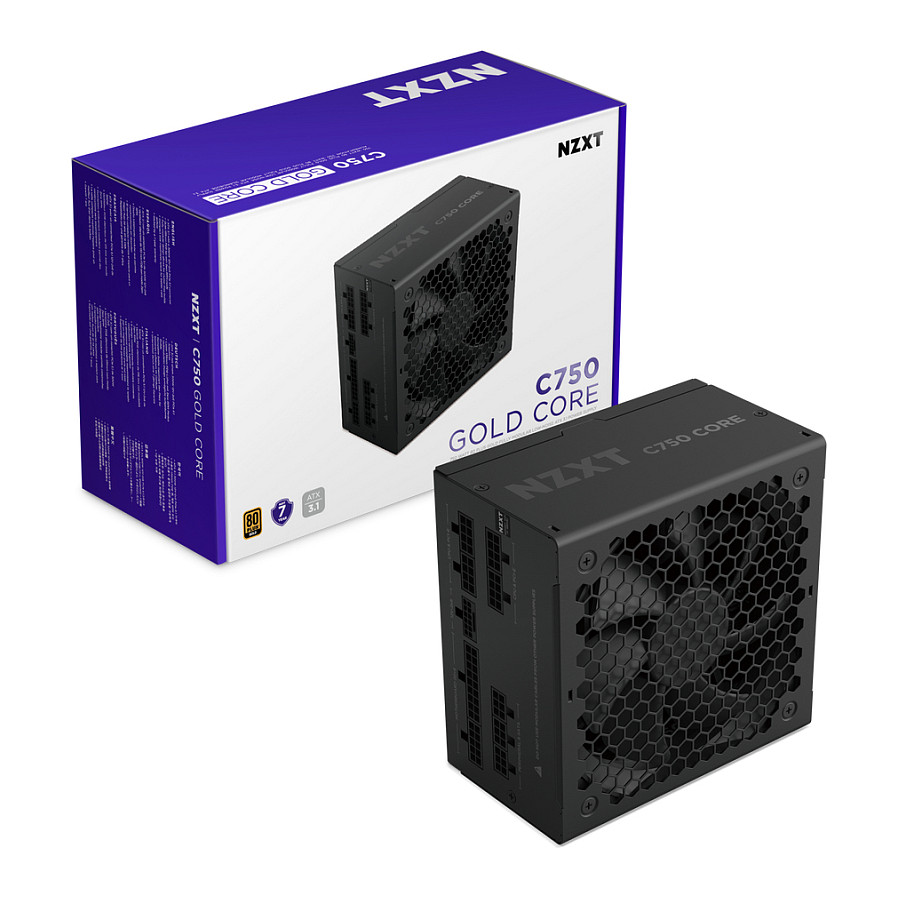

750W NZXT C750 Gold Core Netzteil 80+ Gold, ATX 3.1, PCIe 5.1
Pre-Order
€105.99
VAT (19%) included
Description
ATX 3.1 Certified, PCIE 5.1 Ready: Supports next-gen GPUs with a dual-color 12V-2x6 connector for safe, stable, and efficient power delivery—ideal for modern NVIDIA graphics cards 80 PLUS Gold & Cybernetics Platinum Efficiency: Delivers energy-efficient, stable performance to reduce heat and power draw, even under demanding loads Whisper-Quiet Operation: Cybenetics noise certified for near-silent performance: A++ for C750 and C850 (<15 dBA), A+ for C1000 (15–20 dBA) Ready for AMD & NVIDIA GPUs: Compatible with most GPUs using a 12V-2x6 cable or up to three 8-pin PCIe cables FDB Fan with Zero RPM Mode: 135 mm fluid dynamic bearing fan stays quiet and efficient, with Zero RPM mode during light workloads for silent operation Premium 105°C-Rated Capacitors: High-quality components ensure stable, long-lasting performance across a wide range of system loads Fully Modular with Embossed Cables: Use only the cables you need with a clean, compact design and durable, flexible cables for easy routing
Technical Specifications
SKU
KPA-7G3BB-EU
Total Power
750 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50/60 Hz
Input Current
10 - 5 A
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
120 W
Combined Power (+12V)
750 W
Combined Power (+5V)
120 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
62.5 A
Max Output Current (+5V)
20 A
Max Output Current (+5Vsb)
3 A
Efficiency
89.53%
Power Protection Features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Motherboard Power Connector
24-pin ATX
Motherboard Power Cable Length
60 cm
Number Of Sata Power Connectors
8
Sata Power Cable Length
100, 500 mm
Peripheral (Molex) Power Connectors (4-Pin)
3
Peripheral (Molex) Power Cable Length
100, 500 mm
Pci Express Power Connectors (6+2 Pin)
2
Pci Express Power Connectors (12+4 Pin)
1
Pci Express Power Connectors (12+4 Pin) Cable Length
650 mm
Cpu Power Cable Length
70 cm
Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Gold
Supported Motherboard Form Factors
ATX
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
3.1
Eps Version
2.92
Noise Level
40.5 dB
Bearing Technology
FDB
Mean Time Between Failures (Mtbf)
100000 h
Product Colour
Black
Cooling Type
Active
Fan Diameter
13.5 cm
Number Of Fans
1 fan(s)
Fan Speed
0 - 2300 RPM
Operating Temperature (T-T)
0 - 50 °C
Cables Included
AC, CPU, PCIe, Peripheral (Molex), SATA
Certification
CE UKCA FCC IC BSMI CB (IEC 62368-1 Ed. 3) RCM KC
Width
150 mm
Depth
150 mm
Height
86 mm
Package Type
Box
