MSI
750W MSI Netzteil MAG A750GL PCIE5
Pre-Order
€143.99
VAT (19%) included
Description
ATX 3.0 compatible, native PCIe 5.0 connector Supports NVIDIA® GeForce RTXTM 40 Series graphics cards Full modular design,Flat cables 80 Plus Gold certified for high efficiency Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP 120mm Fluid Dynamic Bearing Fan LLC Full Bridge Topology with DC-DC module desig
Technical Specifications
SKU
K306-7ZP8B11-CE0
Total Power
750 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
47 - 63 Hz
Maximum Input Current (@110V)
8 A
Maximum Input Current (@220V)
4 A
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
110 W
Combined Power (+12V)
744 W
Combined Power (+5V)
110 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
12.5 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
62 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
2.5 A
Efficiency
90%
Power Protection Features
Over current, Over power, Over voltage, Overheating, Short circuit

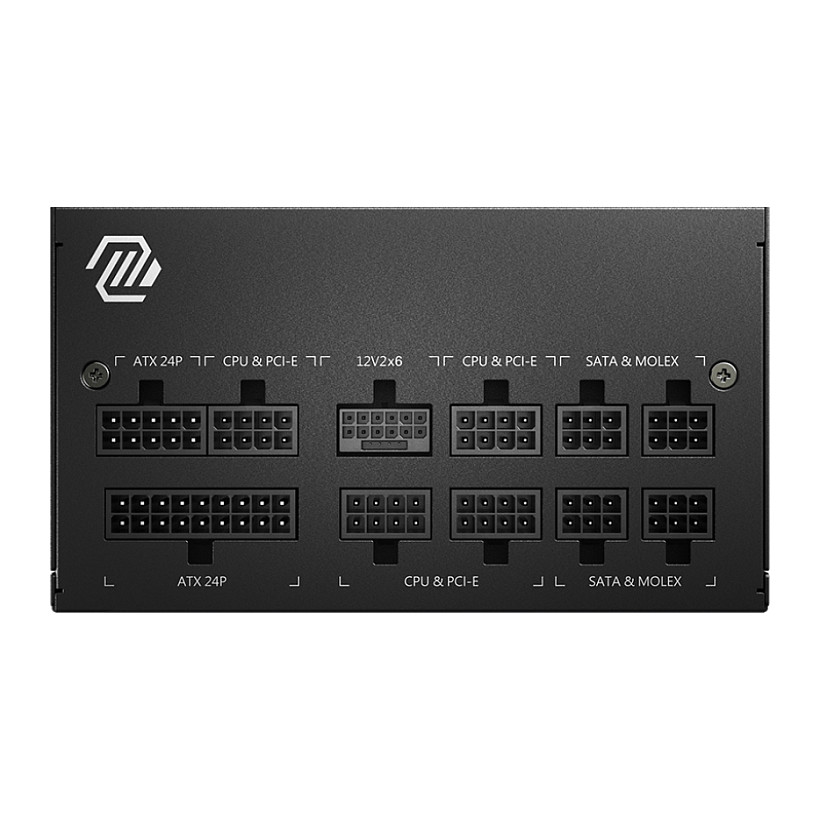

Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
45 cm
Number Of Sata Power Connectors
8
Peripheral (Molex) Power Connectors (4-Pin)
4
Pci Express Power Connectors (6+2 Pin)
3
Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Gold
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
3.1
Product Colour
Black
Cooling Type
Active
Fan Diameter
12 cm
Number Of Fans
1 fan(s)
Width
150 mm
Depth
140 mm
Height
86 mm
Package Type
Box
Harmonized System (Hs) Code
84733020
