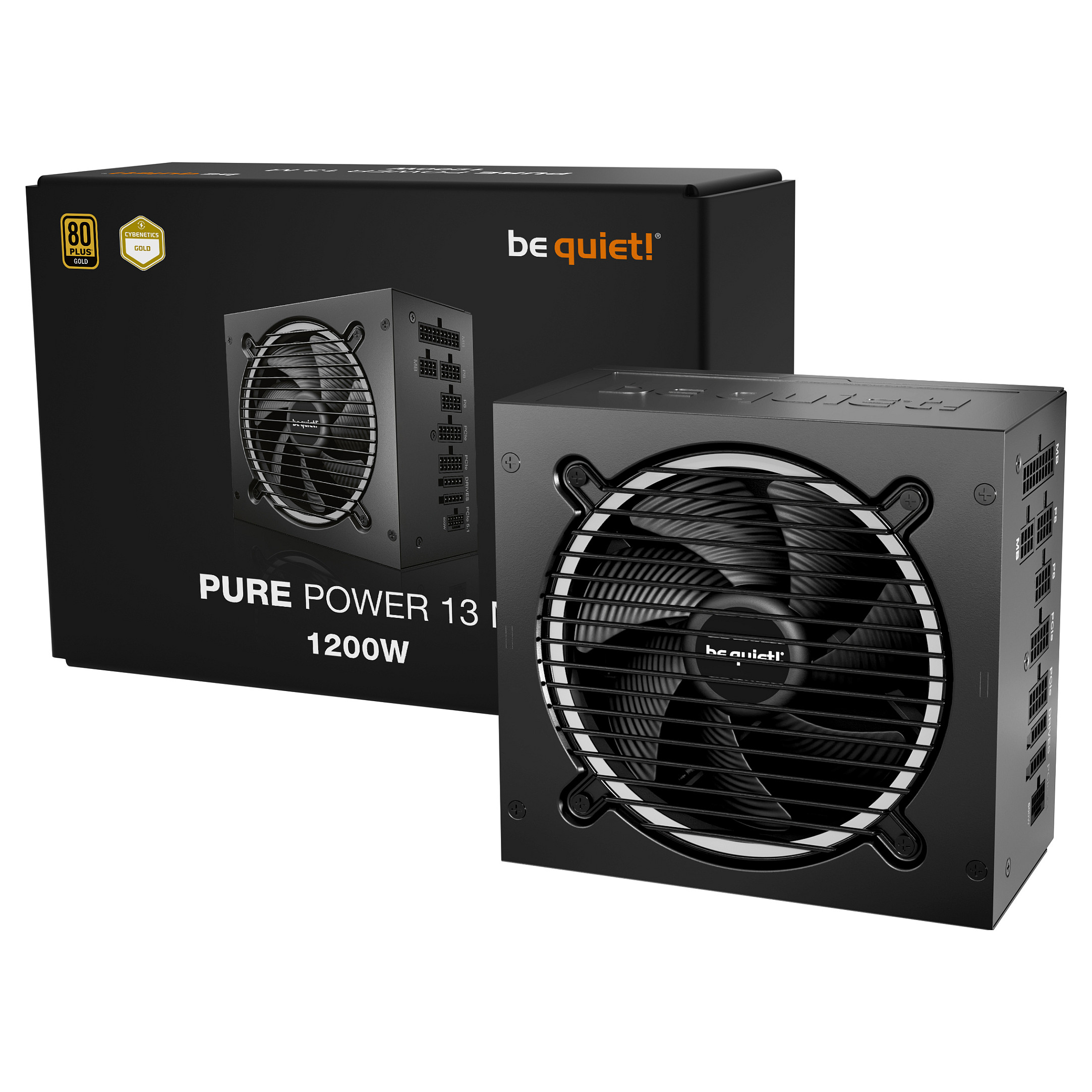

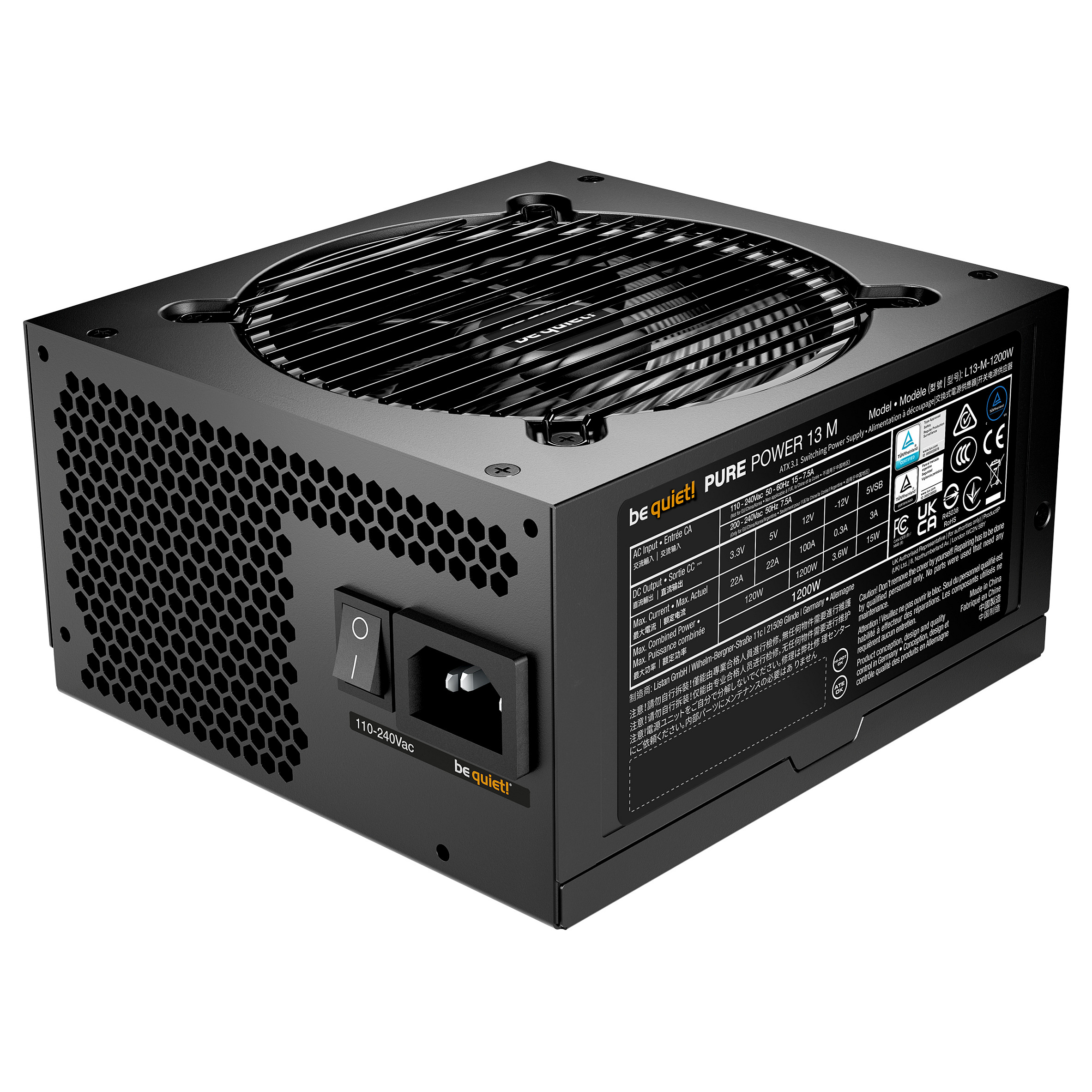

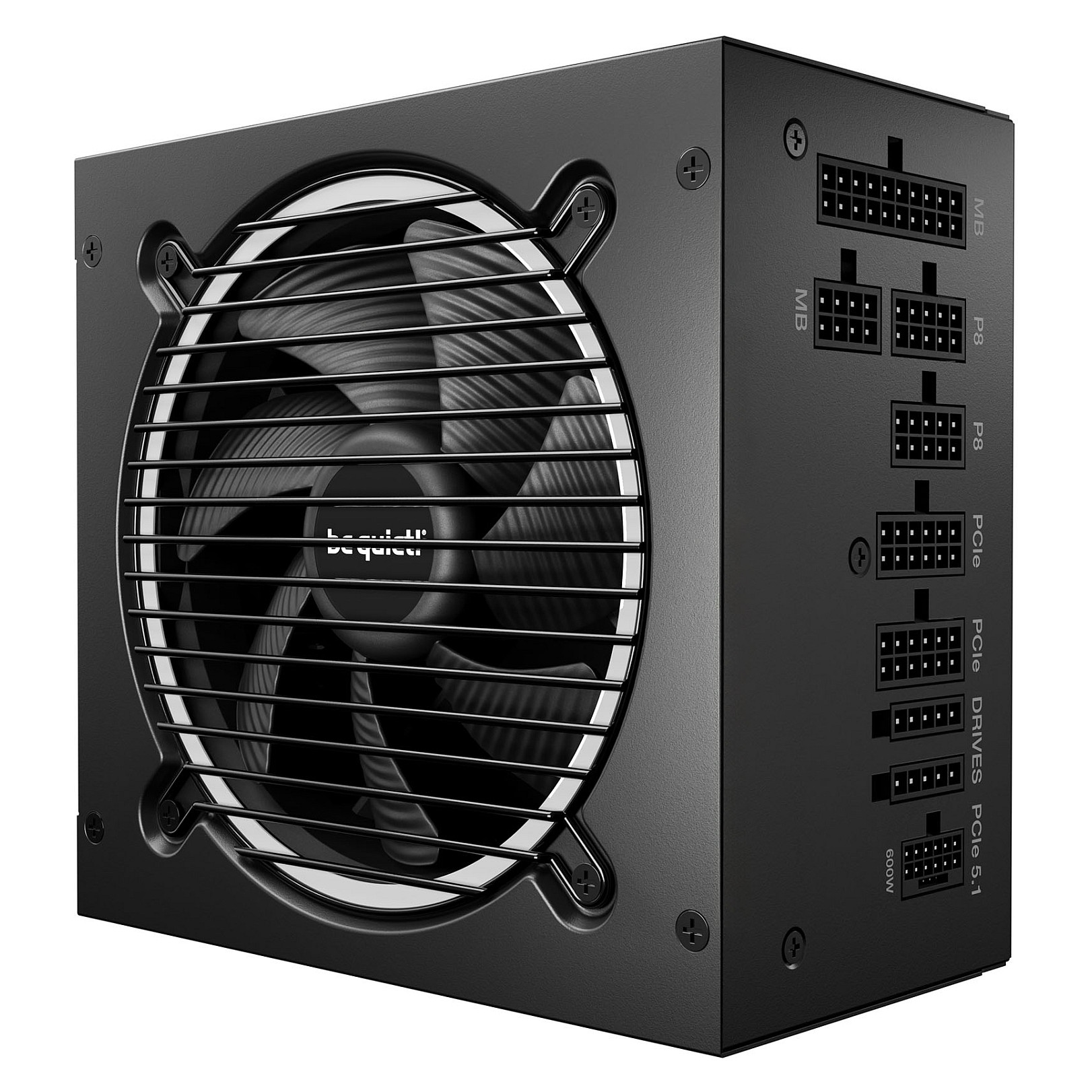

1200W be quiet! Pure Power PRO 13 | 80+ Gold ATX 3.1
Pre-Order
€227.99
VAT (19%) included
Description
80 PLUS® Gold efficiency (up to 93.5%) ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors Handles massive power excursions Exceptionally silent semi-passive 120mm be quiet! fan Semi-passive construction for quiet and energy-saving operation LLC technology for advanced stability and voltage regulation One massive high-performance 12V-rail One PCIe 5.1 12V-2x6 600W and 4 PCIe 6+2 connectors for overclocked high-end GPUs Full suite of safety features Meets latest requirements for modern standby
Technical Specifications
SKU
KBP029EU
Total Power
1200 W
Peak Power
1250 W
Ac Input Voltage
110 - 240 V
Ac Input Frequency
50/60 Hz
Maximum Input Current (@110V)
15 A
Maximum Input Current (@220V)
7.5 A
Power Factor
0.97
Power Factor Correction (Pfc) Type
Active
Number Of +12V Rail(S)
1
Combined Power (+3.3V)
120 W
Combined Power (+12V)
1200 W
Combined Power (+5V)
120 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
22 A
Max Output Current (+12V)
100 A
Max Output Current (+5V)
22 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Hold Time
19.11 ms
Efficiency
90.8%
Power Protection Features
Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage

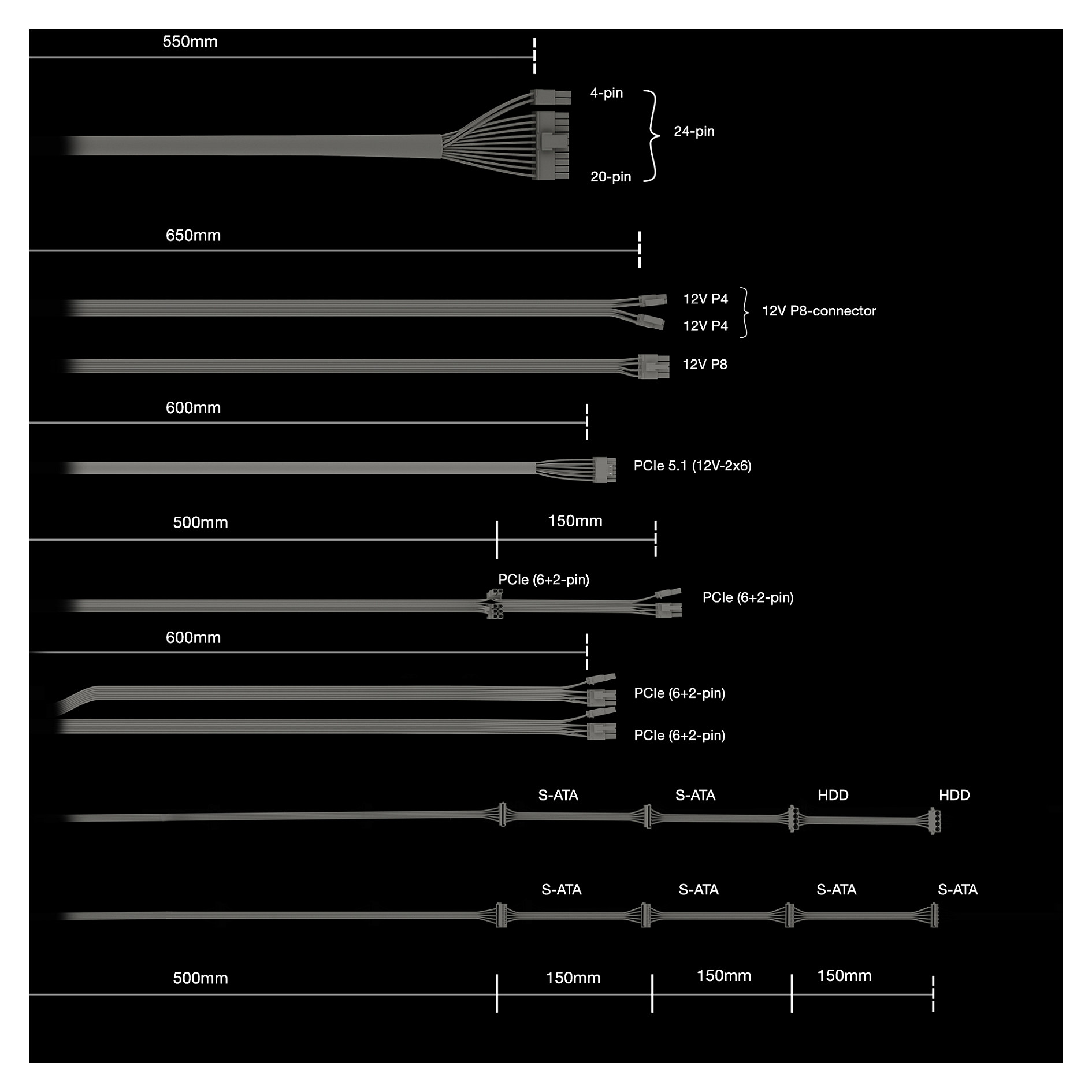

Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
55 cm
Number Of Sata Power Connectors
6
Sata Power Cable Length
500, 650, 800, 950 mm
Number Of Sata Power Cables
2
Peripheral (Molex) Power Connectors (4-Pin)
2
Peripheral (Molex) Power Cable Length
800, 950 mm
Pci Express Power Connectors (6+2 Pin)
4
Pci Express Power Connectors (12-Pin)
1
Pci Express Power Cable Length
60 cm
Cpu P4 Connector (4-Pin)
2
Cpu Power Cable Length
65 cm
Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Gold
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
3.1
Eps Version
2.92
Noise Level
32.3 dB
Bearing Technology
Rifle
Mean Time Between Failures (Mtbf)
100000 h
Product Colour
Black
Cooling Type
Active
Fan Diameter
12 cm
Number Of Fans
1 fan(s)
Fan Speed
0 - 2700 RPM
Operating Temperature (T-T)
0 - 40 °C
Storage Temperature (T-T)
-40 - 70 °C
Operating Relative Humidity (H-H)
0 - 85%
Storage Relative Humidity (H-H)
0 - 95%

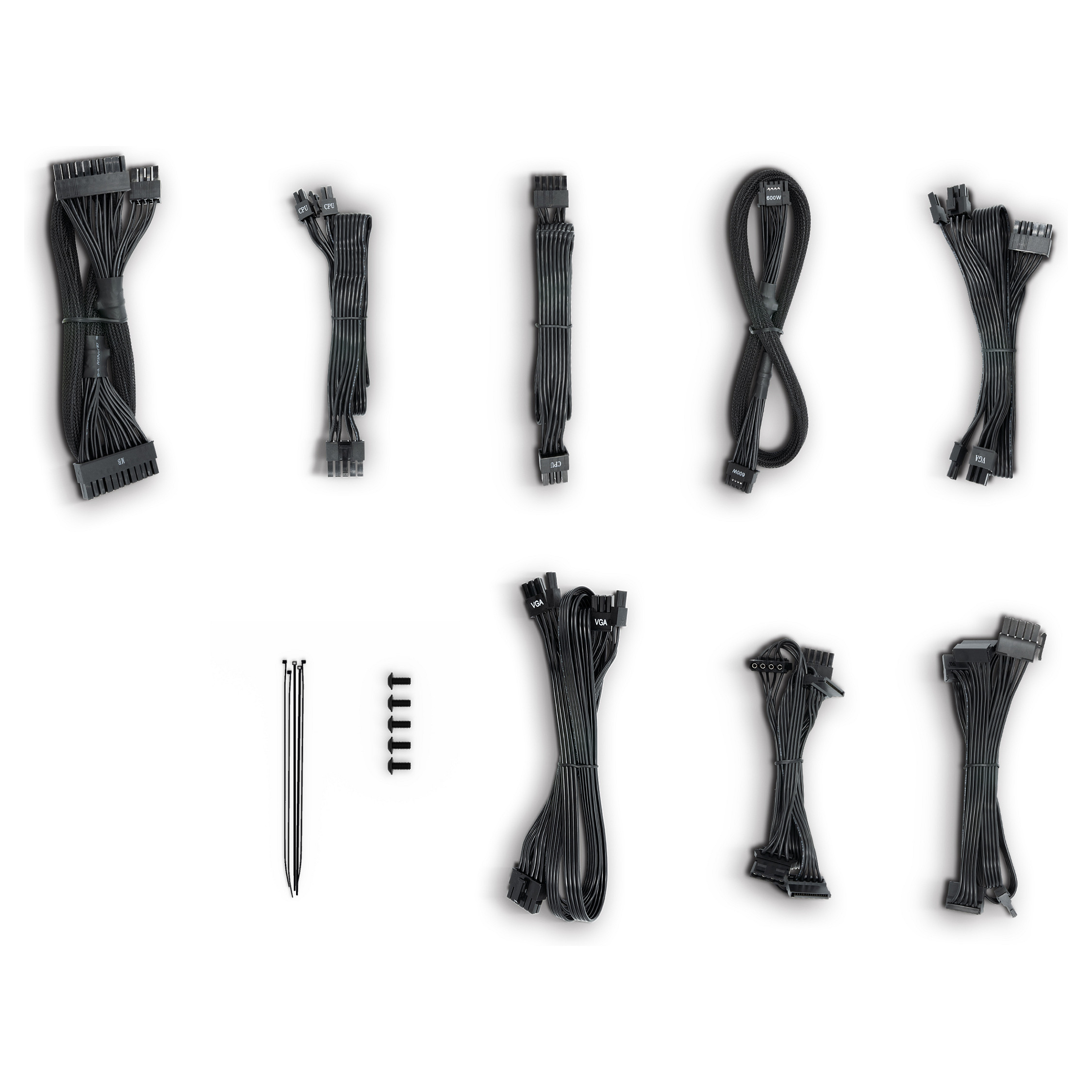

Cables Included
AC, CPU, PCIe, Peripheral (Molex), SATA
Compliance Certificates
BSMI, CB, CCC, CE, Federal Communications Commission (FCC), IRAM, RCM, RoHS, TÜV mark, UKCA, WEEE, cTUVus
Width
150 mm
Depth
160 mm
Height
86 mm
Weight
2.69 kg
Manual Languages
German, English, Spanish, French, Polish, Russian, Ukrainian
Package Width
220 mm
Package Depth
284 mm
Package Height
100 mm
Package Weight
3.14 kg
Package Type
Box
Sustainability Certificates
ENERGY STAR, ErP
Shipping (Inner) Case Length
59 cm
Shipping (Inner) Case Width
32 cm
Shipping (Inner) Case Height
24.5 cm
Products Per Shipping (Inner) Case
6 pc(s)
Shipping (Inner) Case Gross Weight
20.8 kg
