Enermax

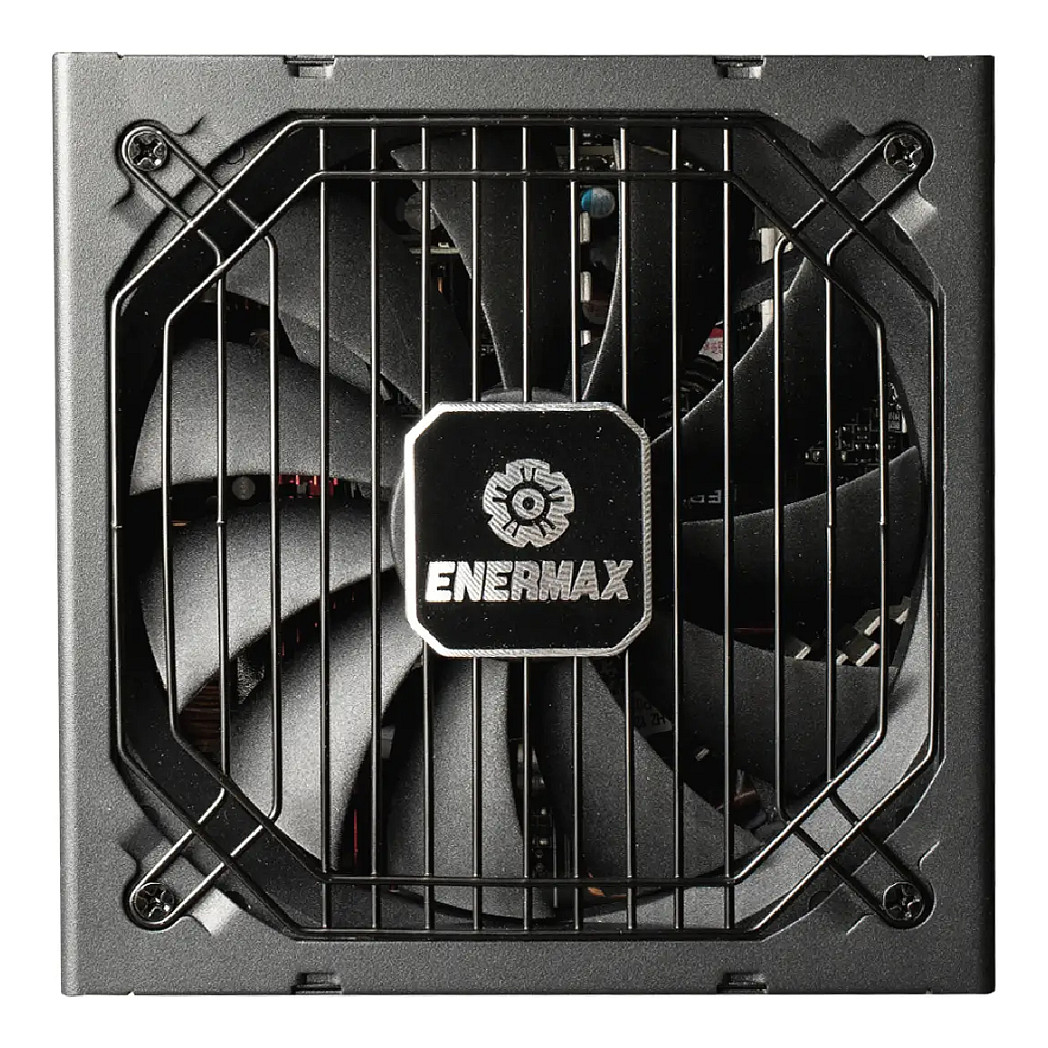

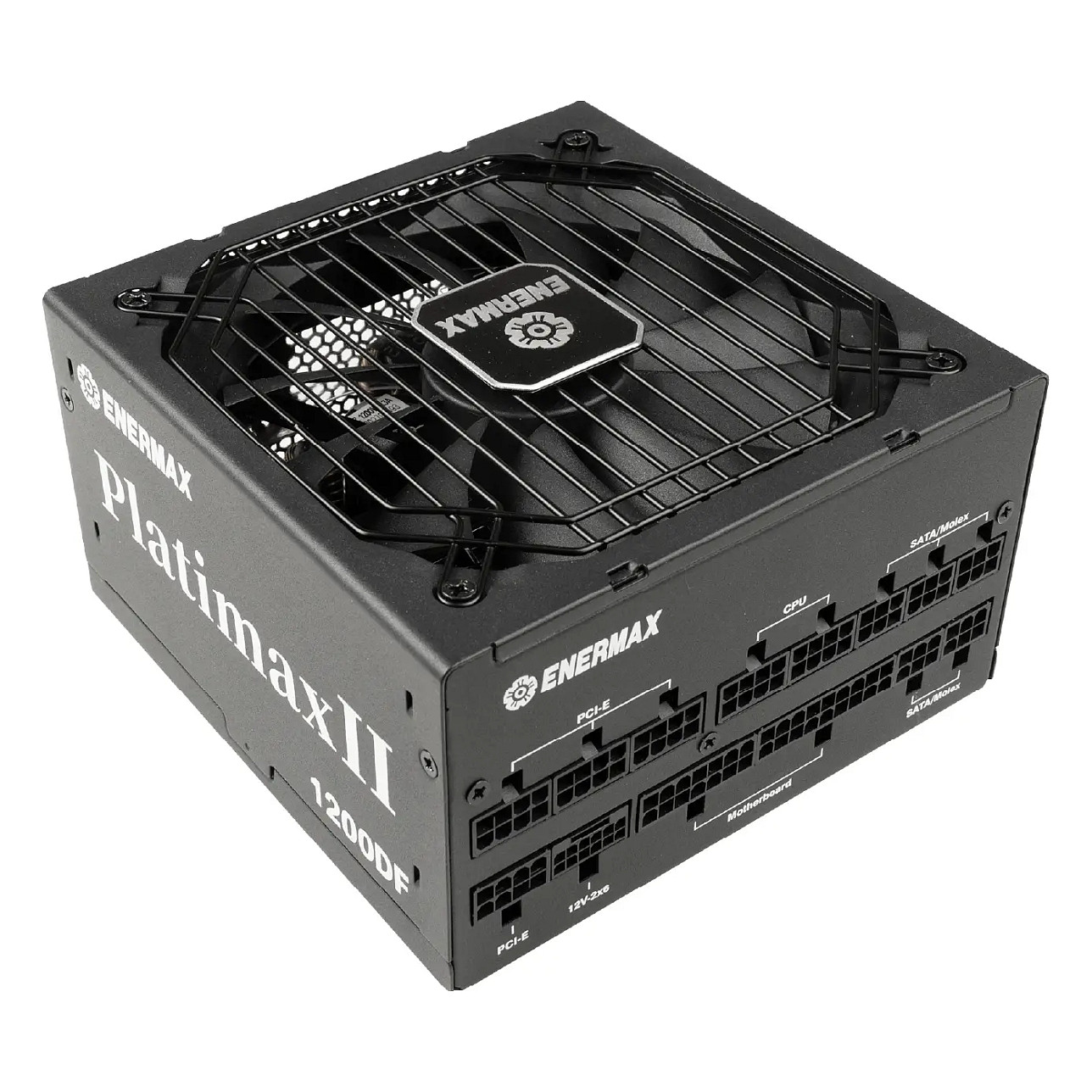

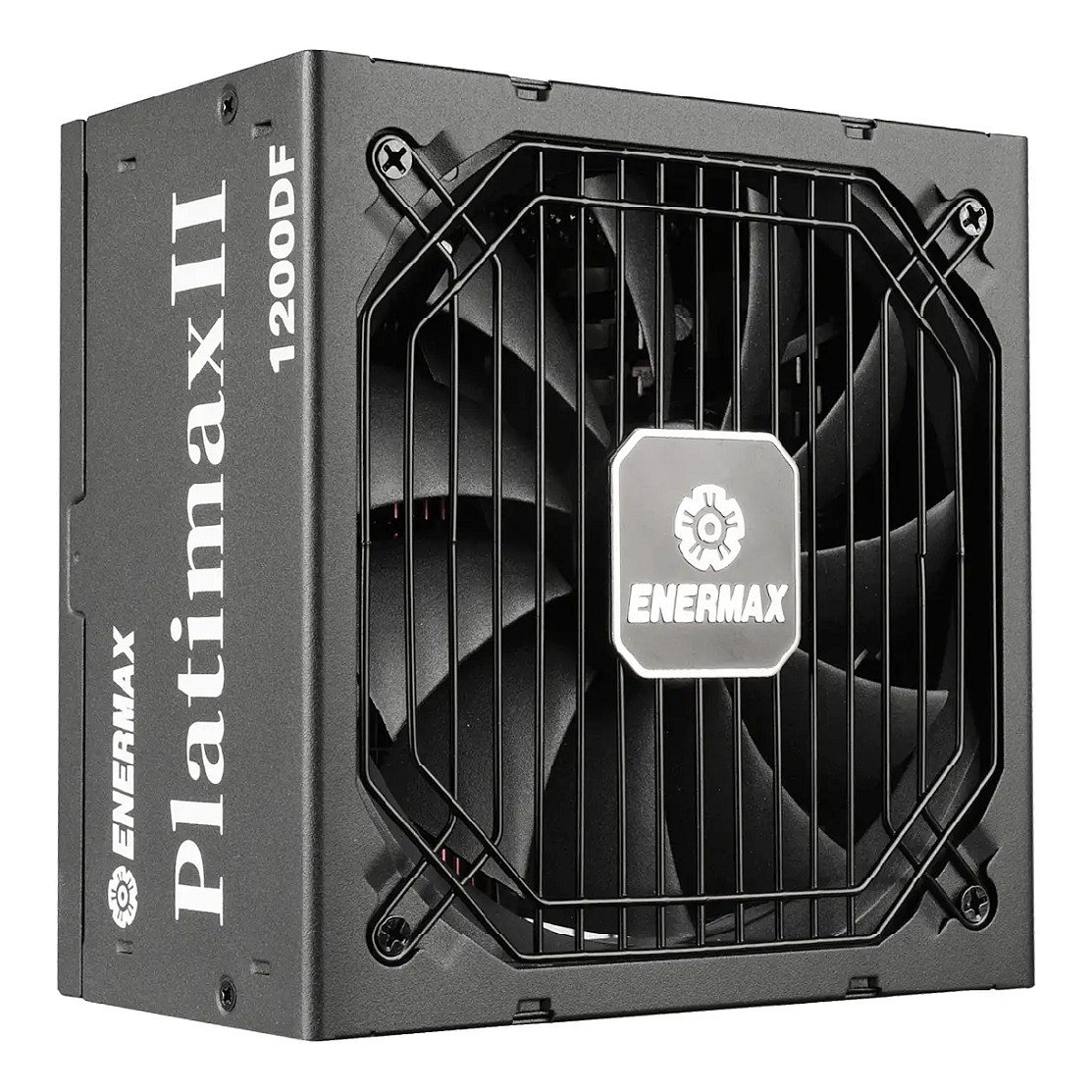

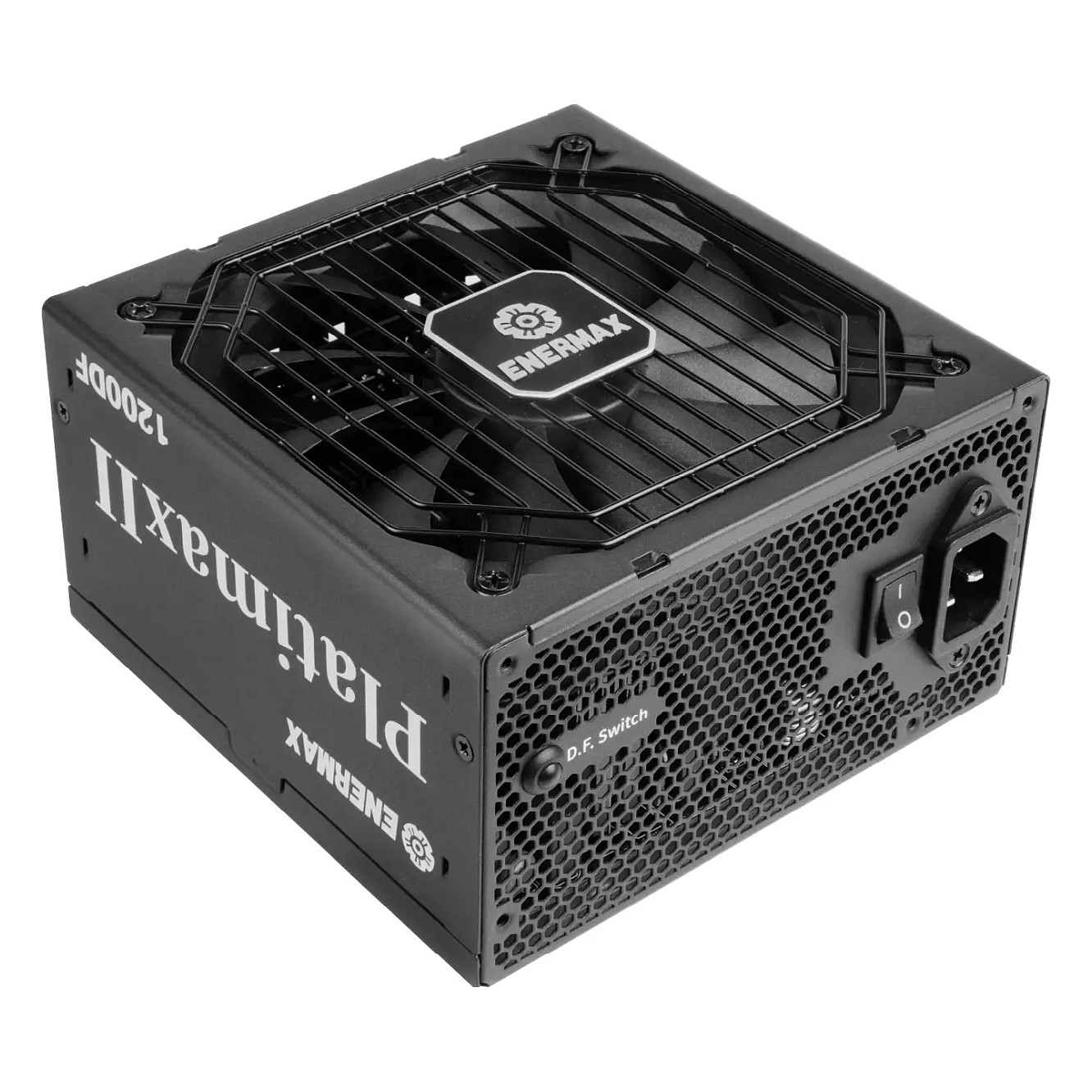

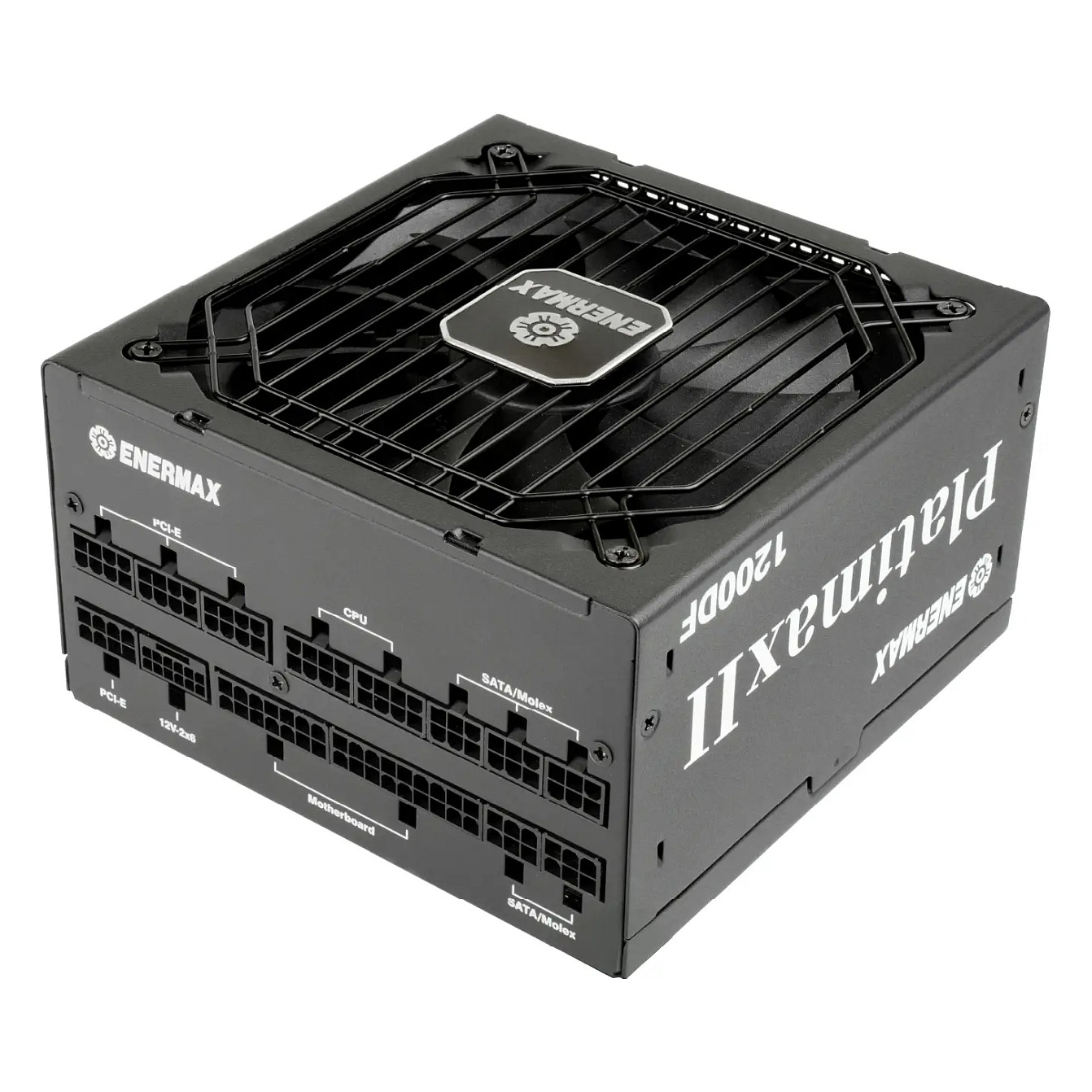

1200W Enermax Power Supply Platimax2 80+ Platinum ATX 3.1
Pre-Order
€178.99
VAT (19%) included
Description
80 PLUS and CYBENETICS Platinum Certified Integrated with Intel ATX3.1 Native 12V-2x6 Cable, Providing the GPU with 600W Power 100% Japanese Capacitors and Up to 235% Power Excursion Dust-Free Rotation Tech. & D.F. Switch Optimal Semi-Fanless Tech. with 60% Zero-RPM
Technical Specifications
SKU
KEPS1200P-NPX
Total Power
1200 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50/60 Hz
Input Current
8 - 15 A
Combined Power (+3.3V)
100 W
Combined Power (+12V)
1200 W
Combined Power (+5V)
100 W
Combined Power (-12V)
4.8 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
100 A
Max Output Current (+5V)
10 A
Max Output Current (-12V)
0.4 A
Max Output Current (+5Vsb)
3 A
Efficiency
92%
Power Protection Features
Over power, Overload, Over current, Short circuit, Overheating, Under voltage
Motherboard Power Connector
24-pin ATX
Motherboard Power Cable Length
60 cm
Number Of Sata Power Connectors
8
Sata Power Cable Length
900 mm
Number Of Sata Power Cables
2
Peripheral (Molex) Power Connectors (4-Pin)
4
Peripheral (Molex) Power Cable Length
900 mm
Pci Express Power Connectors (6+2 Pin)
3
Pci Express Power Connectors (12+4 Pin)
1
Pci Express Power Connectors (12+4 Pin) Cable Length
600 mm
Pci Express Power Cable Length
60 cm
Cpu Power Cable Length
70 cm
Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Gold
Cybenetics Certification
Platinum
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Mean Time Between Failures (Mtbf)
100000 h
Product Colour
Black
Fan Diameter
13.5 cm
Compliance Certificates
CE, Federal Communications Commission (FCC), EAC
Width
150 mm
Depth
86 mm
Height
150 mm
Package Width
330 mm
Package Depth
195 mm
Package Height
130 mm
Package Weight
3.19 kg
Master (Outer) Case Width
605 mm
Master (Outer) Case Length
345 mm
Master (Outer) Case Height
290 mm
Master (Outer) Case Net Weight
20.7 kg
