MSI

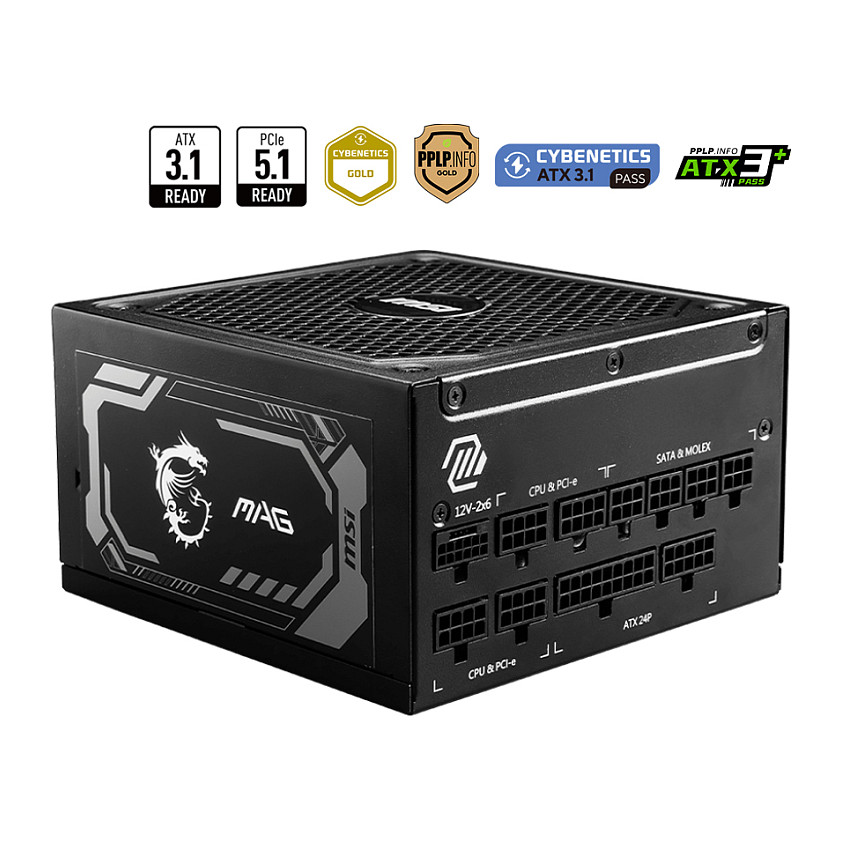

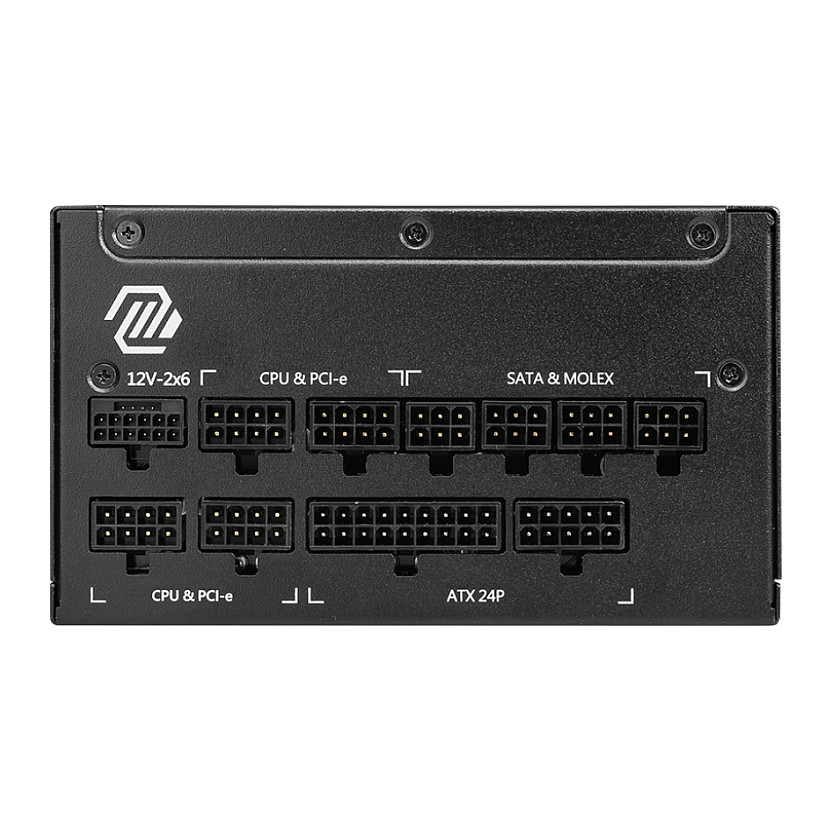

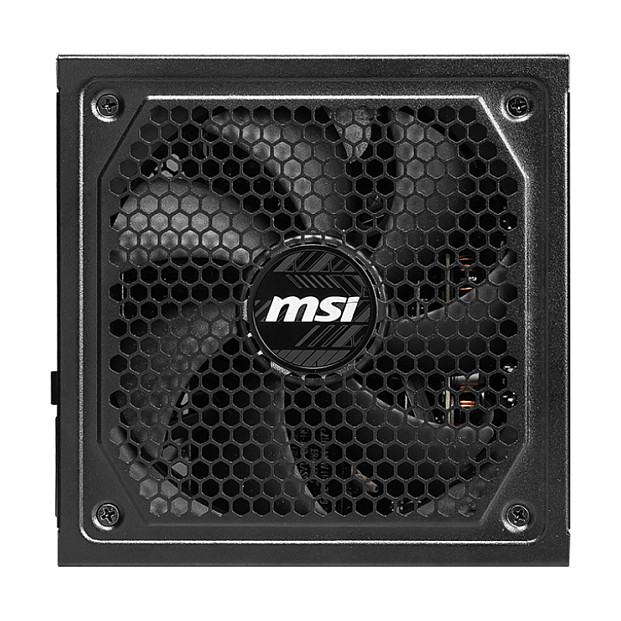

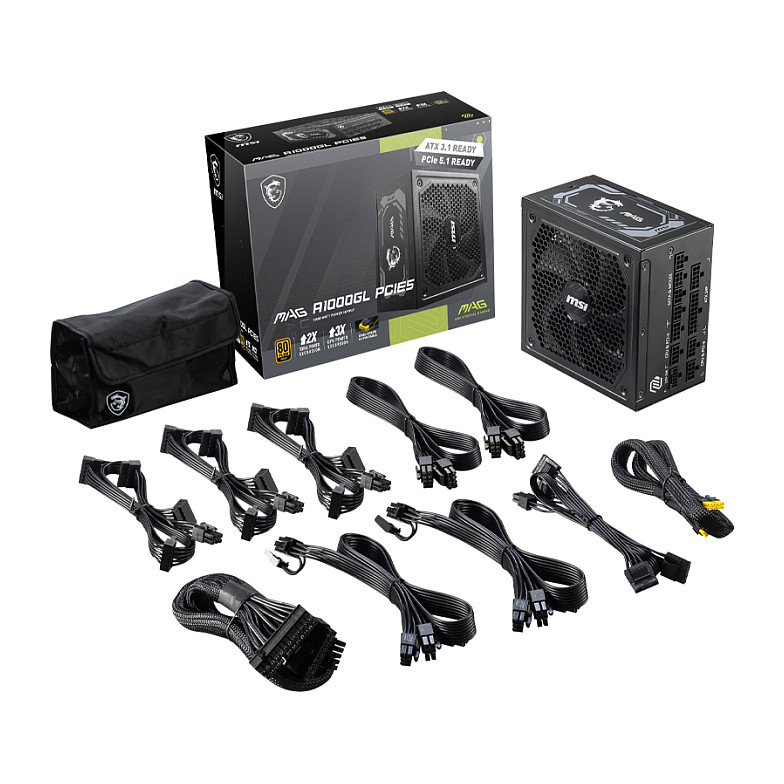

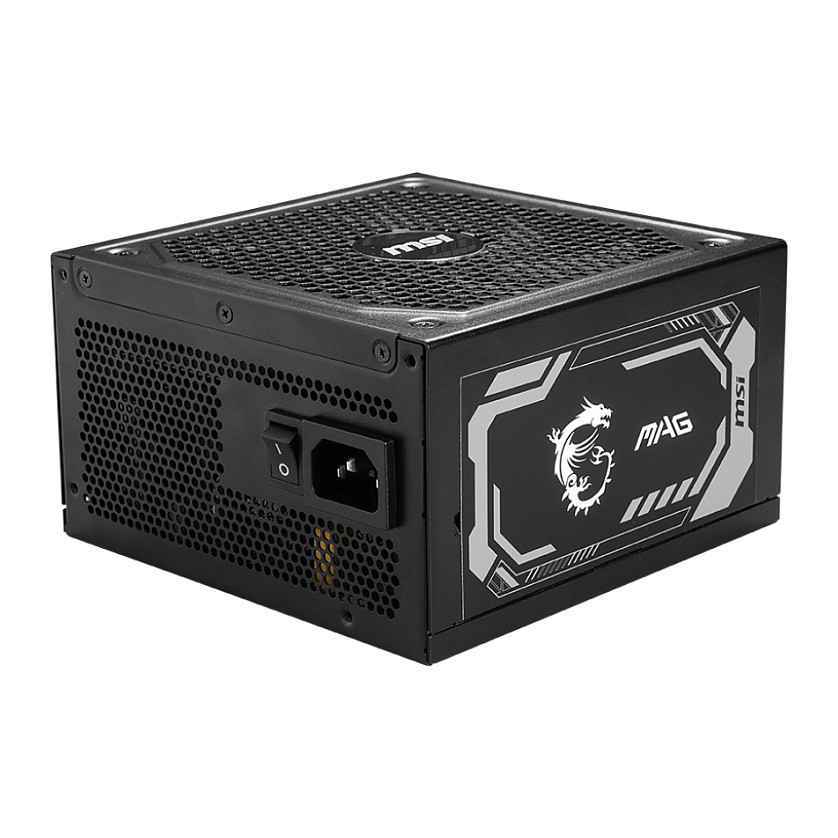

1000W MSI Netzteil MAG A1000GL PCIE5
Pre-Order
€145.99
VAT (19%) included
Description
1000 W 100 - 240 V 50/60 Hz Motherboard power connector: 24-pin ATX PC ATX 80 PLUS Gold Active 13.5 cm 500 - 1800 RPM Black
Technical Specifications
SKU
K306-7ZP9B11-CE0
Total Power
1000 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50/60 Hz
Power Factor Correction (Pfc) Type
Active
Number Of +12V Rail(S)
1
Combined Power (+3.3V)
120 W
Combined Power (+12V)
999.6 W
Combined Power (+5V)
120 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
22 A
Max Output Current (+12V)
83.3 A
Max Output Current (+5V)
22 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Efficiency
90%
Power Protection Features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Motherboard Power Connector
24-pin ATX
Motherboard Power Cable Length
60 cm
Number Of Sata Power Connectors
12
Sata Power Cable Length
150, 500 mm
Peripheral (Molex) Power Connectors (4-Pin)
1
Peripheral (Molex) Power Cable Length
450, 500 mm
Pci Express Power Connectors (6+2 Pin)
4
Pci Express Power Connectors (16-Pin)
1
Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Gold
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
3.1
Bearing Technology
FDB
Product Colour
Black
Cooling Type
Active
Fan Diameter
13.5 cm
Number Of Fans
1 fan(s)
Fan Speed
500 - 1800 RPM
Width
150 mm
Depth
150 mm
Height
86 mm
Fan'S Mean Time To Failure (Mttf)
150000 h
