Thermaltake

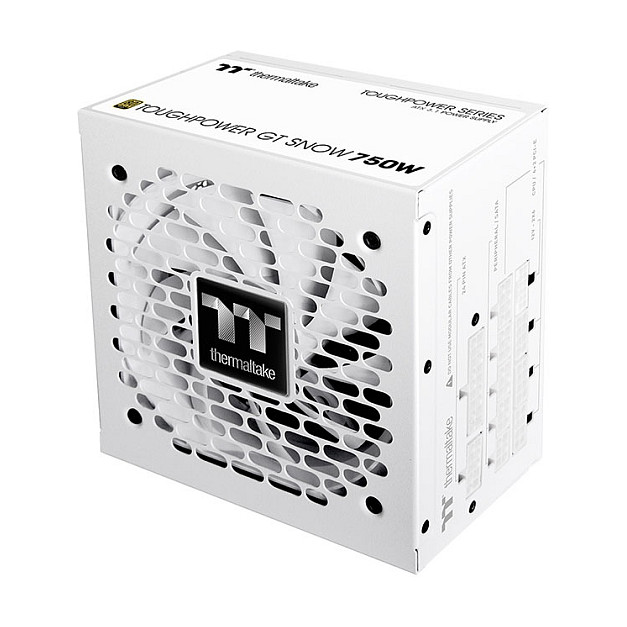

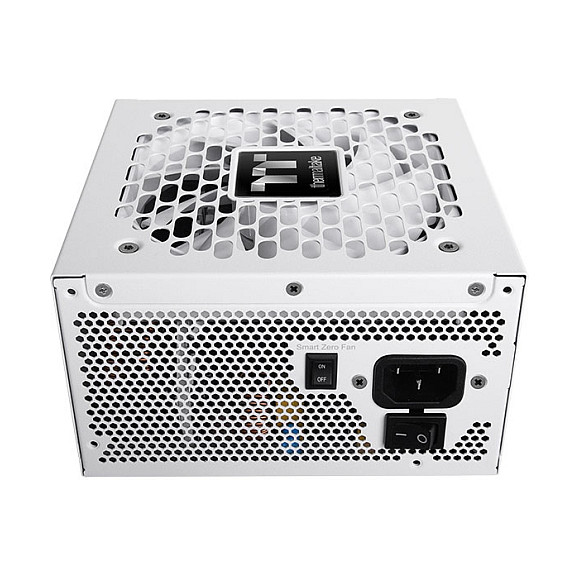

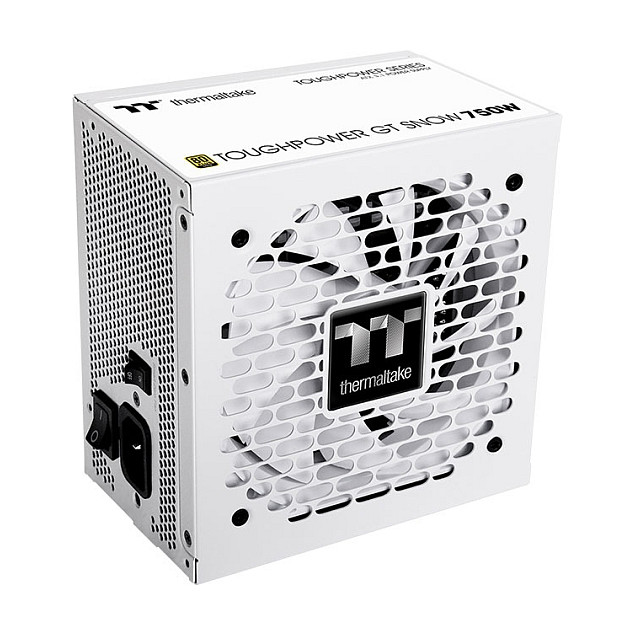

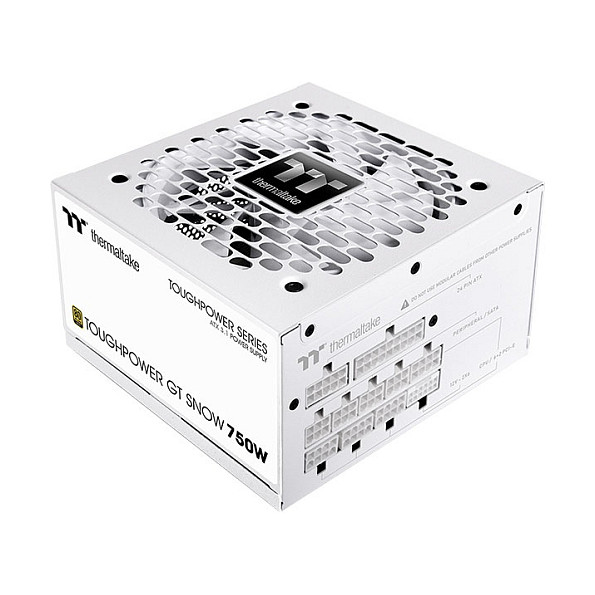

750W Thermaltake Toughpower GT Snow
Pre-Order
€106.99
VAT (19%) included
Description
750 W 100 - 240 V 50/60 Hz Motherboard power connector: 24-pin ATX PC/Server ATX 80 PLUS Gold Active 12 cm White
Technical Specifications
SKU
KPS-TPT-0750FNFAGE-W
Total Power
750 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50/60 Hz
Input Current
10 A
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
100 W
Combined Power (+12V)
750 W
Combined Power (+5V)
100 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
62.5 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Hold Time
17 ms
Power Good Signal Delay Range
100 - 250 ms
Power Protection Features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

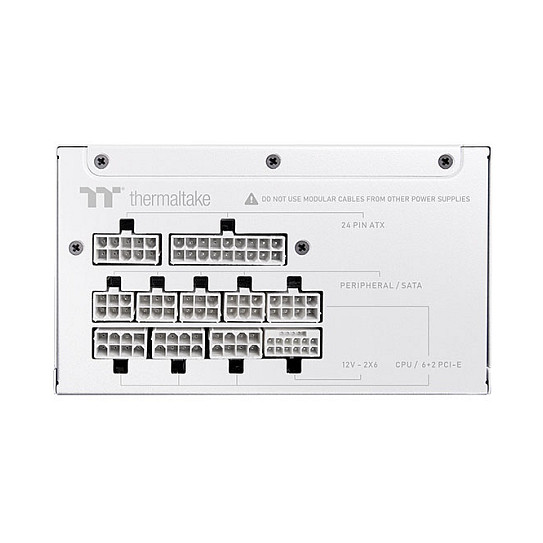

Motherboard Power Connector
24-pin ATX
Motherboard Power Cable Length
55 cm
Number Of Sata Power Connectors
6
Sata Power Cable Length
150, 450 mm
Peripheral (Molex) Power Connectors (4-Pin)
4
Peripheral (Molex) Power Cable Length
150, 400 mm
Pci Express Power Connectors (6+2 Pin)
4
Pci Express Power Connectors (12+4 Pin)
1
Pci Express Power Connectors (12+4 Pin) Cable Length
600 mm
Cpu Power Cable Length
70 cm
Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Gold
Purpose
PC/Server
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
3.1
Bearing Technology
Hydraulic
Mean Time Between Failures (Mtbf)
100000 h
Product Colour
White
Cooling Type
Active
Fan Diameter
12 cm
Number Of Fans
1 fan(s)
Operating Temperature (T-T)
0 - 40 °C
Storage Temperature (T-T)
-40 - 70 °C
Operating Relative Humidity (H-H)
5 - 85%
Storage Relative Humidity (H-H)
5 - 95%
Certification
CE/UKCA/ICES/TUV/LVD/RCM/CB/FCC/cTUVus/BSMI/CCC/BIS/S-MARK
Width
150 mm
Depth
140 mm
Height
86 mm
Package Type
Box
