Thermaltake

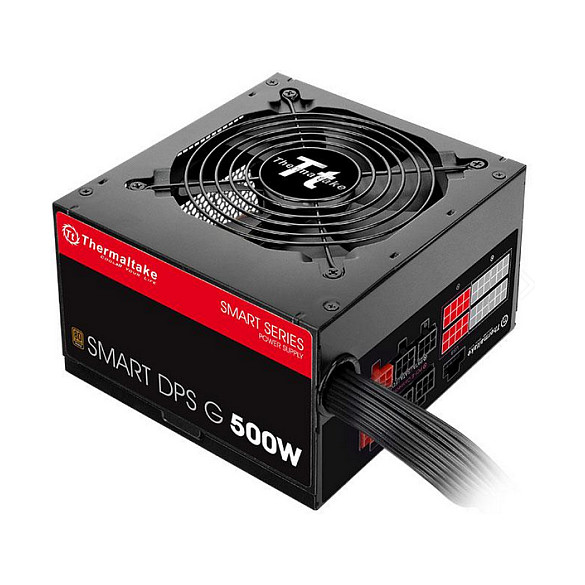

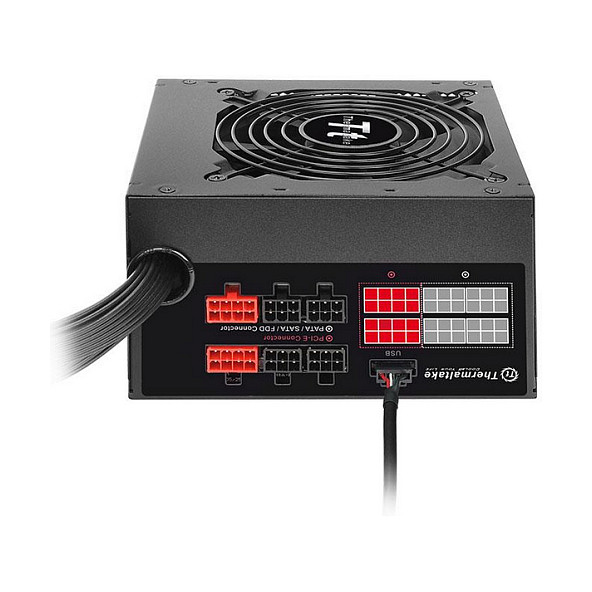

500W Thermaltake SMART DPS G Digital 80+ Bronze
Pre-Order
€77.99
VAT (19%) included
Description
500 W 100 - 240 V 47 - 63 Hz Motherboard power connector: 24-pin ATX PC ATX 80 PLUS Bronze 12 cm Black
Technical Specifications
SKU
KPS-SPG-0500DPCBEU-B
Total Power
500 W
Peak Power
600 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
47 - 63 Hz
Input Current
8 A
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
110 W
Combined Power (+12V)
456 W
Combined Power (+5V)
110 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
12.5 W
Max Output Current (+3.3V)
18 A
Max Output Current (+12V)
38 A
Max Output Current (+5V)
16 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
2.5 A
Hold Time
10 ms
Efficiency
86%
Power Good Signal Delay Range
100 - 500 ms

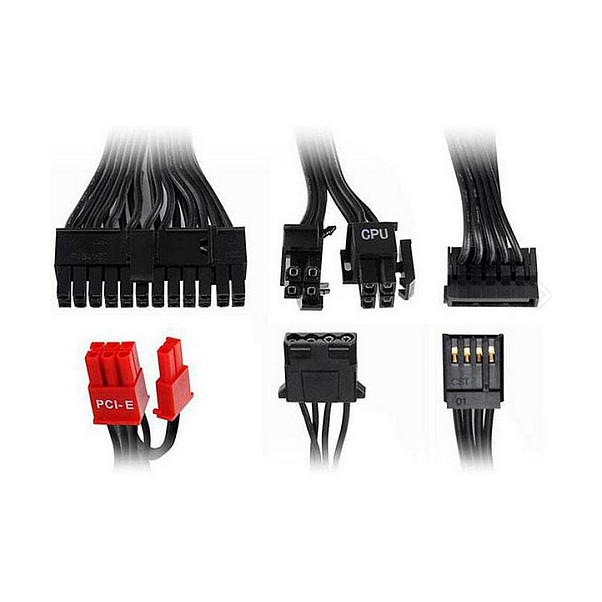

Motherboard Power Connector
24-pin ATX
Number Of Sata Power Connectors
6
Peripheral (Molex) Power Connectors (4-Pin)
3
Pci Express Power Connectors (6+2 Pin)
2
Floppy Drive Power Connector
1
Cabling Type
Semi-Modular
80 Plus Certification
80 PLUS Bronze
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
2.31
Eps Version
2.92
Mean Time Between Failures (Mtbf)
120000 h
Product Colour
Black
Fan Diameter
12 cm
Number Of Fans
1 fan(s)
Fan Location
Top
Operating Temperature (T-T)
0 - 40 °C
Storage Temperature (T-T)
-20 - 70 °C
Operating Relative Humidity (H-H)
20 - 90%
Storage Relative Humidity (H-H)
5 - 95%
Certification
CE/FCC/UL/TUV/CB/EAC/BSMI
Width
150 mm
Depth
140 mm
Height
86 mm
Package Type
Box
