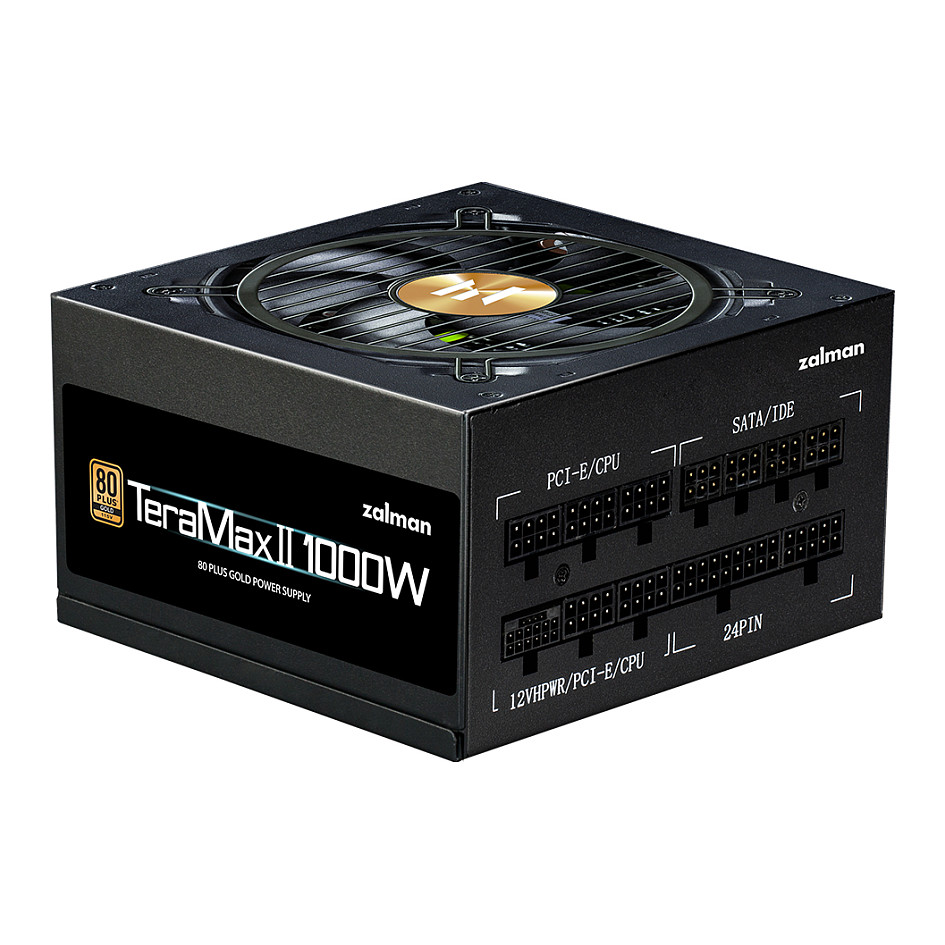

Alimentation ATX Zalman TeraMax TMX2 - 1000W (Noir)
Pre-Order
€154.99
VAT (19%) included
Description
1000 W 100 - 240 V 50/60 Hz Motherboard power connector: 24-pin ATX PC ATX 80 PLUS Gold 12 cm Black
Technical Specifications
SKU
KZM1000-TMX2
Total Power
1000 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50/60 Hz
Input Current
12-6 A
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
125 W
Combined Power (+12V)
1000 W
Combined Power (+5V)
125 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
25 A
Max Output Current (+12V)
83.33 A
Max Output Current (+5V)
25 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Efficiency
90%
Power Protection Features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

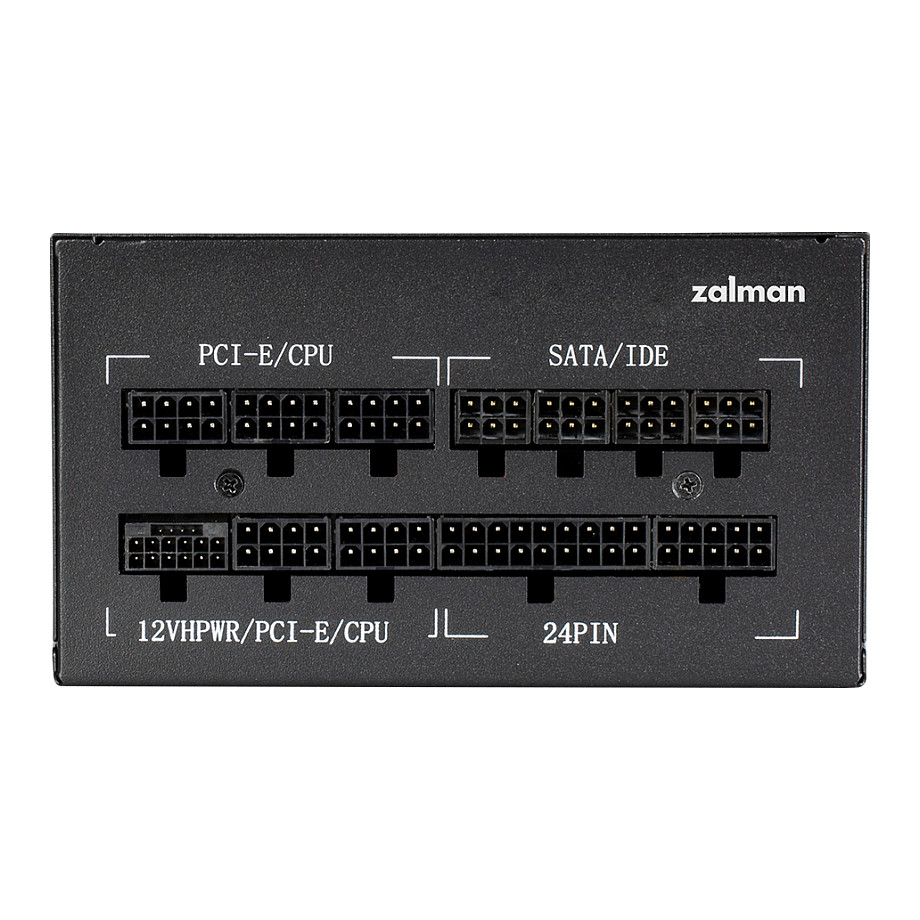

Motherboard Power Connector
24-pin ATX
Motherboard Power Cable Length
60 cm
Sata Power Cable Length
500 mm
Pci Express Power Connectors (6+2 Pin)
4
80 Plus Certification
80 PLUS Gold
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Bearing Technology
FDB
Mean Time Between Failures (Mtbf)
100000 h
Product Colour
Black

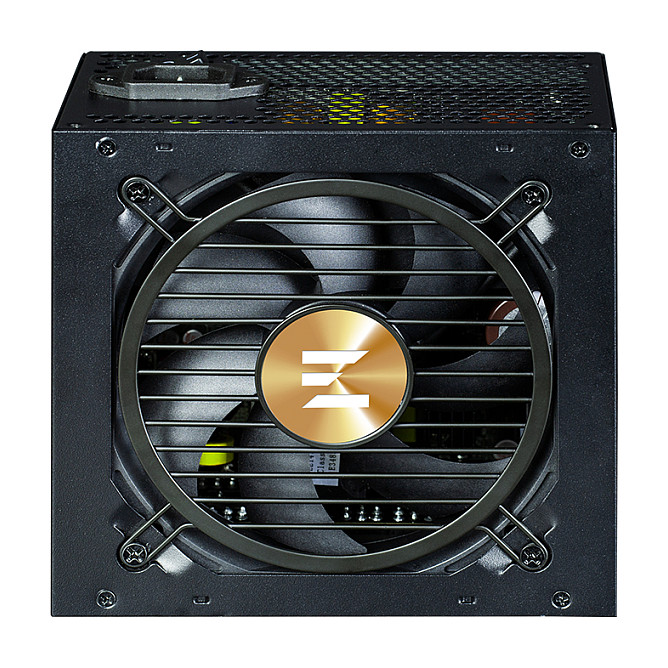

Fan Diameter
12 cm
Operating Temperature (T-T)
10 - 40 °C
Compliance Certificates
EAC, TÜV mark, RoHS, CB, CE, cTUVus
Width
140 mm
Depth
150 mm
Height
86 mm
Weight
2.8 kg
