MSI

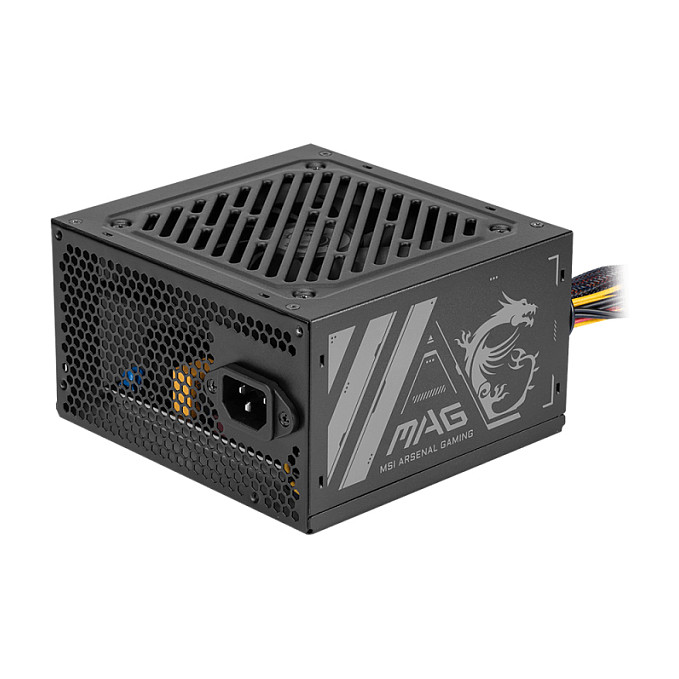

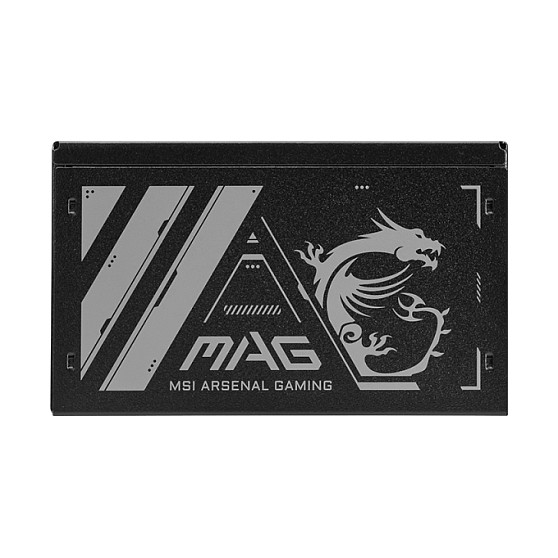

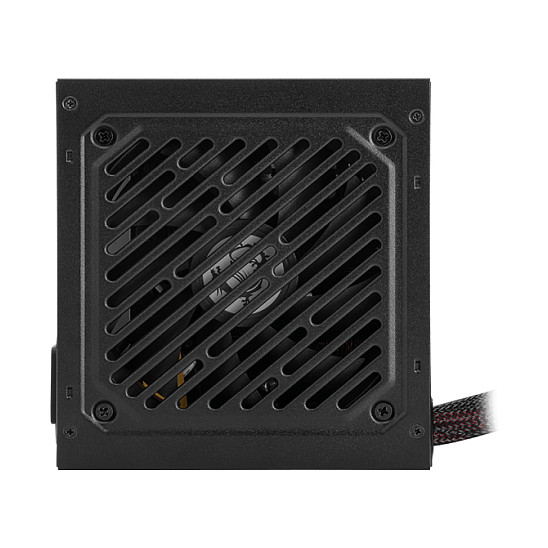

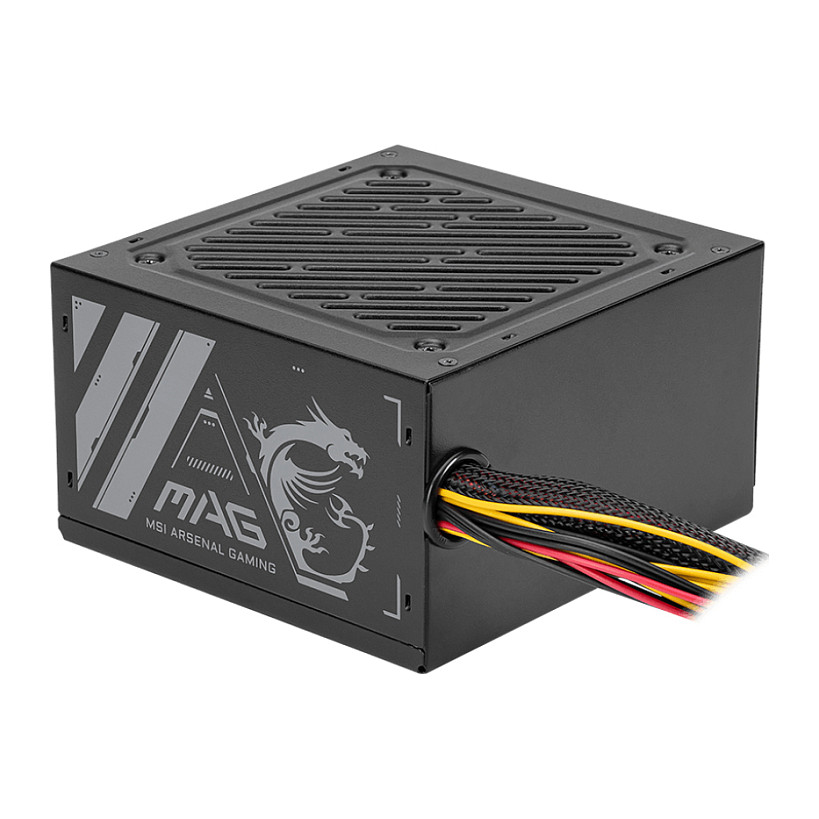

MSI Mag A500N-H ATX power supply - 500W SI version
Pre-Order
€45.99
VAT (19%) included
Description
120mm Fan Active PFC Design Single Rail Industrial level protection with OVP, SCP, OPP, UVP
Technical Specifications
SKU
KMAG A500N-H
Total Power
500 W
Ac Input Voltage
200 - 240 V
Ac Input Frequency
50/60 Hz
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
105 W
Combined Power (+12V)
500 W
Combined Power (+5V)
456 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
12.5 W
Max Output Current (+3.3V)
14 A
Max Output Current (+12V)
38 A
Max Output Current (+5V)
14 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
2.5 A
Motherboard Power Connector
24-pin ATX
Number Of Sata Power Connectors
3
Peripheral (Molex) Power Connectors (4-Pin)
2
Pci Express Power Connectors (6+2 Pin)
1
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Product Colour
Black
Cooling Type
Active
Fan Diameter
12 cm
Fan Speed
500 - 1800 RPM
Width
140 mm
Depth
150 mm
Height
86 mm
