Cooler Master

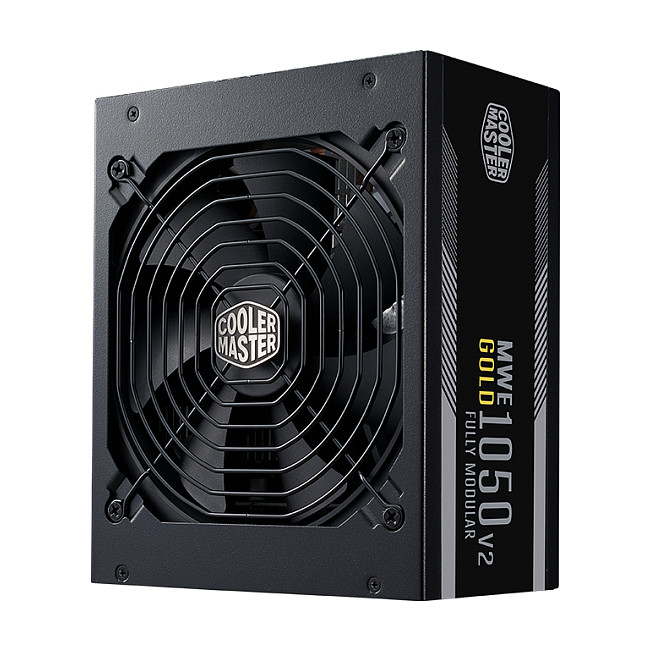

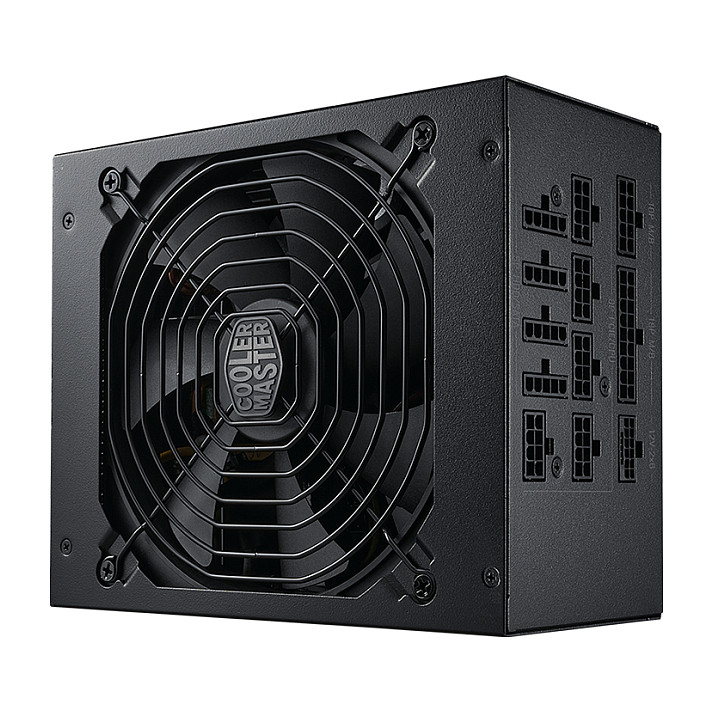

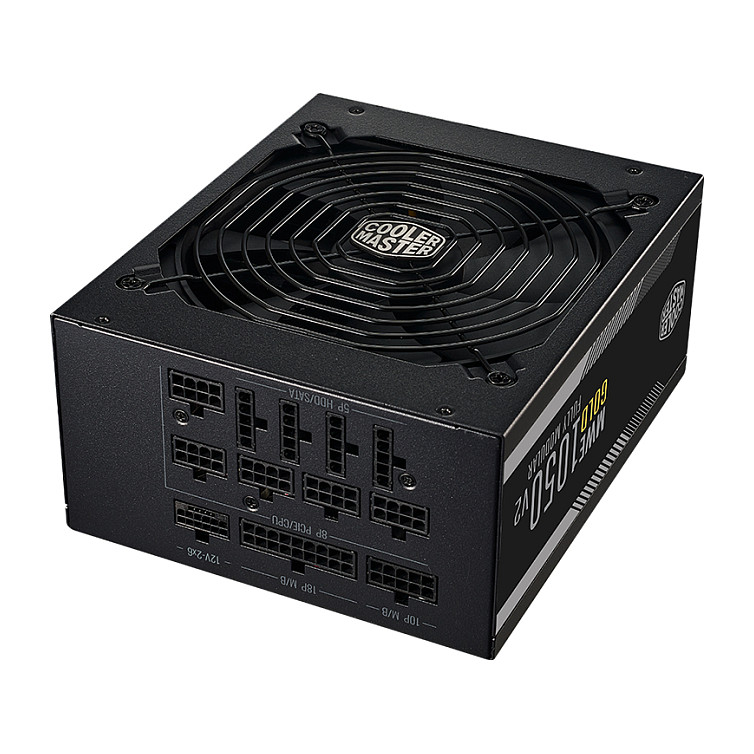

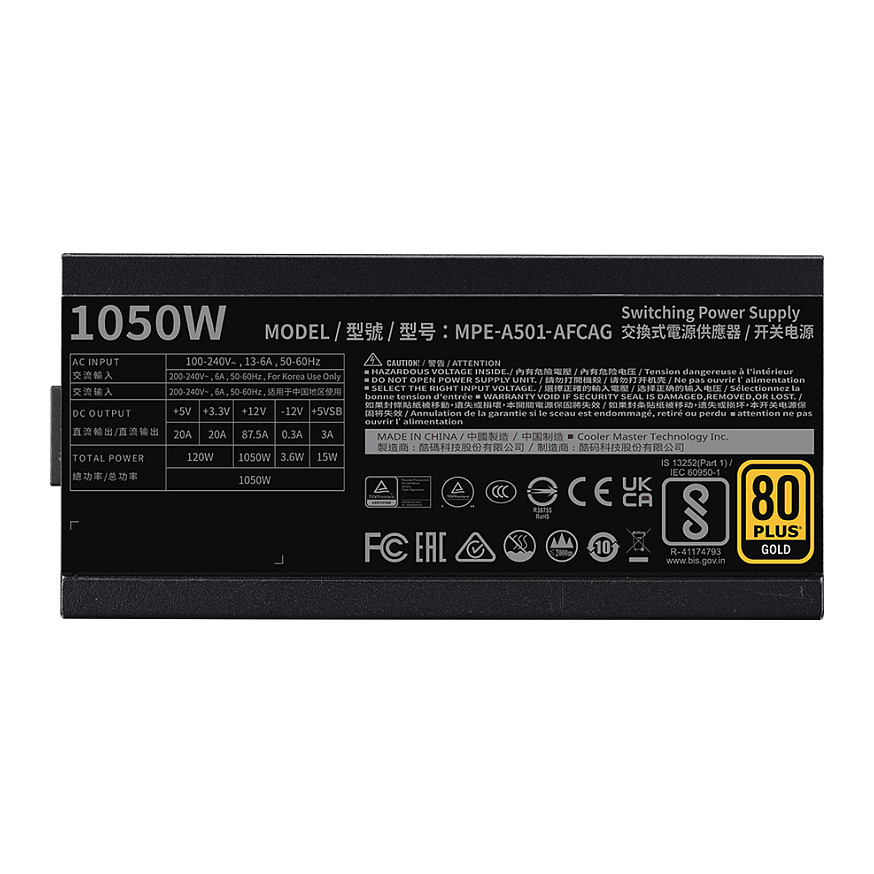

1050W Cooler Master MWE Gold 1050 V2 ATX3.1
Pre-Order
€121.99
VAT (19%) included
Description
80 PLUS Gold Efficiency High-quality Japanese capacitors 140mm Silent Fan High Temperature Resilience Fully Modular Cabling
Technical Specifications
SKU
KMPE-A501-AFCAG-3EEU
Total Power
1050 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50/60 Hz
Input Current
13 - 6 A
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
120 W
Combined Power (+12V)
105 W
Combined Power (+5V)
120 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
87.5 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Hold Time
16 ms
Efficiency
90%
Power Good Signal Delay Range
100 - 150 ms
Power Protection Features
Over power, Over total voltage, Over voltage, Overcharge, Short circuit, Under voltage
Motherboard Power Connector
24-pin ATX
Motherboard Power Cable Length
65 cm
Number Of Sata Power Connectors
12
Sata Power Cable Length
500, 620, 740, 860 mm
Peripheral (Molex) Power Connectors (4-Pin)
4
Peripheral (Molex) Power Cable Length
740, 620, 500, 860 mm
Pci Express Power Connectors (6+2 Pin)
3
Pci Express Power Connectors (12-Pin)
1
Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Gold
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
3.1
Bearing Technology
FDB
Mean Time Between Failures (Mtbf)
100000 h
Product Colour
Black
Cooling Type
Active
Fan Diameter
14 cm
Fan Location
Top
Compliance Certificates
BIS, BSMI, CCC, CE, EAC, Federal Communications Commission (FCC), RCM, TÜV mark, UKCA, cTUVus
Width
150 mm
Depth
180 mm
Height
86 mm
Weight
2.93 kg
Case Or Master Carton Dimensions (W X D X H)
325 x 620 x 220 mm
Package Width
197 mm
Package Depth
333 mm
Package Height
122 mm
Package Weight
3.36 kg
Package Type
Box
Sustainability Certificates
ErP
