FSP

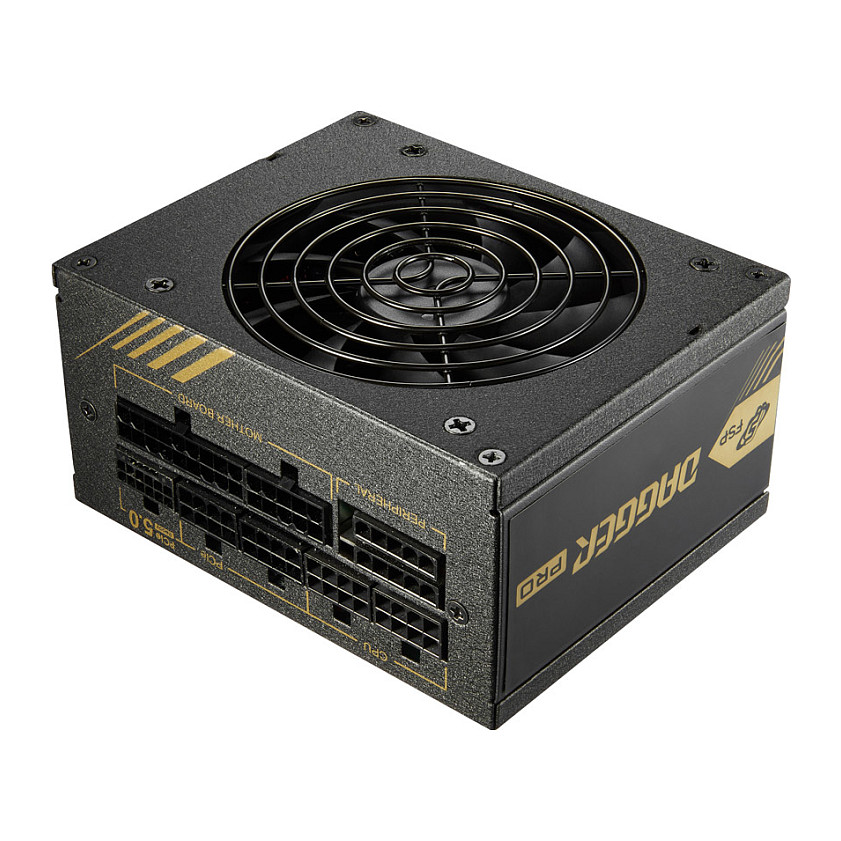

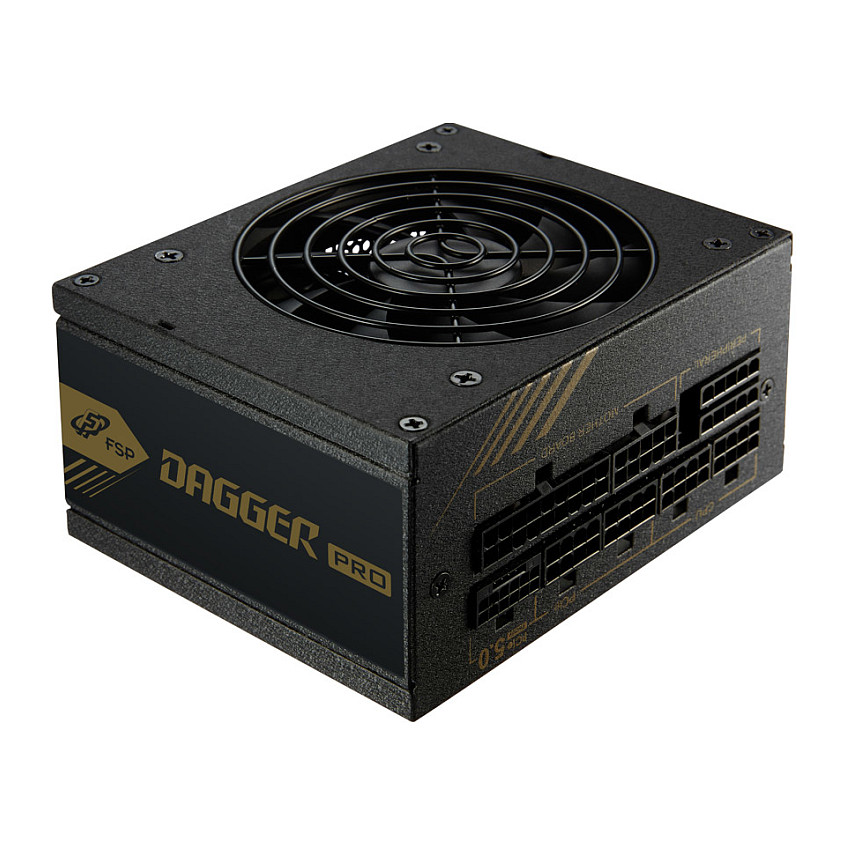

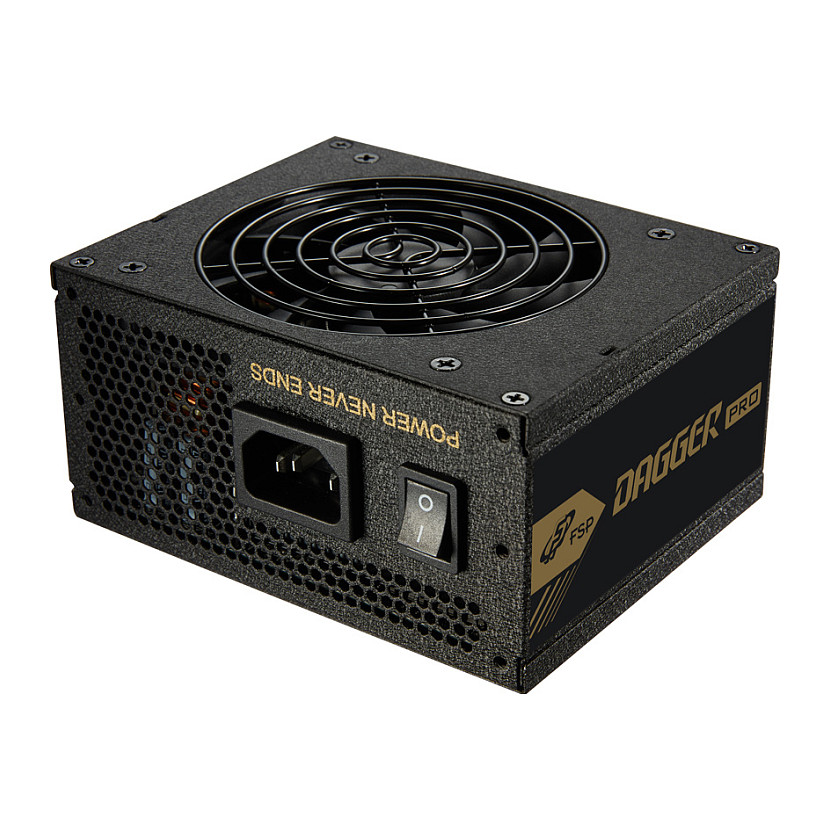

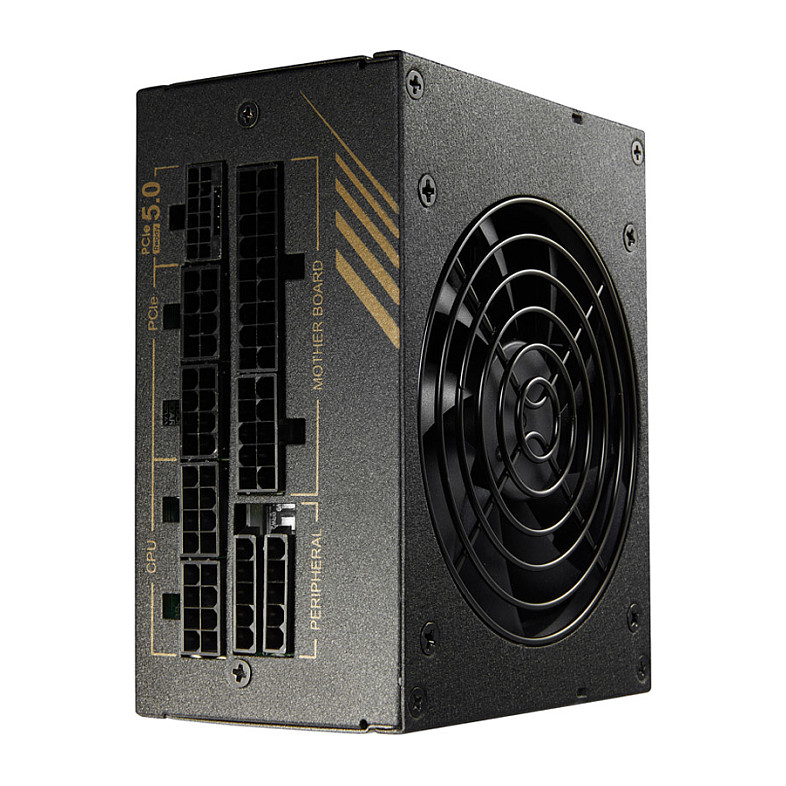

850W FSP DAGGER PRO 850 ATX 3.0 80+ Gold
Pre-Order
€160.99
VAT (19%) included
Description
Compliant with SFX12V V3.3 Efficiency ≧ 90% at typical load MIA IC (Multiple Intelligence Ability) chip set inside Semi-fanless design for silent operation Quiet and long-lasting 92mm ball bearing fan All black ribbon cables Powerful single +12V rail design Japanese electrolytic capacitors Full protections OCP, OVP, SCP, OPP, OTP
Technical Specifications
SKU
KPPA8503900
Total Power
850 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50/60 Hz
Input Current
12-6 A
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
120 W
Combined Power (+12V)
850 W
Combined Power (+5V)
120 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
12.5 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
70.83 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
2.5 A
Efficiency
90%
Power Protection Features
Over current, Over power, Over voltage, Overheating, Short circuit

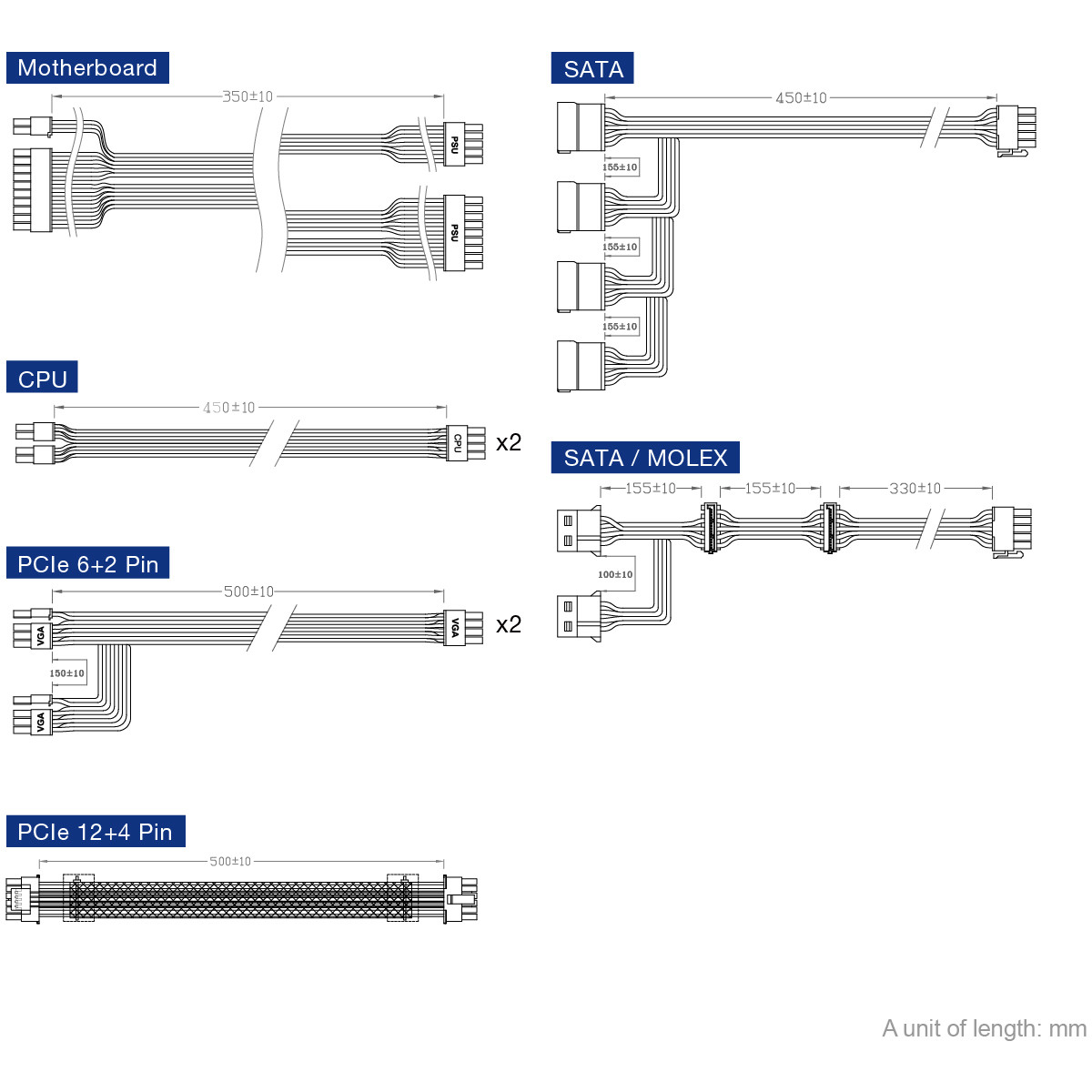

Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
35 cm
Number Of Sata Power Connectors
6
Sata Power Cable Length
450 mm
Peripheral (Molex) Power Connectors (4-Pin)
2
Pci Express Power Connectors (6+2 Pin)
2
Pci Express Power Connectors (12+4 Pin)
1
Pci Express Power Connectors (12+4 Pin) Cable Length
500 mm
Cpu Power Cable Length
45 cm
Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Gold
Purpose
PC
Power Supply Unit (Psu) Form Factor
SFX
Atx Version
3.0
Bearing Technology
Ball bearing
Product Colour
Black
Cooling Type
Active
Fan Diameter
9.2 cm
Number Of Fans
1 fan(s)
Fan Location
Top

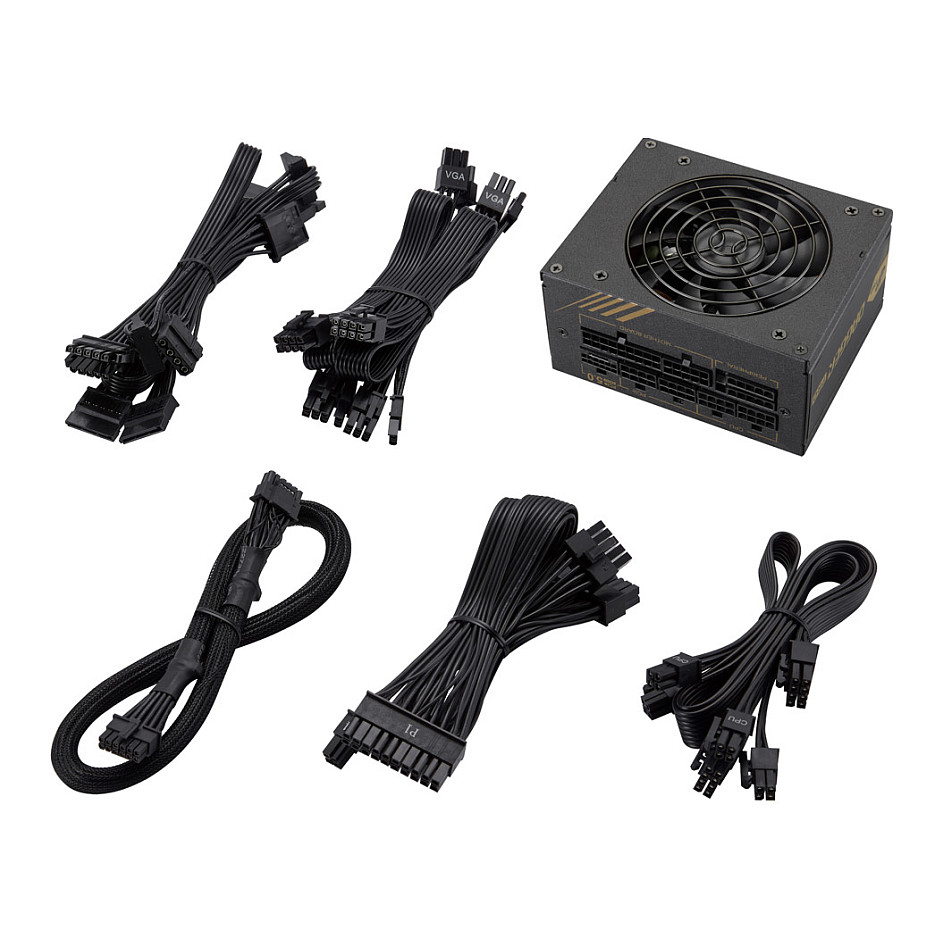

Cables Included
CPU, PCIe, Peripheral (Molex), SATA
Width
100 mm
Depth
125 mm
Height
63.5 mm
Warranty Period
7 year(s)
