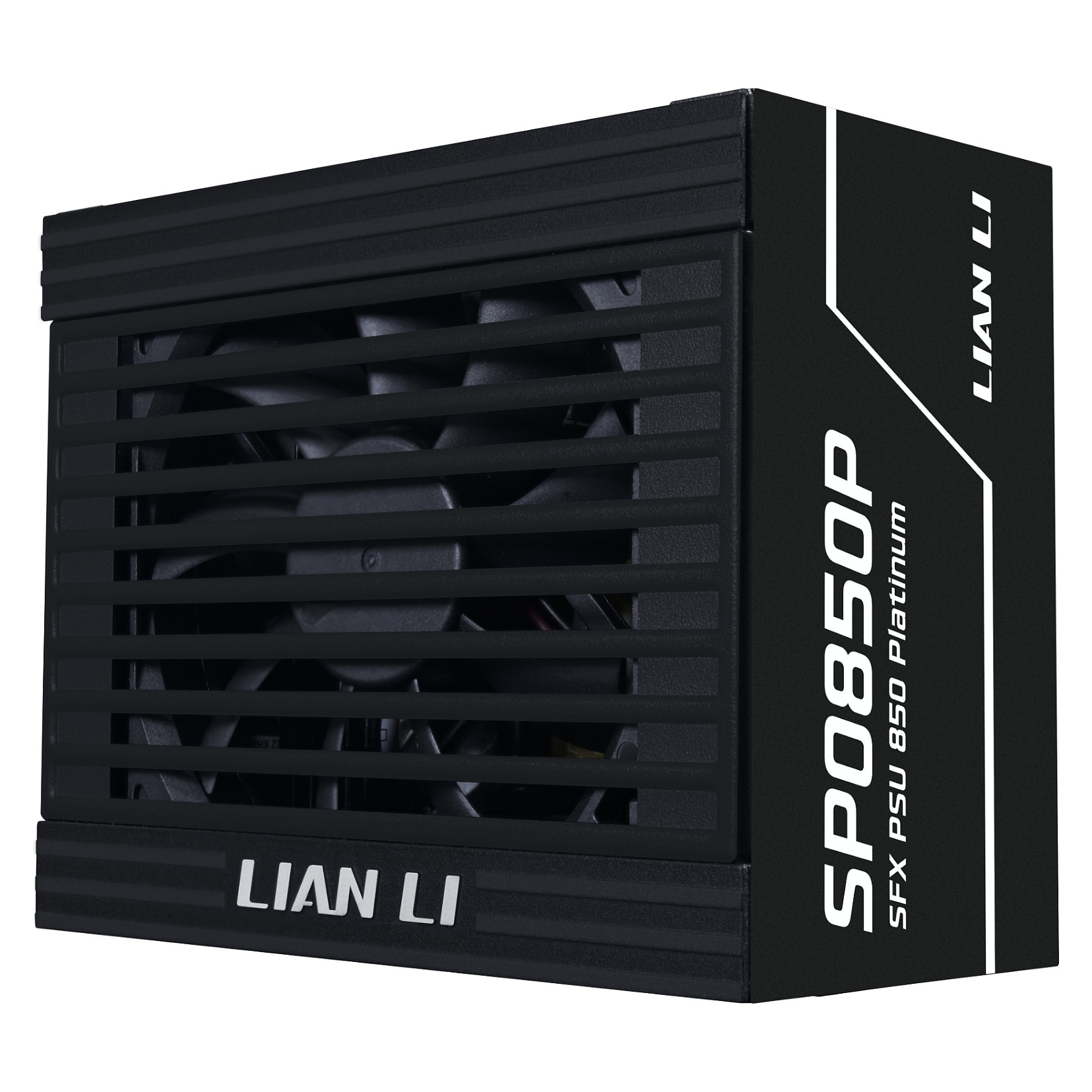

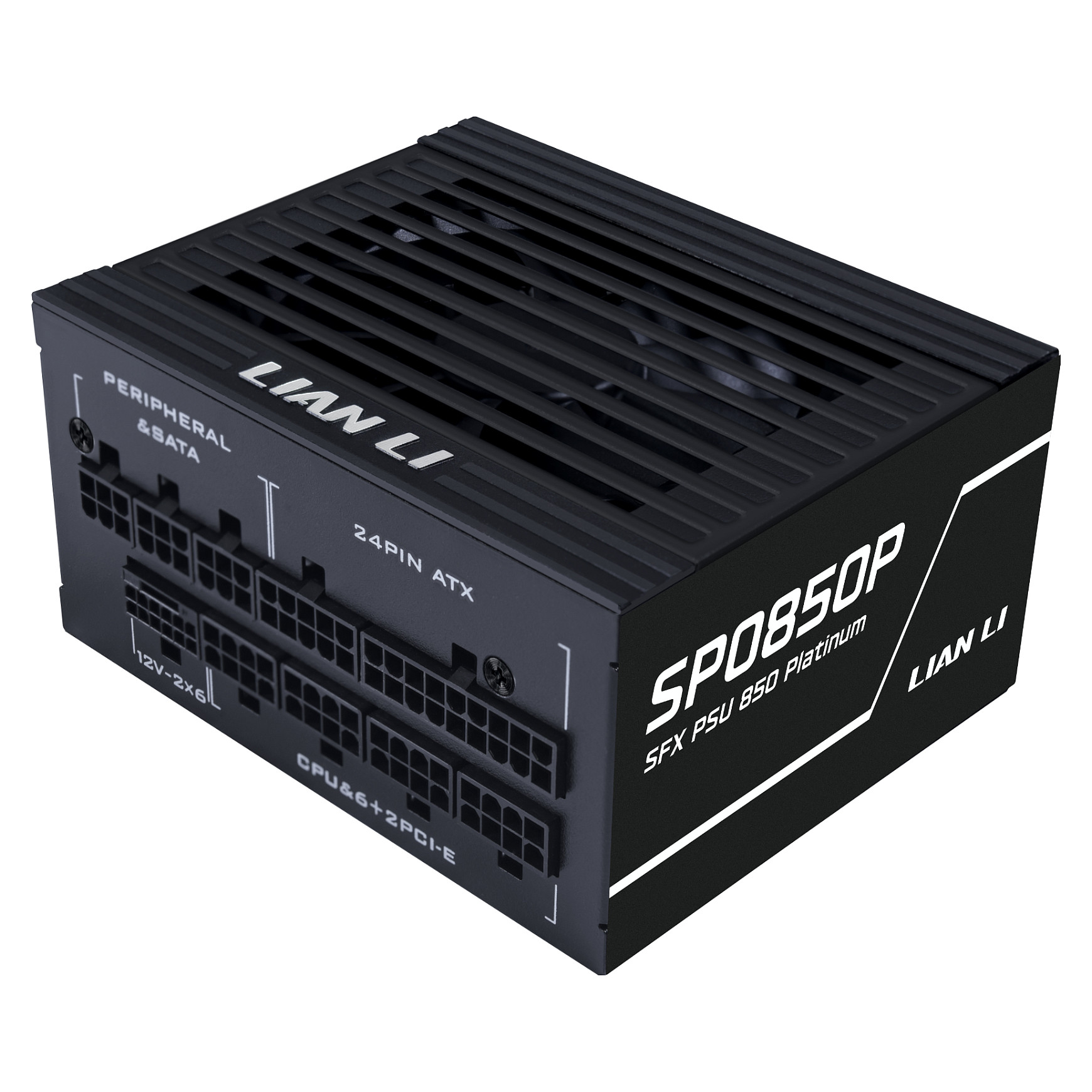

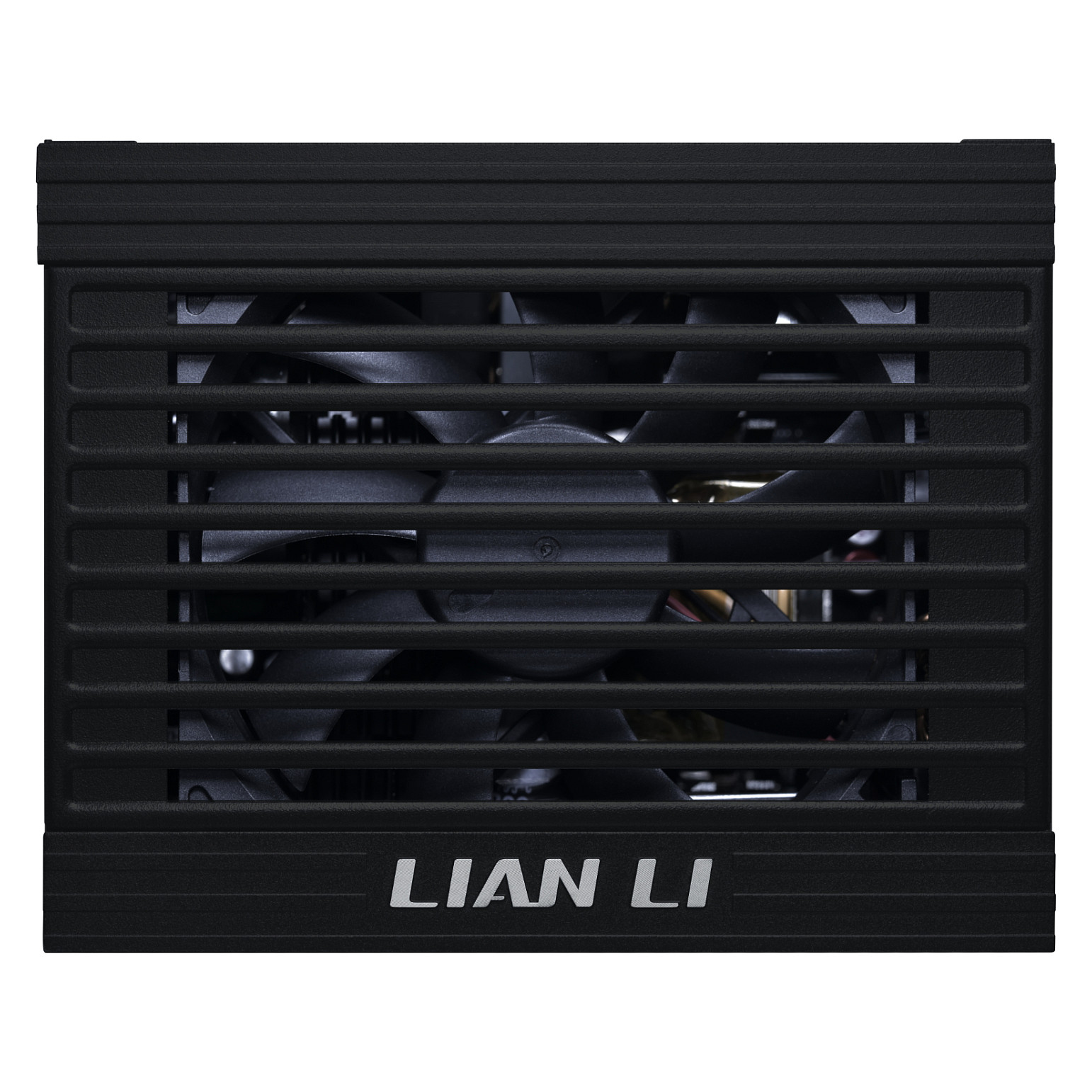

850W Lian Li SP Series Platinum ATX 3.1 Schwarz
Pre-Order
€170.99
VAT (19%) included
Description
High-power SFX design for compact and performance builds 80 PLUS Platinum certified for up to 92% efficiency at 50% load ATX 3.1 ready with reinforced 12V-2×6 600 W cable for next-gen GPUs Equipped with a 92 mm FDB smart fan for quiet, temperature-controlled cooling Built with 100% Japanese Rubycon 105°C capacitors for long-term reliability Full set of protection features including OPP, OVP, SCP, OTP, UVP, UCP Fully-modular braided cables for easy routing and a refined build appearance Optional SFX-to-ATX bracket included for wide case compatibility
Technical Specifications
SKU
KG9P.SP0850P.B000.EU
Total Power
850 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50/60 Hz
Input Current
6 - 12 A
Power Factor
0.95
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
100 W
Combined Power (+12V)
849.6 W
Combined Power (+5V)
100 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
70.8 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Power Protection Features
Over current, Over voltage, Overcharge, Overdischarge, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage

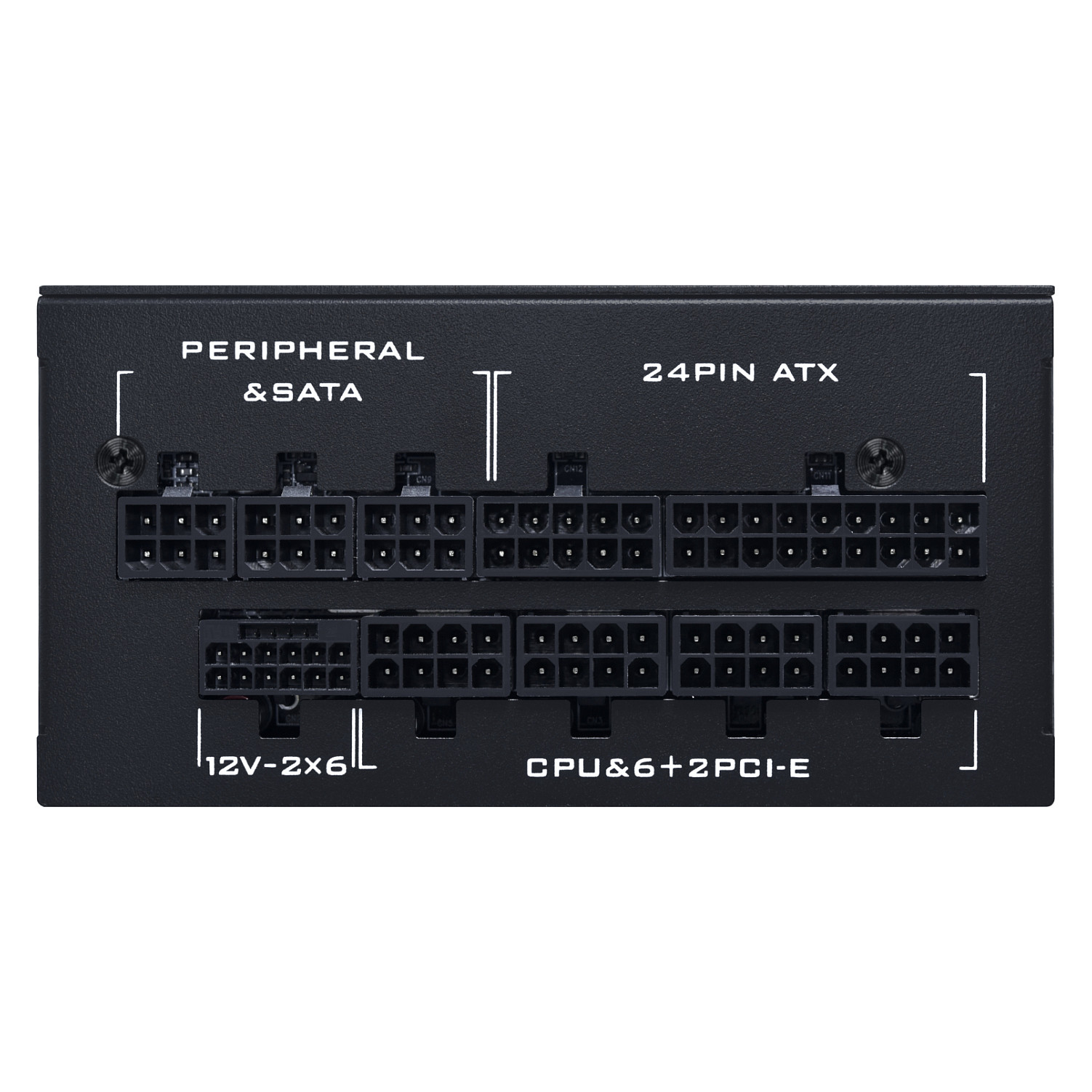

Motherboard Power Connector
24-pin ATX
Motherboard Power Cable Length
35 cm
Number Of Sata Power Connectors
3
Sata Power Cable Length
350, 500, 650 mm
Pci Express Power Connectors (8-Pin)
3
Cpu Power Cable Length
45 cm
Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Platinum
Purpose
PC
Power Supply Unit (Psu) Form Factor
SFX
Atx Version
3.1
Noise Level
40 dB
Bearing Technology
FDB
Product Colour
Black
Fan Diameter
9.2 cm
Number Of Fans
1 fan(s)
Operating Temperature (T-T)
0 - 40 °C
Width
125 mm
Depth
100 mm
Height
63.5 mm
