Chieftec

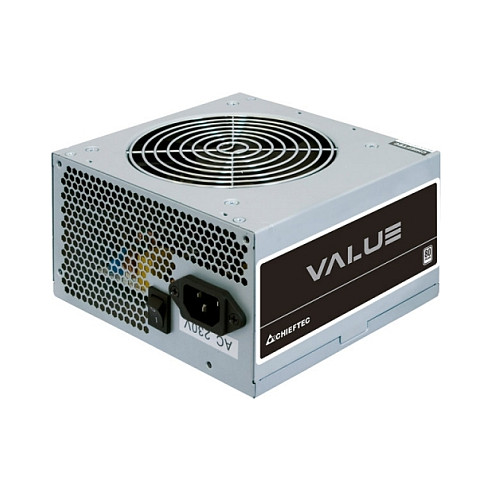

600W Chieftec Netzteil ATX (80+White)
Pre-Order
€55.99
VAT (19%) included
Description
600 W 200 - 240 V 47 - 63 Hz Motherboard power connector: 20+4 pin ATX PC ATX 80 PLUS Active 12 cm Steel
Technical Specifications
SKU
KAPB-600B8
Total Power
600 W
Peak Power
600 W
Ac Input Voltage
200 - 240 V
Ac Input Frequency
47 - 63 Hz
Maximum Input Current (@220V)
4.5 A
Combined Power (+3.3V)
120 W
Combined Power (+12V)
552 W
Combined Power (+5V)
120 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
12.5 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V1)
46 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
2.5 A
Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
55 cm
Number Of Sata Power Connectors
4
Sata Power Cable Length
150, 500 mm
Peripheral (Molex) Power Connectors (4-Pin)
2
Peripheral (Molex) Power Cable Length
150, 500 mm
Pci Express Power Connectors (6+2 Pin)
2
Floppy Disk Drive Cable Length
15 cm
Cabling Type
Non-Modular
80 Plus Certification
80 PLUS
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
2.3
Product Colour
Steel
Cooling Type
Active
Fan Diameter
12 cm
Number Of Fans
1 fan(s)
Fan Location
Top
Compliance Certificates
CE, RoHS
Width
150 mm
Depth
140 mm
Height
87 mm
Weight
1.42 kg
Package Weight
1.56 kg
Harmonized System (Hs) Code
84733020
