Chieftec

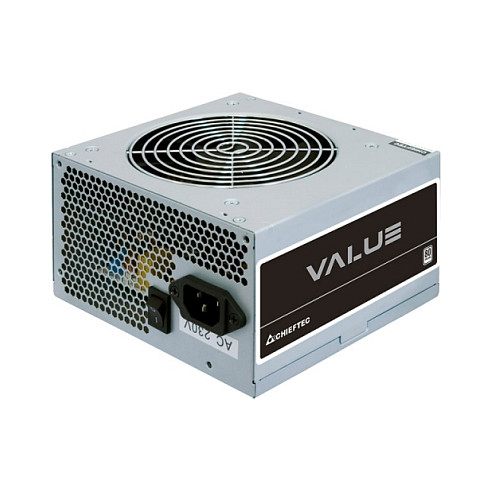

700W Chieftec Power Supply ATX (80+White)Bulk
Pre-Order
Usually ready in 3-5 business days
+ €30 Supplier Shipping
€42.99
VAT (19%) included
Description
700 W 200 - 240 V 47 - 63 Hz Motherboard power connector: 20+4 pin ATX PC/Server ATX 80 PLUS Active 12 cm Silver
Technical Specifications
SKU
KAPB-700B8
Total Power
700 W
Ac Input Voltage
200 - 240 V
Ac Input Frequency
47 - 63 Hz
Input Current
5 A
Power Factor
0.9
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
130 W
Combined Power (+12V)
648 W
Combined Power (+5V)
130 W
Max Output Current (+3.3V)
22 A
Max Output Current (+12V1)
54 A
Max Output Current (+5V)
22 A
Power Protection Features
Over voltage, Overheating, Overload, Short circuit, Under power, Under voltage
Motherboard Power Connector
20+4 pin ATX
Motherboard Power Cable Length
55 cm
Number Of Sata Power Connectors
4
Sata Power Cable Length
150, 550 mm
Peripheral (Molex) Power Connectors (4-Pin)
2
Peripheral (Molex) Power Cable Length
150, 500 mm
Pci Express Power Connectors (6+2 Pin)
2
Pci Express Power Cable Length
50 cm
Cpu Power Cable Length
50 cm
Floppy Drive Power Connector
1
Cabling Type
Non-Modular
80 Plus Certification
80 PLUS
Purpose
PC/Server
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
2.3
Product Colour
Silver
Cooling Type
Active
Fan Diameter
12 cm
Number Of Fans
1 fan(s)
Compliance Certificates
CE
Certification
CE, CB, EAC, TÜV
Width
150 mm
Depth
140 mm
Height
87 mm
Weight
1.42 kg
Package Weight
1.57 kg
Harmonized System (Hs) Code
84733020
