Thermaltake

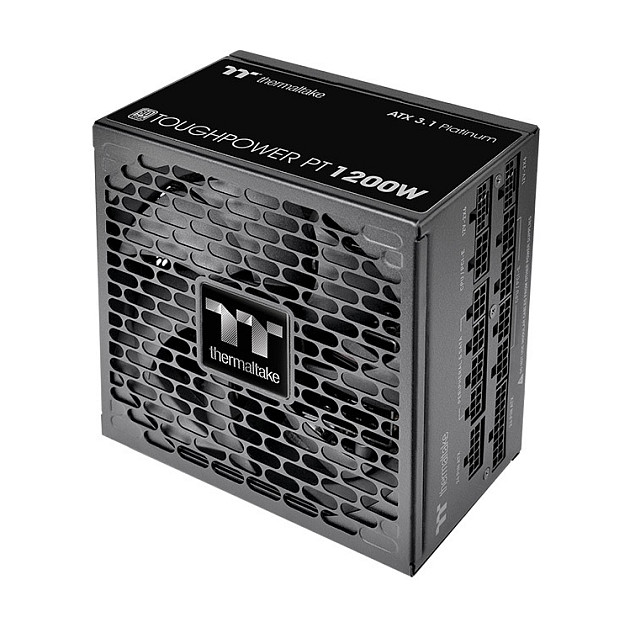

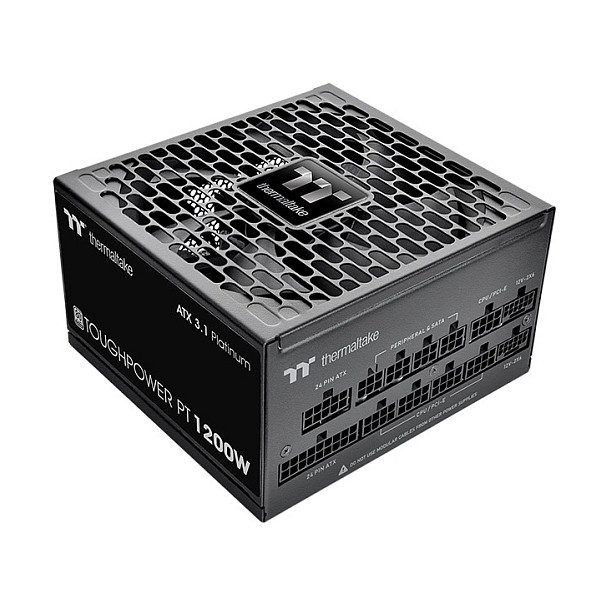

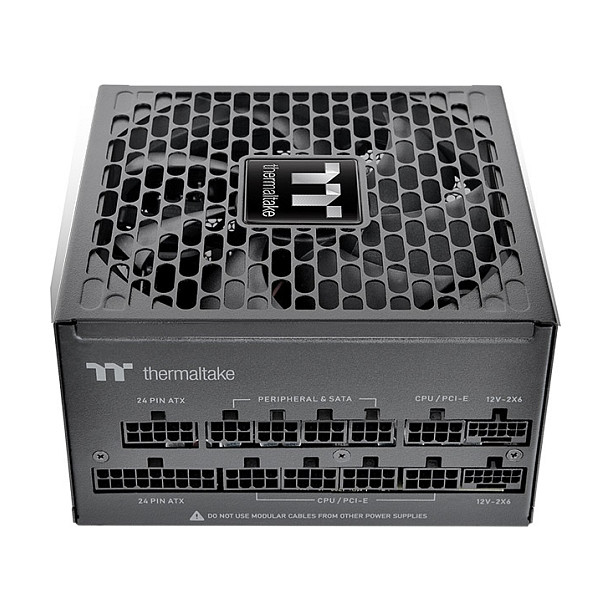

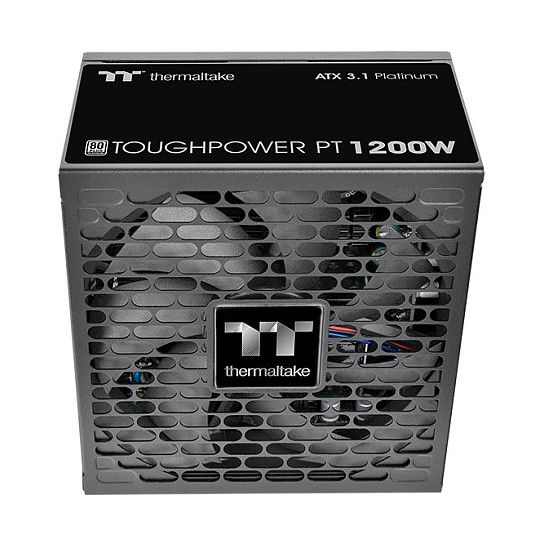

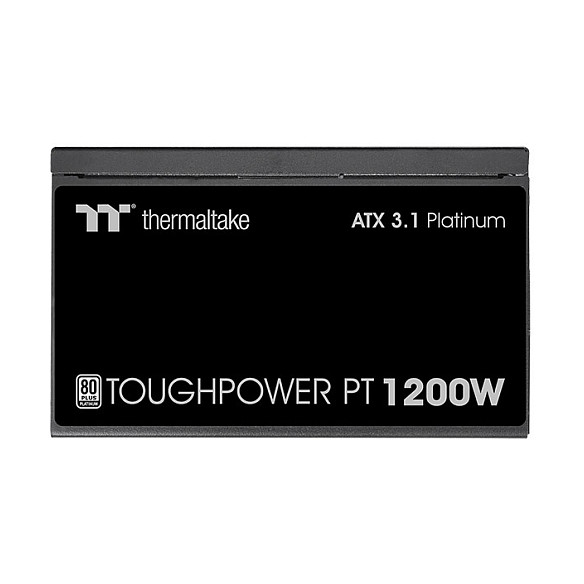

1200W Toughpower PT
Pre-Order
€206.99
VAT (19%) included
Description
1200 W 100 - 240 V 50/60 Hz Motherboard power connector: 24-pin ATX PC ATX 80 PLUS Platinum Active 13.5 cm Black
Technical Specifications
SKU
KPS-TPP-1200FNFAPE-1
Total Power
1200 W
Ac Input Voltage
100 - 240 V
Ac Input Frequency
50/60 Hz
Input Current
15 - 10 A
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
100 W
Combined Power (+12V)
1200 W
Combined Power (+5V)
100 W
Combined Power (-12V)
3.6 W
Combined Power (+5Vsb)
15 W
Max Output Current (+3.3V)
20 A
Max Output Current (+12V)
100 A
Max Output Current (+5V)
20 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
3 A
Hold Time
17 ms
Efficiency
92%
Power Good Signal Delay Range
100 - 150 ms
Power Protection Features
Over current, Over power, Over voltage, Short circuit, Under voltage
Motherboard Power Connector
24-pin ATX
Motherboard Power Cable Length
55 cm
Number Of Sata Power Connectors
6
Sata Power Cable Length
450, 600, 750 mm
Peripheral (Molex) Power Connectors (4-Pin)
4
Peripheral (Molex) Power Cable Length
750, 600, 450, 300 mm
Pci Express Power Connectors (6+2 Pin)
5
Pci Express Power Connectors (12+4 Pin)
2
Pci Express Power Connectors (12+4 Pin) Cable Length
600 mm
Cpu Power Cable Length
70 cm

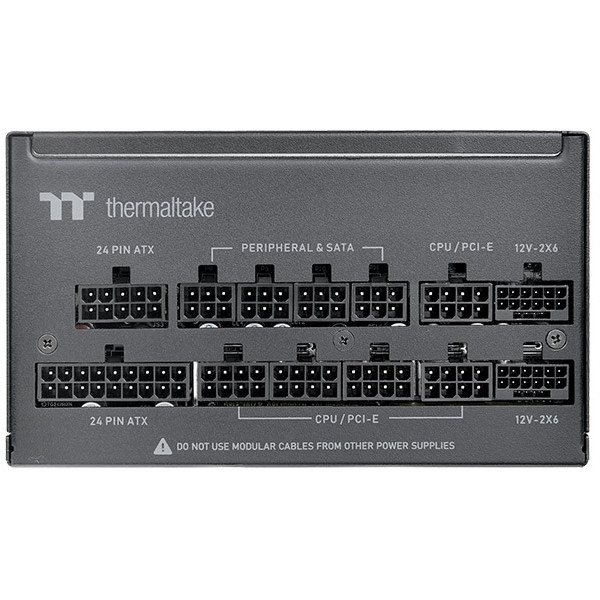

Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Platinum
Purpose
PC
Power Supply Unit (Psu) Form Factor
ATX
Atx Version
3.1
Bearing Technology
FDB
Mean Time Between Failures (Mtbf)
100000 h
Product Colour
Black
Cooling Type
Active
Fan Diameter
13.5 cm
Number Of Fans
1 fan(s)
Operating Temperature (T-T)
0 - 40 °C
Storage Temperature (T-T)
-20 - 70 °C
Operating Relative Humidity (H-H)
20 - 90%
Storage Relative Humidity (H-H)
5 - 95%
Safety
CE/UKCA/FCC/ICES/CB/TUV/cTUVus/LVD/CCC/BSMI/ S-MARK/EAC/RCM
Width
150 mm
Depth
140 mm
Height
86 mm
Package Type
Box
