Chieftec

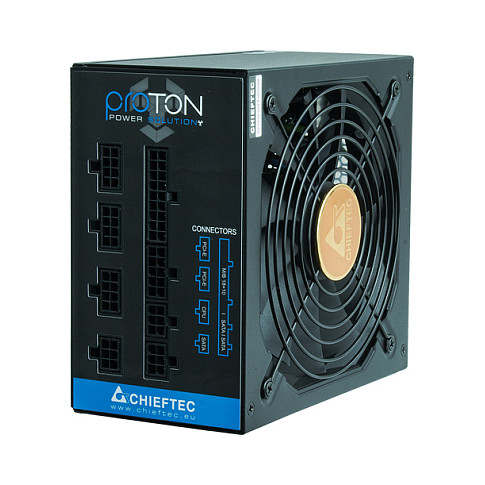

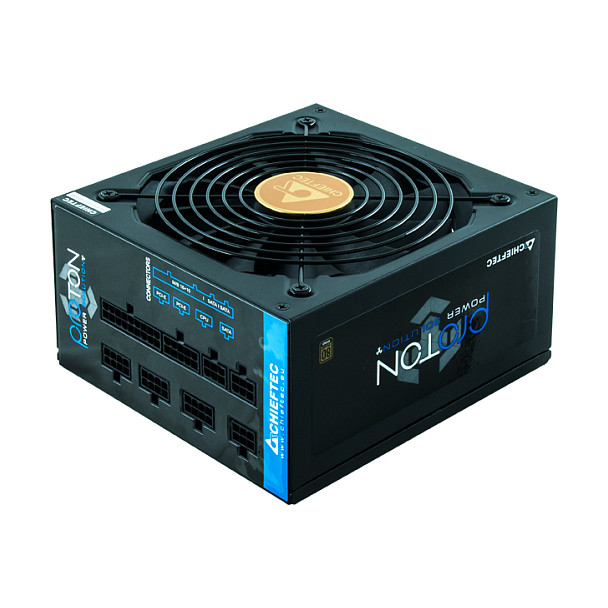

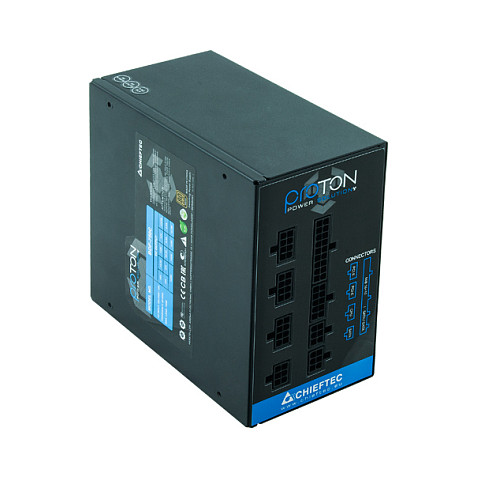

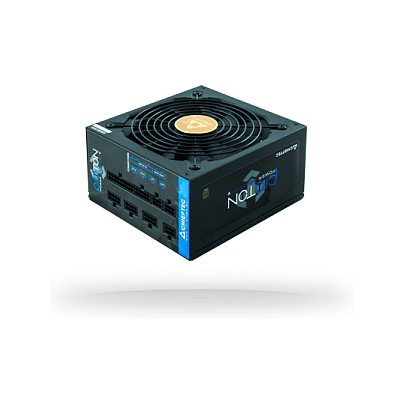

650W Chieftec PROTON Serie BDF-650C
Pre-Order
€78.99
VAT (19%) included
Description
650 W 115 - 230 V 50 - 60 Hz Motherboard power connector: 20+4 pin ATX PC PS/2 80 PLUS Bronze Active 14 cm Black
Technical Specifications
SKU
KBDF-650C
Total Power
650 W
Ac Input Voltage
115 - 230 V
Ac Input Frequency
50 - 60 Hz
Power Factor
0.9
Power Factor Correction (Pfc) Type
Active
Combined Power (+3.3V)
120 W
Combined Power (+5V)
120 W
Max Output Current (+3.3V)
22 A
Max Output Current (+12V)
54.2 A
Max Output Current (+5V)
22 A
Max Output Current (-12V)
0.3 A
Max Output Current (+5Vsb)
2.5 A
Efficiency
85%
Power Protection Features
Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage
Motherboard Power Connector
20+4 pin ATX
Number Of Sata Power Connectors
6
Peripheral (Molex) Power Connectors (4-Pin)
3
Pci Express Power Connectors (6+2 Pin)
4
Cabling Type
Fully-Modular
80 Plus Certification
80 PLUS Bronze
Purpose
PC
Power Supply Unit (Psu) Form Factor
PS/2
Atx Version
2.3
Product Colour
Black
Cooling Type
Active
Fan Diameter
14 cm
Number Of Fans
1 fan(s)
Fan Location
Top
Width
150 mm
Depth
140 mm
Height
87 mm
Package Type
Box
Harmonized System (Hs) Code
84733020
